Highlights
- Four ultra-low-noise Kashmir microphone preamps with adjustable limiters capture high quality audio in the field, on set, or with a computer.
- Create a mix using the built-in 6 x 2 portable mixer.
- Record up to 8 tracks to an SD card and backup to a USB thumb drive.
- 8-in, 4-out USB audio interface streams to your computer via USB-C.
- Choose bit depths from 16 to 32-bit float, and sampling rates from 44.1 kHz to 192 kHz.
- Internal LTC timecode generator. Timecode In/Out via Aux In/Stereo Out.
- Timecode and record triggering via HDMI.
- USB-A for control surfaces, keyboards, and auto-copy to USB drive.
- In-unit ISO mixing, gain, pan, low-cut, phase inversion, and phantom power.
- Sunlight-readable colour touch screen and LED metering.
- Lightweight, durable, and small: perfect for bag use, mobile recording, or a home studio.
- Powerful 300 mW+300 mW headphone amp allows clear and accurate reference of audio.

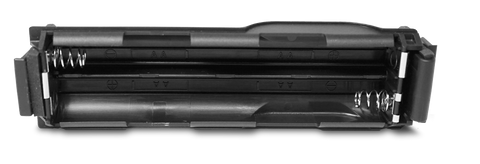

- Includes a MX-4AA Battery Sled (batteries not included), MX-PSU AC Power Supply, and USB-C to USB-C cable.
- Customise with plugins from the Plugin Store.
What’s New in the MixPre-6 II?
- Bit depth up to 32-bit float for increased dynamic range.
- Faster, more advanced hardware.
- Internal LTC Timecode Generation and Output.
- Adjustable Limiters.
- Auto-copy to USB Drive.
- Pre-roll buffer increased to 10 seconds.
Anytime, Anywhere Audio
Versatile. Durable. High-Performance.

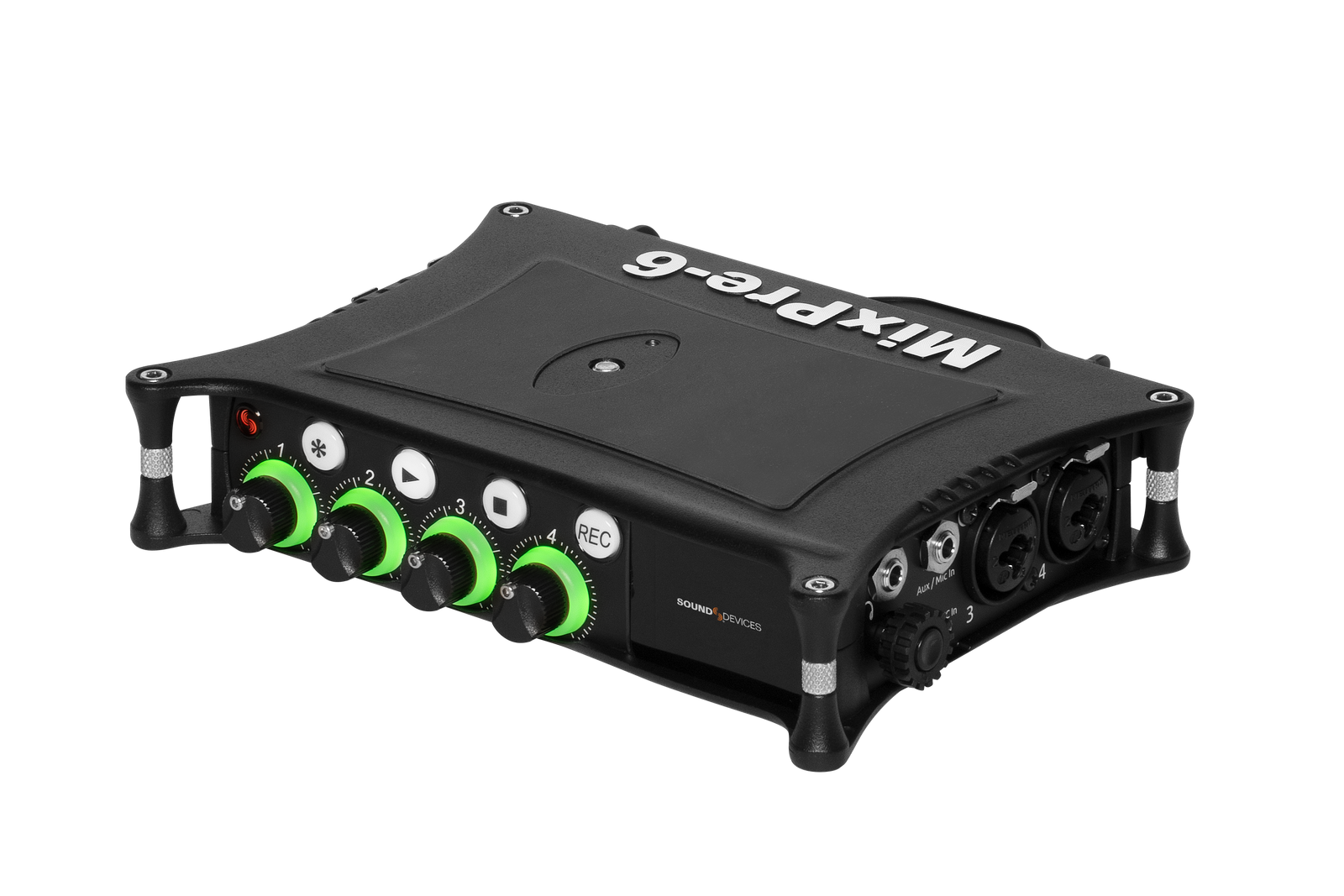

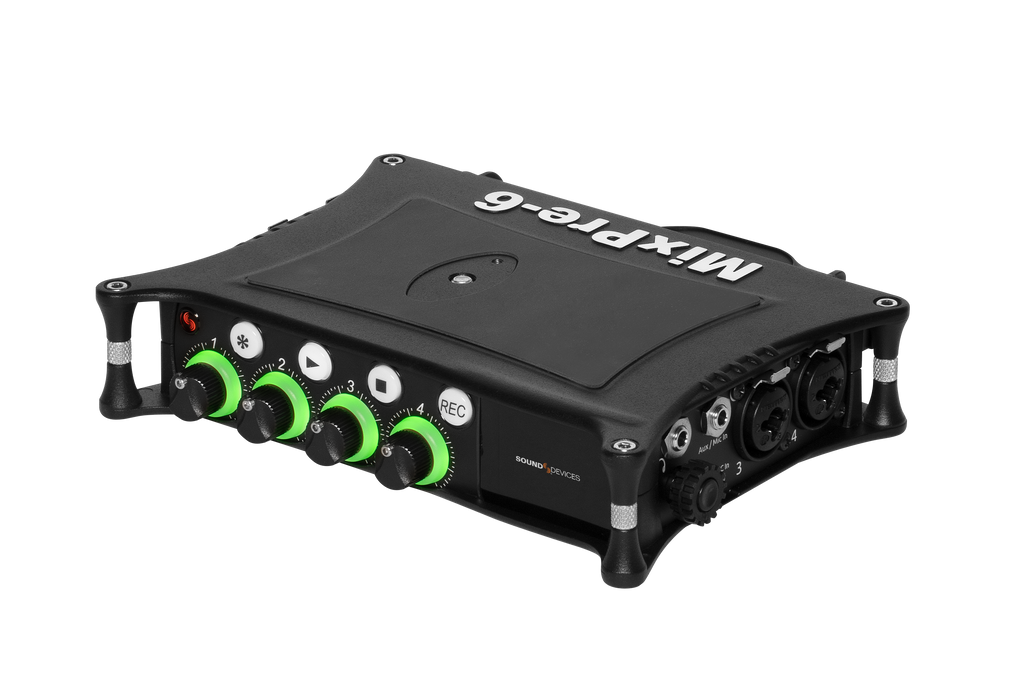

If you record field audio, sound effects, podcasts, voice-overs, music, audio for film, or are just starting your audio journey, the MixPre-6 II is for you! With four crystal-clear, ultra low-noise Kashmir preamps, you can record multiple actors, multiple podcasters, or audio for film with superior quality - all the way up to a 32-bit float bit rate and a 192 kHz sample rate. This newest generation of Sound Devices’ award-winning MixPre Series has been redesigned for increased performance and an astounding 142 dB of dynamic range.
Your MixPre-6 II is highly customisable to your needs. Record internally to a compatible SD card on set or stream your podcast over USB to your computer at home. Power with your computer, wall power, or record in the middle of nowhere with AA or Sony L-mount batteries. Adjust limiters, bit depth, sample rates, gain, pan, low-cut, phase inversion and phantom power to your liking. Trigger your camera with the internal timecode generator, or feed timecode in via HDMI or Aux In. The choice is yours!
Professionals love the flexibility of the MixPre Series. Don’t need all those options? Basic mode has you covered.
Your MixPre-6 II is rugged, lightweight, and small, so you can throw it in a bag or mount it to a tripod or camera - or get situated on set with our Wingman App and one of our four supported USB control surfaces. With the superior sound and build quality that you can expect from the industry leader in production audio recording, your MixPre-6 II can capture audio for any application. Our friendly and knowledgeable support team, based in the USA and Germany, is here for all your questions and comments. Our job is to make your job easier.
Customise With Plugins
Are you a songwriter or musician? Buy the Musician Plugin to easily create a song using your MixPre-6 II as a standalone recorder or USB interface. Use onboard features like overdub, bounce, reverb, and tracking to a metronome. Create Music Projects to lay down backing tracks and use them live or at home for writing or practicing. Capturing your song ideas has never been easier! While in Music Mode, the MixPre-6 II is limited to six simultaneous live inputs.
Download the free Ambisonics Plugin to record in 360° audio and monitor binaurally with an ambisonic microphone like the Sennheiser AMBEO and your MixPre-6 II.
MixPre-6 II Specs
Audio Inputs
- Frequency Response 10Hz to 80kHz +/- 0.5dB re 1kHz @ 192kHz sample rate
- THD + Noise 0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in)
- Audio Inputs ADC 32 bit precision; 142 dB dynamic range min (A-weighted, gain=10dB, fader=0dB)
- Equivalent Input Noise -130dBV (-128dBu) max (A-weighting, gain=76dB, 150 ohm source impedance)

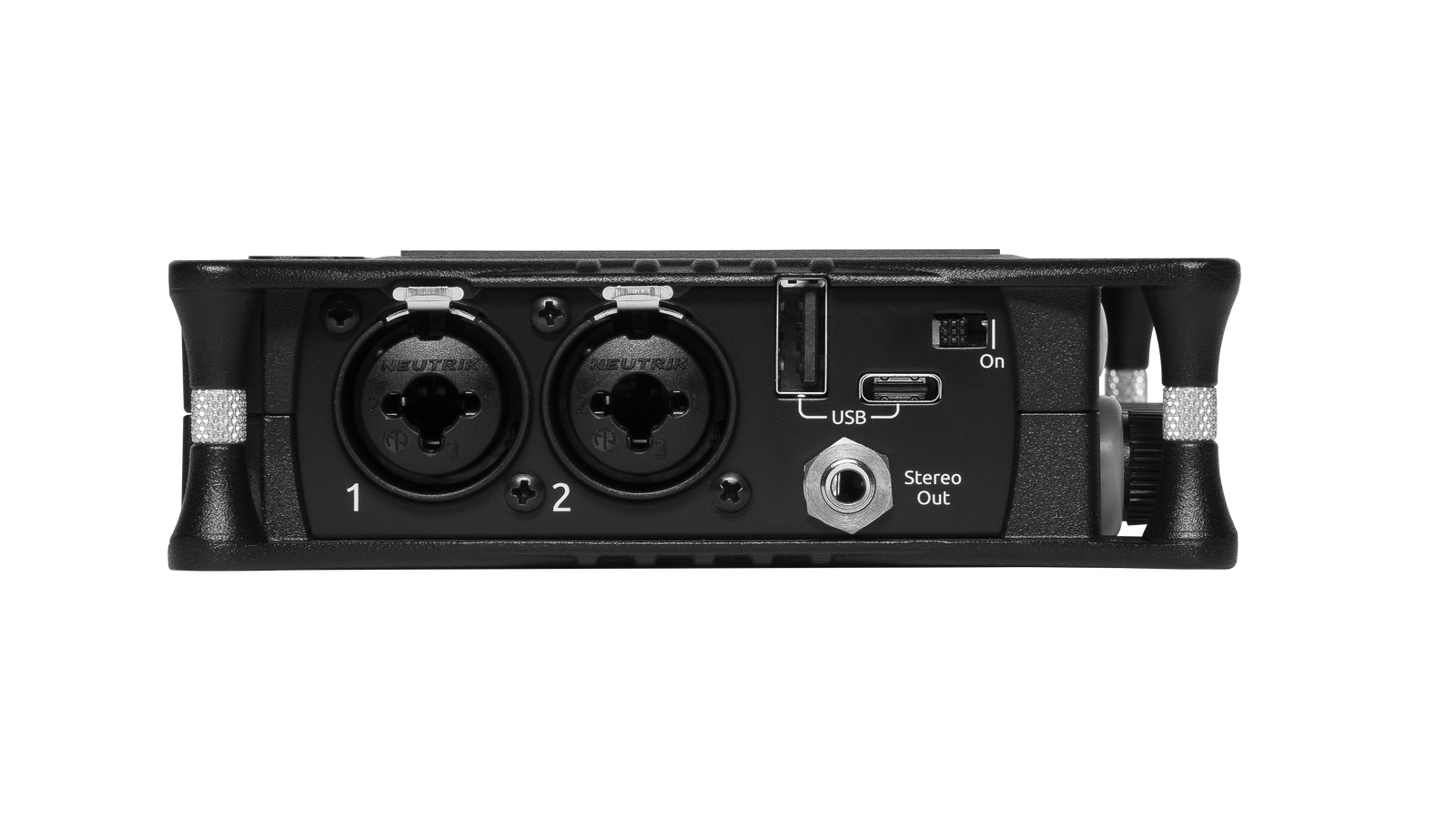

- Mic inputs XLR active-balanced; 4k input
- Line inputs XLR active-balanced; 4k input

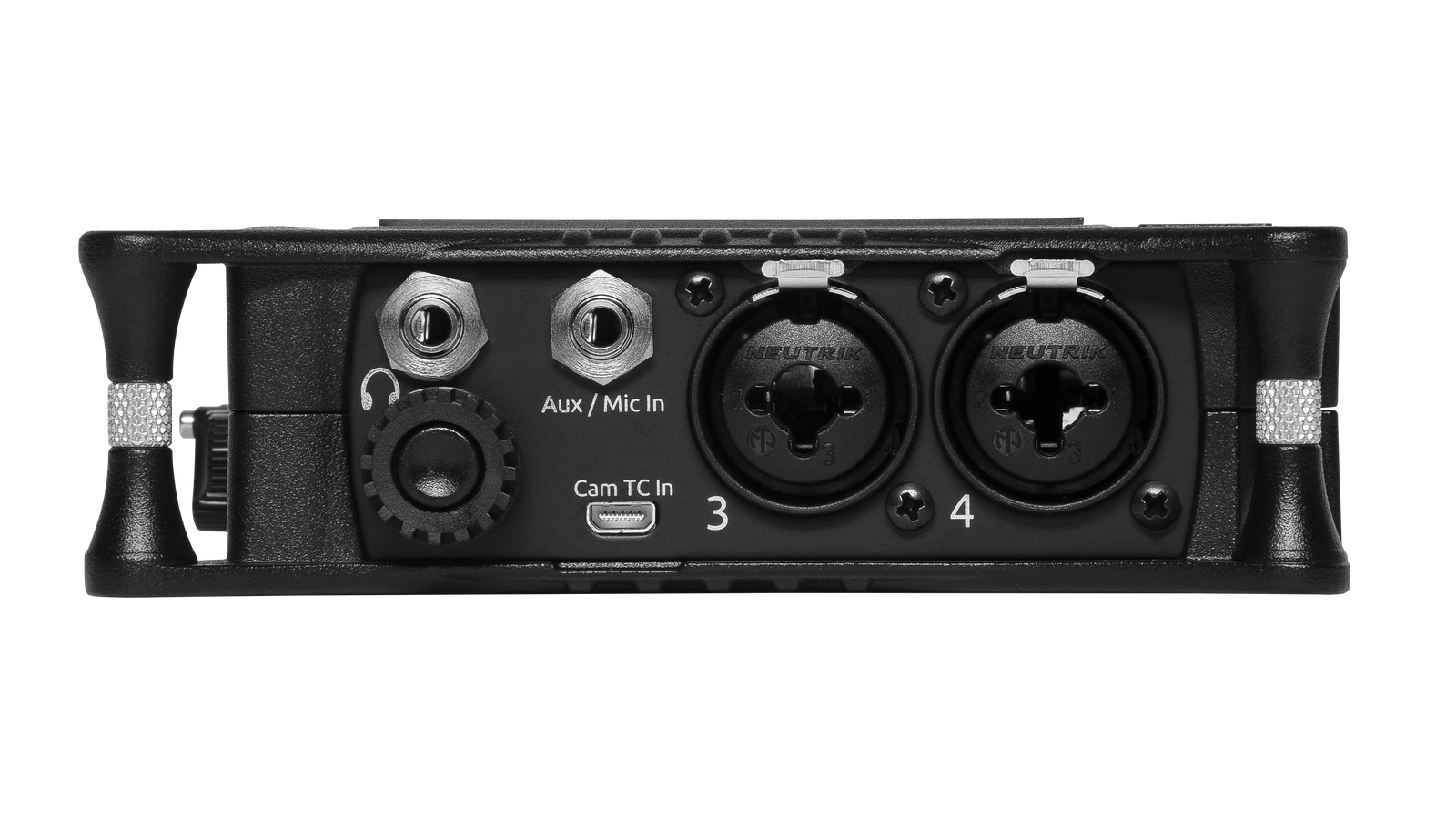

- Aux/Mic in: 3.5mm TRS, 2-channel unbalanced; 100k input
- Line inputs ¼-inch TRS active-balanced; 4k input
- USB audio input 4 channels
- All inputs fully RF-filtered and overload protected.
- Mic input gain: +6dB to +76dB
- Line input gain -20dB to +30dB
- Fader gain -inf to +20dB
- Headphone gain -inf to +20dB
- Total gain, Mic-to-recording (max): +96dB
- Aux In (Mic): Gain = +10dB to +40dB
- Aux In (Line): Gain = -10dB to +20dB
- Total Aux Gain including Fader (Mic-to-recording): +60dB
- Maximum Input Level Mic XLR: +14dBu (limiters on or off)
- Maximum Input Level Line XLR: +28dBu (limiters on or off)
- Maximum Input Level Aux In (Mic): -10dBu
- Maximum Input Level Aux In (Line): +10dBu
- Low Cut Filters 40Hz to 160Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital.
- Microphone Powering Mic XLRs: 48V via 6.8k resistors, 10mA each
- Microphone Powering Mic 3.5mm: 3V @ 3k source
- Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital. Adjustable Threshold, Ratio, and Release.
Audio Outputs
- DAC feeding Stereo Out, Headphone Out 32 bit precision; 115dB dynamic range (A-weighted)
- Stereo Out 3.5mm TRS stereo unbalanced, 500 ohm output, +7.8dBu max output level
- Headphones Out 3.5mm TRS stereo unbalanced, 300mW + 300mW, for use with any impedance headphones
USB
- USB Audio Interface (USB-C): 8-in/4-out; 44.1 to 96 kHz; 16/24-bit; Class-compliant USB 2.0 high speed or ASIO® (supplied via download)
- USB Mass Storage (USB-C): USB 2.0 high speed
- USB Keyboard (USB-A): Text entry and control
- USB Thumbdrive (USB-A): Manual or auto-copy to drive
- USB Midi Control Surface (USB-A)
Recording
- Maximum Record Tracks 8 Tracks: Stereo mix + 6 ISOs
- Sampling Frequency 44.1, 47.952, 48, 48.048, 96, 192 kHz
- Bit Depth 16, 24, 32 Float
- Recording Storage Type: SD, SDXC, SDHC Card (USB thumbdrive, copy only) Max Storage Size: 512 GB (SDXC)
- Recording Storage Card format: exFAT
- File Type Polyphonic WAV
Timecode
- Timecode Modes Free Run, Time of Day (file stamped w/current ToD),Rec Run, Ext LTC (file stamped w/incoming LTC on 3.5mm Aux In), Camera TC (file stamped w/incoming TC from cameras that output TC)
- Timecode Frame Rates Auto-detects (fps): 23.98 (same as 23.976), 24, 25, 29.97DF, 29.97ND, 30, 30DF
- 3.5 mm Aux In Timecode Input 20k ohm impedance, 0.3 V - 3.0 V p-p (–17 dBu - +3 dBu)
- 3.5 mm Stereo Out Timecode Output 1k ohm impedance, 3.0V p-p (+12 dBu)
- HDMI TC Reader via HDMI
Remote Control
- Bluetooth LE: Wireless control using Wingman app
- HDMI (micro): Auto-record start/stop trigger from cameras that output record flag over HDMI
- Timecode: Auto-record start/stop trigger via Aux In timecode
Touch Screen
- 320x256; 1.6-inch, colour, sunlight-viewable IPS LCD
Power

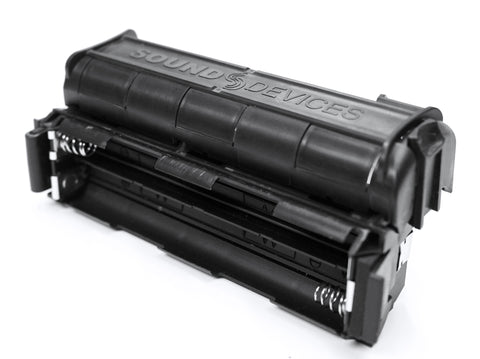

- AA Batteries: 4x AA sled (included); 8x AA sled (optional accessory). NiMH recommended
- From computer: Bus-powered via USB-C port; optional MX-USBY cable, connects one USB-C to two USB-A ports

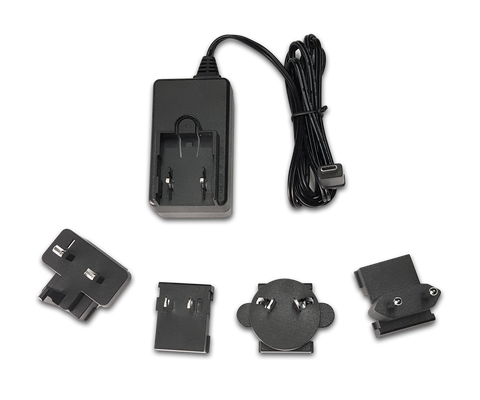

- AC Adapter: MX-PSU (included) Power supply wall adapter w/ USB-C connector; 15W; has 4 adapter plugs for US, UK, AU & Europe

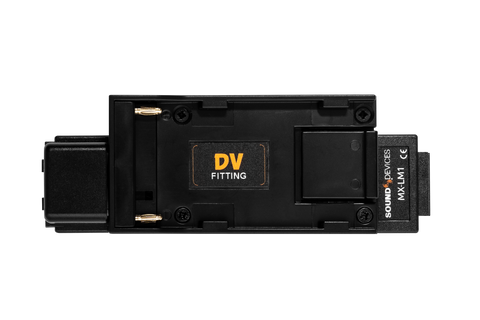

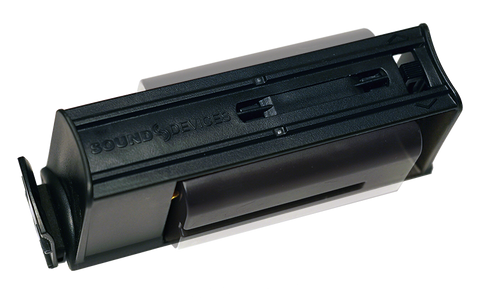

- L-Mount: Optional sled for 2x (hot-swappable) Sony L-type Li-ion batteries
Environmental
- Operating: -20°C to 60°C, 0 to 90% relative humidity; (non-condensing)
- Storage: -40°C to 85°C
Dimensions
- 36mm x 166 mm x 118 mm (H x W x D); 1.40” x 6.53” x 4.65”
- Weight: .56 kg; 19.9 oz. (unpackaged, without batteries)
