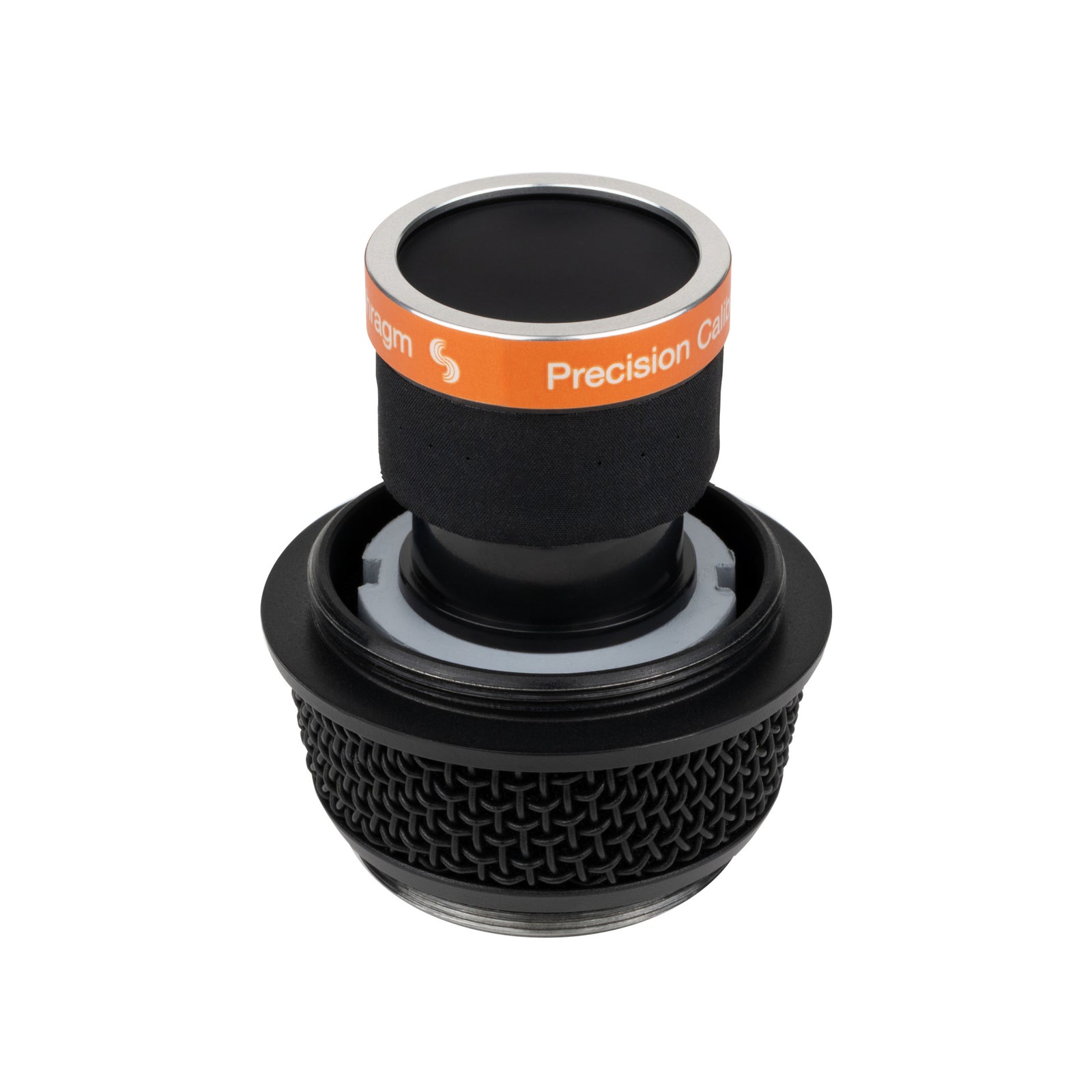

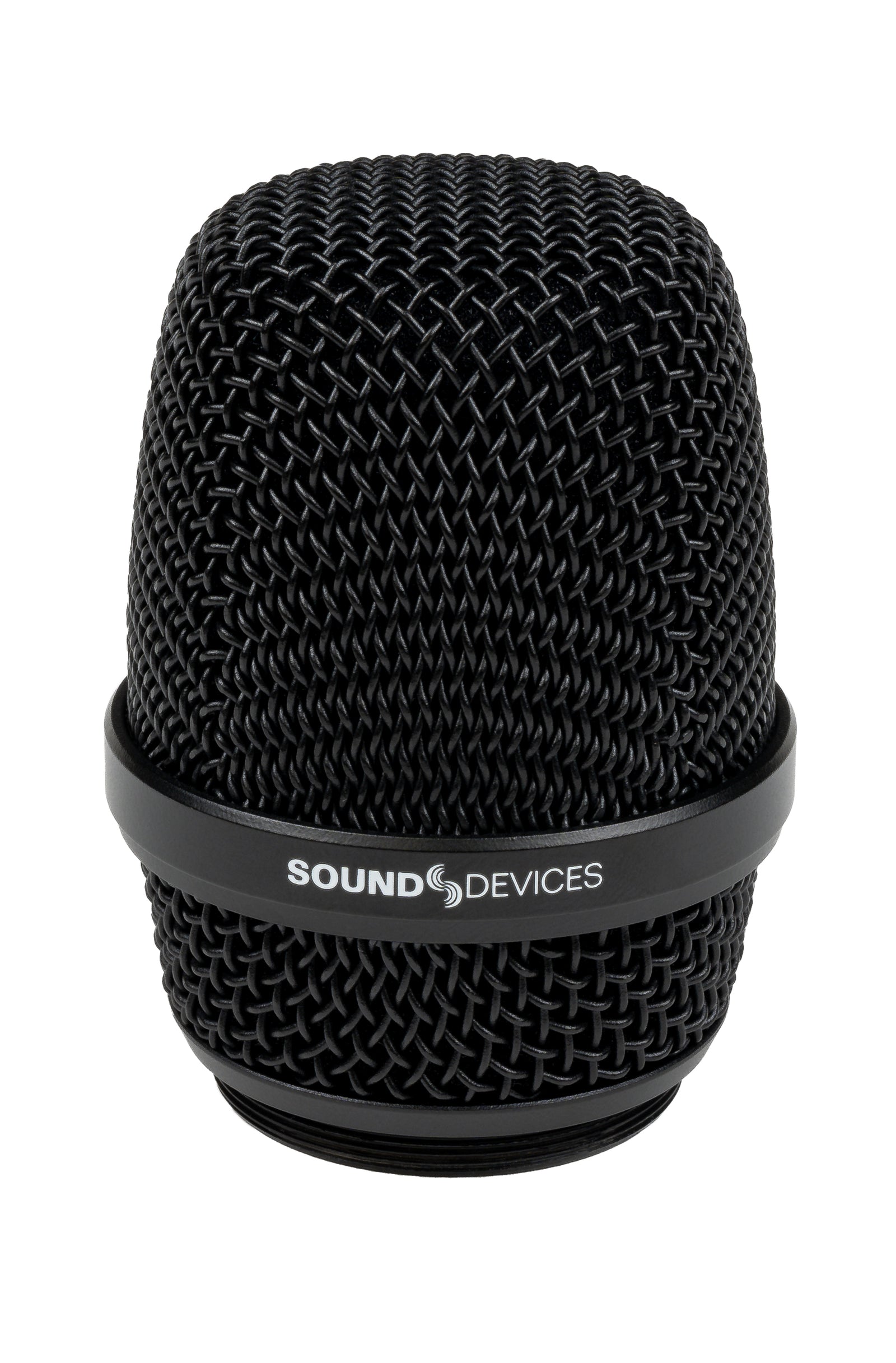

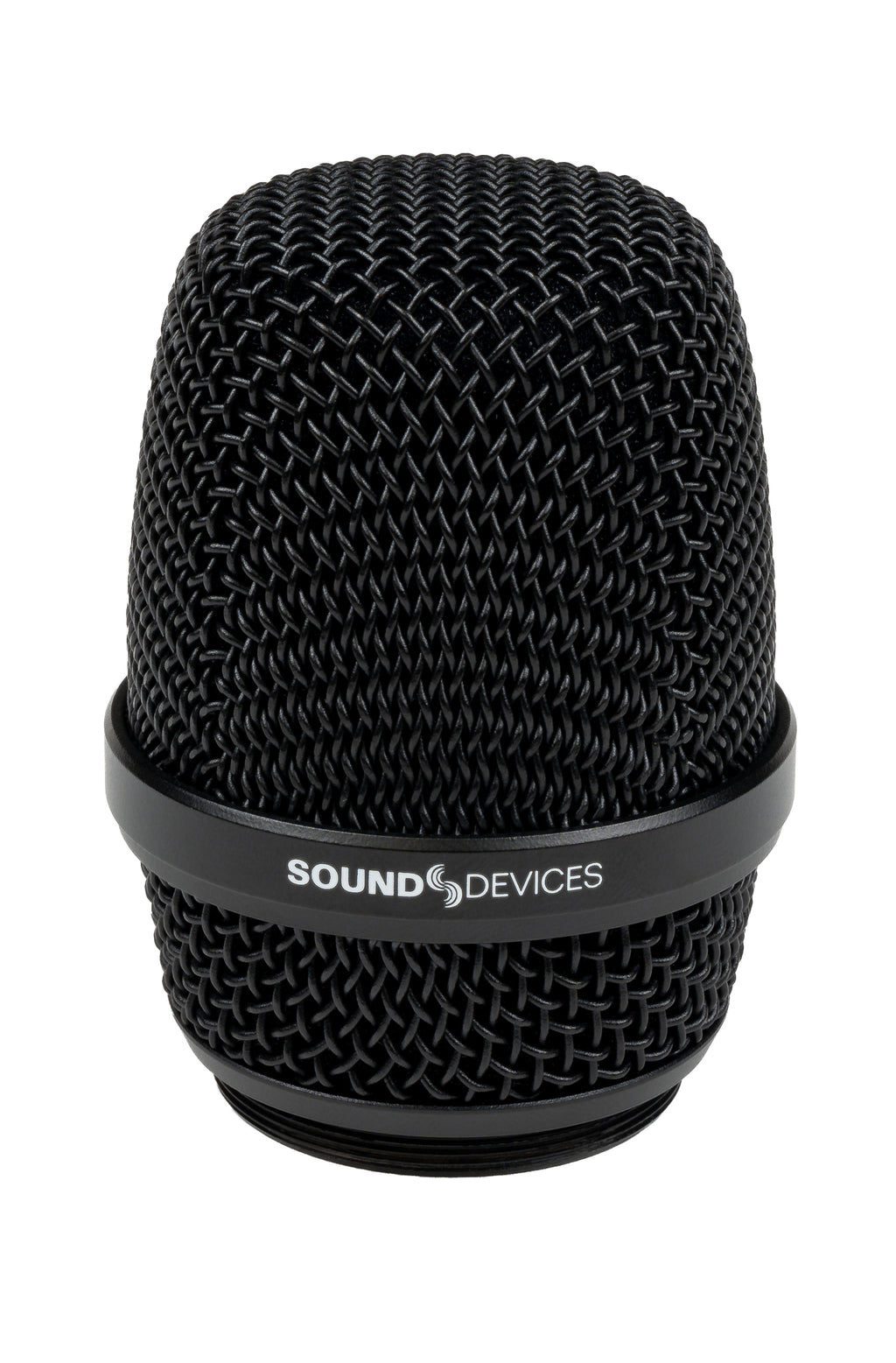

The CD1 Mic Capsule is the world’s only 100% calibrated, dynamic mic. This patent-pending feature means that every CD1 matches every other CD1 ever made. Same sensitivity, same frequency response, day after day. The CD1 features a cardioid polar pattern and has a well-balanced frequency response tailored for vocals.
The CD1 also features a patented dual-engine design: two voice coils and two diaphragms, yielding consistent polar-patterns over frequency, low handling noise, and excellent dynamic range.
Despite its superior sound capabilities, the CD1 capsule is built for the rigours of touring and life on the road. Its rugged construction, shock-mounting, and steel grille mean that after many drops, the show carries on.
Specs:
Type
- Dynamic mic, moving coil
- Dual diaphragm, dual voice coil
- 100% swept and calibrated at factory
Polar pattern
- Cardioid
Frequency response
- 50 – 15,000 Hz
Output Impedance
- 600 ohms
Sensitivity
- -54 dBV/Pa
Max Acoustic Level
- >140 dB SPL
