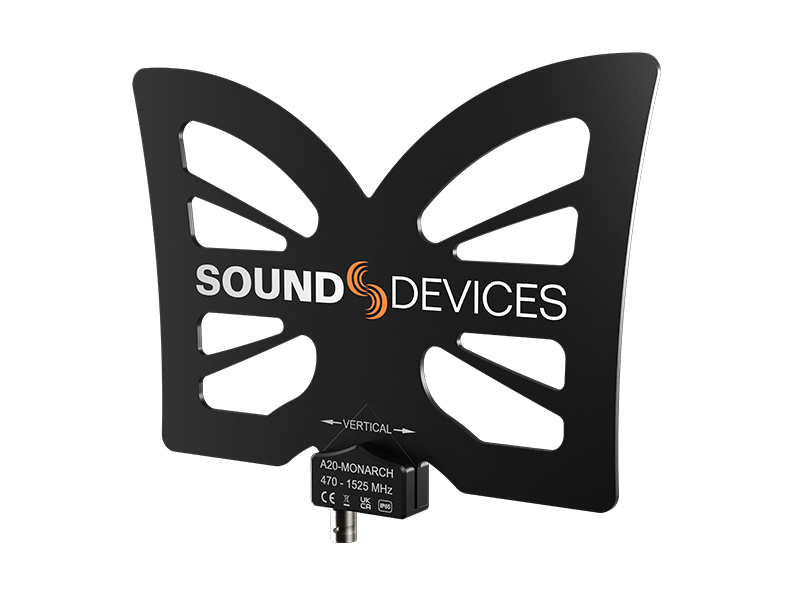

Small but mighty! Wideband omnidirectional antenna that covers the entire A20-Nexus operating frequency range (SpectraBand).
Specifications
Frequency range
- 470 MHz – 1600 MHz
Gain
- 2.2 dBi
Pattern
- Omnidirectional
Return Loss
- Better than 15 dB across entire 470 – 1600 MHz range
Mounting Threads
- ¼-20
Dimensions (H x W x D)
- 17.0 cm x 21.0 cm x 1.7 cm
- (6.68 in x 8.26 in 0.67 in)
Weight
- 0.12 kg (unpackaged)
- 0.26 lbs (unpackaged)
