Expand & Secure Your Mac Pro
Building on the concept of our award-winning xMac mini Server for Mac® mini, we designed an expansion system that safely encloses the latest Mac Pro® into a tightly integrated 16" deep rackmount enclosure, incorporates PCIe card expansion with three PCIe 2.0 slots and 20Gbps Thunderbolt™ 2 technology, and provides the capability to add peripherals with optional Mobile Rack Device Mounting Kits.
The new Mac Pro is an object of desire, but a lustrous finish hides its true beauty within—massive power. If you’re a pro user in the video or audio industries, the Mac Pro offers the power you need, but lacks the built-in expandability you count on. In order to achieve this engineering feat, Apple® designers stripped away components and space to a minimum, taking out PCIe slots and drive bays, and packed the remaining components into a small cylinder. Its compact size makes the new Mac Pro more transportable and rackable, but prevents onboard installation of PCIe expansion cards. In addition, the computer still requires an enclosure to make it road- or rack-ready and provide convenient cable management.

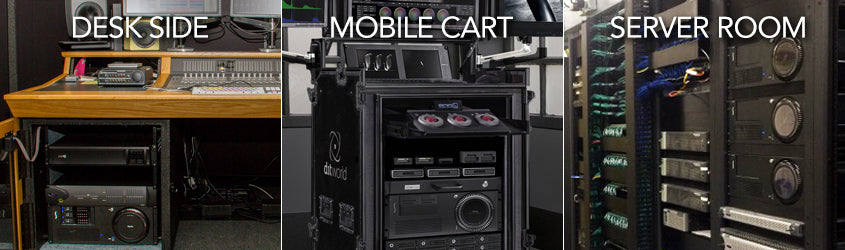

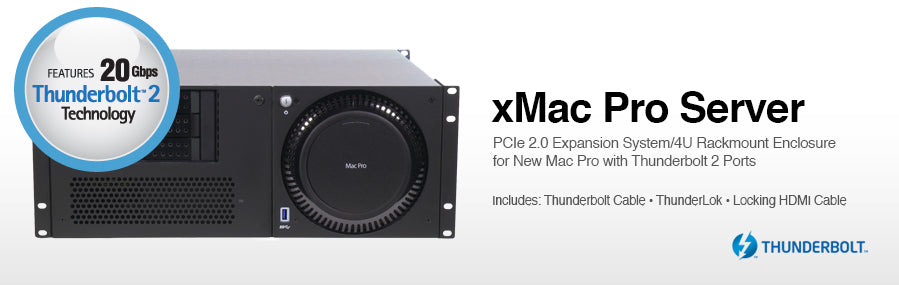

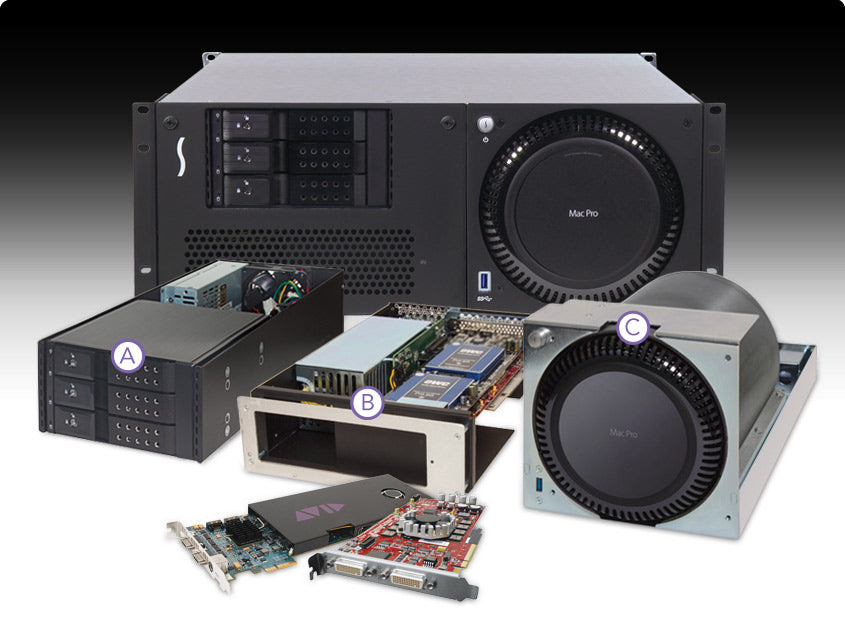

Sonnet’s xMac™ Pro Server PCIe 2.0 expansion system/4U rackmount enclosure addresses these issues and increases a Mac Pro’s potential in a big way. With amazing expansion capabilities, an easy to maintain modular design, and support for a wide range of popular mobile racks, carts and portable rack cases, xMac Pro Server is the perfect solution for expanding the power of your Mac Pro.

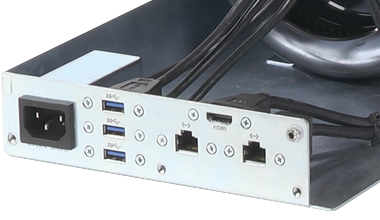

Rear Panel Mount Cables
Panel-mount cables (HDMI, two Gigabit Ethernet, three USB 3.0, one 3.5 mm audio [out or in], and power) connect the ports on the back of each Mac Pro to ports on the back each Computer Mounting Module for convenient external connection.

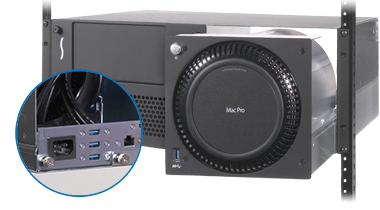

New Faceplate & Thumbscrew Design
Because of the active electronics contained in each end of a Thunderbolt cable, panel-mount connectors for Thunderbolt cables do not exist; Thunderbolt cables must be connected directly to the computer. Sonnet has updated the xMac Pro Server to make that task, and accessing PCIe cards, easier. Screws on the back of the enclosure have been replaced with captive thumbscrews, and the faceplate has been split in two (with each faceplate remaining attached to its module), enabling you to secure, release, and slide out each module without the need of tools.
Main Key Features
- Provides PCIe Card Expansion for Mac Pro—Use high-performance PCIe cards with the latest Mac Pro
- Makes Your Mac Pro Road-Ready—4U rackmount enclosure securely holds the computer and PCIe cards in place, adding mobility to your Mac
- Three PCIe Slots—Supports three full-length, full-height, single-width cards, or one double-width card plus one single-width card

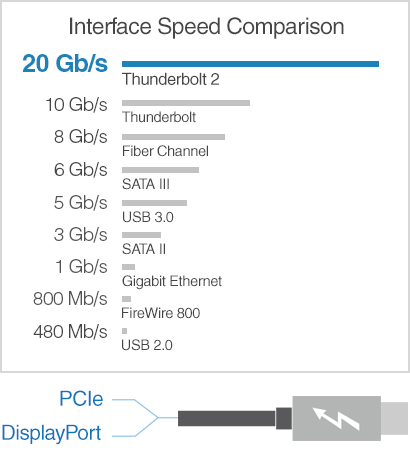

- Thunderbolt 2 Interface—Maximum performance with Mac Pro; backward compatible with devices equipped with 10Gbps Thunderbolt technology
- Improved Design—New captive thumbscrews and two faceplates enable easier computer and PCIe card installation, and simpler cable access
- Power for High Performance PCIe Cards—Integrated 300W power supply provides plenty of power for any cards you install; 75W auxiliary PCIe power connector enables use of power hungry cards such as the Avid Pro Tools|HDX or the RED ROCKET-X
- Provides Space for Additional Devices—Using optional Mobile Rack Device Mounting Kits, you can install HDDs, SSDs, a tape or optical drive, and more inside xMac Pro Server's enclosure
|
Compatibility Mac Pro (Late 2013) OS X® 10.9.5+ macOS High Sierra compatible PCIe Card Compatibility For up-to-date PCIe card compatibility see our PCIe Card Thunderbolt Compatibility Chart For maximum PCIe bandwidth, dedicate one Thunderbolt 2 bus to the PCIe expansion slots.
|
||||||||||||||||||||||||||||||||||||
