Add Up to 16TB of SSD Storage
Mass SSD storage meets desktop dock convenience. Dual NVMe slots support internal high performance storage expansion*. Transfer and access data in seconds, and effortlessly store large files and media libraries. Convenient, fast peripheral ports provide connectivity and charging for your Thunderbolt and USB devices.
Internal SSD Expansion
Add your own high performance M.2 NVMe SSDs
Four 10Gbps USB Charging Ports
USB Type-C and Type A ports power and charge your devices
Thunderbolt Daisy-chaining
Attach up to five daisy-chained Thunderbolt devices
Supports Up to a 5K Display
Maximise the utilisation of one computer Thunderbolt port
Mac® | Windows® | iPad Pro®
Compatible with Thunderbolt™ 4 computers; Apple® M1, M2, M1 Pro, M1 Max, and M1 Ultra Macs; Thunderbolt 3 Intel® Mac computers; and iPad Pro with a Thunderbolt port

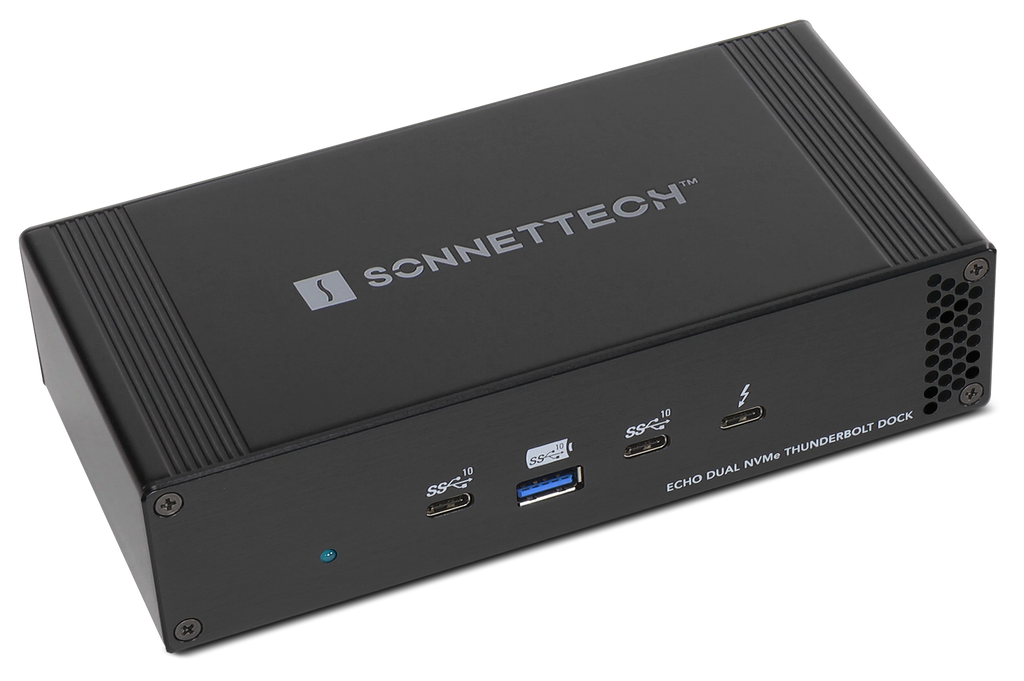

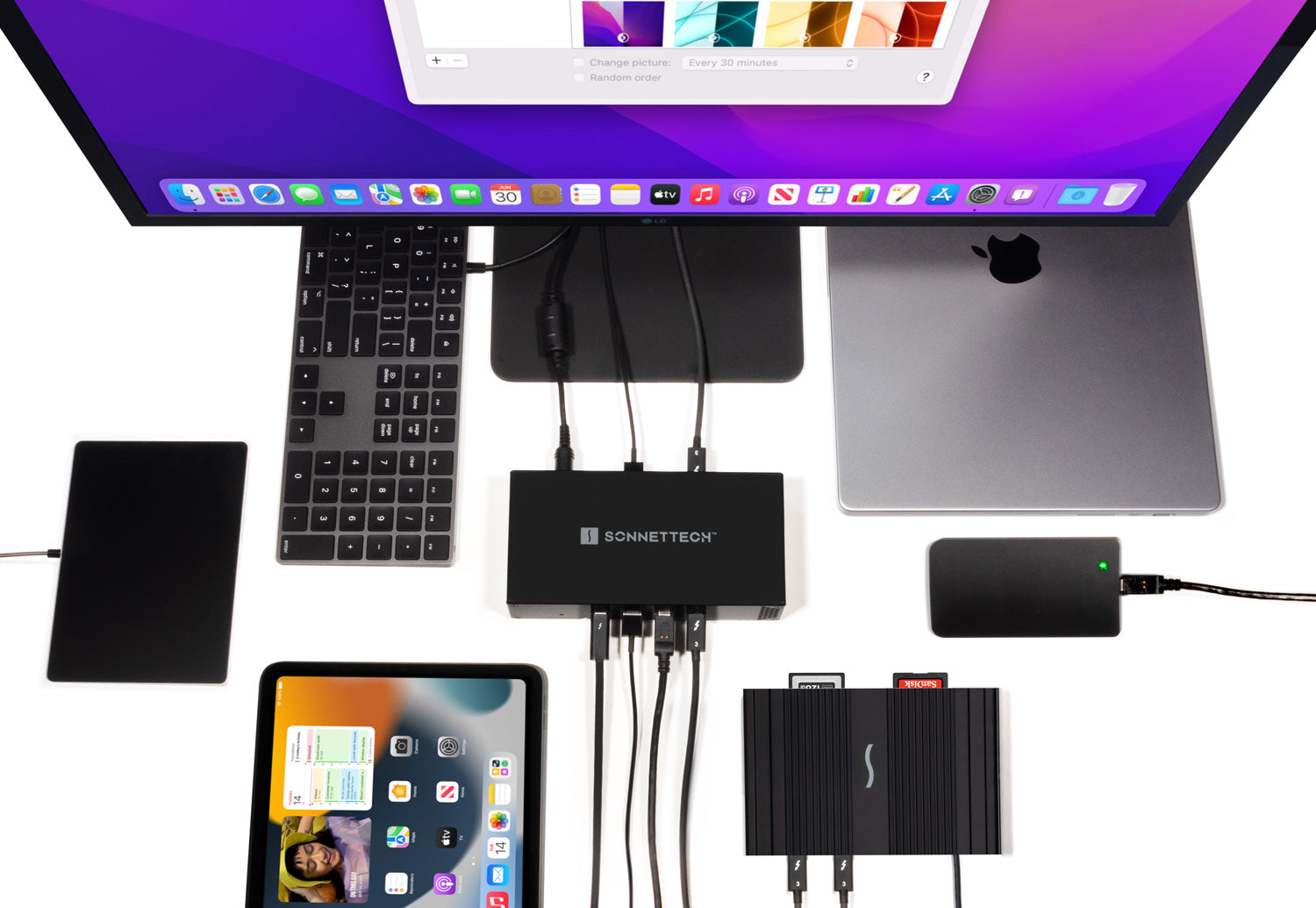

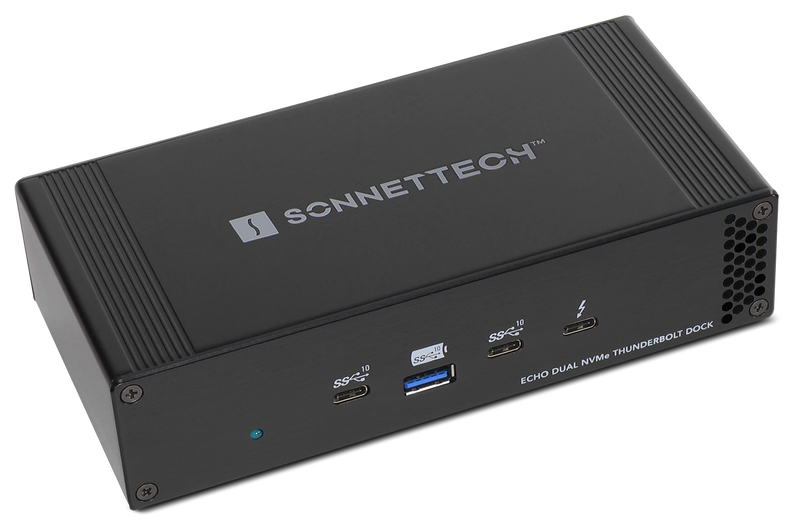

Plug in your USB peripherals, Thunderbolt™ devices, and a monitor, and then connect them all with a single Thunderbolt cable from the Echo™ Dual NVMe Thunderbolt Dock to your computer. When it is time to leave, just unplug the Thunderbolt cable, grab your laptop, and go.

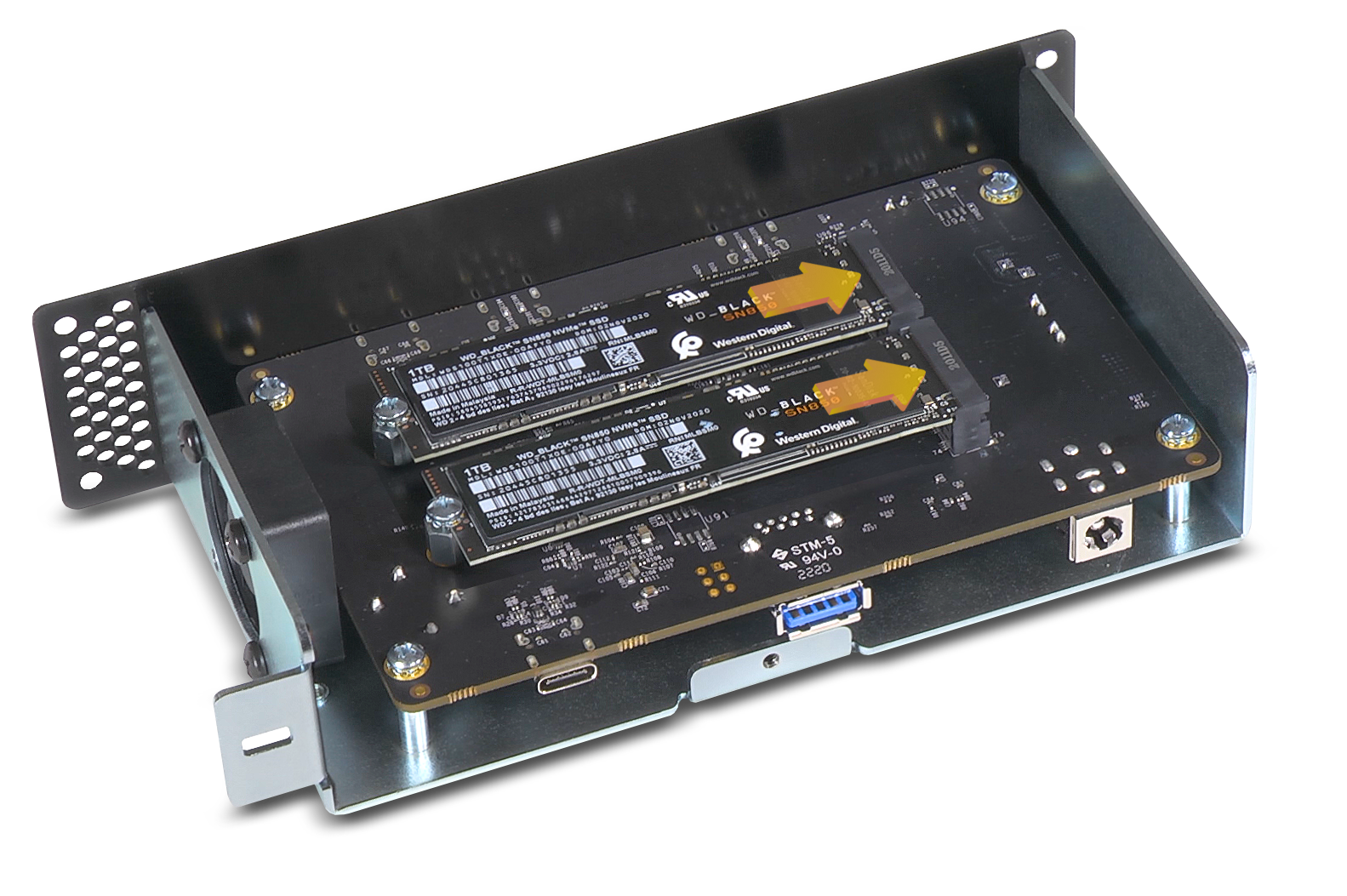

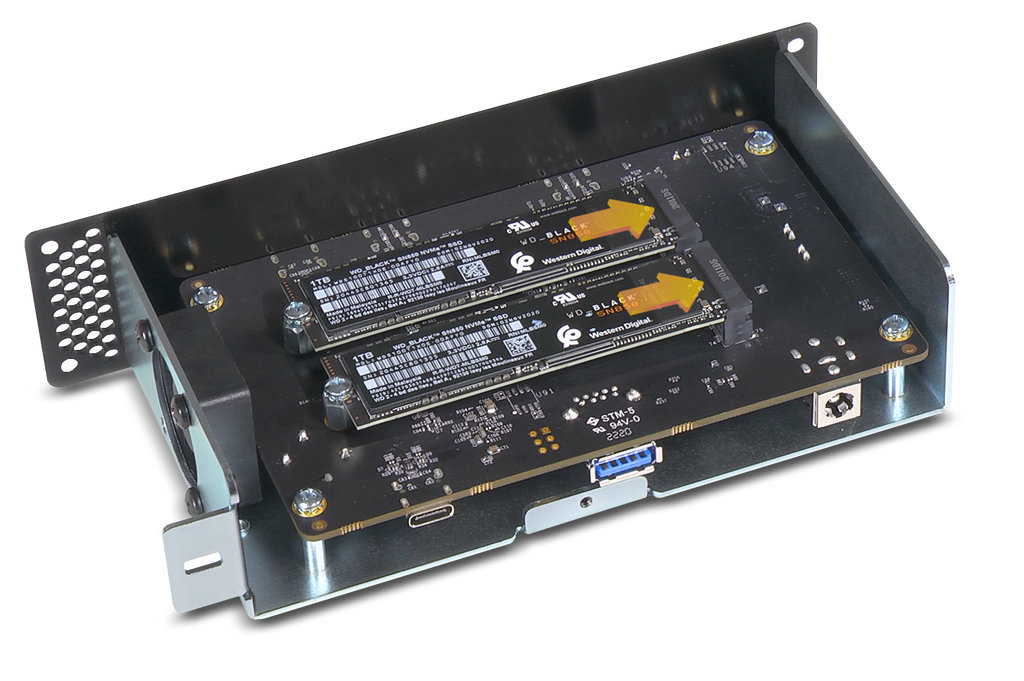

The Echo Dual NVMe Thunderbolt Dock features two M.2 NVMe PCIe SSD slots, enabling you to easily install high performance M.2 NVMe SSDs (sold separately) inside. Because installed SSDs interface with the dock’s Thunderbolt controller, they utilise its bandwidth to deliver the performance of a portable Thunderbolt SSD, but are tucked away neatly within the dock.
Fast Single SSD Data Transfers. Great RAID 0 Performance.
Single SSDs installed in the Echo Dual NVMe Thunderbolt Dock can each achieve sustained data transfers of up to 1500 MB/s. Configured as a RAID 0 set for even greater performance, data transfers up to 3000 MB/s are possible. Start with one SSD, and add any size SSD later without needing to format the first one.

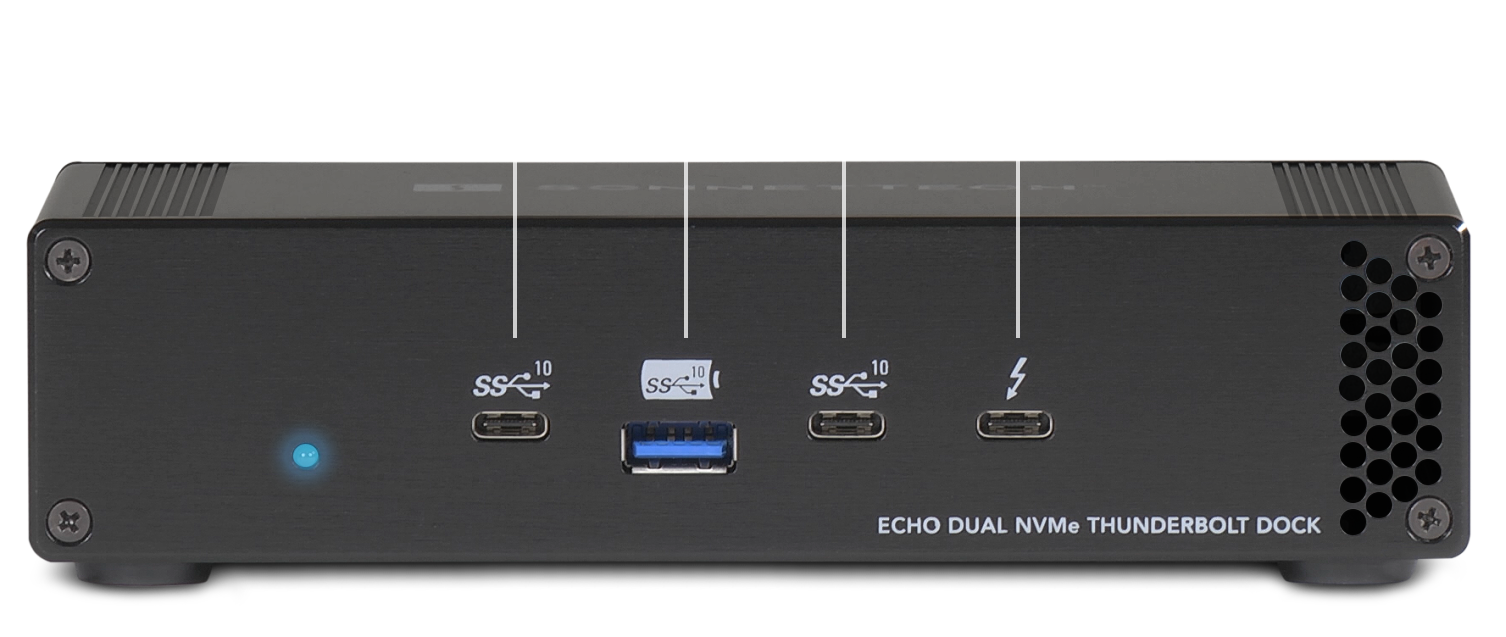

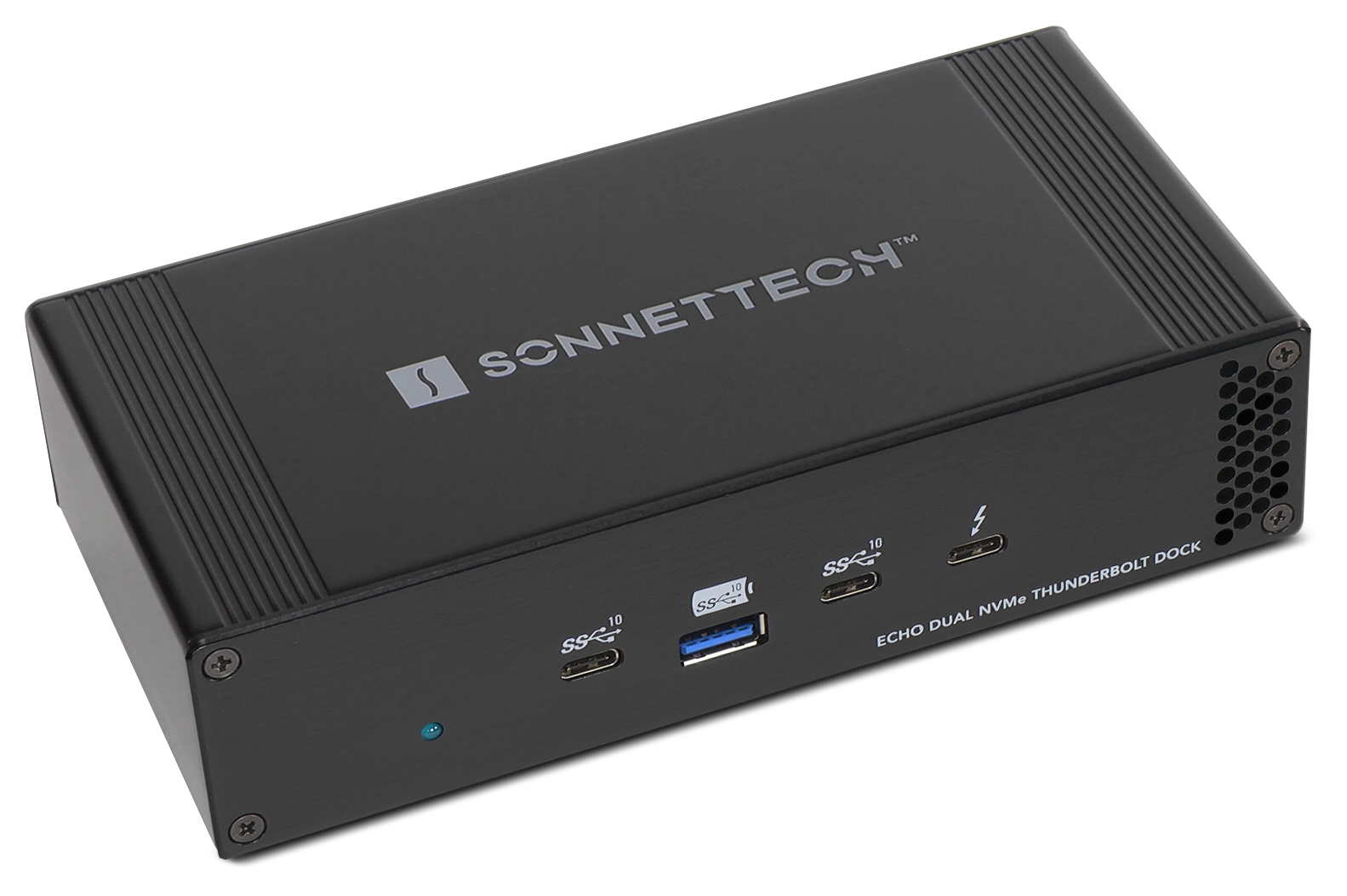

Convenient Front Panel Thunderbolt Peripheral Port
The Echo Dual NVMe Thunderbolt Dock includes two 40Gbps Thunderbolt ports; one for connection to your computer, the other to daisy chain up to five additional Thunderbolt peripheral devices plus a display. The Thunderbolt peripheral port also offers 10Gbps USB 3.2 Gen 2 support, meaning you can connect another USB device using the proper cable or adapter. The dock’s Thunderbolt peripheral port provides up to 15W, supporting even the most demanding bus-powered Thunderbolt devices.
Powerful 10Gbps USB Ports
The Echo Dual NVMe Thunderbolt Dock features four versatile USB 3.2 Gen 2 (10Gbps) ports (two Type-C plus two Type A) that support super-fast USB NVMe SSDs at full speed. Each port delivers up to 7.5W to ensure connected bus-powered devices operate without fail, and may be used to charge your iPhone®, iPad®, or other device that charges via USB.
Key Features
Two M.2 NVMe SSD Sockets
Add up to 16TB of storage inside (SSDs sold separately); achieve data transfer speeds up to 3000 MB/s (SSDs configured as RAID 0 set).
Connects to Your Peripherals with One Cable
Plug in peripherals to the dock with their cables, and then connect your computer to the dock with the included Thunderbolt cable for instant access.
Front Panel Thunderbolt Port for Peripherals
Connects one Thunderbolt peripheral directly and supports daisy-chaining of up to five Thunderbolt devices. Also supports USB 4 and USB 3 peripherals.
Powerful 10Gbps USB Ports
Four USB 3.2 Gen 2 ports provide up to 7.5W of power each for bus-powered peripherals, and for charging of devices.
Quiet, Effective Cooling
Temperature-controlled, variable-speed fan automatically and quietly cools the dock and any installed SSDs.
macOS Boot Support
Supports booting from a single (non-RAIDed) SSD.
Apple Pro Display XDR Supported
Connect a Pro Display XDR, or a 5K or lower resolution display directly to the Thunderbolt peripheral port or at the end of the Thunderbolt device chain.
Several Display Types Supported
Connect a Thunderbolt or USB-C display directly. Supports an HDMI or DisplayPort display with a Thunderbolt-compatible adapter (sold separately).
Apple M1 and M2 Series Compatible
Supports M1, M2, M1 Pro, M1 Max, and M1 Ultra Macs.
Intel Mac Compatible
Supports Thunderbolt 3 Macs running macOS® 10.12.6+.
Intel Windows Compatible
Supports Thunderbolt 4 and Thunderbolt 3 Windows computers.
Apple M1 iPad Pro Compatible
Supports M1 iPad Pro.
Tech Specs
Mac Compatibility
• Mac (M1, M1 Pro, M1 Max)
• Mac (Intel) with Thunderbolt 3 ports
• Mac (Intel) with Thunderbolt 2 or Thunderbolt port with with an Apple Thunderbolt 3 (USB C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable
• macOS 10.12.6+
• macOS Montery compatible
iPad Compatibility
• iPad Pro with Thunderbolt port
Windows Compatibility
• Windows computer with Thunderbolt 4 or Thunderbolt 3(1) port(s)
• Windows 11, 10
HDR Compatibility
• See Apple Support Note for Mac HDR information
• If your Windows computer supports HDR, see this Microsoft Support Note for Windows HDR information
Hardware
Warranty
• 2-year
Form Factor
• Thunderbolt dock

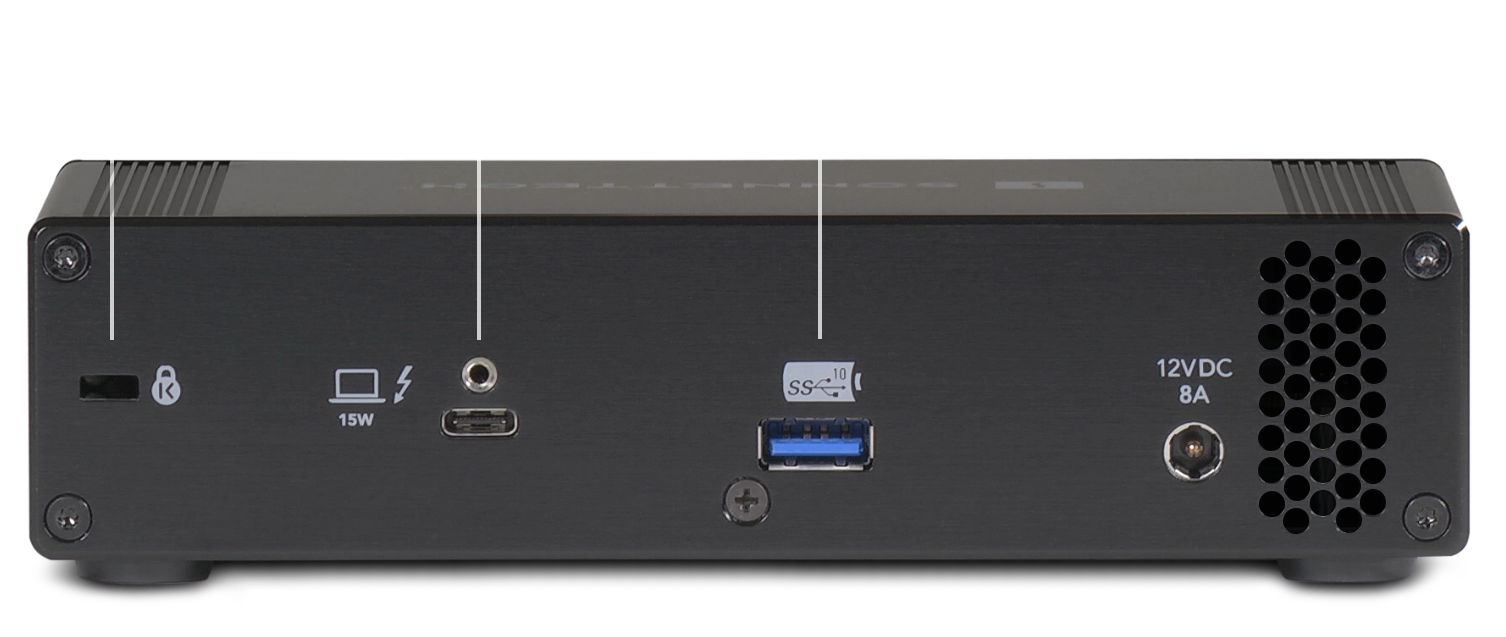

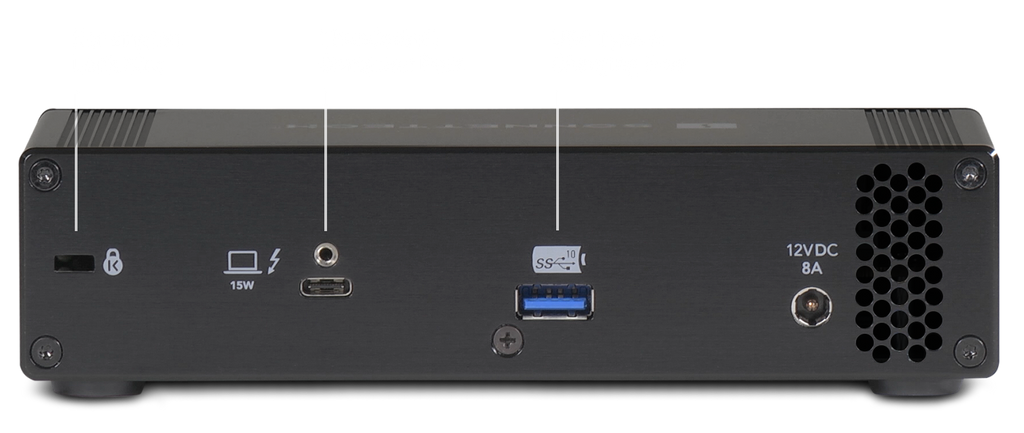

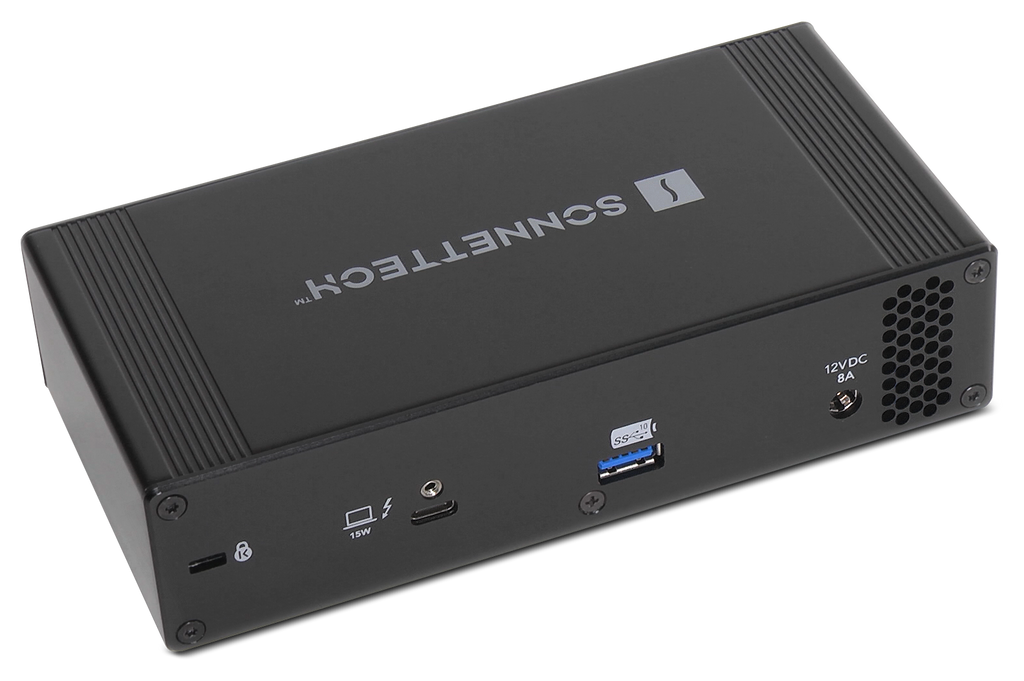

External Connectors
• Two Thunderbolt ports
• Two USB 3.2 (10Gbps) Type-C charging ports
• Two USB 3.2 Gen 2 (10Gbps) Type A charging ports
• One power connector
Thunderbolt 3 Computer Port
• Power Delivery
Provides laptop charging up to 15W
• Cables Supported
Any Thunderbolt 4 cable
Any Thunderbolt 3 (40Gbps) cable
Thunderbolt 3 Peripherals Port
• Connectivity
With USB-C connector
• Peripherals Supported
Thunderbolt 3
Thunderbolt 2 (macOS(2))
USB4
USB 3, 2.0, and 1.1 devices
Thunderbolt 3 and USB-C monitors
DisplayPort and HDMI monitors(3)
USB 3.2 Gen 2 Type-C Ports
• Connectivity
With USB Type-C connector
• Peripherals Supported
USB 3, 2.0 and 1.1 devices
Thunderbolt 3-only devices are NOT supported
• Data Transfer Rate
USB 3.2 Gen 2 (previously USB 3.1 Gen 2) 10Gbps
• Charging
7.5W per port for operating or charging
1.5A per port advertised using USB Type-C Charging
Supports simultaneous charging and syncing
USB 3.2 Gen 2 Type A Ports
• Connectivity
With USB Type A connector
• Peripherals Supported
USB 3, 2.0 and 1.1 devices
• Data Transfer Rate
USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps
• Charging
7.5W capacity to charge iPad, iPhone, or other device
USB Battery Charging 1.2-compliant
Supports simultaneous charging and syncing
Internal Connectors
• Two M-keyed (NVMe) M.2 sockets (each connected at PCIe x2)
SSDs Supported(4)
• Single- and double-sided M.2 2280 NVMe PCIe SSDs (with or without heat sink)
Supported NVMe SSDs Compatibility Chart
Power Adapter
• Universal 96W, 100-240V AC, 50-60Hz
Kensington Security Slot™
• Supports Standard, MicroSaver®, and MicroSaver 2 Locks
Operating Temperatures
• 0ºC to 35ºC (32ºF to 95ºF)
Dimensions (WxDxH)
• Dock: 6.8 x 3.4 x 1.8 in. (7.3 x 8.6 x 4.44 cm)
• Power Adapter: 2.8 x 4.9 x 1.0 in. (7.3 x 12.4 x 2.54 cm)
Weight
• Dock and Power Adapter: 2.2 lbs (1.0 kg)
• Complete Package: 3.2 lbs (1.45 kg)
Compliance
• RoHS 3 (Directive 2015/863)
• IEC62368-1 and IEC62368-2 Safety
Package Contents
• Echo Dual NVMe Thunderbolt Dock
• Power adapter
• Power cord
• 0.5-meter Thunderbolt 3 (40Gbps) cable
• ThunderLok 3 Thunderbolt connector retainer clip(5)
• Documentation
