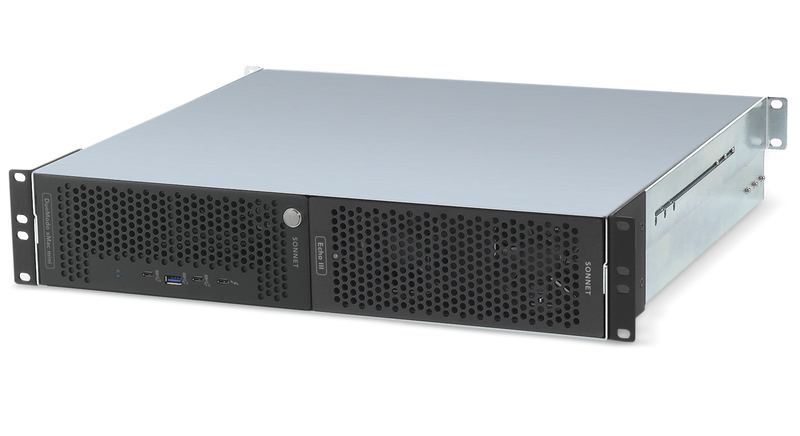

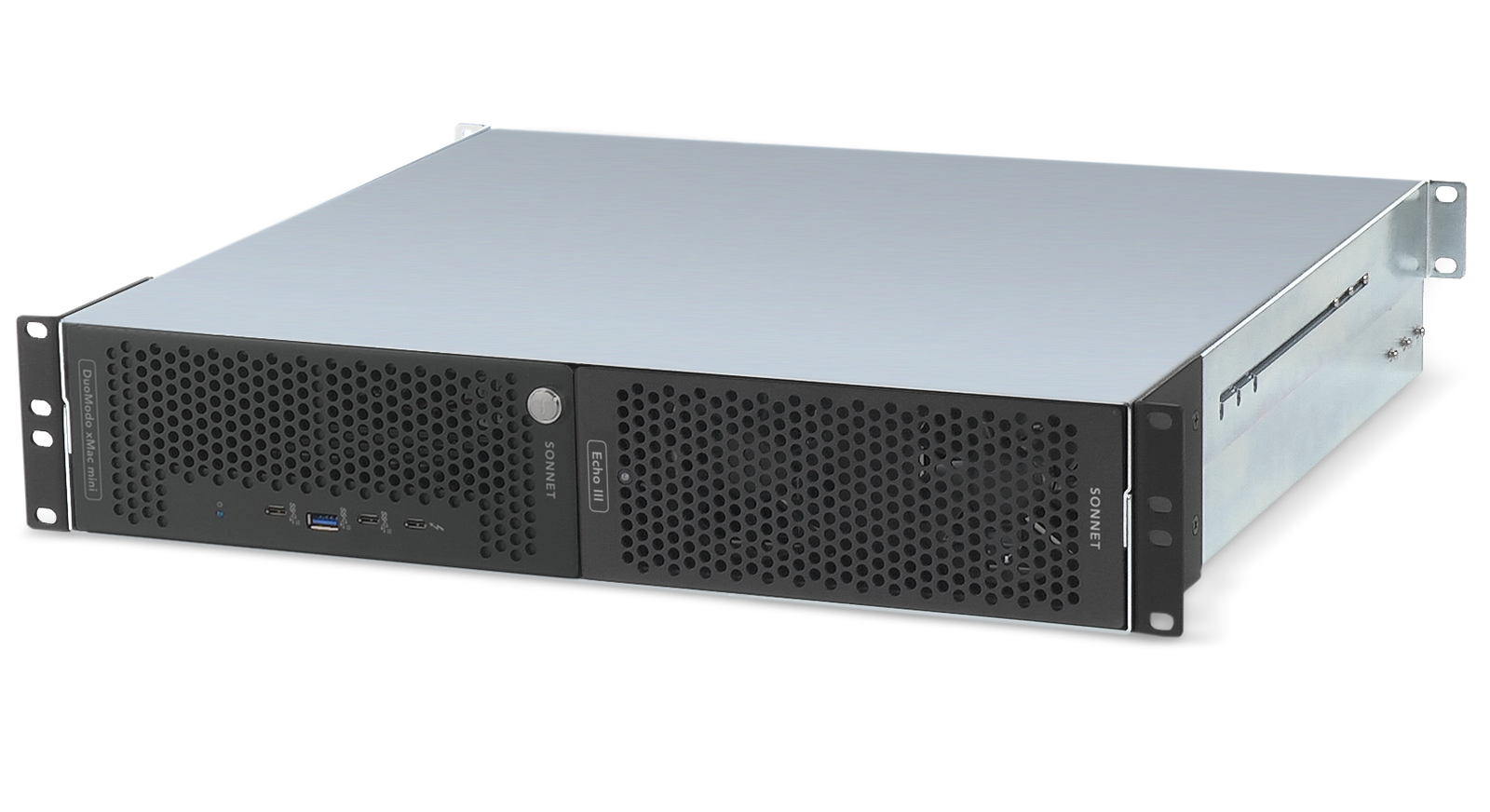

The pre-configured DuoModo™ xMac™ mini/Echo™ III Rackmount System integrates a Dual-Module Rackmount Enclosure with one xMac mini module and one Echo III module.
System Configuration
Dual-Module Rackmount Enclosure
Echo III Module
System Configuration
- For Intel® or Apple® M1 Mac mini
Dual-Module Rackmount Enclosure
- Dual-module 2U Rackmount Enclosure
- Rugged Steel Construction
- Same Enclosure Used in Echo III Rackmount
- 19 inches Wide x 16.5 inches Deep x 3.5 inches High
- Included Rack Rails Support Installation in Racks 16-24" Deep
- Securely Holds an Intel or Apple M1 Mac mini (sold separately) in a Rugged Steel Frame
- Open Access to the Computer’s Ports in Back
- Built-in Thunderbolt™ 3 Dock
- Four Front Panel Ports Include One Thunderbolt 3 (40Gbps) Port, Two USB 3.2 (10Gbps) Type-C Ports, and One USB 3.2 (10Gbps) Type A Port
- Two Internal M.2 NVMe SSD Sockets – Add up to 16TB (SSDs sold separately)
- One Internal USB 3.2 (10Gbps) Type A port (for Securely Connecting an iLok USB-A, Thumb Drive, or Bus-powered USB Storage Drive)
- Internal Thunderbolt 3 (40Gbps) Port Connects Dock to the Mac mini
- Quiet, Dual Temperature-controlled, Variable-Speed Fans
- Power Cable Included
- Thunderbolt 3 (40Gbps) Cable Included
Echo III Module
- Three Versatile PCIe Slots
- One x16 plus Two x8 PCIe Slots
- Supports Three Full-height, Full-length Thunderbolt-compatible, non-GPU PCIe Cards ( View PDF of supported PCIe Cards)
- AVID QUALIFIED – Supports up to Three Avid Pro Tools | HDX PCIe Cards
- Built-in 400W Power Supply with 75W Auxiliary Power Connector
- Powers On and Off Automatically with Connected Computer
- Dual Temperature-controlled, Variable-Speed Noctua fans rated at 17 dbA
- Two Thunderbolt 3 Ports
- 40Gbps Thunderbolt 3 Interface Offers 2750 MB/s of PCIe Bandwidth to the Installed PCIe Cards
- Power Cable Included
- Thunderbolt 3 (40Gbps) Cable Included
- ThunderLok 3 Thunderbolt Connector Retainer Clip Included
See individual product pages for Specs
