1-slot Thunderbolt to PCIe Card Expansion Module

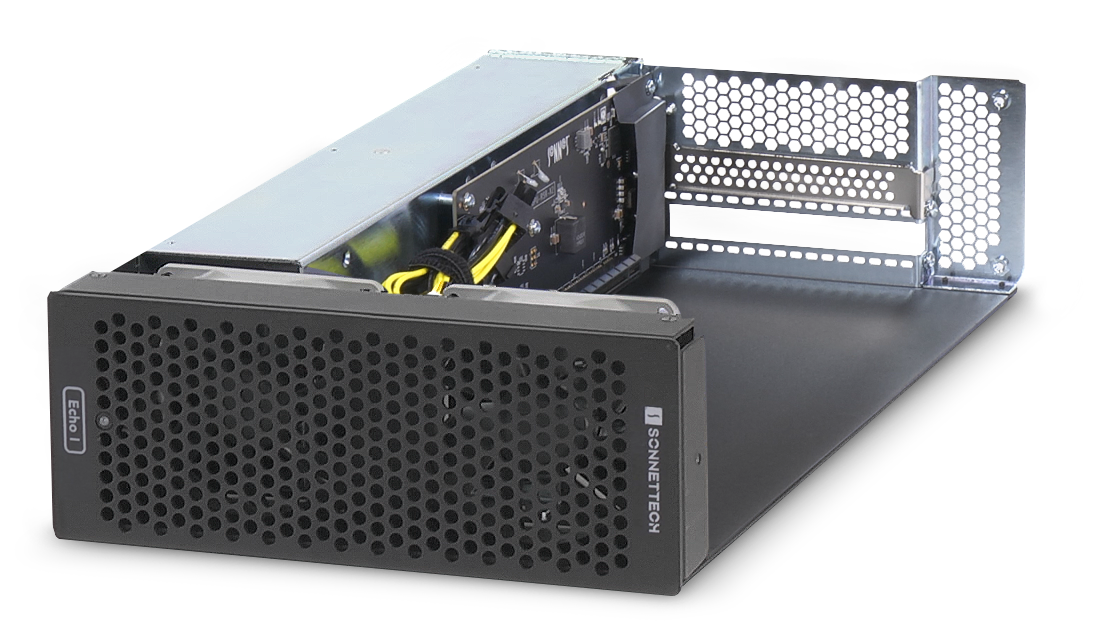

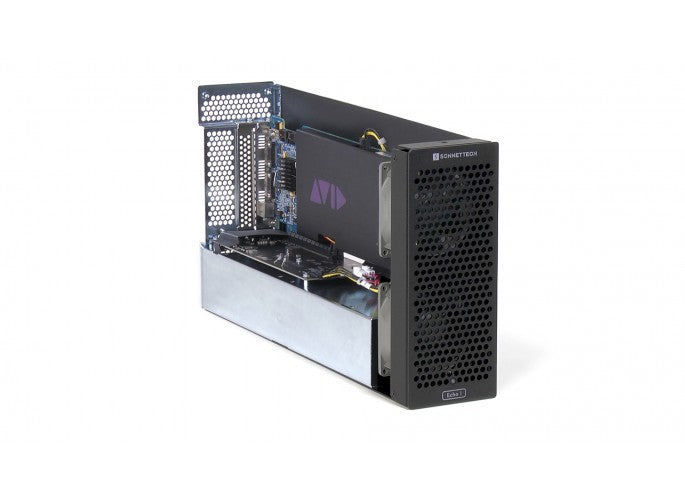

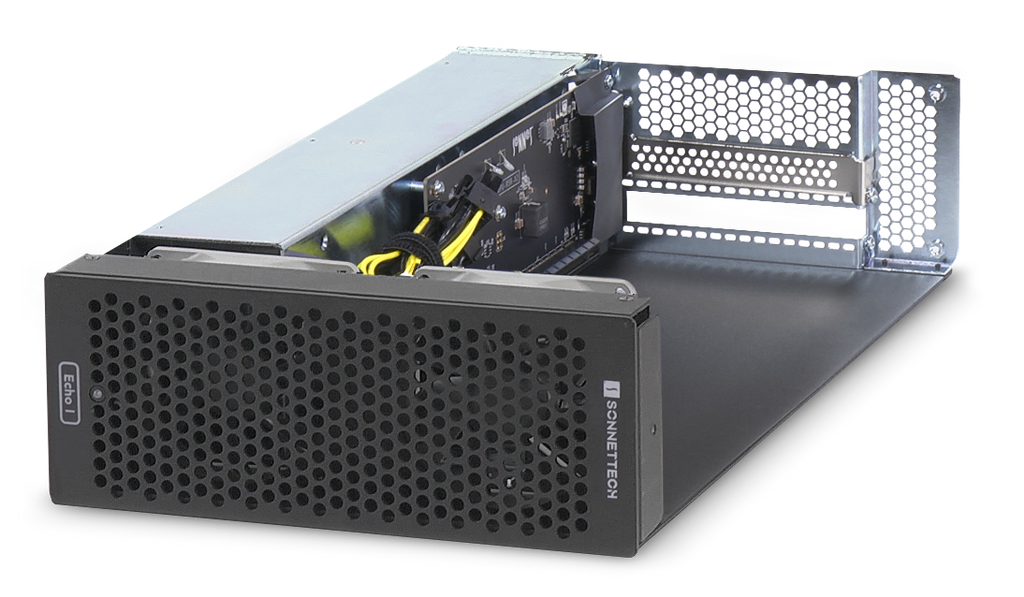

The DuoModo™ Echo™ I Module connects a PCIe card to computers without card slots. The module supports one full-height, full-length Thunderbolt™-compatible non-GPU PCIe cards; provides 400W of power for the most demanding of PCIe cards, including qualification from Avid for Pro Tools | HDX PCIe cards; features quiet, dual temperature-controlled Noctua fans rated at 17 dbA; and connects through super fast 40Gbps Thunderbolt interface.
Key Features
- Three Versatile PCIe Slots
- Supports one Full-height, Full-length PCIe Cards
- One x16 PCIe 3.0 Slot
- Supports Every Thunderbolt-compatible non-GPU Card
- AVID QUALIFIED – Supports up to Three Avid Pro Tools | HDX PCIe Cards
400W of Power:
- Built-in 400W Power Supply with 75W Auxiliary Power Connector
- Supports Power-hungry, non-GPU Cards Including Avid HDX
- Powers On and Off Automatically with Connected Computers
Quiet Fans:
- Dual Noctua Fans Offer Ultra-quiet Operation
- Temperature-controlled, Variable-speed
- Rated at 17 dbA
Thunderbolt 3 Interface:
- 40Gbps Thunderbolt 3 Interface Offers 2750 MB/s of PCIe Bandwidth to the Installed GPU Card
- Compatible with Apple® M1 and Thunderbolt 4 Computers
- Thunderbolt 3 (40Gbps) Cable Included
- ThunderLok 3 Thunderbolt Connector Retainer clip Included
