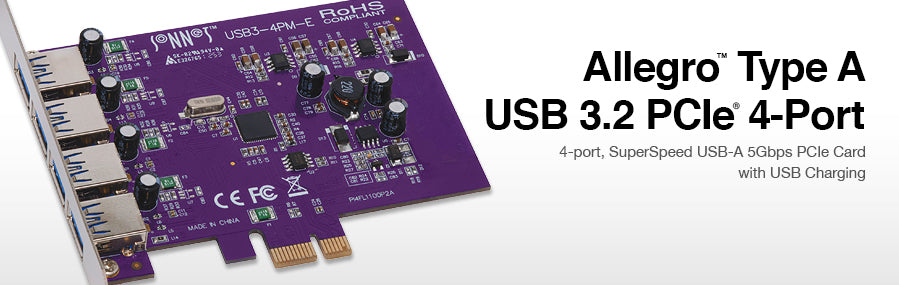

Sonnet Allegro USB3.2 Type A 4-Port USB PCIe Card

Upgrade to SuperSpeed Performance

Your computer’s USB 2.0 ports are perfectly adequate for connecting mice, keyboards, and printers, but if you need to connect external storage drives, USB 2.0 ports are underpowered in more ways than one—limiting data transfer speeds to around 25–30 MB/s, they can hardly be called “high performance”. Most drives available today include faster USB interfaces and offer significantly better performance than USB 2.0-equipped drives. Though you can connect them to your computer’s USB 2.0 ports, their performance would be reduced by as much as 85 percent! Don’t settle for slow performance—install a Sonnet Allegro Type-A USB 3.2 PCIe 4-Port⁽¹⁾ card to instantly add four SuperSpeed USB 5Gbps ports to your system to take full advantage of today’s drives’ performance capabilities.

PCIe Interface

The Allegro features a PCIe 2.0 bus interface to take advantage of your computer’s fast expansion card slots. This card installs easily into any PCI Express® (PCIe) slot that supports a full-height card, features hot-pluggable and hot-swappable device connection support with automatic device configuration, and works with all USB-IF compliant USB peripherals.

Powerful Ports

Sonnet specially engineered the Allegro PCIe card to provide extra power through its ports without the need for you to connect an auxiliary power cable. Delivering up to 10W of power per port, this Sonnet solution supports USB 3.0 bus-powered hard drives, SSDs, DVDs & Blu-ray™ devices without the need to connect an additional AC power adapter. The Allegro also supports the USB 3.0 charging specification that enables you to simultaneously charge and sync your iPad®, iPhone®, or other device that supports USB 3.0 charging!

Add Four USB 3.0 Ports to Older Mac Computers with USB 2.0

Got an older Mac with USB 2.0 ports, no PCIe slots, and a Thunderbolt or Thunderbolt 2 port? The Allegro is a great way to add four USB-A 5Gbps ports for use in Sonnet’s Thunderbolt 2 and Thunderbolt 3 to PCIe card expansion systems, including Echo Express™ and xMac™ desktop and rackmount systems.

Perfect for the Extra Slot in Your Multi-Slot Thunderbolt System

Have a multi-slot Thunderbolt 2 or Thunderbolt 3 to PCIe card expansion system with an open slot? Installing an Allegro Type-A USB 3.2 PCIe 4-Port card is an excellent way to inexpensively add four SuperSpeed USB-A 5Gbps ports to your computer.

Key Features

• Adds USB 3.2 Gen 1 Connectivity—Adds four USB-A 5Gbps ports to your Mac Pro®, Windows PC®, or Linux® computer with PCIe slots; or Thunderbolt™ to PCIe card expansion system
• Speedy Performance—Transfers data up to 10x faster than over USB 2.0 connections
• Super-Powered Ports—Supports USB 3.0 bus-powered hard drives, SSDs, DVDs & Blu-ray devices with up to 2.0A per port
• Charging Ports—Supports USB 3.0 charging port handshake, and will simultaneously synch and charge iPads and other devices that support USB 3.0 charging at 1.5A per device
• Broad USB Device Support & Compatibility—Supports storage, hubs, and other USB-IF compliant devices; compatible with USB 2.0 devices
• Supports Hot-Swappable Device Connection—Plug in and disconnect peripherals without shutting off your computer
• Add USB 3.2 Gen 1 to Thunderbolt Expansion Systems—Add four speedy USB-A 5Gbps ports to Thunderbolt to PCIe card expansion systems
• Easy Installation—Quick and easy user installation into any available PCIe slot of your computer
