We supply two very high-grade 75 Ω cables with 100 % shielding for wordclock applications with HICON quality BNC connectors or as an S/P-DIF cable with RCA connectors. They allow you to bridge even critical lengths with no problems. The SC-FOCUSLINE HIGHFLEX version is flexible and suitable for 90 % of all studio and live applications.
We finish the SC-Focusline MS Highflex with the new HICON HI-CM01C crimping connector (incl. sleeve protection) which was special-designed for 75 Ω applications and impresses with a low contact resistance. The second version is a high-end type for critical excess lengths beyond 10 metres. The maximum transmission length always depends on the interface quality of the devices. We use the SDI/HDTV cable SC-VECTOR 0.8/3.7 and finish it with the genuine gold-plated, PTFE-insulated and optically attractive HICON HI-CM12-BLK RCA connector.

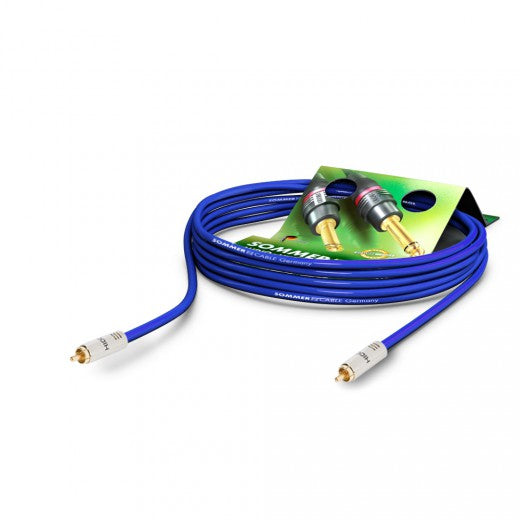

Configuration: (VT2I-0300-BL)
- 3 m video cable SC-Vector (RCB); 1 x 0,80; PVC Ø 6,00 mm; blue (600-0162)
- 1 x HI-CM12-BLK
- 1 x HI-CM12-BLK
- 1 x Cardboard packaging for blister hooks, Design Sommer cable
Technical Data:
- Application: S/PDIF 75 Ω
- Inner conductor: 1
- Inner conductor Ø: 0,8 mm
- Inner conductor Ø (video): 0,8 mm
- Type: RCA
- Type (detailed): RCA male
