Shure ULX-D is a digital wireless system offers a mix of 24-bit digital audio quality and scalability to meet the demands of installed applications. Features include Wireless Workbench 6, optimised frequency scanning, and AES 256 encryption for security.
MAIN FEATURES
- Available Transmitter Form factors: Handheld, Boundary, Bodypack, Desktop base
- Operating range (up to): 100 m (Under typical conditions)
- Extended 20 Hz – 20 KHz frequency range with totally flat response
- 24 bit / 48 kHz digital audio
- Over 120 dB dynamic range, 130 dB (typical) using Dante™ digital networked audio
- Shure Gain Ranging optimizes dynamic range for any level of input source
- Built-in limiter circuitry prevents digital audio clipping
- Compatible with Wireless Workbench® 6 software, for advanced frequency coordination, monitoring, and control
- Wireless channel efficiency – 22 active transmitters per 8 MHz TV channel. In High Density mode, up to 63 active transmitters per 8 MHz TV channel, with no audio quality degradation
- Optimised scanning automatically finds, prioritises, and selects the cleanest available frequencies
- Interference detection provides instant alerts
- AES-256 bit encryption offers unbreachable privacy, and eliminates stray RF interference by only allowing the encrypted signal through to the receiver
- Advanced lithium ion battery technology provides up to 12 hours of continuous use, with detailed tracking of battery health status, and no memory effect
- Transmitters and receivers display remaining battery life accurate to within 15 minutes
- Ethernet networking for streamlined setup across multiple receivers
- Removable half wave antennas
- Up to 72 MHz overall tuning range (region dependent)
- Up to 60 dB of adjustable system gain
- Rugged metal housing on both transmitters and receiver
- Selectable 1, 10, and 20 mW transmitter RF output power
- Transmitters offer AA alkaline backwards compatibility
WHAT DIGITAL WIRELESS AUDIO QUALITY DOES IT OFFER?
Shure digital processing enables ULX-D to deliver pure, clear, and accurate reproduction of source material. An extended 20 Hz – 20 KHz frequency range with totally flat response, combined with 24 bit / 48 kHz digital audio, captures every detail with clarity and presence, plus an incredibly accurate low end and transient response. A wide dynamic range of over 120 dB offers excellent signal to noise performance.
Proprietary Shure Gain Ranging optimises the system’s dynamic range for any level of input source, eliminating the need for transmitter gain adjustments.
WHICH COMPONENTS DOES THE ULX-D COMPRISE?
Receiver options
- Ethernet networking allows for streamlined setup across multiple receivers.
- ULXD4 Wireless Receiver: Half rack
- ULXD4D Dual Channel Wireless Receiver: Full rack
- ULXD4Q Quad Channel Wireless Receiver: Full rack
- ULXD4D (Dual) and ULXD4Q (Quad) receivers incorporate an extensive set of additional features:
- Bodypack Frequency Diversity
- RF cascade ports
- Internal power supply
- Audio output channel summing, to route audio to multiple outputs
- Dante™ digital networking for multi-channel audio over Ethernet
- Dual Ethernet ports
- Bodypack Frequency Diversity safeguards against loss of audio signal, whether caused by RF interference or by power loss in a transmitter, to ensure uninterrupted audio for mission critical applications. The same audio source is sent from two transmitters with different radio frequencies. If problems occur with the reception of one frequency, ULX-D dual and quad receivers continue to provide flawless audio by automatically switching to the clean frequency. Switching between channels occurs in milliseconds, without any perceivable interruption for users.
Transmitter options
- ULXD1 Wireless Bodypack Transmitter: The ULXD1 is compatible with a selection of Shure lavalier, headset, and clip-on instrument microphones.
- ULXD2 Wireless Handheld Transmitter: To tailor sound for specific purposes, the ULXD2’s microphone cartridge is interchangeable with the full range of Shure dynamic and condenser cartridges, which offer a diverse set of sound characteristics and polar patterns.
Other components
Wireless Workbench 6: The ULX-D is compatible with Wireless Workbench 6 software, for advanced frequency coordination, monitoring, and control.
WHAT THIRD PARTY SYSTEMS IS IT COMPATIBLE WITH?
The ULX-D offers seamless integration with AMX and Crestron media control systems.
WHAT ARE THE ULX-D’S WIRELESS FEATURES?
The ULX-D delivers class leading wireless channel efficiency (region dependent) and signal stability. Minimised intermodulation distortion allows significantly more transmitters to operate simultaneously on each channel.
In standard mode, up to 22 transmitters can operate in an 8 MHz TV channel. However, all receivers offer High Density mode for applications where high channel counts are needed, greatly increasing the amount of simultaneous channels possible over one frequency band. In High Density mode, up to 63 active transmitters can operate in an 8 MHz TV channel, with no audio quality degradation.
For ease of use, optimised scanning automatically finds, prioritises, and selects the cleanest frequencies available. Interference detection provides instant alerts if the system encounters interference.
For applications where secure transmission is required, ULX-D offers Advanced Encryption Standard (AES) 256 bit encrypted signal for complete privacy. This helps to reduce RF interference by only allowing the encrypted signal through to the receiver.
Advanced lithium ion battery technology provides an extended run time over alkaline batteries, up to 12 hours of continuous use, with detailed tracking of battery health status. Lithium ion chemistry and intelligent Shure battery circuitry results in rechargeable batteries with no memory effect, such that a complete discharge is never necessary to maintain battery health. Transmitters and receivers display remaining battery life in hours and minutes accurate to within 15 minutes.

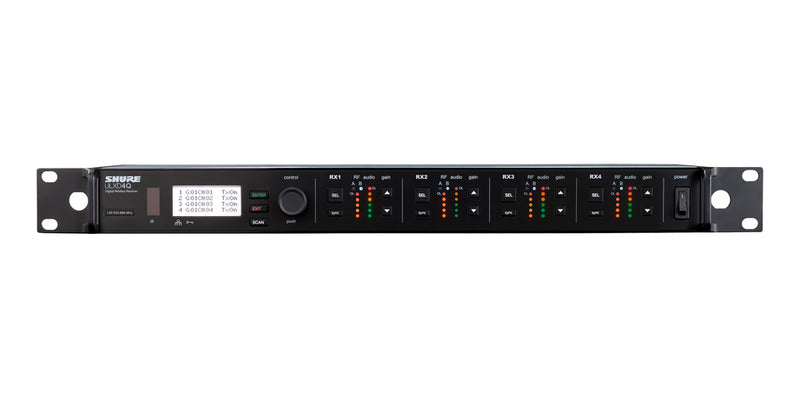

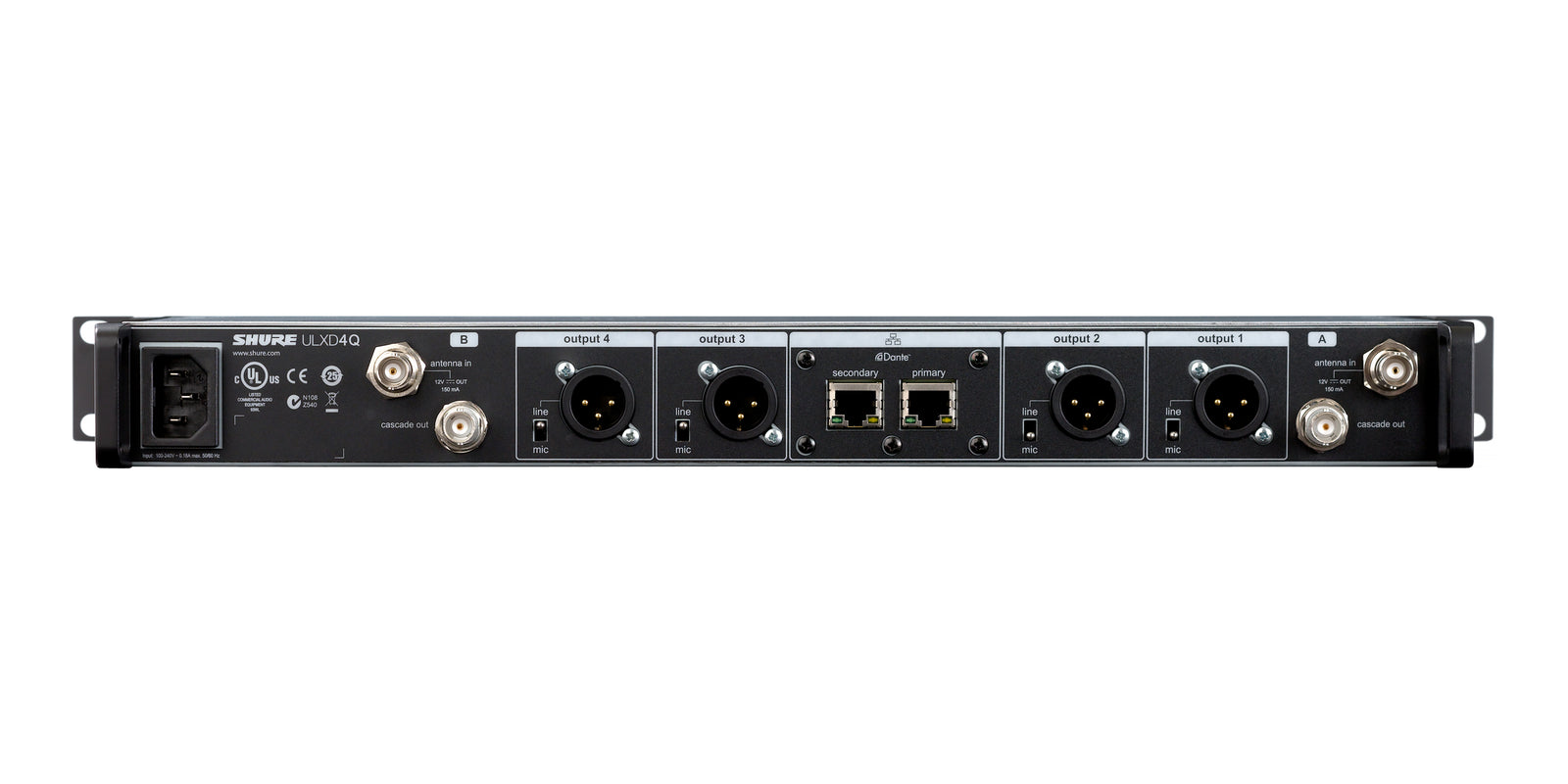

ULXD4Q
Digital quad wireless receiver offers an intelligent four-channel option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 72 MHz tuning range, and AES 256 encryption for security.
MAIN FEATURES
- Four receivers in a rugged 1RU metal chassis with internal power supply
- Up to 72 MHz tuning range (region dependent)
- Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync
- Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications
- Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel
- Audio summing routes two or more audio channels to combinations of XLR receiver outputs, controlled via channel gain adjustment
- Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control; support for Dante™ digital networked audio
- Compatible with AMX and Crestron control systems
- Interference detection and alerts
- Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator
- Removable half wave antennas
- 24 bit / 48 kHz digital audio
- 20 Hz – 20 kHz frequency range with flat response
- Greater than 120 dB dynamic range
- Up to 22 active transmitters in one 8 MHz TV channel; High Density mode enables up to 63 active transmitters in one 8 MHz channel
- AES-256 bit encryption equipped for secure wireless transmission
FURNISHED ACCESSORIES
|
AMOUNT |
PART TITLE |
|
1 |
IEC Power Cord |
|
2 |
1/2-Wave BNC-Terminated Antenna (varies by band) |
|
2 |
2-foot BNC-Terminated Coaxial Cable |
|
2 |
BNC Bulkhead Adapters |
|
1 |
Hardware Kit |
|
1 |
3-foot Cat5e Ethernet Cable |
Weight: 3450 g
Height x Width x Depth: 44.0 × 482.0 × 274.0 mm
Transmission: Digital in UHF TV band
Type of Power Supply: Internal
Receiver Housings: Metal
Active Antenna Possible: Yes
Bias via BNC: Yes
Encryption: 256 Bit AES
Frequency Diversity: True
High Density Mode: Yes
Interference Detection: Yes
Remote Control: Yes
Number of compatible systems info: 70
DANTE-Enabled Products: Yes
Scan Features: Channel Scan, Group Scan, Spectrum Scan
Sync Features: IR Sync
Detachable Antennas: Yes
Network ability: DANTE
Logic: No
Cascade: Yes
Rack Hardware: Integrated, Not needed
Receiver Displays: Multi-function LCD
Receiver type: Quad
Included antenna: External 1/2 wave
Battery Status: Levelled battery life indication, HH:MM (Hours and minutes)
Line Mic Switch: Yes
Image Rejection: 70 dB, typical
Phantom Power Protection: Yes
Spurious Rejection: 80 dB, typical
Antenna Input Impedance: 50 Ω
