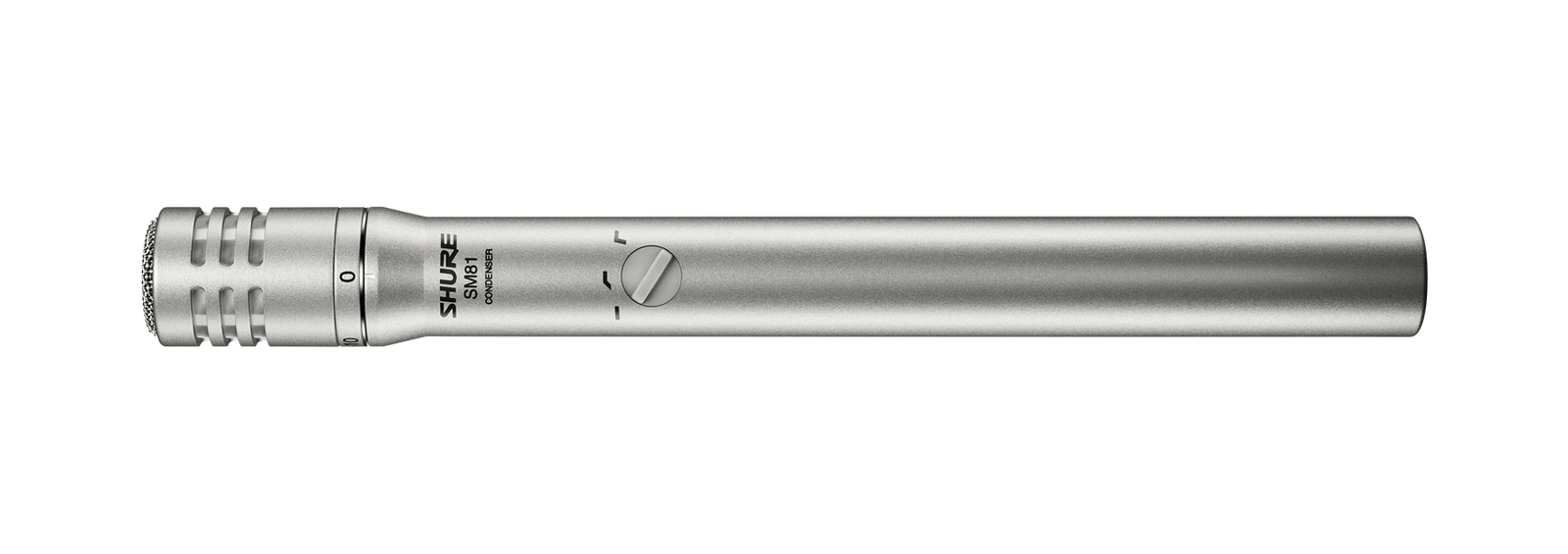

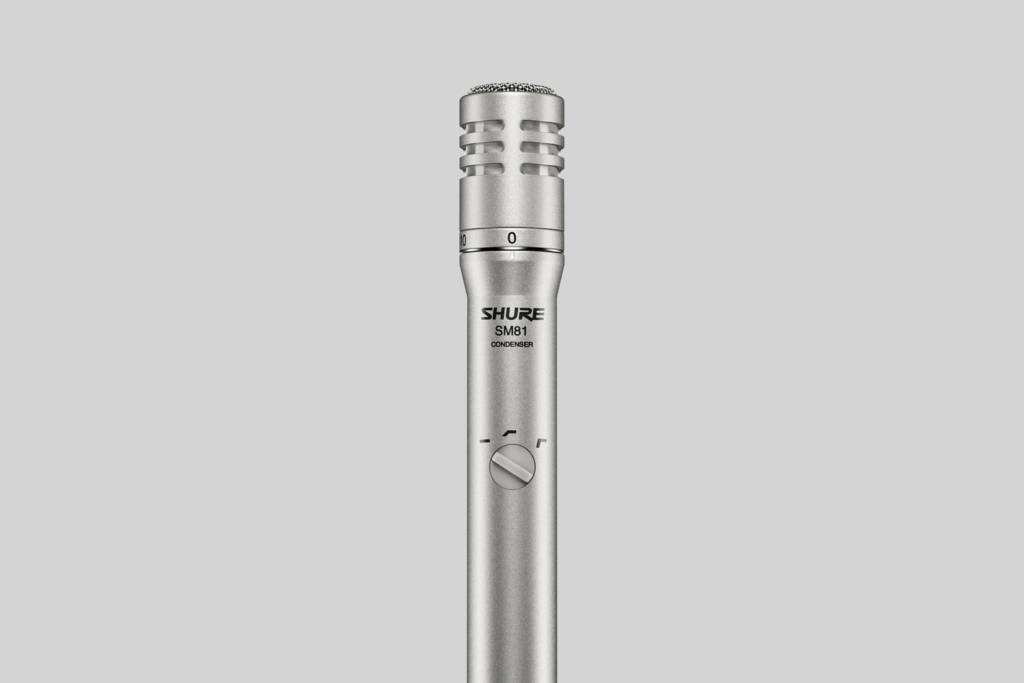

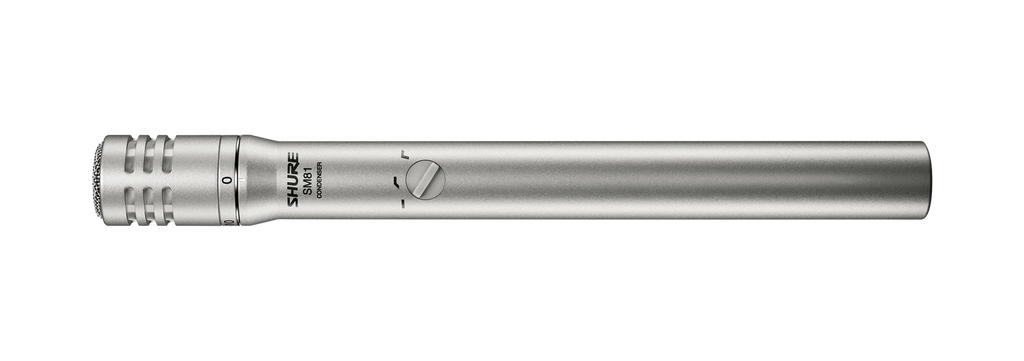

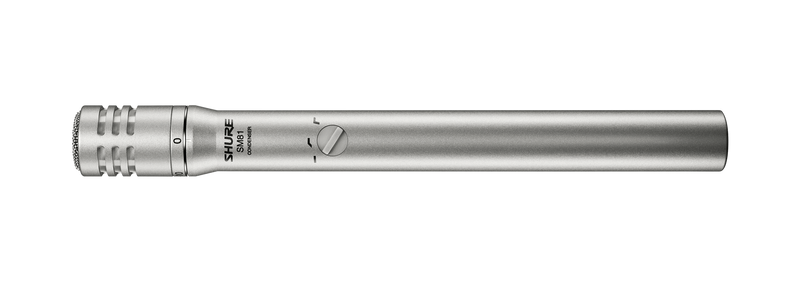

Cardioid condenser instrument microphone offers a wide frequency response and low self-noise. Features include flat response curve, low noise and high output clipping level, low distortion over a range of load impedances, and low RF susceptibility.
MAIN FEATURES
- 20 Hz to 20 kHz frequency response
- Flat response curve for accurate reproduction of sound sources
- Low noise and high output clipping level
- Low distortion over a wide range of load impedances
- Cardioid polar pattern, uniform with frequency and symmetric about axis, providing maximum rejection and minimum coloration of off-axis sounds
- Low RF susceptibility
- Selectable low-frequency response: flat, 6 or 18 dB/octave rolloff
- 0 dB/10 dB lockable attenuator switch
- Phantom powering (DIN 45 596 voltages of 12 to 48 Vdc)
- Rugged steel construction for durability
- Field-usable over wide range of temperature and humidity conditions
WHAT IS THE SM81 BEST SUITED TO?
The SM81 is the perfect choice for a professional musician or sound engineer who is looking to mic up acoustic instruments such as acoustic guitar, piano and cymbals. It can ideally be used on stage and because of its high quality is also at home in the recording studio.
FURNISHED ACCESSORIES
|
AMOUNT |
PART TITLE |
|
1 |
swivel adapter |
|
1 |
attenuator-switch lock |
|
1 |
foam windscreen |
|
1 |
carrying case |
Weight: 230 g
Height x Width x Depth: 212.0 × 23.5 × 23.5 mm
Frequency Response: 20 Hz – 20 kHz
Frequency Response: Flat
Sensitivity: -45.00 dBV/Pa – 5.60 mV/Pa
Equivalent Selfnoise: 16 dB typical, A-weighted, 19 dB typical, weighted per DIN 45 405
Sound Pressure: 800 ohm load: 136 dB (attenuator at 0) 146 dB (attenuator at -10), 150 ohm load: 128 dB (attenuator at 0) 138 dB (attenuator at -10)
Transducer Type: Condenser
Polar Pattern: Cardioid
Switchable low cut: Yes
Connectors: 3 Pin XLR
Attenuator: Yes
Interchangeable Capsule: No
Main Functionality: Performance
Headphone Output: No
Requires Phantom Power: 11 - 52 VDC
Cartridge: Fixed
