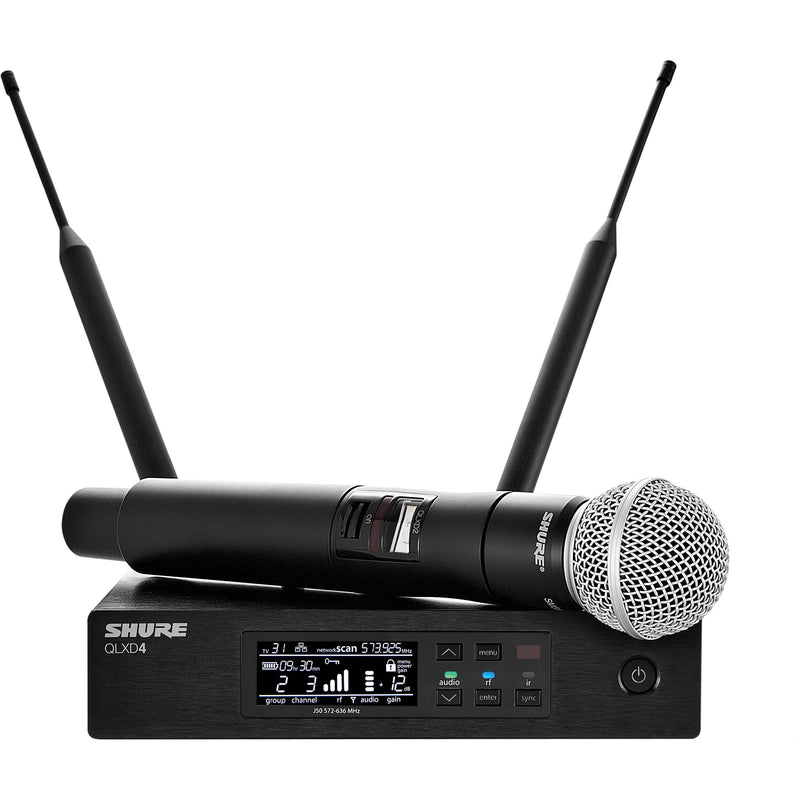

This system is available as QLXD24/SM58. It contains a QLXD2 handheld transmitter with SM58 microphone head and a QLXD4 receiver.K51 Frequency Bank, 606 - 670Mhz.
MAIN FEATURES
- Available Transmitter Form factors: Bodypack, Boundary, Handheld, Desktop base
- Operating range (up to): 100 m (Under typical conditions)
- 24 bit audio with 120 dB dynamic range
- 2.9 milliseconds system latency
- Rugged, all metal construction
- IR sync between transmitters and receivers
- AES-256 encryption for wireless transmission
- Up to 10 hour transmitter battery life with Shure lithium ion rechargeable batteries, with remaining
- run time displayed in hours and minutes accurate to 15 minutes
- Up to 9 hour transmitter battery life with standard AA batteries
- Transmitter RF power can set to 1 mW or 10 mW
- Up to 22 transmitters can simultaneously operate on an 8 MHz channel within the UHF range
- Frequency bands cover up to 72 MHz
- Automatic channel scan
WHERE CAN THE QLX-D BE USED?
This digital wireless system is ideal for mid to large-sized events and installations, such as presentation spaces, music venues and churches. A clear uninterrupted signal is maintained within 100 m of the receiver.
WHAT DIGITAL WIRELESS AUDIO QUALITY DOES IT OFFER?
The QLX-D offers professional sound quality. It uses transparent 24 bit audio to give a wider frequency response, whilst its 120 dB dynamic range provides excellent signal to noise performance. Additionally, it has a very low system latency of just 2.9 milliseconds. Its extended, flat frequency response (20 Hz to 20 kHz, depending on the microphone) allows the QLX-D to cover applications with diverse requirements.
WHICH COMPONENTS DOES THE QLX-D COMPRISE?
QLXD4 Wireless Receiver:
- The QLXD4 is a half rack digital wireless receiver which features an Ethernet port for external connectivity, allowing compatibility with Shure Wireless Workbench 6 software, and the ShurePlus Channels iOS app.
- It can also integrate with third-party control systems, including AMX and Crestron.
Transmitter options:
- QLXD1 Wireless Bodypack Transmitter: The QLXD1 is compatible with a selection of Shure lavalier, headset, and clip on instrument microphones.
- QLXD2 Wireless Handheld Transmitter: To tailor sound for specific purposes, the QLXD2’s microphone cartridge is interchangeable with the full range of Shure dynamic and condenser cartridges, which offer a diverse set of sound characteristics and polar patterns.
All components have a rugged, all-metal construction to handle demanding environments.
WHAT ARE ITS WIRELESS FEATURES?
The QLX-D offers advanced AES-256 encryption for wireless transmission. The transmitters give up to 10 hours of continuous wireless use with compatible Shure lithium ion rechargeable batteries. These batteries also accurately report the remaining run time in hours and minute.
Alternatively, the transmitters can run on standard AA batteries for up to 9 hours. Transmitter RF power can be set to 1 mW or 10 mW as required, to optimise battery life.
The QLX-D offers RF spectrum efficiency within the UHF range. Up to 22 transmitters can simultaneously operate on an 8 MHz channel. Additionally, frequency bands cover up to 72 MHz, allowing QLX-D users to operate more channels on air than with any other wireless system in its class.
HOW EASY IS IT TO SET UP AND USE THE QLX-D?
The QLX-D offers
- Channel scan and IR sync make finding and assigning an open frequency quick and easy. Network Scan then allows a receiver to deploy frequencies to all networked receivers within the same frequency band
- Shure proprietary gain ranging optimises the system’s dynamic range for any level of input source, eliminating the need for manual transmitter gain adjustments
- The receiver features an internal DHCP client for automatic network configuration
- Advanced frequency coordination with Shure Wireless Workbench®
QLXD4 Digital Wireless Receiver
- Automatic Channel Scan quickly finds clear frequencies; Networked Channel Scan then shares open frequencies between multiple receivers over Ethernet, with one touch syncing
- Digital Predictive Switching Diversity ensures a stable RF connection
- Highly efficient RF spectrum usage – up to 22 transmitters per 8 MHz channel
- Secure AES 256 bit encryption of all wireless transmissions
- Shure Wireless Workbench® software allows remote control from PC or Mac
- ShurePlus™ Channels mobile app allows remote control from iOS devices
- Half rack format with detachable ½ wave antennas
- Up to 60 dB of adjustable audio gain
- Up to 72 MHz tuning bandwidth (region dependent)
- More than 60 pre set compatible channels per frequency band (region dependent)

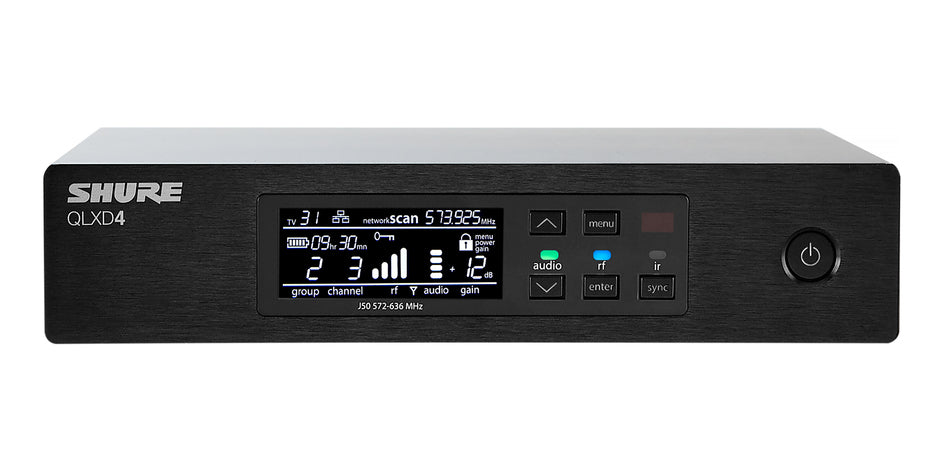

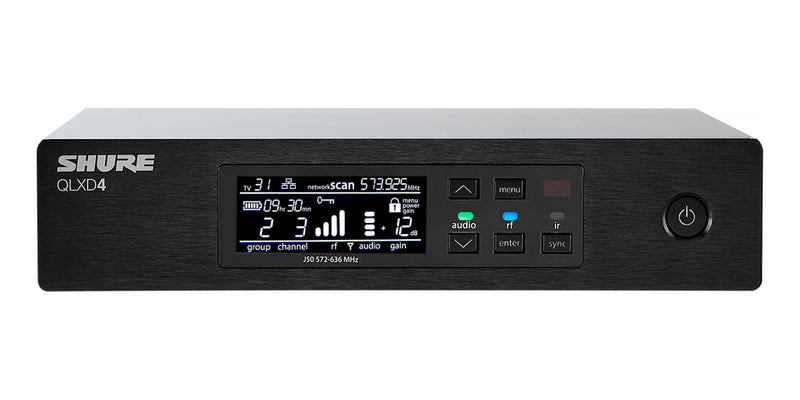

- High contrast LCD menu and controls with lockout feature, plus Audio and RF LED meters with peak indicator

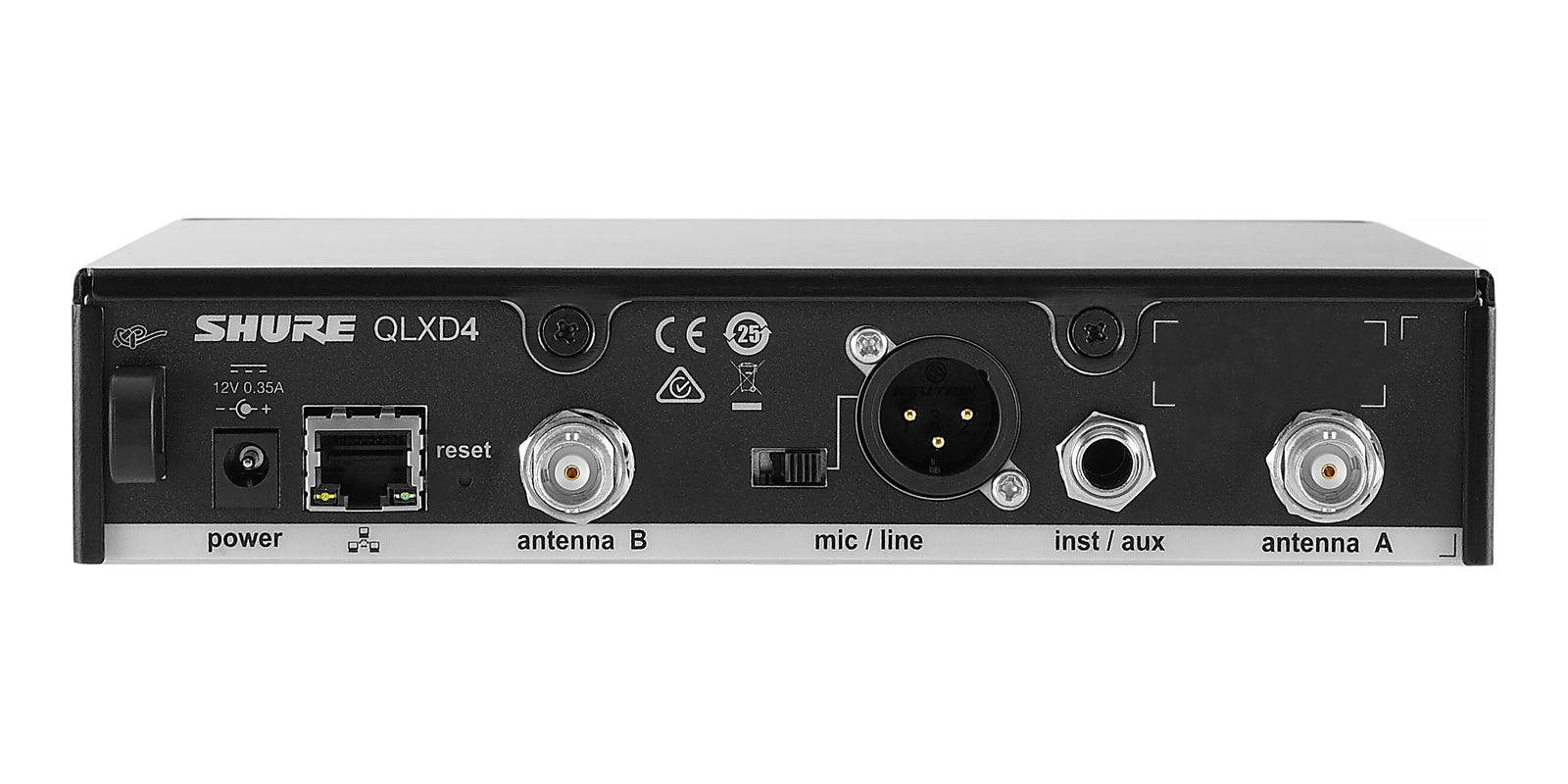

- Mic / line switchable XLR output, and 6.3 mm instrument output
- Durable aluminium construction with brushed finish

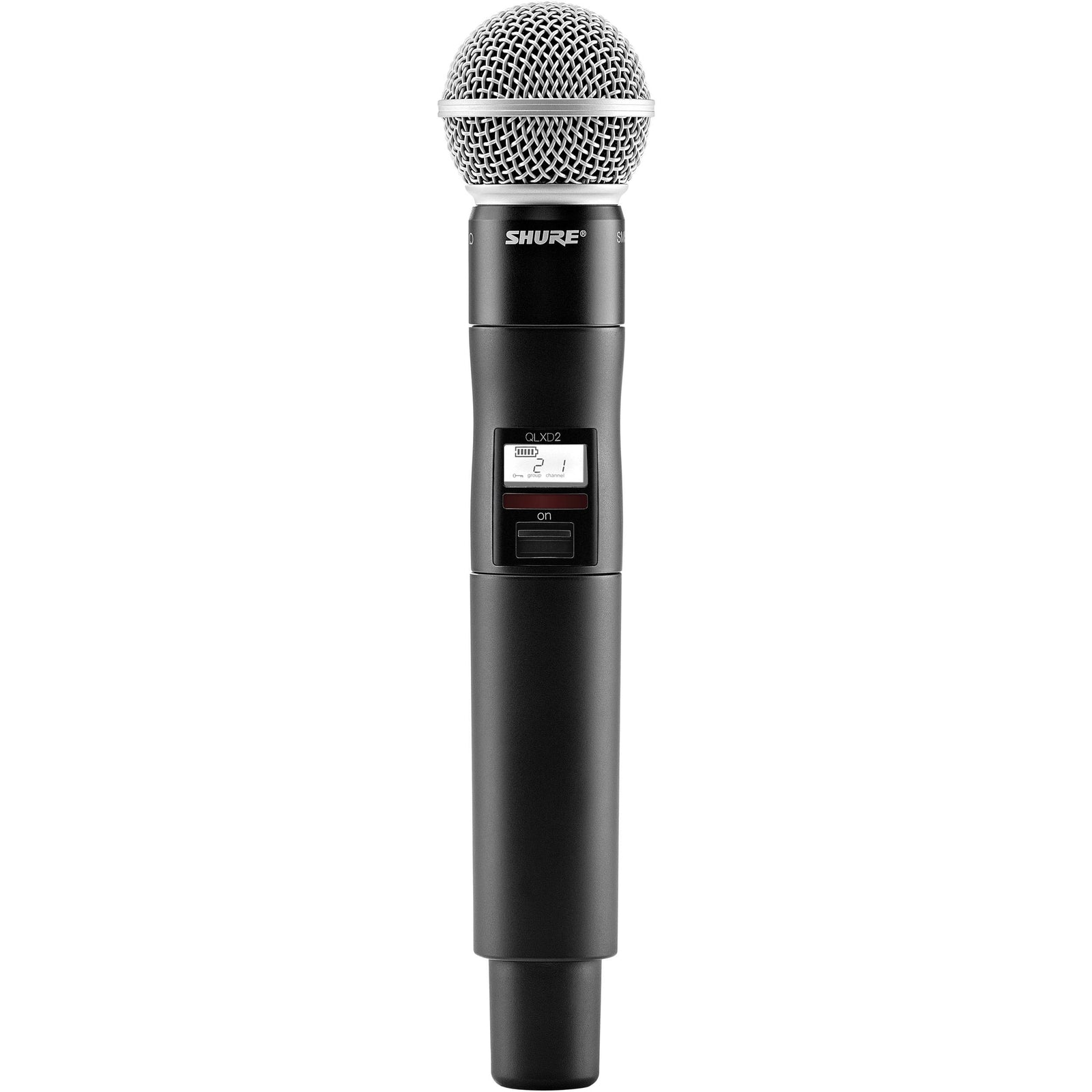

QLXD2/SM58 QLXD2 Handheld Transmitter with SM58 Capsule
- 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
- Interchangeable Shure microphone capsules, including the legendary SM58®
- AES 256-bit encryption for secure transmission
- Over 120 dB of dynamic range – no transmitter gain adjustment needed
- 1, 10 mW selectable RF output power
- Up to 9 hours continuous use with 2 x AA alkaline batteries
- Optional Shure lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
- External charging contacts for docked charging
- Backlit LCD with easy to navigate menu and controls
- Selectable display mode showing group/channel, frequency, or battery runtime
- 100 meter (330 ft.) line-of-sight operating range
- Rugged metal construction
- Frequency and power lockout
FURNISHED ACCESSORIES
|
AMOUNT |
PART TITLE |
|
2 |
AA batteries |
|
2 |
1/2 wave antennas |
|
2 |
2 BNC cables |
|
1 |
zipper bag |
|
2 |
BNC bulkhead adapters |
|
1 |
rackmount kit |
|
1 |
user guide |
|
1 |
power supply |
QLXD24/SM58 Specifications
Set Type: Vocal
Amount of Handhelds: 1
QLXD4 Specifications
Weight: 777 g
Height x Width x Depth: 41.0 × 197.0 × 151.0 mm
Transmission: Digital in VHF or UHF TV Band
Type of Power Supply: External
Receiver Housings: Metal
Bias via BNC: No
Encryption: 256 Bit AES
High Density Mode: No
Interference Detection: No
Remote Control: Yes
Number of compatible systems info: 70
DANTE-Enabled Products: No
Scan Features: Channel Scan, Group Scan
Sync Features: IR Sync
Detachable Antennas: Yes
Network ability: DHCP, link-local, static
Logic: No
Cascade: No
Rack Hardware: Included Rack mounts brackets
Receiver Displays: Multi-function LCD
Included antenna: External 1/2 wave
Battery Status: Levelled battery life indication
Line Mic Switch: Yes
Image Rejection: 70 dB, typical
RF Sensitivity: -97 dBm, for 12dB SINAD, typical
Phantom Power Protection: Yes
Spurious Rejection: 80 dB, typical
Antenna Input Impedance: 50 Ω
QLXD2/SM58 Specifications
Weight: 347 g
Height x Width x Depth: 256.0 × 51.0 × 51.0 mm
Battery life lithium: 10 h
Battery life alkaline: 9 h
Form Factor: Handheld
Operating Range (up to): 100 m (Under typical conditions)
Transmitter housings: Metal
Audio Mute: No
Detachable Antennas: No
Switchable RF power: Yes
Batteries: AA, Shure Lithium-Ion battery
Encryption: 256 Bit AES
Charger Options: Docking Charger
Configuration: Unbalanced
Frequency Diversity: No
Functionality: Transmitter
High Density Mode: No
Interchangeable Handheld Capsule: Interchangeable
Transmitter displays: Backlit LCD
