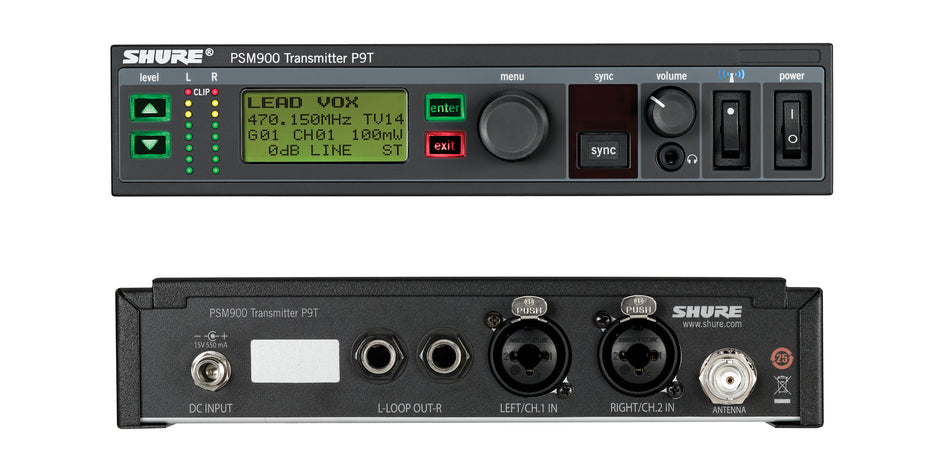

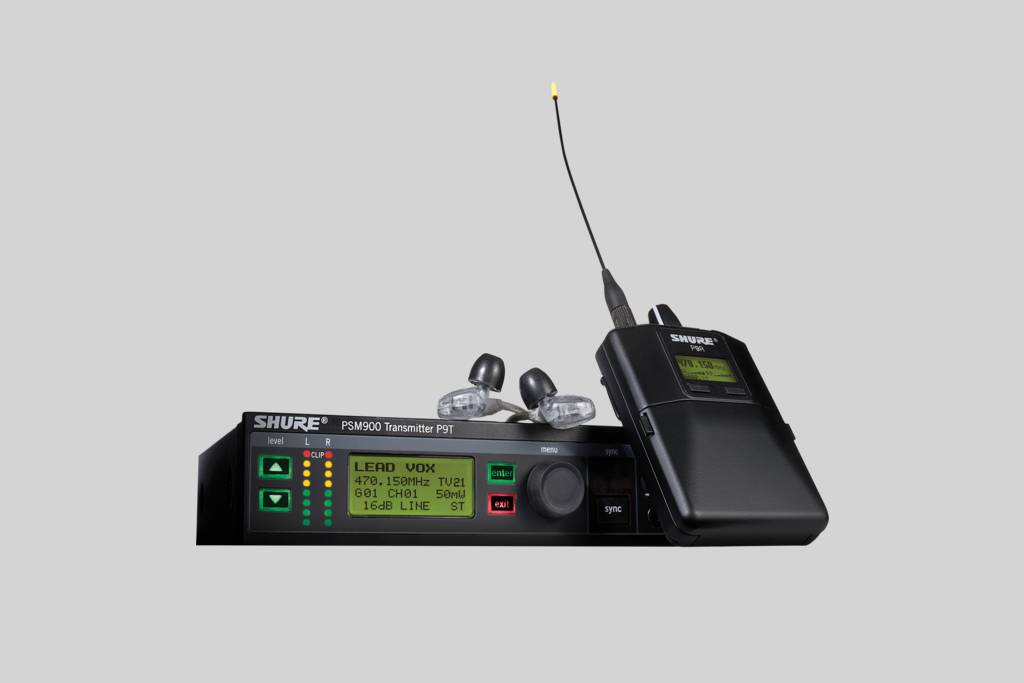

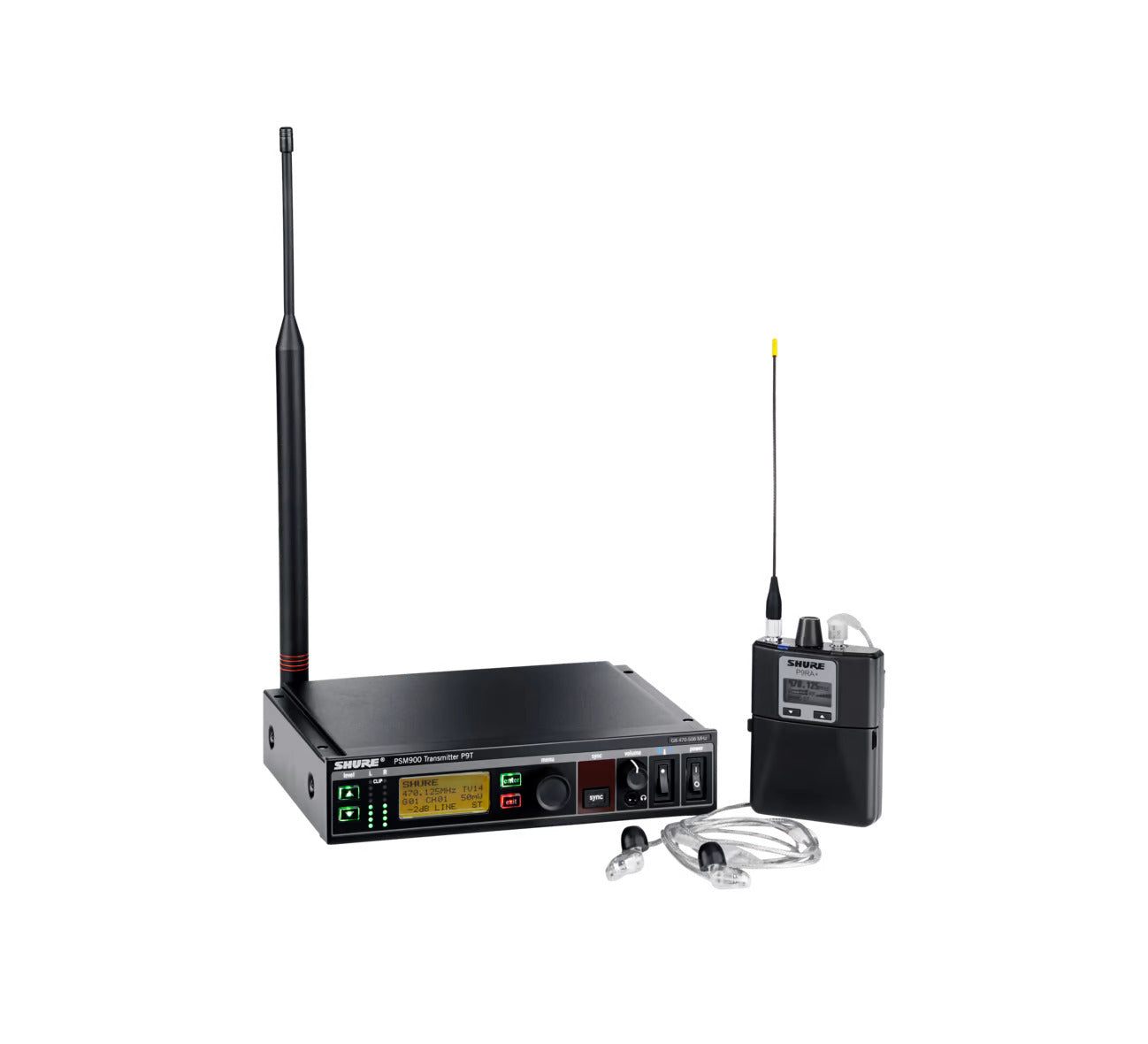

Shure’s P9T is a half-rack, wireless transmitter used in conjunction with the P9RA+ Bodypack receiver as part of the PSM® 900 Wireless Personal Monitor System.
With patented Audio Reference Companding, exceptional transmitter linearity, and patented CueMode functionality, the Shure PSM® 900 Wireless Personal Monitor System meets the needs of professional audio applications of all kinds, providing excellent audio quality and reliable RF performance. Twenty compatible frequencies per band and a 36 MHz to 40 MHz tuning bandwidth give the PSM 900 system the horsepower to handle demanding environments, including professional IEM and IFB applications.
MAIN FEATURES
UNPARALLELED AUDIO QUALITY
- Bodypack receivers with advanced digital signal processing technology deliver more headroom, improved stereo separation, and higher audio fidelity
- Patented Audio Reference Companding offers natural and transparent sound
- Available with Shure SE425 Sound Isolating™ earphones featuring dual high-definition MicroDrivers for accurate and balanced audio response
ROBUST RF PERFORMANCE
- P9RA+ bodypack receivers offer enhanced signal reception and range
- Precision front-end RF filtering significantly reduces RF interference for a cleaner, stronger RF signal, fewer dropouts, and fewer audible artifacts
- Exceptional transmitter linearity vastly reduces frequency intermodulation and allows up to 20 compatible channels per frequency range
- Automatic RF gain control prevents signal distortion due to RF overload before it can affect performance
CATEGORY-LEADING SETUP AND OPERATION FEATURES
- CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels on one bodypack for quick and easy reference
- Front panel RF mute switch enables or disables RF transmission during setup
- Scan and Sync scans the RF environment with the bodypack and assigns an identified group and channel to your system over wireless IR link
- MixMode® technology combines two separate audio channels for simultaneous listening in both ears, or can transmit two independent IFB program feeds
- Four-band parametric EQ gives you the choice to adjust frequencies for a fully customised sound
- Input EQ Presets gives you the option to further tailor your sound, including the option to make the P9RA+ sound like the P9RA with a designated “Match” setting
ADVANCED RECHARGEABILITY OPTIONS
- The SB900A lithium-ion rechargeable battery provides extended usage times and precise tracking of remaining life and charge cycle details
- The SCB800-US eight-bay charger brings up to eight SB900 batteries to full charge within two hours and has charge status LEDs for each battery
- The SBC200 dual-docking charger works with SB900A, P9RA+, P10R+, QLX-D® Digital Wireless Systems, and ULX-D® Digital Wireless Systems, available with and without power supply
- The SBC220 networked dual-docking charger works with SB900A, PSM 900 (P9RA+ only), PSM 1000 (P10R+ only), QLX-D Digital Wireless Systems, ULX-D Digital Wireless Systems, and Axient® Digital (AD1 and AD2 only), available with and without power supply. When the SBC220 is connected to a network, battery information for each transmitter can be viewed remotely.
PSM 900 Specifications
Number of compatible systems per frequency band: 20
Operating Range (up to): 100
P9RA Specifications
Weight: 200 g
Height x Width x Depth: 99.0 × 66.0 × 23.0 mm
Battery life lithium: 8 h
Battery life alkaline: 6 h
Image Rejection: 90 dB
Active RF Gain Control: 31 dB
RF Sensitivity: 2.2 μV at 20dB SINAD dBm, for 12dV SINAD, typical
Squelch Threshold: 20 dB SINAD
Adjacent Channel Rejection: 70 dB
Intermodulation Attenuation: 50 dB
Blocking: 80 dB
Audio Output Power: 100 mW
Minimum load impedance: 9 Ω
Bodypack Diversity: No
Detachable Antennas: Yes
Transmission: Analog
Scan Features: Channel Scan, Group Scan
Batteries: AA, Shure Lithium-Ion battery
Receiver Displays: LCD
Battery Status: Multi-Colour LED, HH:MM (Hours and minutes)
Receiver Housings: Metal
Charger Options: Docking Charger

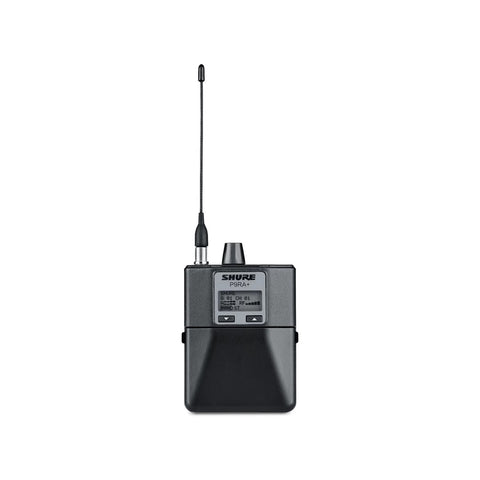

P9RA+ Specifications
Weight: 154 g
Height x Width x Depth: 99.0 × 66.0 × 23.0 mm
Battery life alkaline: 6 h
Image Rejection: 90 dB
Active RF Gain Control: 31 dB
RF Sensitivity: 2.2 µV (20 dB SINAD) dBm, for 12dV SINAD, typical
Squelch Threshold: 22 dB SINAD
Adjacent Channel Rejection: 70 dB
Intermodulation Attenuation: 70 dB
Blocking: 80 dB
Audio Output Power: 100 mW
Minimum load impedance: 4 Ω
Bodypack Diversity: Yes
Detachable Antennas: Yes
Batteries: AA, Shure Lithium-Ion battery
Receiver Displays: LCD
Battery Status: Multi-Colour LED
Receiver Housings: Metal
Charger Options: Docking Charger, USB Charger
P9T Specifications
Weight: 850 g
Height x Width x Depth: 42.0 × 197.0 × 166.0 mm
Number of compatible systems per frequency band: 20
Tuning Range: 36 Mhz
Operating Range (up to): 100 m
Spurious Rejection: 80 dB, typical
RF Output Impedance: 50 Ω
RF mute: Yes
Detachable Antennas: Yes
Input impedance: 70200 Ω
Transmission: Analog
Sync Features: IR Sync
Rack Hardware: Included Rack mounts brackets
Included antenna: External 1/2 wave
Type of Power Supply: External
Functionality: Transmitter
Transmitter displays: Backlit LCD
Input connectors: XLR, 6,3 mm
Output connectors: 6,3 mm
Transmitter housings: Metal
