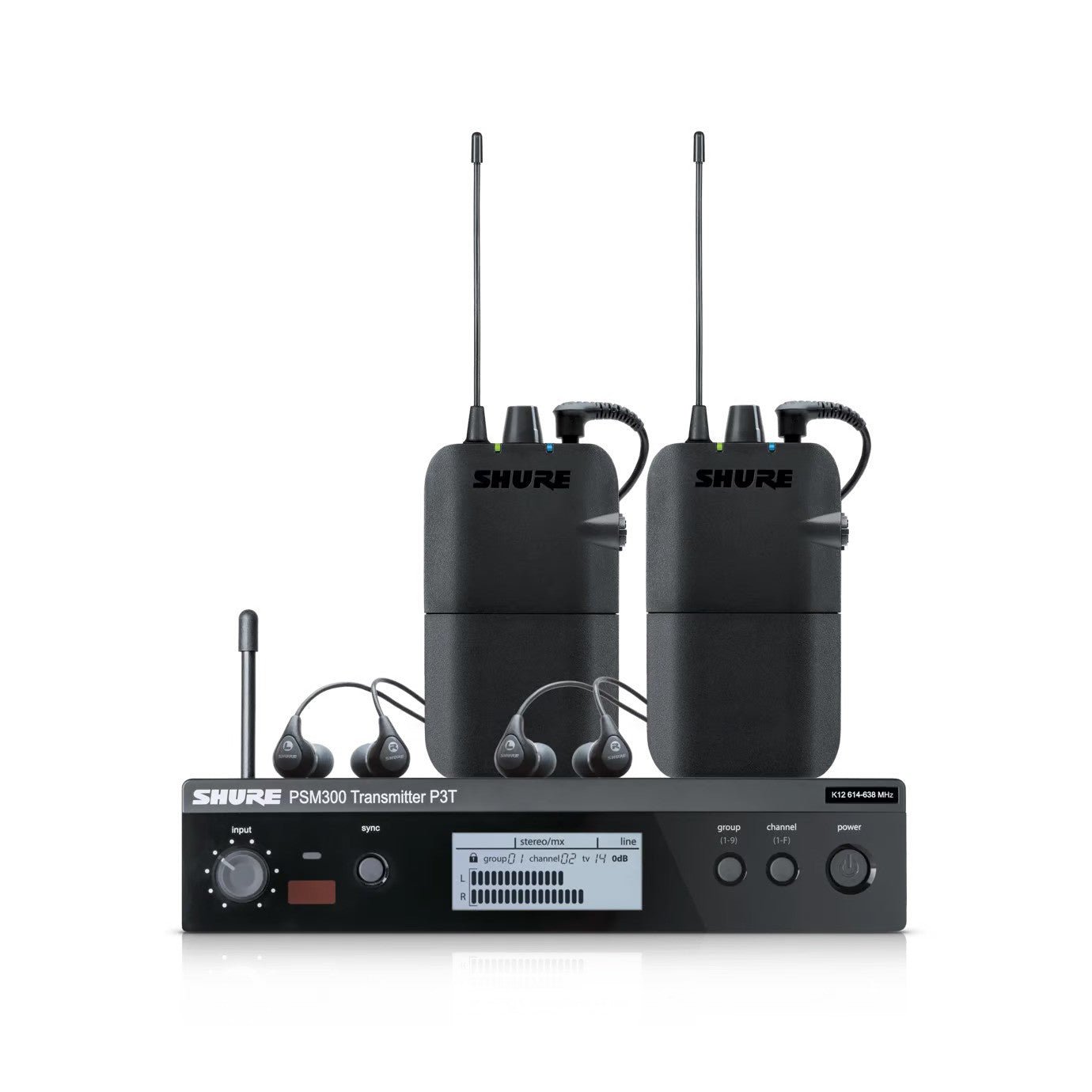

Stereo personal monitoring system with either SE112 or SE215-CL Sound Isolating Earphones, rack mount, 1/4 wave antenna, and zippered bag. Features include patented Audio Reference Companding, analog RF connection over 90 meters, and MixMode technology.
The PSM®300 Stereo Personal Monitor System delivers detailed 24-bit digital audio processing and reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Dependable wireless coverage extends over 90 meters of range and eliminates dropouts. Easy to setup and operate, PSM®300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode® technology or stereo mode to create a personal mix from two channels of audio.

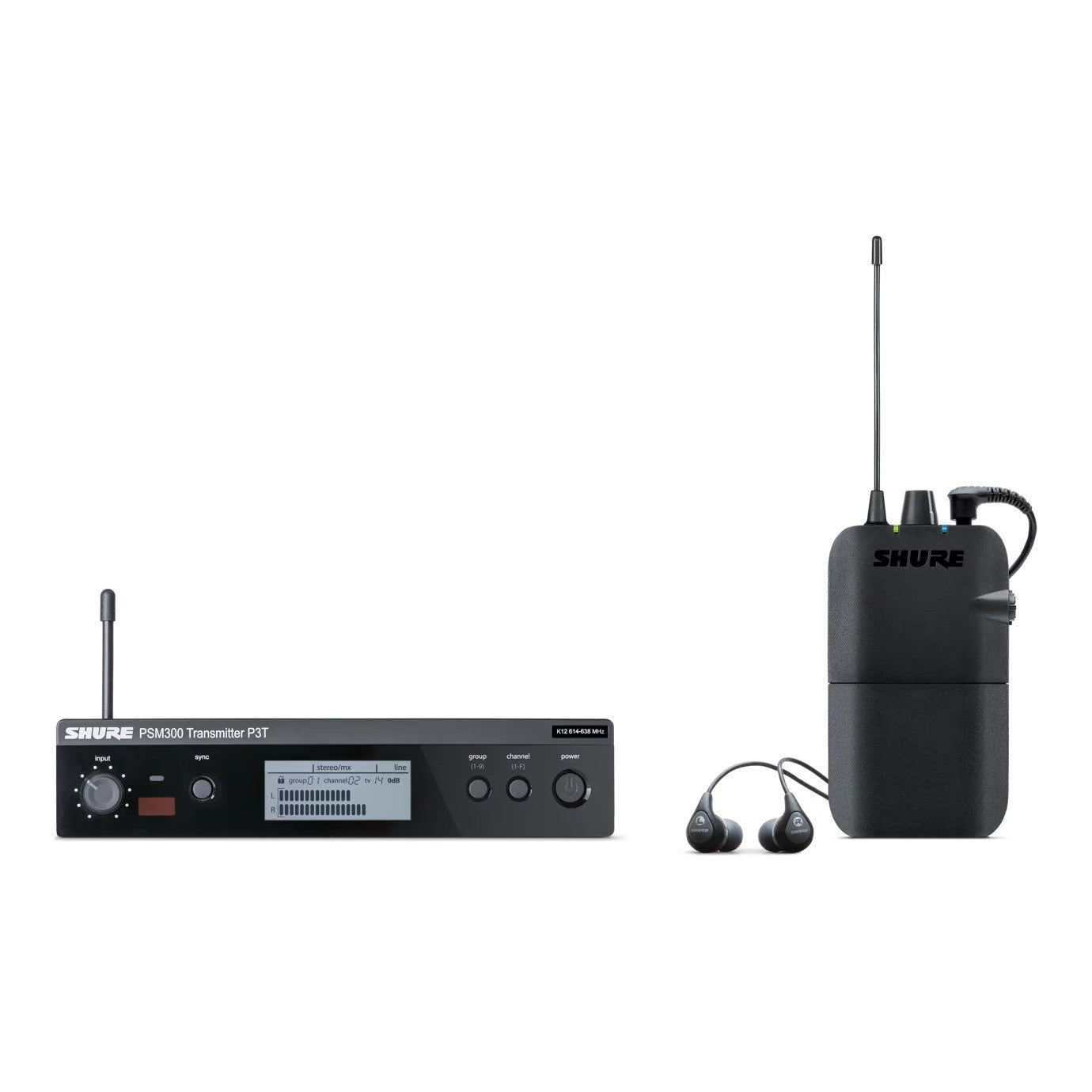

P3TR112GR systems include SE112 Sound Isolating™ Earphones for great sound with deep bass and up to 37 dB of ambient noise reduction. Also includes rack mount and hardware kit, ¼ wave antenna, power supply, zippered bag, 2 AA batteries and user guide.

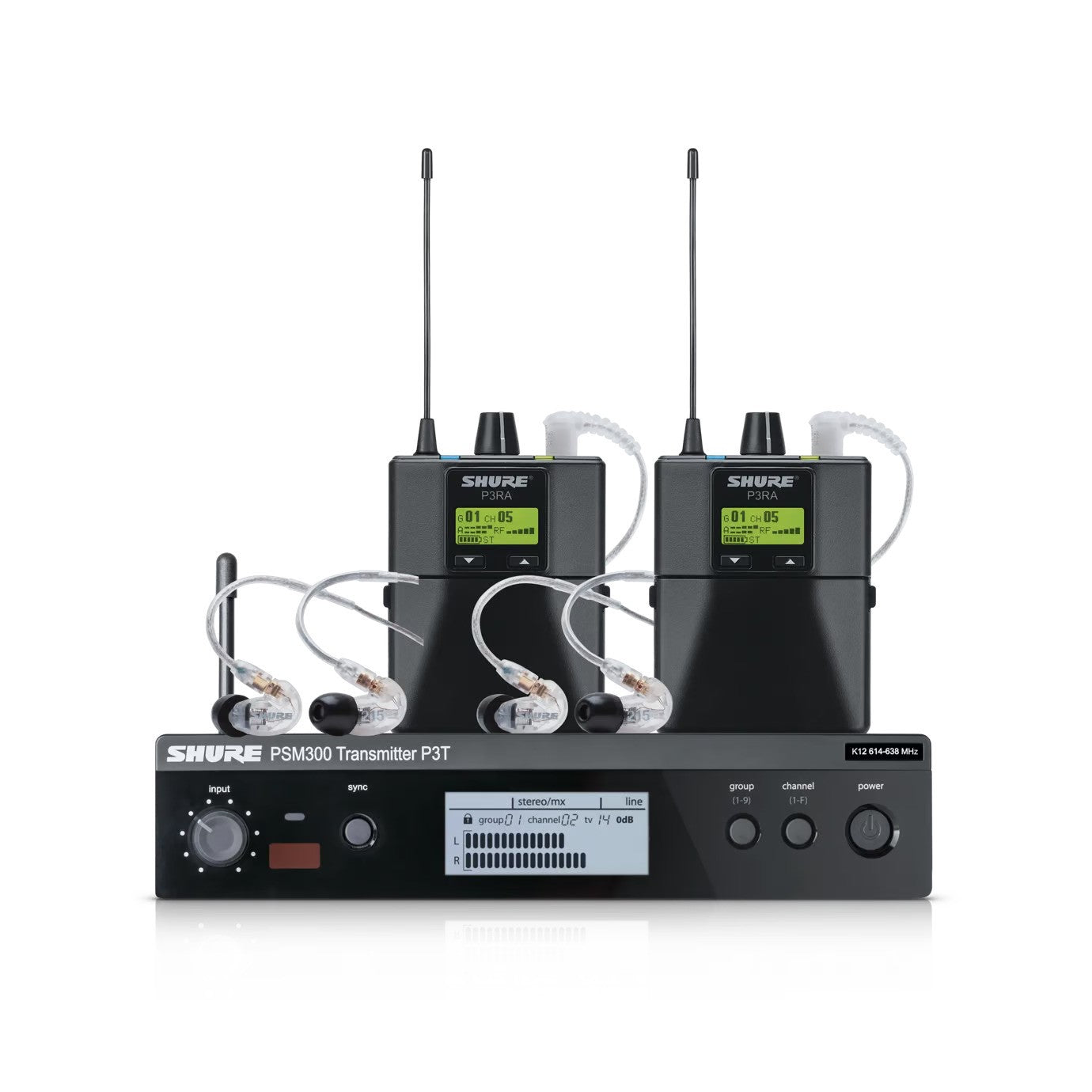

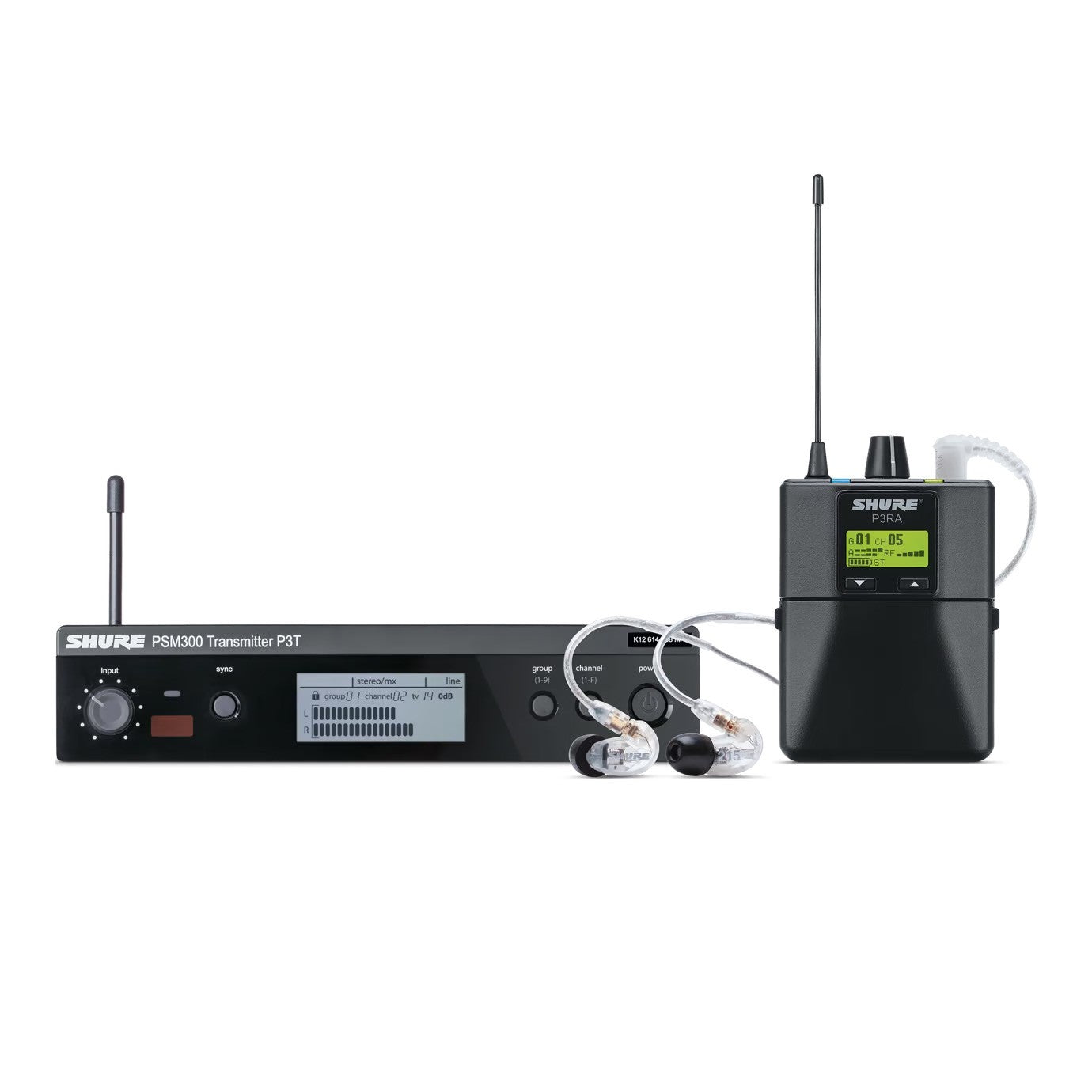

P3TR115CL systems include SE215-CL Sound Isolating™ Earphones for great sound with deep bass and up to 37 dB of ambient noise reduction. Also includes rack mount and hardware kit, ¼ wave antenna, power supply, zippered bag, 2 AA batteries and user guide.
MAIN FEATURES
PSM®300 STEREO WIRELESS PERSONAL MONITOR SYSTEMS
- Send two channels of audio wirelessly to performers onstage
- 24-bit digital audio processing provides clear, detailed sound
- Patented Audio Reference Companding sounds more like wired
- Up to 90 dB signal-to-noise ratio
- Exceptionally wide stereo separation
- Solid analogue RF connection over a 90 meter range
- Create a personal mix from the bodypack with MixMode® technology or stereo mode
- Frequency scan and IR sync quickly finds and assigns a clean channel
- Half-rack, single channel transmitter with included rack mount kit
- P3R bodypack systems available with SE112 Earphones
- P3RA professional bodypack systems available with SE215 Earphones
P3R STEREO WIRELESS BODYPACK RECEIVER
- Slim, lightweight, durable form factor
- Frequency scan and IR sync quickly finds and assigns a clean channel
- MixMode® technology enables adjustment of two independent monitoring mix levels
- Stereo mode enables adjustment of left/right balance
- Easy to adjust volume knob and mix control
- 2 AA batteries provide up to 7 hours of continuous operation
- Power save mode preserves battery life when earphones are not connected
- Power and battery status LED

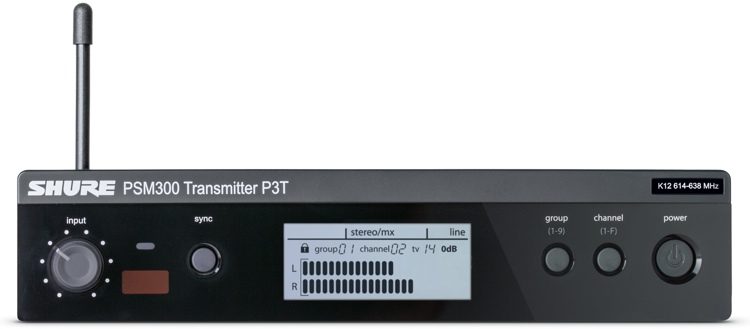

P3T WIRELESS TRANSMITTER
- Single channel, half-rack transmitter with included rack mount kit
- Sends a stereo or mono mix wirelessly to performers onstage
- Rock-solid wireless connection to PSM300 receivers over a 300 90 meter range
- One-touch IR sync instantly links transmitter to receiver
- Up to 30 mW output power (region dependent)
- Up to 24 MHz tuning range (region dependent)
- ¼” (6.3 mm) TRS balanced inputs and loop outputs
- High-contrast LCD screen with left/right audio output meters
- Detachable ¼ wave antenna
- Selectable line/aux level
SE112 SOUND ISOLATING™ EARPHONES
- Dynamic MicroDriver for great sound with deep bass and impressive sound isolation. Fixed cables.
PSM 300 Specifications
Number of compatible systems per frequency band: 15
Operating Range (up to): 100
SE112 Specifications
Weight: 30 g
Sound signature: Great sound + deep bass
Sensitivity: 105 dB SPL/mW
Impedance: 16 Ω
Frequency Range: 25 Hz – 17 kHz
Cable length: 127 cm
Sound Isolation (up to): 37 dB
MicroDriver: Single Dynamic
Cable type: Fixed
Colours: Grey, Black
SE215 Specifications
Weight: 30 g
Sound signature: Detailed sound + enhanced bass
Sensitivity: 107 dB SPL/mW
Impedance: 17 Ω
Frequency Range: 22 Hz – 17 kHz
Cable length: 162 cm
Sound Isolation (up to): 37 dB
MicroDriver: Single Dynamic
Cable type: Detachable
Colours: Black, Clear, White, Blue
Special features: Inline Mic
P3RA Specifications
Weight: 196 g
Height x Width x Depth: 99.0 × 66.0 × 23.0 mm
Battery life lithium: 7 h
Battery life alkaline: 5 h
Image Rejection: 90 dB
RF Sensitivity: 2.2 μV at 20dB SINAD dBm, for 12dV SINAD, typical
Adjacent Channel Rejection: 60 dB
Intermodulation Attenuation: 50 dB
Blocking: 60 dB
Audio Output Power: 80 mW
Minimum load impedance: 16 Ω
Bodypack Diversity: No
Detachable Antennas: No
Transmission: Analog
Scan Features: Channel Scan, Group Scan
Batteries: AA, Shure Lithium-Ion battery
Battery Status: HH:MM (Hours and minutes)
Receiver Housings: Metal
Charger Options: Docking Charger
P3R Specifications
Weight: 98 g
Height x Width x Depth: 110.0 × 64.0 × 21.0 mm
Battery life alkaline: 7 h
Image Rejection: 90 dB
RF Sensitivity: 2.2 μV at 20dB SINAD dBm, for 12dV SINAD, typical
Adjacent Channel Rejection: >60 dB
Intermodulation Attenuation: 50 dB
Blocking: 60 dB
Audio Output Power: 40 mW
Minimum load impedance: 4 Ω
Bodypack Diversity: No
Detachable Antennas: No
Transmission: Analog
Scan Features: Group Scan, Channel Scan
Batteries: AA
Battery Status: Multi-Colour LED
Receiver Housings: Moulded ABS
P3T Specifications
Weight: 783 g
Height x Width x Depth: 43.0 × 198.0 × 172.0 mm
Number of compatible systems per frequency band: 15
Operating Range (up to): 100 m
Spurious Rejection: 80 dB, typical
RF Output Impedance: 50 Ω
RF mute: No
Detachable Antennas: Yes
Input impedance: 40000 Ω
Transmission: Analog
Sync Features: IR Sync
Rack Hardware: Included Rack mounts brackets
Included antenna: External 1/4-wave
Type of Power Supply: External
Functionality: Transmitter
Transmitter displays: Backlit LCD
Input connectors: 6,3 mm
Output connectors: 6,3 mm
Transmitter housings: Metal
