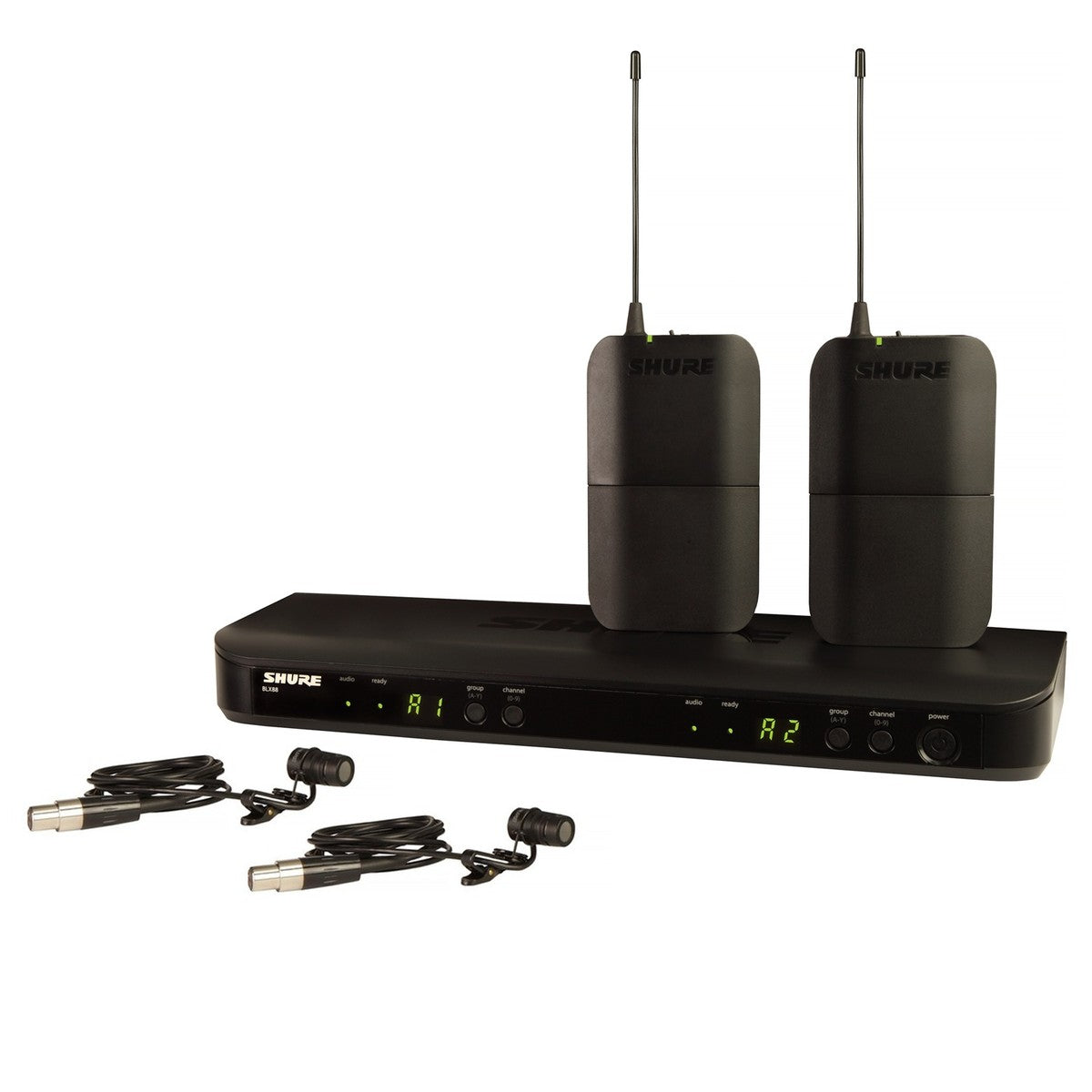

Shure BLX188/W85 Wireless Dual Lavalier System

The WL185 premium cardioid lavalier microphone brings a new level of sophistication to personal voice reproduction. Like all Microflex family microphones, this lavalier uses an interchangeable condenser cartridge, meaning there will always be a lavalier to suit your application. With analogue dual wireless transmission.

MAIN FEATURES

• Available Transmitter Form factors: Bodypack
• Operating range (up to): 100 m (Under typical conditions)

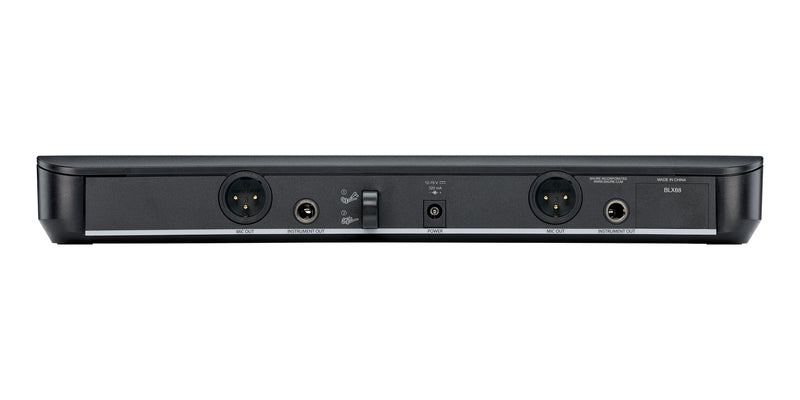

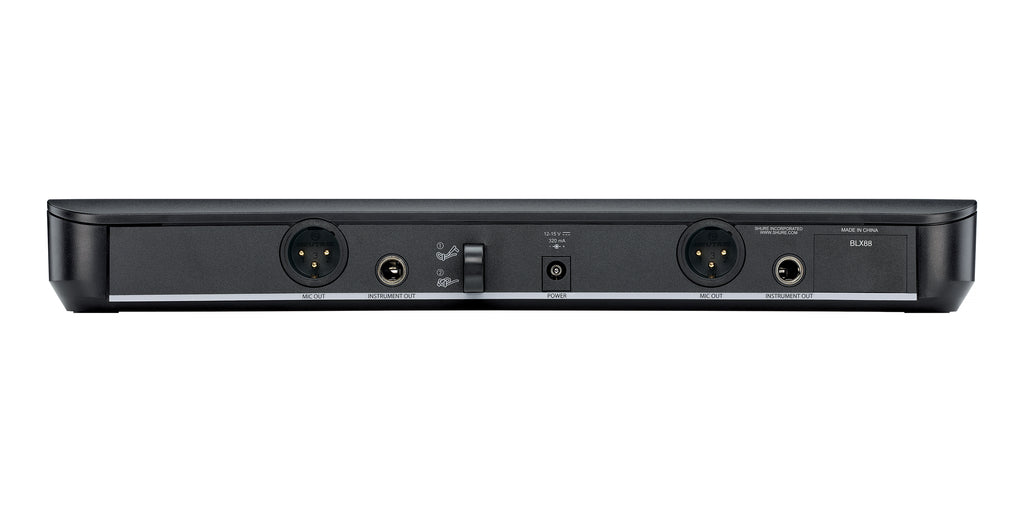

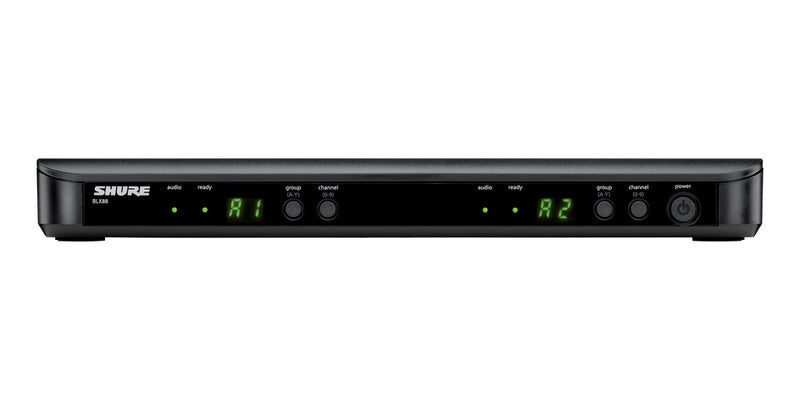

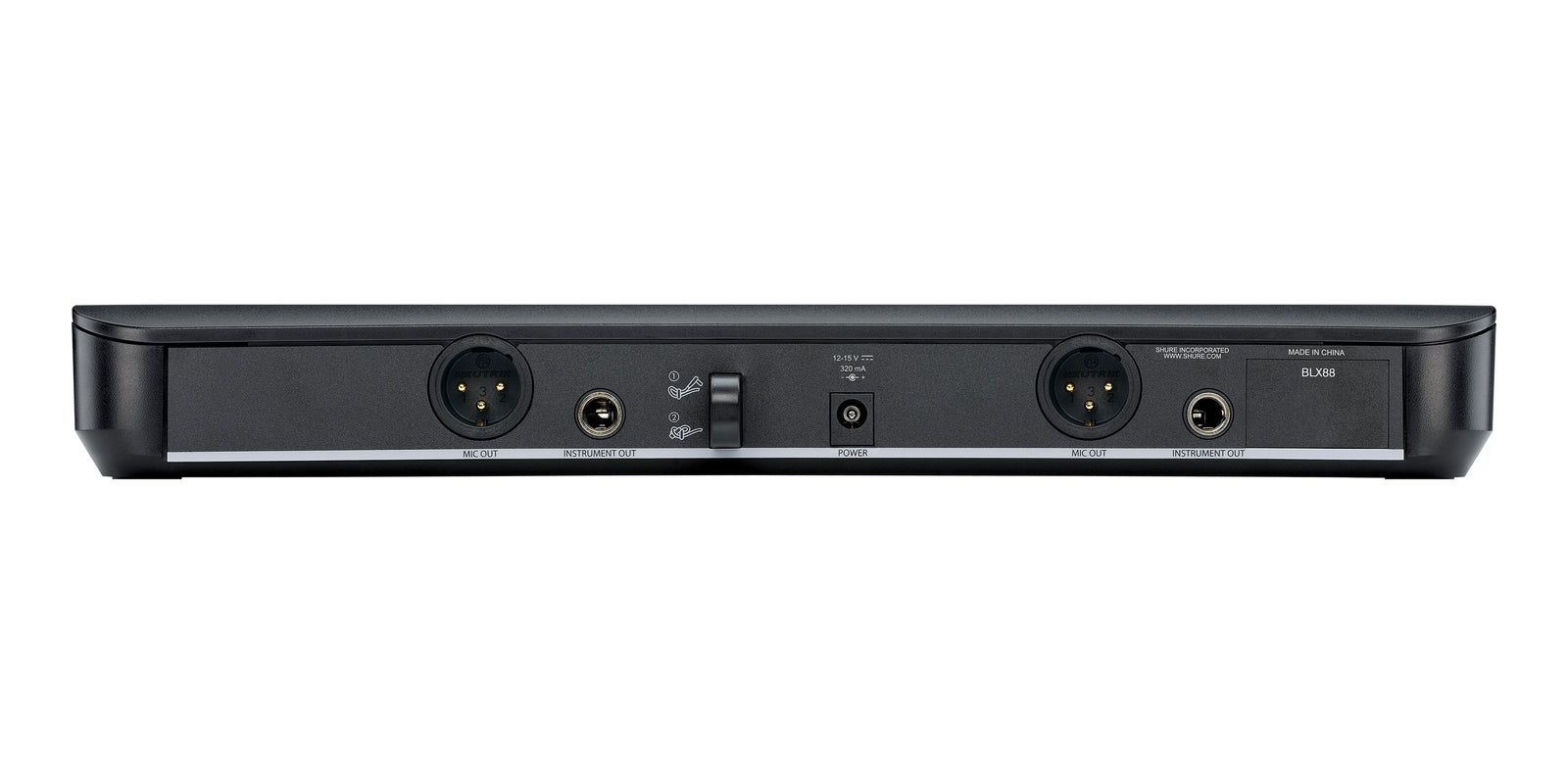

BLX88 Dual Wireless Receiver for BLX Wireless System

• Up to 12 compatible systems (region dependent)
• Microprocessor-controlled internal antenna diversity
• One touch QuickScan locates the best open Frequency
• ¼" and XLR audio outputs
• Two colour audio status indicator LED
• Green: Normal audio levels
• Red: Excessive audio levels (overload/clipping)

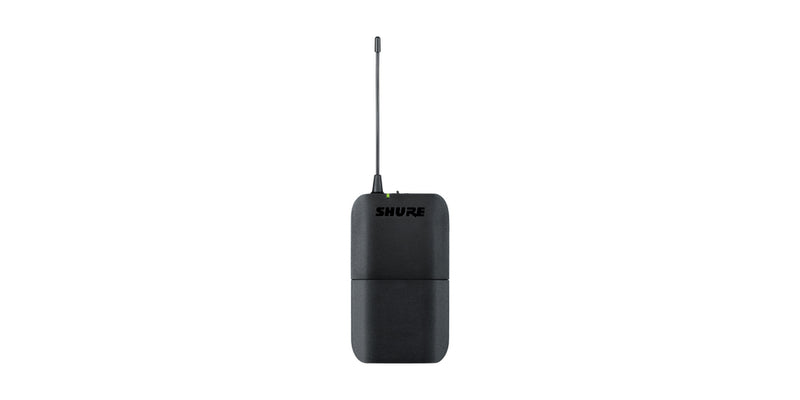

BLX1 Wireless Bodypack Transmitter

• Power and battery status LED
• Adjustable gain control
• Quick and easy frequency matching
• AA batteries (included) provide up to 14 hours of continuous use
• 100 m (300 ft.) operating range (line of sight)

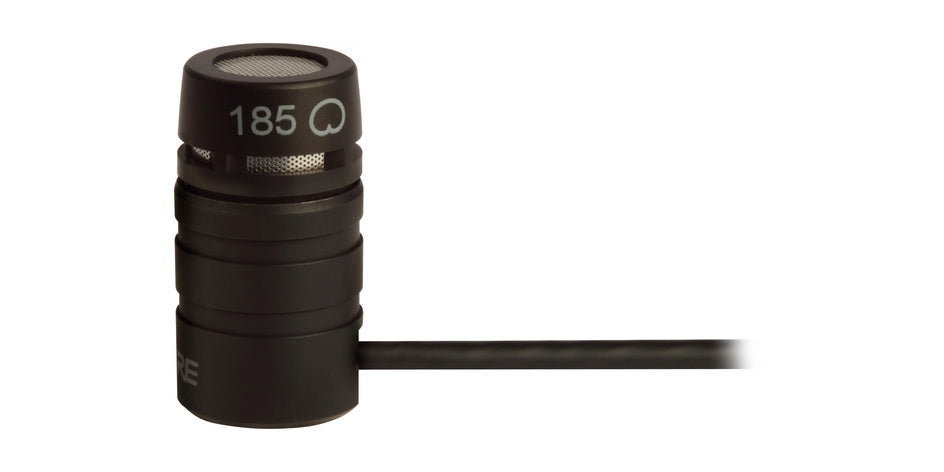

WL185 TQG Lavalier Microphone

• Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
• Interchangeable cartridges that provide an optimal choice for each application
• Rotatable tie-clip that pivots in 90 degree increments for placement flexibility
• Supplied snap-fit foam windscreen that controls breath noise and stays on securely
• Balanced, transformerless output for increased immunity to noise over long cable runs
• Supplied dual tie clip holds two microphones for dual miking applications

FURNISHED ACCESSORIES

BLX188/W85 Specifications

Set Type: Dual Presenter

Amount of Bodypacks: 2

Amount of TQG Mics: 2

BLX88 Specifications

Weight: 429 g

Height x Width x Depth: 40.0 × 388.0 × 116.0 mm

Transmission: Analog

Type of Power Supply: External

Receiver Housings: Moulded ABS

Active Antenna Possible: No

Bias via BNC: No

High Density Mode: No

Interference Detection: No

Remote Control: No

Number of compatible systems info: 12

DANTE-Enabled Products: No

Scan Features: Quick Scan

Detachable Antennas: No

Logic: No

Cascade: No

Rack Hardware: Optional: URT2

Receiver Displays: LEDs

Receiver type: Dual

Line Mic Switch: No

Image Rejection: 50 dB, typical

RF Sensitivity: -105 dBm, for 12dB SINAD, typical

Phantom Power Protection: No

BLX1 Specifications

Weight: 75 g

Height x Width x Depth: 110.0 × 64.0 × 21.0 mm

Battery life alkaline: 14 h

Form Factor: Bodypack

Operating Range (up to): 100 m (Under typical conditions)

Transmitter housings: Moulded ABS

Audio Mute: No

Detachable Antennas: No

Switchable RF power: No

Batteries: AA

Battery Status: Multi-Colour LED

Connectors: TQG

Frequency Diversity: No

Functionality: Transmitter

Gain adjustment range: 26 dB

High Density Mode: No

Included antenna: 1/4 wave

Input impedance: 1000 kΩ

WL185 Specifications

Weight: 28 g

Frequency Response: 50 Hz – 17 kHz

Frequency Response: Tailored

Sensitivity: -35.00 dBV/Pa – 17.00 mV/Pa

Equivalent Selfnoise: 28 dB(A)

Transducer Type: Condenser

Polar Pattern: Cardioid

Switchable low cut: No

Connectors: TQG (T4AF, 4-Pin Mini)

Attenuator: No

Interchangeable Capsule: No

Headphone Output: No

Cartridge: Interchangeable
