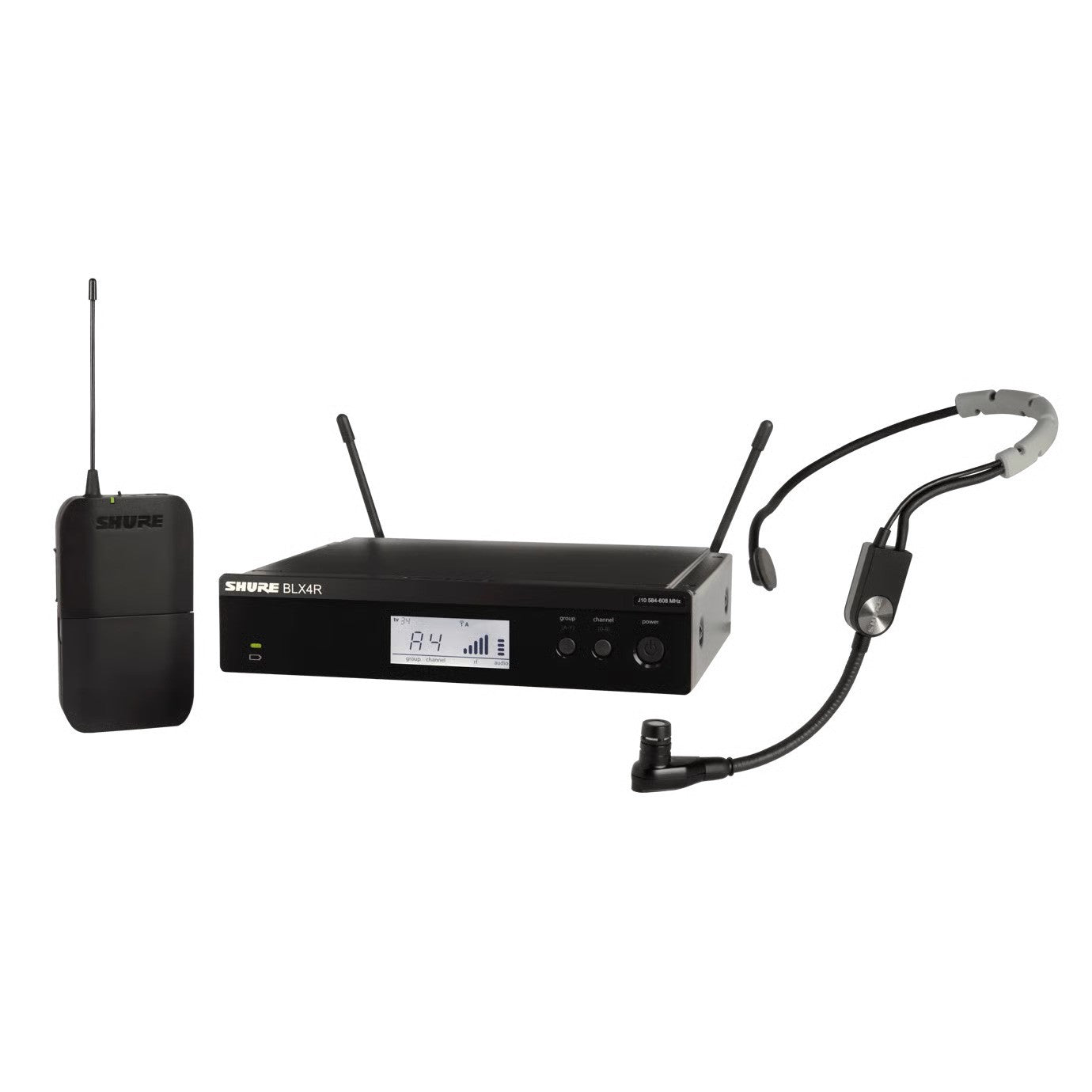

The Shure BLX14R/SM35 Wireless Rack-mount Headset System combines professional-quality sound with simple setup and up to 14 hours battery life for great audio performance right out of the box. The system includes BLX4R half-rack single-channel receiver, SM35 headset microphone with BLX1 bodypack transmitter, clothing clip, power supply, 2 AA batteries, windscreens, rackmount kit, 2 1/4 wave antennas, and user guide. Frequency Band K3E (606 - 630 Mhz).
SUPERIOR AUDIO - Perform with Confidence
Get the show going with no wires attached. Professional Shure sound for every band and any vocal need.
RELIABLE SIGNAL - Extend your range
With a range of up to 300 feet (100m), you can take the show into the crowd without interruption.
EASY SETUP – Own the stage
BLX will have you up and running in record time with one-touch scan and selection.
BATTERY LIFE – 14 hours of power
Because BLX transmitters get up to 14 hours of power from a single pair of AA batteries, the show can go on and on (and on).
SYSTEMS EXPANSIONS – Run up to 12 channels per frequency band*
You’ll probably need to find a bigger stage before you run out of channels.
*Note: region and environment dependent.
VERSATILITY INCLUDED – You’ve got options
An impressive variety of Shure microphones are available in BLX systems, so you can find what works for you.
In the Box
- 1 53A8611 RACK MOUNT BRACKET
- 1 53A8612 LONG RACK MOUNT BRACKET
- 1 53B8443 LINK BRACKET
- 1 90AZ8100 HARDWARE KIT
- 1 31B1856 Thread Adapter
- 2 95A8699 ANTENNA/BNC,1/4 WAVE
- 2 95A8994 ADAPTER,BULKHEAD,BNC
- 1 95B2313 BAG VINYL, ZIPPERED
- 2 95K2035 CABLE,BNC,22 in.
- 1 Power supply
BLX14R/SM35 Specifications
Set Type: Headset
Amount of Bodypacks: 1
Amount of TQG Mics: 1
BLX4R Specifications
Weight: 998 g
Height x Width x Depth: 45.0 × 198.0 × 163.0 mm
Transmission: Analog
Type of Power Supply: External
Receiver Housings: Moulded ABS, Metal
Active Antenna Possible: Optional with UABiasT
Bias via BNC: No
High Density Mode: No
Interference Detection: No
Remote Control: No
Number of compatible systems info: 12
DANTE-Enabled Products: No
Scan Features: Quick Scan
Detachable Antennas: Yes
Logic:
No
Cascade:
No
Rack Hardware:
Included Rack mounts brackets
Receiver Displays:
Multi-function LCD
Receiver type: Single
Included antenna: External 1/4-wave
Battery Status: Multi-Colour LED
Line Mic Switch: No
Image Rejection: 50 dB, typical
RF Sensitivity: -105 dBm, for 12dB SINAD, typical
Phantom Power Protection: No
Antenna Input Impedance: 50 Ω
BLX1 Specifications
Weight: 75 g
Height x Width x Depth: 110.0 × 64.0 × 21.0 mm
Battery life alkaline: 14 h
Form Factor: Bodypack
Operating Range (up to): 100 m (Under typical conditions)
Transmitter housings: Moulded ABS
Audio Mute: No
Detachable Antennas: No
Switchable RF power: No
Batteries: AA
Battery Status: Multi-Colour LED
Connectors: TQG
Frequency Diversity: No
Functionality: Transmitter
Gain adjustment range: 26 dB
High Density Mode: No
Included antenna: 1/4 wave
Input impedance: 1000 kΩ

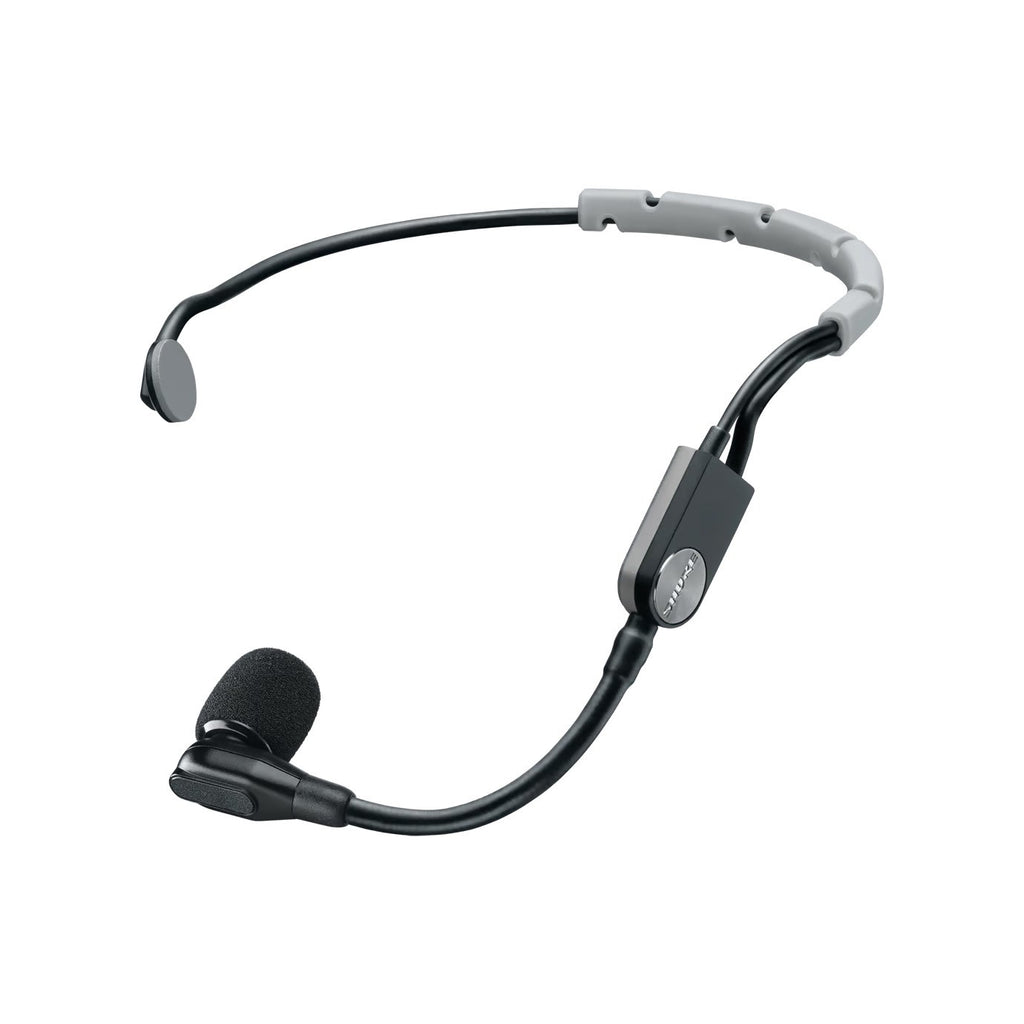

SM35-TQG Specifications
Weight: 72 g
Frequency Response: 40 Hz – 20 kHz
Frequency Response: Tailored
Sensitivity: -59 dBV/Pa – 1.1 mV/Pa
Equivalent Selfnoise: 39
Sound Pressure: 153
Transducer Type: Condenser
Polar Pattern: Cardioid
Switchable low cut: No
Connectors: TQG (T4AF, 4-Pin Mini)
Attenuator: No
Interchangeable Capsule: No
Main Functionality: Performance
Headphone Output: No
Requires Phantom Power: +5 V DC (nominal),10 V maximum (DC bias) VDC
Cartridge: Fixed
