Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.
The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail. True Diversity receiver in a metal housing and rackmount kit included.
Key Features
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronisation via remote channel for easy setup
- Fully tuneable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
What's in the Box

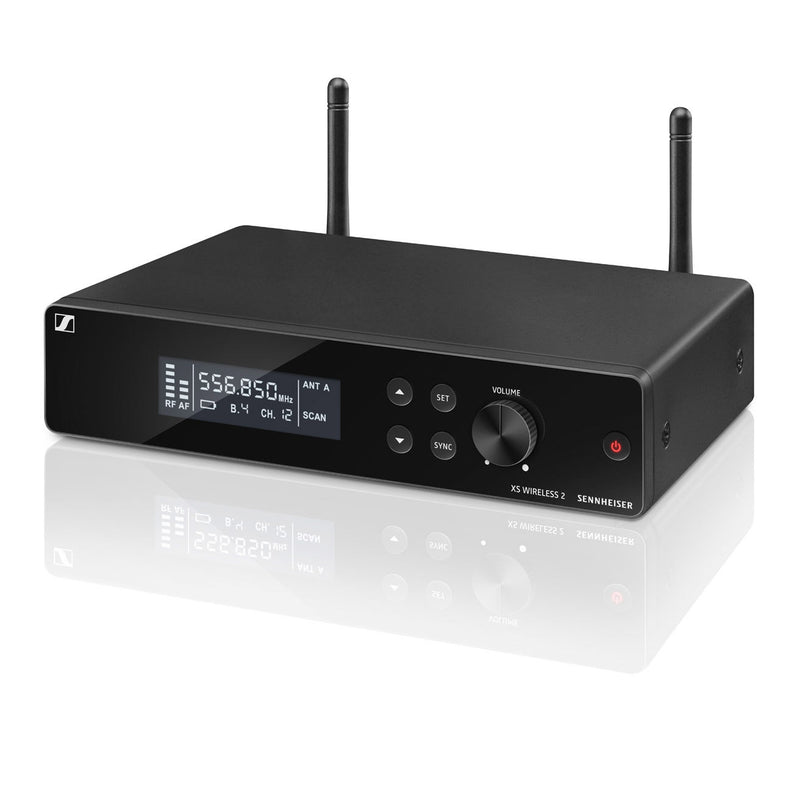

- 1 receiver EM-XSW 2
- 1 handheld transmitter SKM 865-XSW
- 1 microphone clamp MZQ 1
- 1 power supply NT 12-5 CW
- 2 AA batteries
- 1 rackmount kit
- 1 pouch
- user manual
Receivers
-
- Dimensions
-
approx. 200 x 42 x 127 mm
-
- Weight
-
approx. 680g
-
- Power supply
-
12 V DC nom. / 300 mA
-
- Housing
-
metal, microphone: robust ABS
-
- AF frequency response
-
50 to 16,000 Hz (–3 dB)
Microphone
-
- Dimensions
-
approx. 260 x 50 mm
-
- Weight
-
approx. 245g
-
- Microphone
-
condenser
-
- Frequency response
-
50 to 16,000 Hz (–3 dB)
-
- THD, total harmonic distortion
-
≤ 0.9%
-
- Pick-up pattern
-
super-cardioid
-
- Signal-to-noise ratio
-
≥ 103 dBA
-
- RF output power
-
10 mW
-
- Switching bandwidth
-
up to 24 MHz
-
- Modulation
-
wideband FM
-
- Output voltage
-
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
-
- Frequency
-
8 frequency banks, each with up to 12 factory-preset channels
-
- Frequency range
-
A: 548-572 MHz
GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz
-
- Sensitivity
-
< 3 μV at 52 dB(A)rms S/N
-
- Squelch
-
switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
-
- Synchronization
-
2.4 GHz, Low Power OQPSK (only active during synchronization)
-
- Input sensitivity
-
1.8 mV / Pa
-
- Adjustment Range Transmitter
-
0到-30分贝，以10分贝为步进调节
-
- Audio adjustment range
-
40 dB, adjustable in 5-dB steps
-
- Line / Mic level
-
20 dB, switchable
-
- Temperature Range
-
operation: 0°C to +40°C, storage: –20°C to +70°C
-
- Receiver Principle
-
double superheterodyne
-
- Diversity principle
-
True Diversity
-
- Operating time
-
approx. 10 hrs
-
- Power supply
-
2 AA size batteries, 1.5 V
-
- AF frequency response
-
80-16,000 Hz
