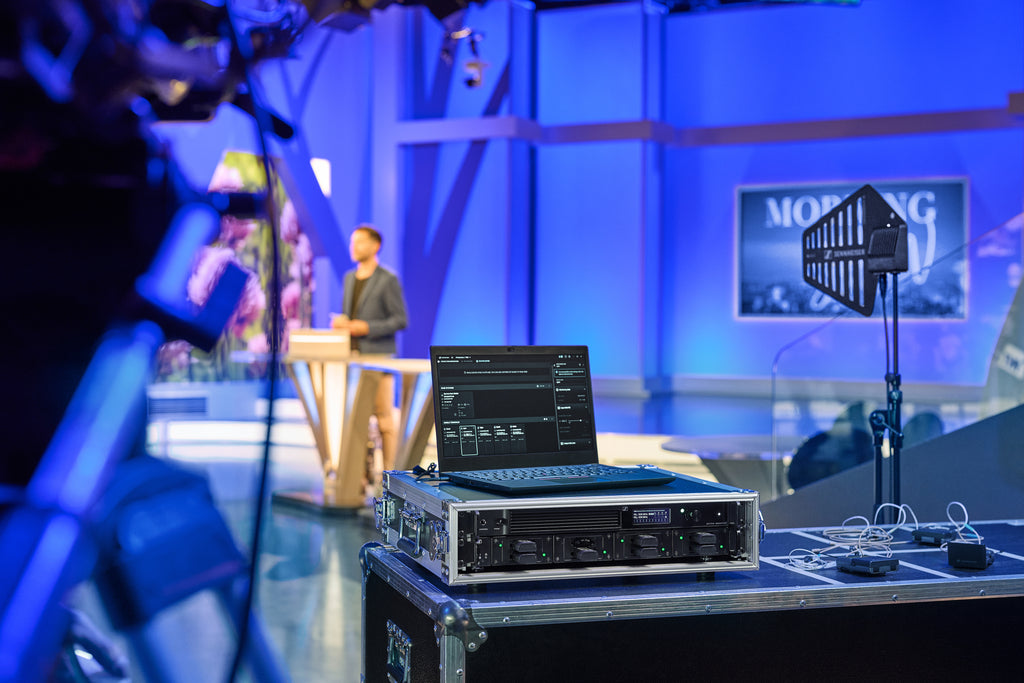

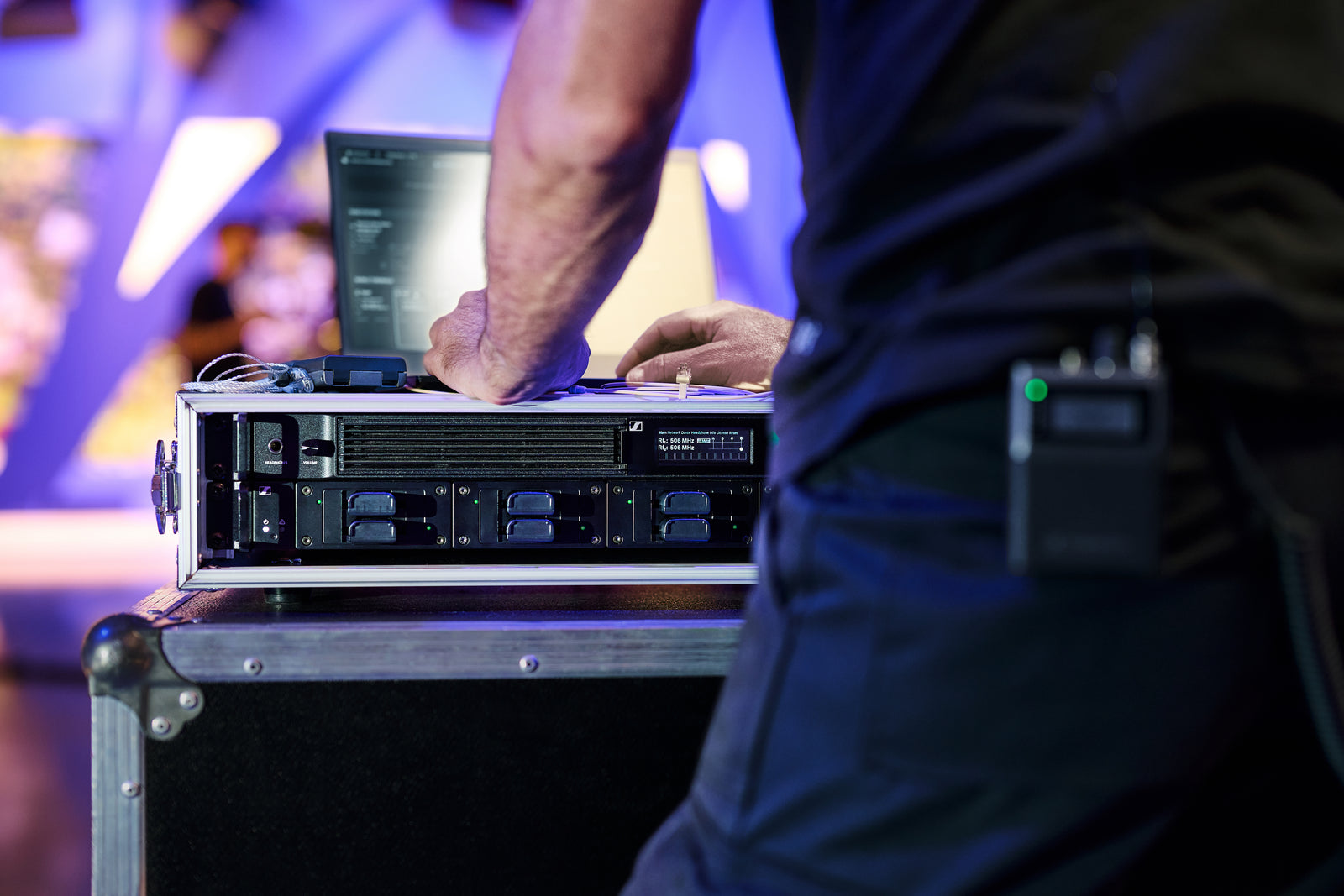

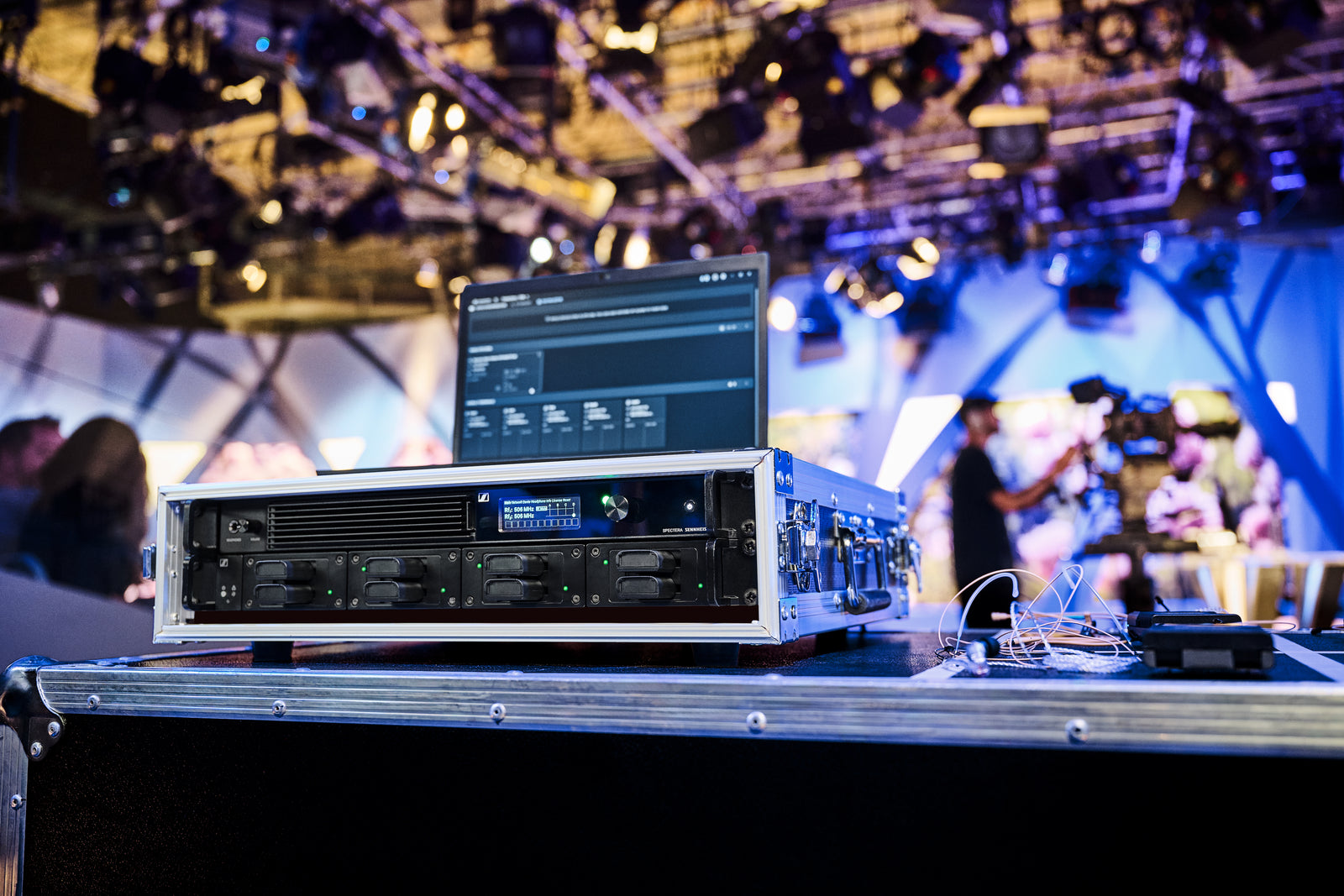

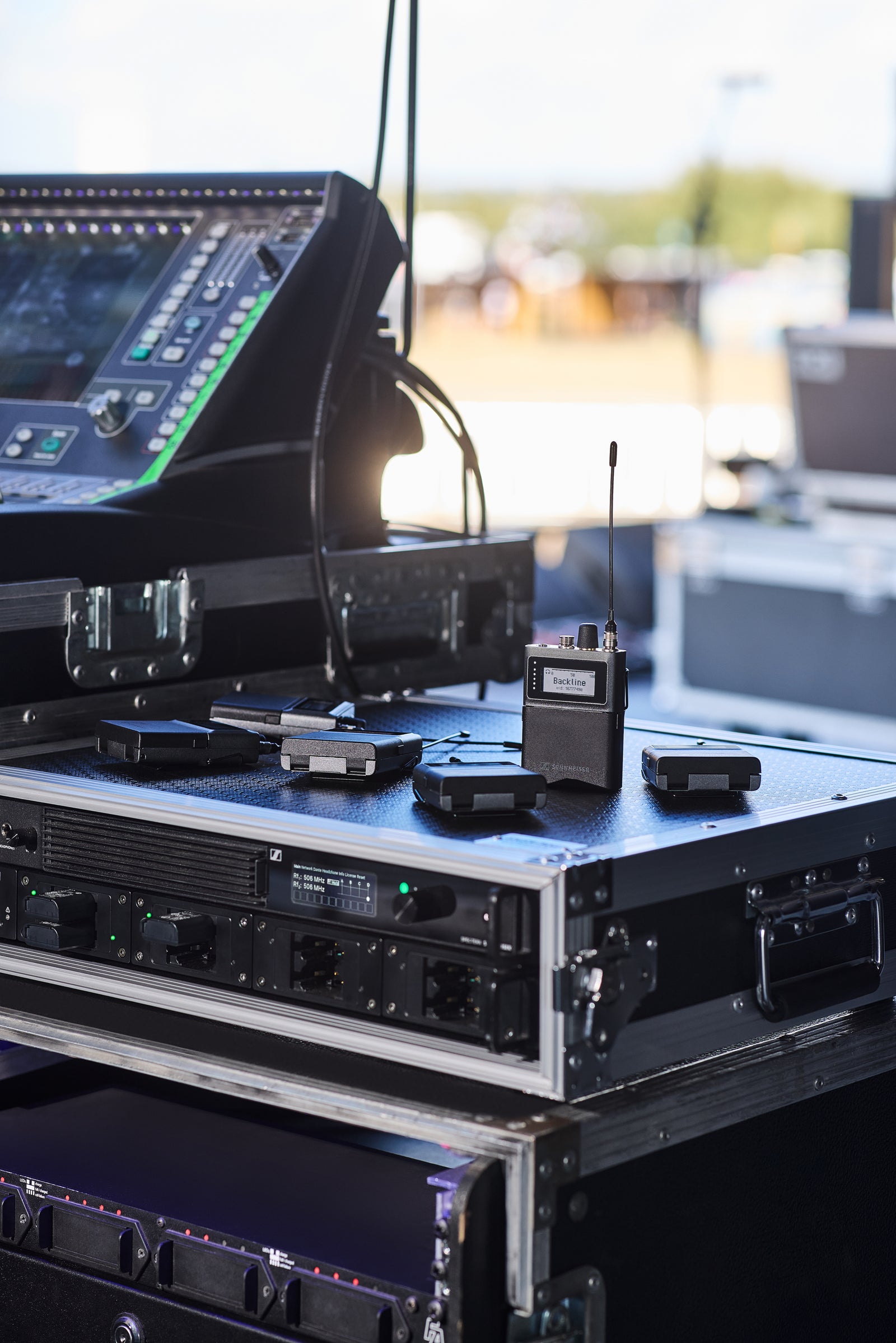

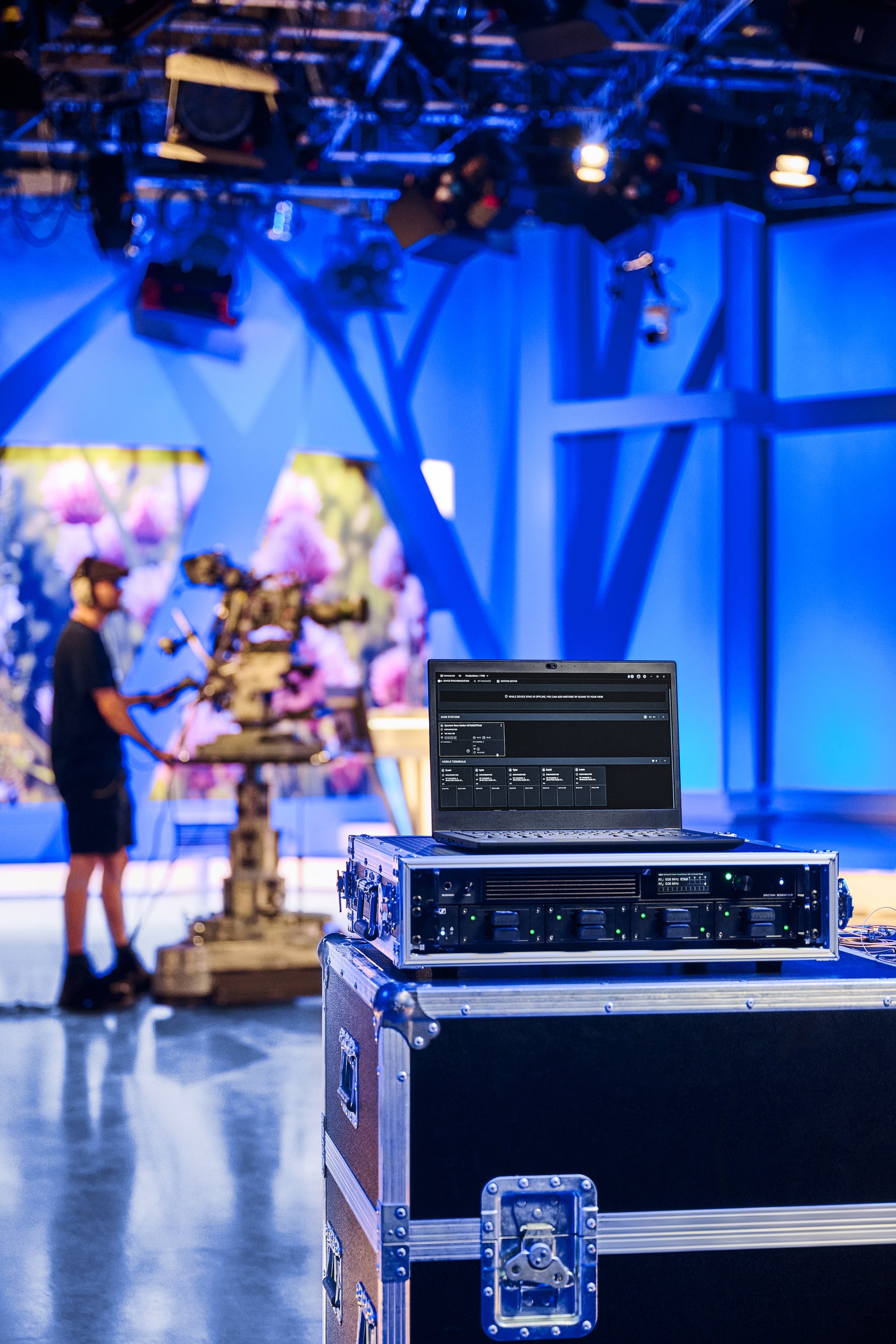

The Spectera Base Station is a 1RU hardware device that provides up to 64 channels (32 in/32 out) and utilizes up to two wideband RF carriers to accommodate all of the unit’s wireless transmission. It features redundant Dante and optional redundant Madi, assuring seamless integration into your audio network. Additional antennas can be added for redundancy, extended zone coverage, or additional spectrum capacity.
The Spectera Base Station supports sample rates of 48 kHz and 96 kHz and features individual sample rate converters for all audio interfaces and wordclock I/O. Base Station must be activated with license per region.
Contents:
- (1) Spectera Base Station
- (3) Mains Cable (EU, UK and US plug)
Features
- 19’’ 1 RU Base Station with redundant power supplies
- Provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz) – country specific per region license
- 4 ethernet antenna ports for redundancy, extended zone coverage, and additional spectrum usage

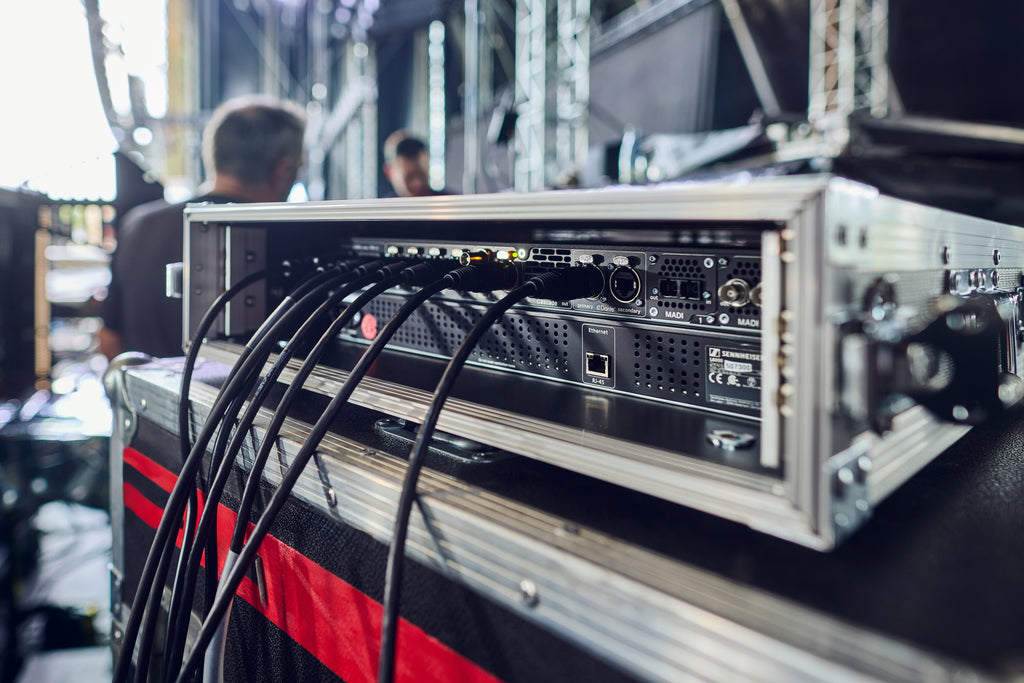

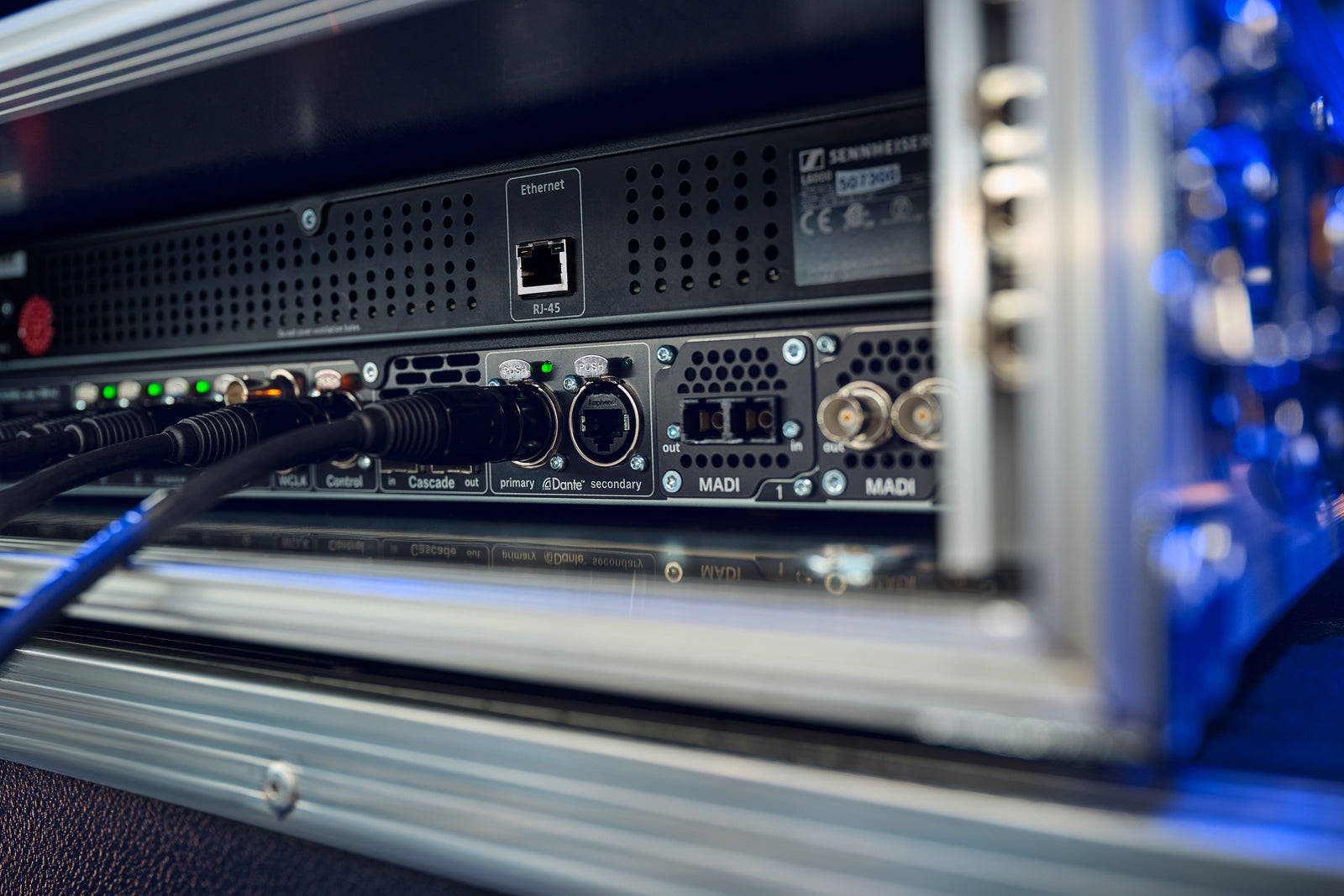

- Redundant Dante® audio interface

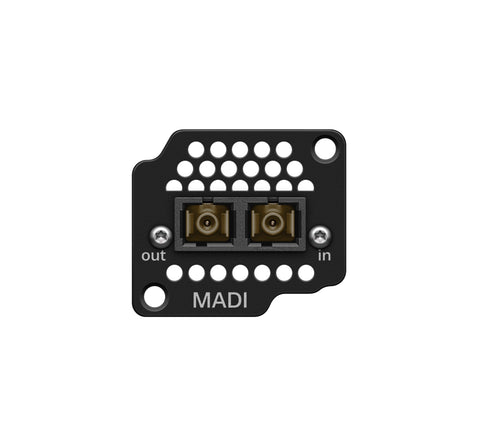

- Two optional slots for redundant MADI (OM or BNC)
- Sample rates of 48 kHz and 96 kHz
- Individual sample rate converters for all audio interfaces
- Wordclock I/O BNC
- Synchronized clock for all audio over RF allows 3D recordings and playback
- Adjustable RF power from 10 – 100 mW (country specific)
- RJ45 network interface for full remote control with secured interface
- 11 Audio Link modes with selectable audio codecs (OPUS, SeDAC) or PCM
- Secure transmission of confidential content using AES 256 encryption
- Future expansion via Cascade port
- Selective headphone output with volume control on front panel
- OLED display, jog wheel navigation, and rugged metal housing
- Base Station activation via LinkDesk: Spectera license defines respective frequency spectrum per region (license sold separately)
Sennheiser Spectera - System Overview
The world's first wideband, bidirectional wireless ecosystem
The future of wireless pro audio is here — and it’s bidirectional. Featuring up to 64 channels (32 in/ 32 out) in a single unit, Spectera is the world's first wideband, bidirectional digital wireless ecosystem, providing audio professionals with unparalleled capability and flexibility. Spectera’s 11 Audio Link modes give you unprecedented control of latency, audio quality and more for each link, while its bidirectional bodypacks manage both in-ear monitor and mic/line signals simultaneously.
Spectera Features
Unified Wireless Control
Bidirectional wireless ecosystem; data and audio control in a single RF carrier for all components
Bidirectionality
Bidirectional SEK bodypack manages both IEM and mic/line signals simultaneously
Transceiving Antennas
Transceiving antennas manage IEM signals, mic/line signals, and data simultaneously Continuous bidirectional communication for full remote control and monitoring of SEK bodypack links, IEM volume, audio level and settings, RF health, battery status, and more
Single RF Carrier
Innovative Sennheiser WMAS technology accommodates an entire production in a single wideband RF carrier (6/8 MHz)
Integrated RF Components
Integrated RF components in DAD antenna eliminate the need for additional dedicated RF gear such as combiners, splitters, or boosters
Enhanced Dropout Resistance
Vastly more resistant to dropouts from RF fading than traditional narrowband systems via innovative Sennheiser WMAS technology equal to 40x diversity (8 MHz) / 30x diversity (6 MHz)
Intuitive Workflow

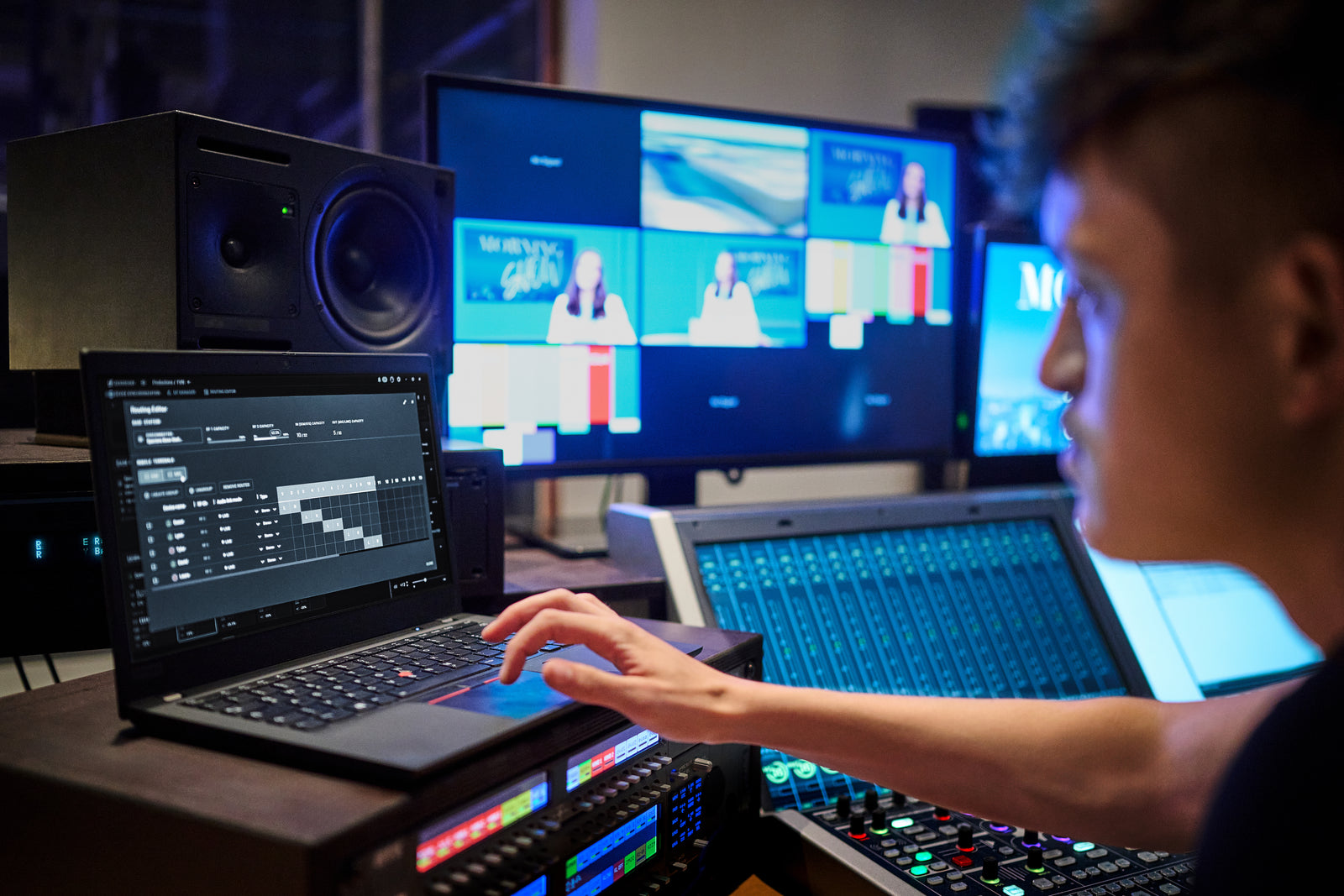

Intuitive workflow via LinkDesk user interface: plan and preconfigure from anywhere with LinkDesk virtual setup for Windows and Mac
Revolutionary Reliability
At the heart of Spectera is Sennheiser’s remarkable wireless multichannel audio technology (WMAS) and its unique modulation and multiplexing capabilities, which make Spectera vastly more resistant to dropouts and RF fading than narrowband systems. Spectera also features built-in redundancy where it matters most: redundant power supplies, redundant Dante and optional redundant MADI audio I/O, and the ability to connect multiple antennas for redundancy, additional zone coverage, or additional spectrum capacity.
