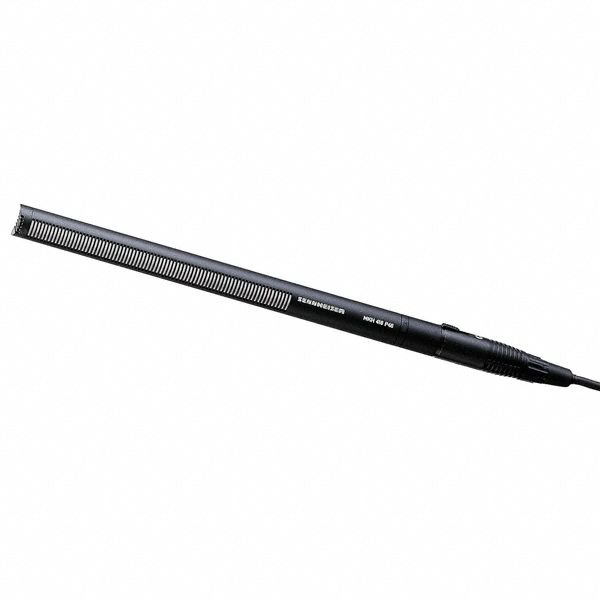

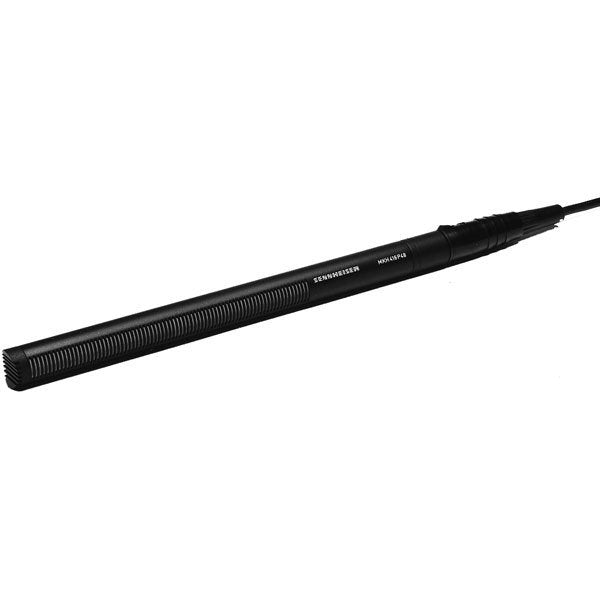

The MKH 416 is a short gun interference tube microphone. Its excellent directivity and compact design, high consonant articulation and feedback rejection make the MKH 416 a superb all-round microphone for film, radio and television, especially for outside broadcast applications.
Features
- Increased directivity due to interference tube principle
- Very low inherent self-noise
- High sensitivity
- Transformerless and fully floating balanced output
- Rugged, suitable for adverse climatic conditions
- Matt black all-metal body
Technical Data
-
- Dimensions
- Ø 19 x 250 mm
-
- Frequency response (Microphone)
- 40 - 20000 Hz
-
- Sensitivity in free field, no load (1kHz)
- 25 mV/Pa +- 1 dB
-
-
- Nominal impedance
- 25 Ω
-
- Min. terminating impedance
- 800 Ω
-
- Equivalent noise level
- 13 dB
-
- Equivalent noise level weighted as per CCIR 468-3
- 24 dB
-
- Maximum sound pressure level (passiv)
- 130 dB
-
- Current consumption
- 2 mA
-
- Voltage
- 48 +- 4 V Phantom
-
