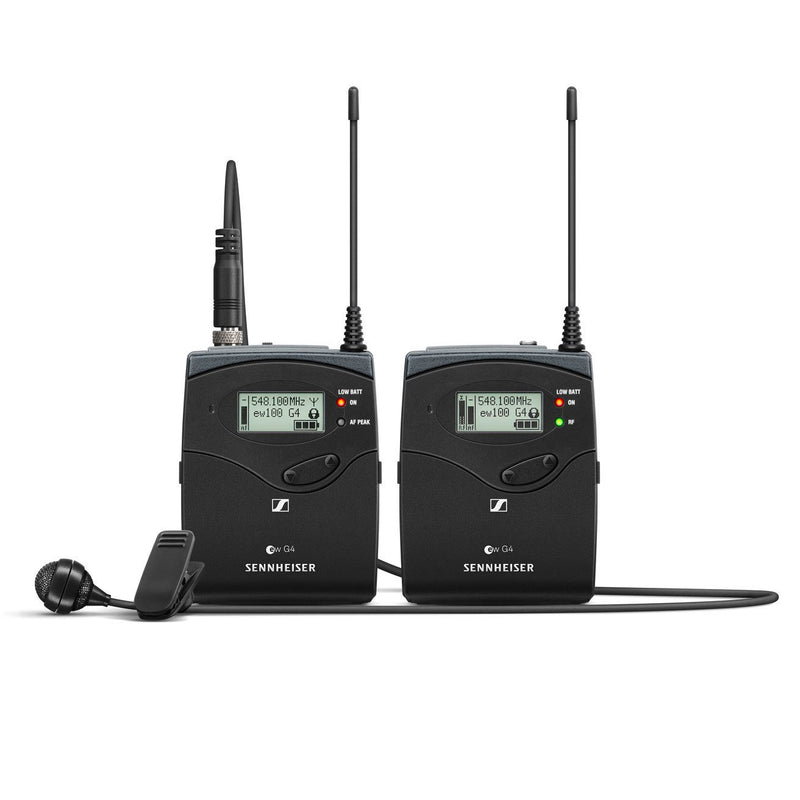

Sennheiser EW122P G4 Portable Wireless System

Overview

A broadcast quality sound solution. Providing the highest flexibility for your video sound and field recording applications.
A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.
Rugged all-in-one wireless system with high flexibility for broadcast quality sound, including the clip-on microphone ME 4 (cardioid) for excellent speech intelligibility and daily on-location use.

Features

• Rugged all-in-one wireless system with high flexibility for broadcast quality sound
• Excellent sound and construction quality
• Easy to use and fast setup time
• Powerful and reliable wireless transmission
• Range: up to 100 meters / 330 feet
• Up to 8 hours of operation time


What's in the box?

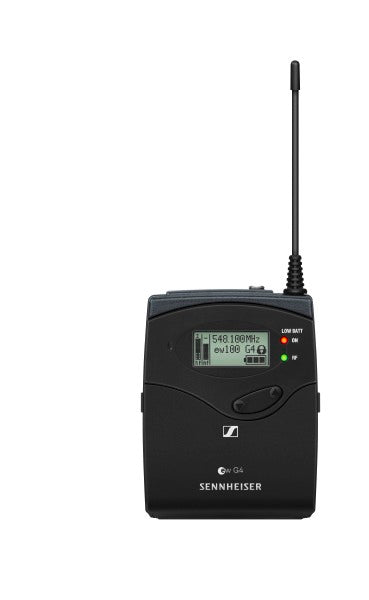

• EK 100 G4 camera receiver

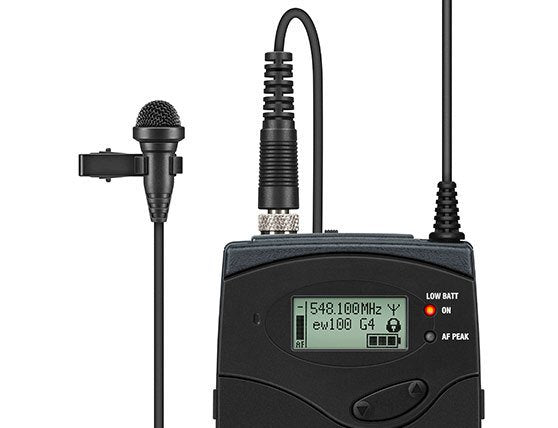

• SK 100 G4 bodypack transmitter

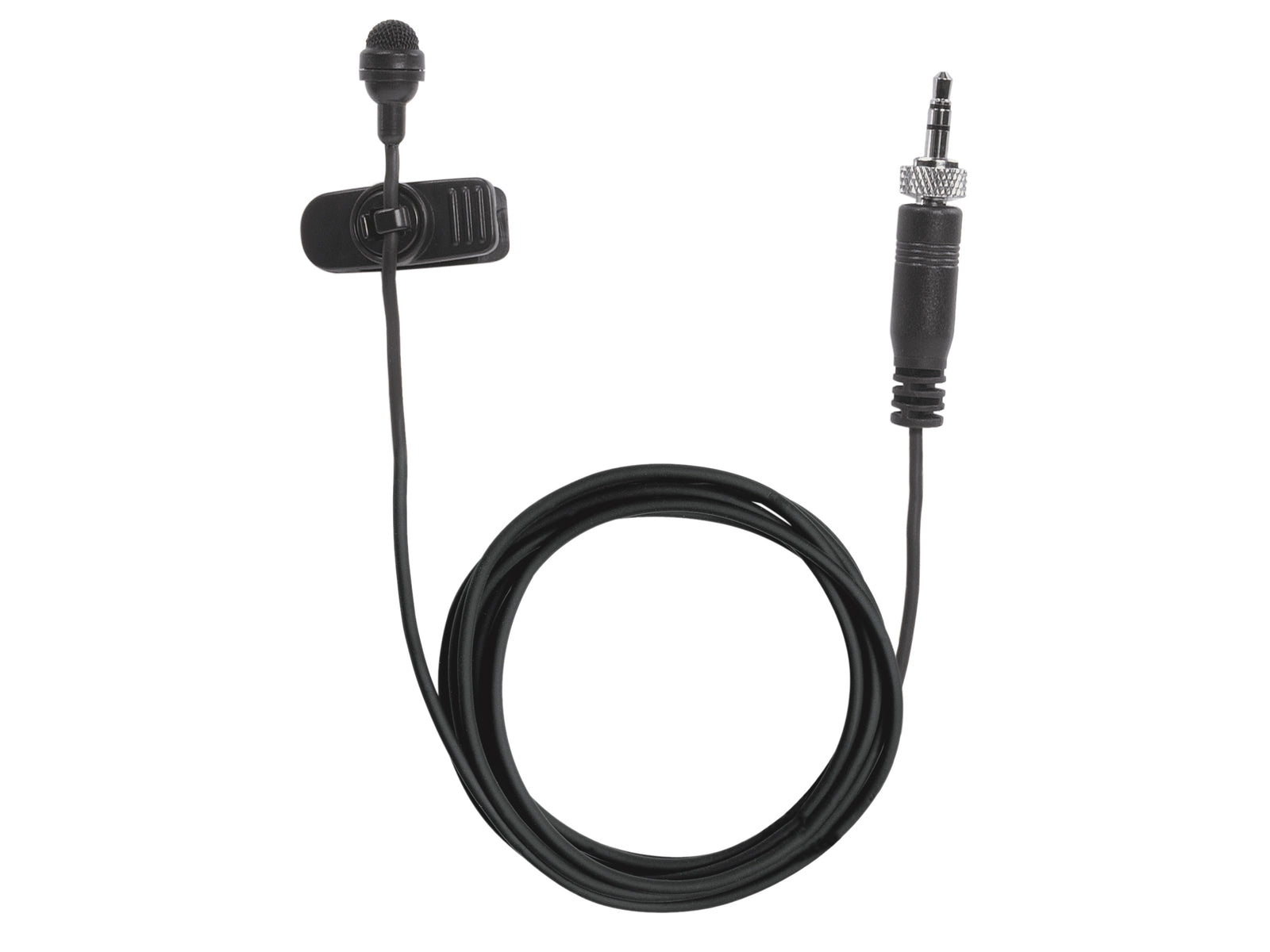

• ME 2 clip-on microphone (ew 112 P variants only)
• ME 4 clip-on microphone (ew 122 P variants only)
• 4 AA batteries
• CA 2 camera adapter
• CL 1 3.5 mm jack cable
• CL 100 XLR to 3.5 mm jack adapter cable
• quick guide
• safety guide
• manufacturer declaration sheet

Technical Data

EK 100 G4

• Frequency range
  A1: 470 - 516 MHz
• A: 516 - 558 MHz
• AS: 520 - 558 MHz
• GB: 606 - 648 MHz
• G: 566 - 608 MHz
• B: 626 - 668 MHz
• C: 734 - 776 MHz
• D: 780 - 822 MHz
• E: 823 - 865 MHz
• JB: 806 - 810 MHz
• K+: 925 - 937,5 MHz

• Dimensions
  Approx. 82 x 64 x 24 mm

• Compander
  Sennheiser HDX

  • THD, total harmonic distortion
    ≤ 0.9 %

  • Weight
    (incl. batteries) approx. 160 g

  • Audio output
    3.5 mm jack socket: +12 dBu (mono, unbalanced)

  • Signal-to-noise ratio
    ≥ 110 dBA

  • Switching bandwidth
    up to 42 MHz

  • Peak deviation
    ±48 kHz

  • Nominal deviation
    ±24 kHz

  • Operating time
    Typically 8 h

  • Modulation
    Wideband FM

  • Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack

  • Current consumption
    at nominal voltage: typ. 180 mA
  • with receiver switched off: ≤ 25 µA

  • Adjacent channel rejection
    ≥ 65 dB

  • Intermodulation attenuation
    ≥ 65 dB

  • Powering
    3 V battery / 2.4 V rechargeable battery

  • Receiving frequency
    Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

  • RF sensitivity
    < 1.6 μV for 52 dBA eff S/N

  • Squelch
    low: 5 dBµV middle: 15 dBµV high: 25 dBμV

  • Temperature Range
    -10 °C to +55 °C

  • Receiver Principle
    Adaptive diversity

  • Blocking
    ≥ 70 dB
  •
    SK 100 G4


  • Dimensions
    Approx. 82 x 64 x 24 mm

  • Compander
    Sennheiser HDX

  • THD, total harmonic distortion
    ≤ 0.9 %

    • Weight
      (incl. batteries) approx. 160 g

    • Signal-to-noise ratio
      ≥ 110 dBA

    • RF output power
      Max. 30 mW

    • Switching bandwidth
      up to 42 MHz

    • Peak deviation
      ±48 kHz

    • Nominal deviation
      ±24 kHz

    • Operating time
      Typically 8 h

    • Modulation
      Wideband FM

    • Power supply
      2 AA batteries, 1.5 V or BA 2015 accupack

    • Current consumption
      at nominal voltage: typ. 180 mA
    • with transmitter switched off: ≤ 25 µA

    • Input impedance
      40 kΩ, unbalanced / 1 MΩ

    • Max. Input voltage
      3 Veff

    • Powering
      3 V battery / 2.4 V rechargeable battery

    • Transmission frequency
      Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

    • AF frequency response
      Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz

    • Temperature Range
      -10 °C to +55 °C

    • Frequency stability
      ≤ ±15 ppm
    •
      ME 4


    • Connector
      3.5 mm jack

    • Frequency response
      50 to 18,000 Hz

    • Max. sound pressure level
      120 dB

      • Cable length
        approx. 1.60 m

      • Transducer principle
        pre-polarised condenser microphone

      • Pick-up pattern
        cardioid

      • Sensitivity in free field, no load (1kHz)
        40 mV/Pa

      • Equivalent noise level
        31 dB
