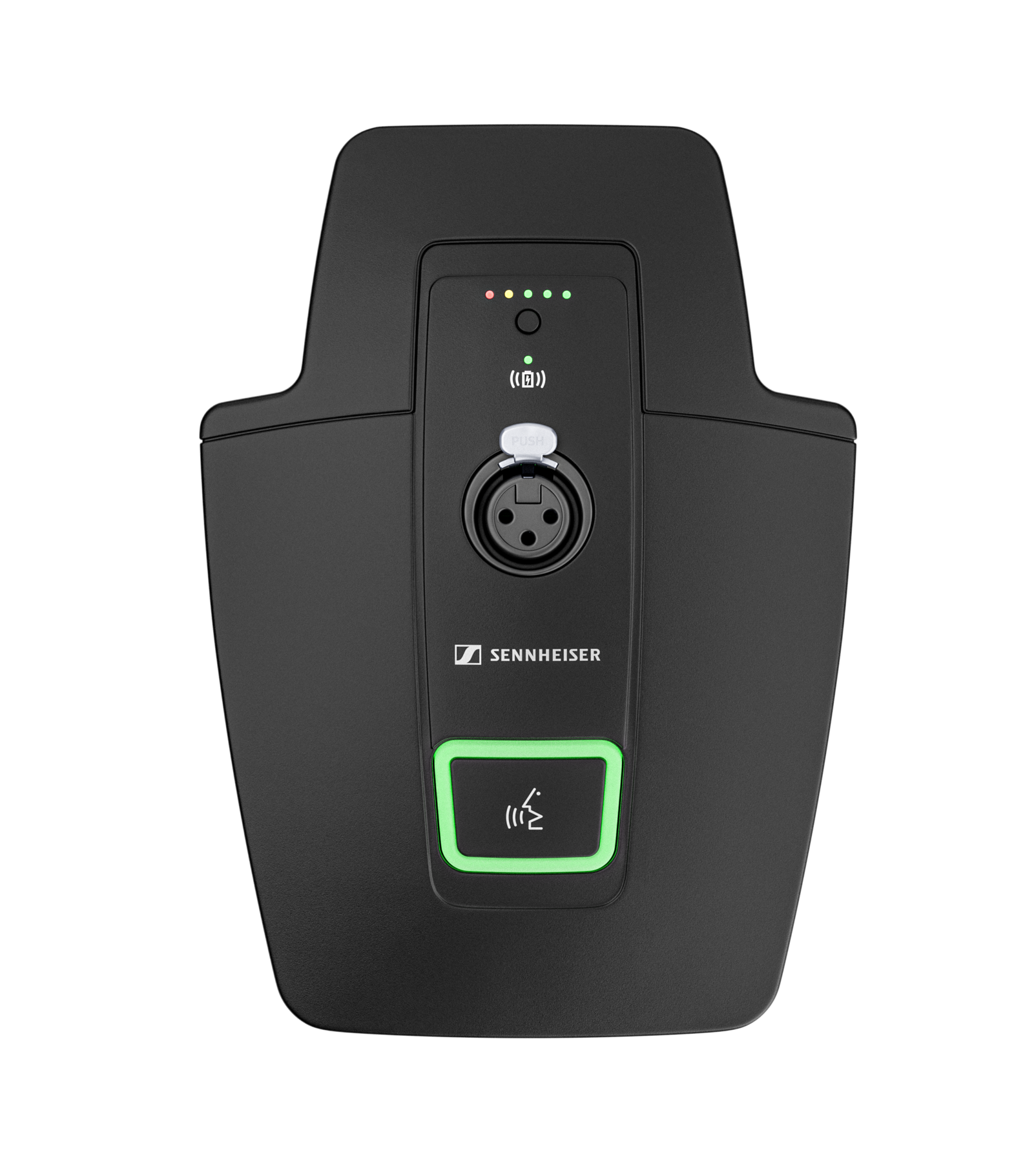

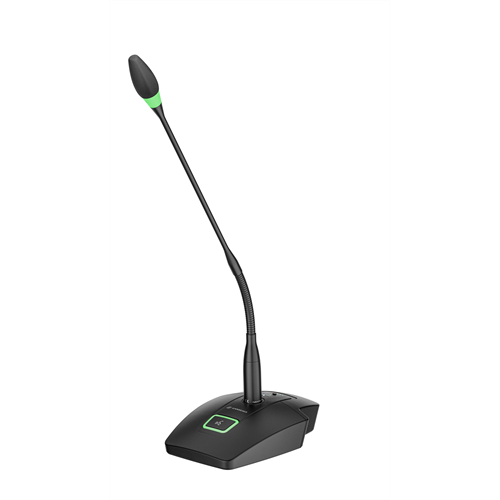

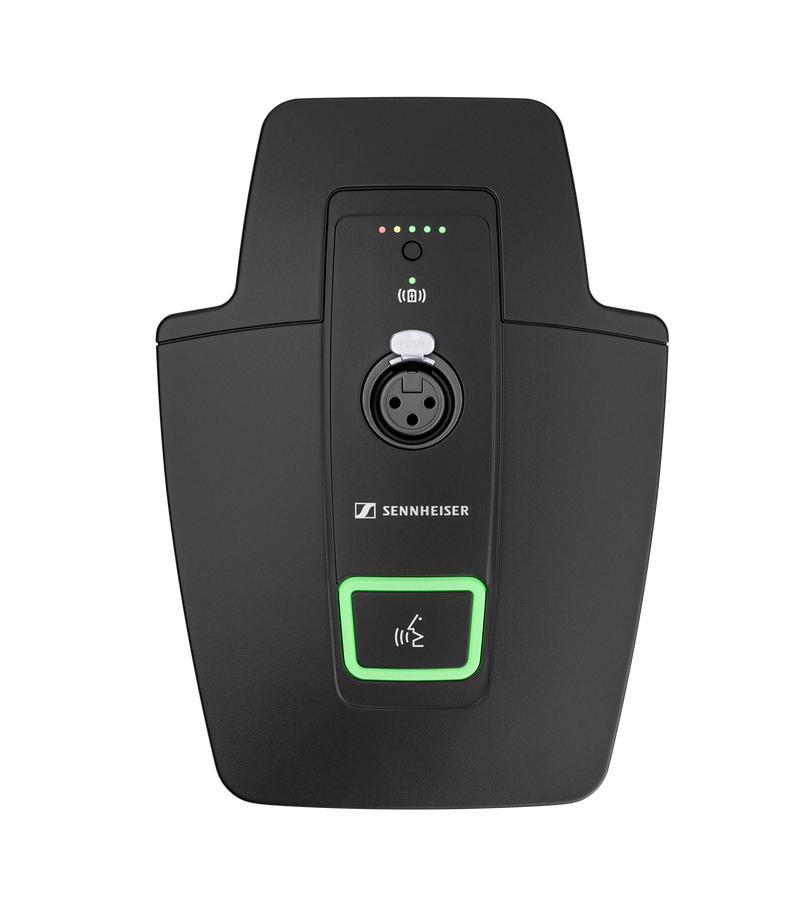

EW-DX TS 3-pin tablestand transmitter is a sturdy, wireless table stand that provides a stable base for a wide range of Sennheiser gooseneck microphones. With an 3-pin XLR connector, it's compatible with any gooseneck microphone without LED ring.
Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. EW-DX tablestand transmitters are compatible with a wide range of Sennheiser gooseneck microphones.
Features
- Tablestand transmitter with 3-pin XLR connector
- Programmable mute switch
- Inductive charging with CHG 2W
- Charging via USB
- 10 h runtime with BA 40 lithium-ion battery
- Wide range of compatible Sennheiser gooseneck microphones: any gooseneck without LED ring for a 3-pin variant
- Metal housing
In the Box
- EW-DX Tablestand transmitter
- BA-40 battery
- Quick Guide
- Safety Guide
- Manufacturer Declaration Sheet
Main Specs:
- Weight (g): Approx. 660 g (excl. BA 40)
- Audio input: XLR 3F
- Frequency range: Depends on band selected, see options below
- Input impedance: 30 kΩ
- Latency (ms): 1.9 ms
- Signal-to-noise ratio: > 90 dB(A)
Frequency Variants:
| Frequency variants | Region | |
|---|---|---|
| Q1-9 | 470.2 - 550 MHz | EU, US, Canada, Middle East, Japan |
| R1-9 | 520 - 607.8 MHz | EU, US, Canada, Australia, Middle East, Japan |
| S1-10 | 606.2 - 693.8 MHz | UK, Australia, Korea, Japan |
| S2-10 | 614.2 - 693.8 MHz | EU |
| S4-10 | 630 - 693.8 MHz | China |
| U1/5 | 823.2 - 831.8 MHz & 863.2 - 864.8 MHz | EU, UK |
| V3-4 | 925.2 - 937.3 MHz | Korea |
| V5-7 | 941.700 - 951.800 & 953.050 - 956.050 & 956.650 - 959.650 MHz | US, Canada |
| Y1-3 | 1785.2 - 1799.8 MHz | EU, UK, Australia |
