Sennheiser EW 500 G4-965 Handheld Radio Mic System

Overview

The pro‘s choice. Renowned sound engineers rely on ew 500 G4‘s flexibility, especially when handling multi channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi channel setups.

The pro‘s choice for perfectly balanced but upfront guitar and bass. Powerful bodypack transmitter and Ci1 instrument cable for unforgettable performances.

Features

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
• Easy and flexible wireless synchronisation between transmitter and receiver via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tuneable in a stable UHF range
• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

What's in the box?

• EM 300-500 G4 true diversity receiver
• SK 500 G4 bodypack transmitter
• Ci 1 instrument cable
• 2 AA batteries
• GA 3 rackmount set
• power supply
• 2 rod antennas
• quick guide
• safety guide
• manufacturer declaration sheet

Technical Data

EM 300-500 G4

• Frequency range
  AS: 520 - 558 MHz
• K+: 925 - 937,5 MHz
• GBw: 606 - 678 MHz
• Gw: 558 - 626 MHz
• Bw: 626 - 698 MHz
• Cw: 718 - 790 MHz
• Dw: 790 - 865 MHz
• Aw+: 470 - 558 MHz
• Gw1: 558 - 608 MHz

• Dimensions
  Approx. 202 x 212 x 43 mm

• Compander
  Sennheiser HDX

  • THD, total harmonic distortion
    ≤ 0.9 %

  • Weight
    Approx. 980 g

  • Audio output
    6.3 mm jack socket (unbalanced): +12 dBu
  • XLR socket (balanced): +18 dBu

  • Signal-to-noise ratio
    ≥ 115 dBA

  • Switching bandwidth
    up to 88 MHz

  • Peak deviation
    ±48 kHz

  • Nominal deviation
    ±24 kHz

  • Modulation
    Wideband FM

  • Power supply
    12 V DC

  • Antenna connector
    2 BNC sockets

  • Current consumption
    350 mA

  • Adjacent channel rejection
    Typically ≥ 75 dB

  • Intermodulation attenuation
    Typically ≥ 70 dB

  • Receiving frequency
    Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

  • RF sensitivity
    < 2.5 μV for 52 dBA eff S/N

  • Squelch
    5 to 25 dBμV in steps of 2 dB

  • Equalizer
    Preset 1: Flat
  • Preset 2: Low Cut (-3 dB at 180 Hz)
  • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
  • Preset 4: High Boost (+6 dB at 10 kHz)

  • Temperature Range
    -10 °C to +55 °C

  • Receiver Principle
    True diversity

  • Blocking
    ≥ 75 dB

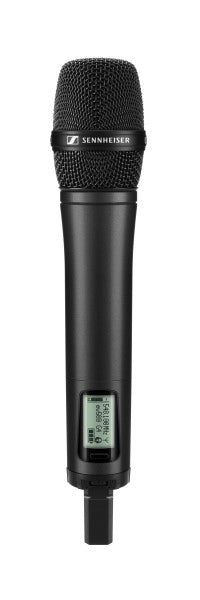

SKM 500 G4

• Dimensions
  Approx. Ø 50 x 265 mm

• Compander
  Sennheiser HDX

• THD, total harmonic distortion
  ≤ 0.9 %

  • Weight
    (incl. batteries) approx. 450 g

  • Signal-to-noise ratio
    ≥ 115 dBA

  • RF output power
    switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

  • Switching bandwidth
    up to 88 MHz

  • Peak deviation
    ±48 kHz

  • Nominal deviation
    ±24 kHz

  • Operating time
    Typically 8 h

  • Modulation
    Wideband FM

  • Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack

  • Current consumption
    at nominal voltage: typ. 180 mA
  • with transmitter switched off: ≤ 25 µA

  • Powering
    3 V battery / 2.4 V rechargeable battery

  • Transmission frequency
    Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

  • AF frequency response
    80 – 18,000 Hz

  • Temperature Range
    -10 °C to +55 °C

  • Frequency stability
    ≤ ±15 ppm


MMK 965-1

• Frequency response
  40 to 20,000 Hz

• Max. sound pressure level
  144 dB

• Transducer principle
  externally polarized dual diaphragm condenser microphone

  • Weight
    162 g

  • Diameter
    of diaphragm: 2.54 cm (1")

  • Pick-up pattern
    cardioid/supercardioid, switchable

  • Sensitivity in free field, no load (1kHz)
    7.0 mV/Pa

  • Equivalent noise level
    18 dB

  • Dynamic range
    126 dB(A)

EW 500 G4-965 Spec Sheet
