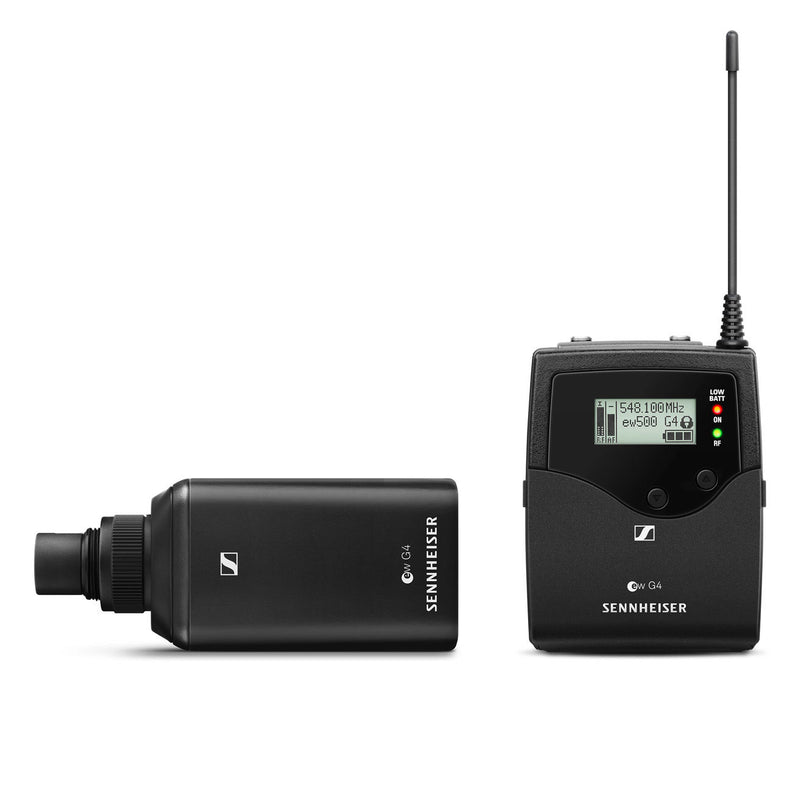

Sennheiser EW 500 BOOM G4 Portable Wireless System

SennheiserSKU: SEN509903

Price:
Sale price €999.00

Overview

The professional‘s choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.
The phantom power-equipped SKP 500 plug-on transmitter adapts any wired shotgun or handheld microphone for a wide range of wireless applications, from field interviews to off-camera boom work.

Features

  • Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
  • Professional sound and excellent construction quality
  • Easy to use and fast setup time
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Up to 88 MHz bandwidth, up to 32 channels
  • Range: up to 100 meters / 330 feet
  • Increased RF output power (10/30/50 mW)
  • Up to 8 hours of operation time
  • With 48 V phantom powering

What's in the box?

  • EK 500 G4 camera receiver
  • SKP 500 G4 pro plug-on transmitter
  • 4 AA batteries
  • CL 1 3.5 mm jack cable
  • CL 500 XLR to 3.5 mm jack adapter cable
  • CA 2 camera adapter
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Technical Data

EK 500 G4

  • Frequency range
    AS: 520 - 558 MHz
  • K+: 925 - 937.5 MHz
  • JB: 806 - 810 MHz
  • GBw: 606 - 678 MHz
  • Gw: 558 - 626 MHz
  • Bw: 626 - 698 MHz
  • Cw: 718 - 790 MHz
  • Dw: 790 - 865 MHz
  • Aw+: 470 - 558 MHz
  • Gw1: 558 - 608 MHz

  • Dimensions
    Approx. 82 x 64 x 24 mm

  • Compander
    Sennheiser HDX

    • THD, total harmonic distortion
      ≤ 0.9 %

    • Weight
      (incl. batteries) approx. 130 g

    • Audio output
      3.5 mm jack socket: +17 dBu (mono, unbalanced)

    • Signal-to-noise ratio
      Line: ≥ 110 dBA
    • Phones: approx. 90 dBA

    • Switching bandwidth
      up to 88 MHz

    • Peak deviation
      ±48 kHz

    • Nominal deviation
      ±24 kHz

    • Operating time
      Typically 8 h

    • Modulation
      Wideband FM

    • Power supply
      2 AA batteries, 1.5 V or BA 2015 accupack

    • Current consumption
      at nominal voltage: typ. 140 mA
    • with receiver switched off: ≤ 25 µA

    • Adjacent channel rejection
      Typically ≥ 65 dB

    • Intermodulation attenuation
      Typically ≥ 65 dB

    • Powering
      3 V battery / 2.4 V rechargeable battery

    • Receiving frequency
      Max. 3520 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels

    • RF sensitivity
      < 1.6 μV for 52 dBA eff S/N

    • Squelch
      low: 5 dBµV middle: 15 dBµV high: 25 dBμV

    • Temperature Range
      -10 °C to +55 °C

    • Receiver Principle
      Adaptive diversity

    • Blocking
      ≥ 70 dB


SKP 500 G4

  • Dimensions
    Approx. 105 x 43 x 43 mm

  • Compander
    Sennheiser HDX

  • THD, total harmonic distortion
    ≤ 0.9 %

    • Weight
      (incl. batteries) approx. 195 g

    • Signal-to-noise ratio
      ≥ 120 dBA

    • RF output power
      switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW

    • Switching bandwidth
      up to 88 MHz

    • Peak deviation
      ±48 kHz

    • Nominal deviation
      ±24 kHz

    • Operating time
      Typically 8 h

    • Modulation
      Wideband FM

    • Power supply
      2 AA batteries, 1.5 V or BA 2015 accupack

    • Current consumption
      at nominal voltage: typ. 210 mA
    • with transmitter switched off: ≤ 25 µA

    • Input impedance
      68 kΩ, unbalanced

    • Max. Input voltage
      6 Veff

    • Powering
      3 V battery / 2.4 V rechargeable battery

    • Transmission frequency
      Max. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels

    • AF frequency response
      80 – 18,000 Hz

    • Temperature Range
      -10 °C to +55 °C

    • Frequency stability
      ≤ ±15 ppm
