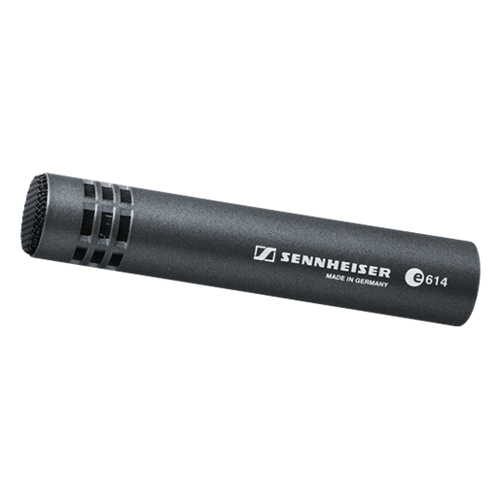

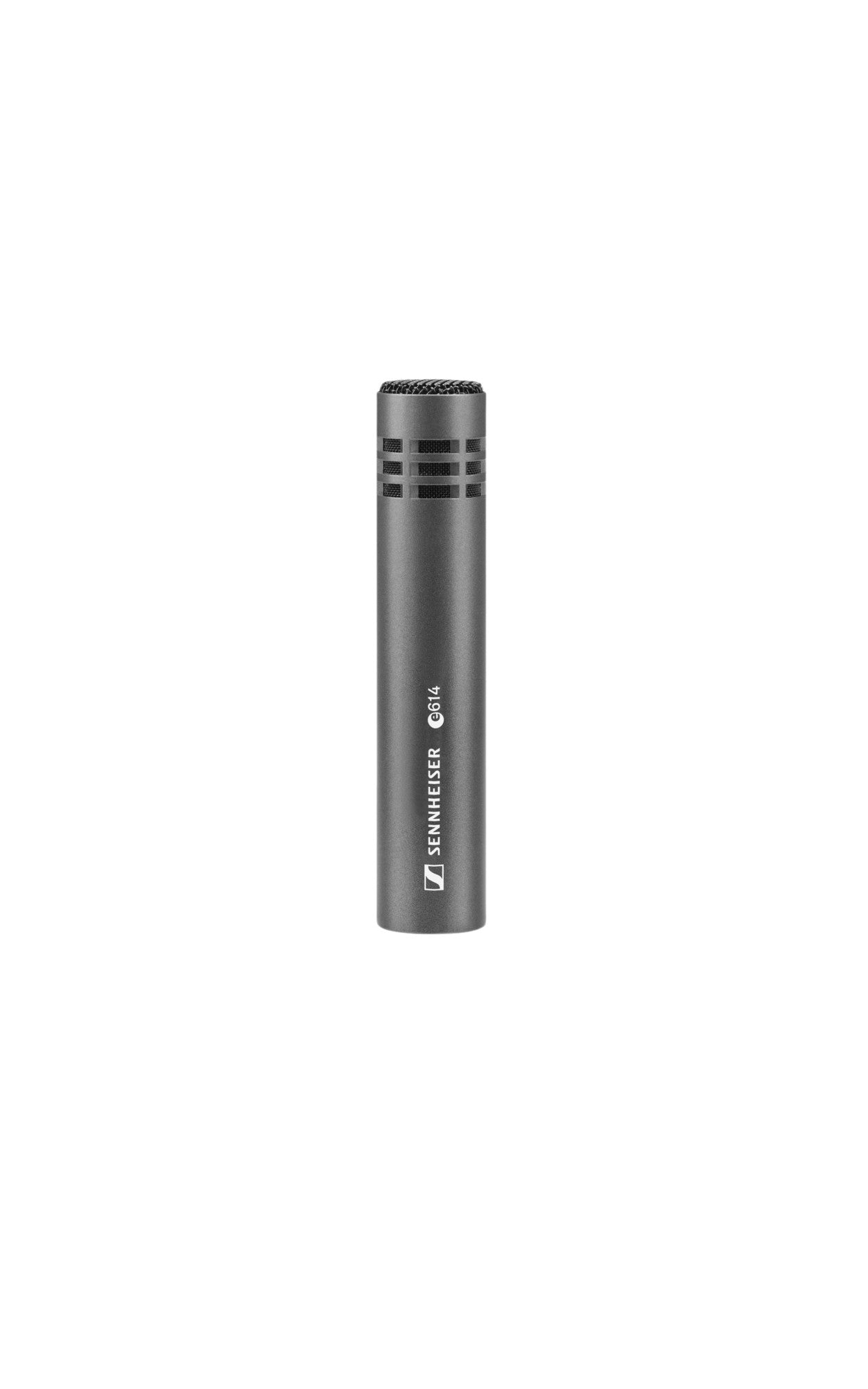

Extremely wide frequency range. Focused pick-up. Outstanding transient response. As a condenser microphone, the e 614 convinces in demanding scenarios with a natural, full sound. Its wide frequency range captures nearly every instrument; its extraordinary dynamics conjure fine nuances from the air, giving them space and depth.
Thanks to the precise directivity, the e 614 safely reduces the bleed from other instruments on stage or in the studio. With its high maximum sound pressure level, it is especially designed for percussion and as an overhead mic, but also effortlessly supports stringed and woodwind instruments.
Features
- 40-20,000 Hz
- Designed for demanding applications where extended frequency range, high SPL handling, fast transient response and small size are required
- Captures the shimmer and the contact of sticks, mallets and hands
- Nearly flat response from 40 Hz to 20 kHz and a supercardioid pattern
Specifications:
|
Dimensions |
Ø 20mm, L = 100mm |
|
Connector |
XLR-3 |
|
Frequency response |
40 - 20000 Hz |
|
Transducer principle |
pre-polarised condenser microphone |
|
Weight |
93 g |
|
Pick-up pattern |
super-cardioid |
|
Sensitivity in free field, no load (1kHz) |
3 mV/Pa = - 50dB (0 dB = 1 V/Pa) |
|
Nominal impedance |
50 Ω |
|
Min. terminating impedance |
1000 Ω |
|
Phantom powering |
12 – 52 V / 3 mA |
|
Equivalent noise level |
24 dB(A) |
|
Equivalent noise level weighted as per CCIR 468-3 |
35 dB |
|
Maximum sound pressure level (passive) |
139 dB/SPL |
