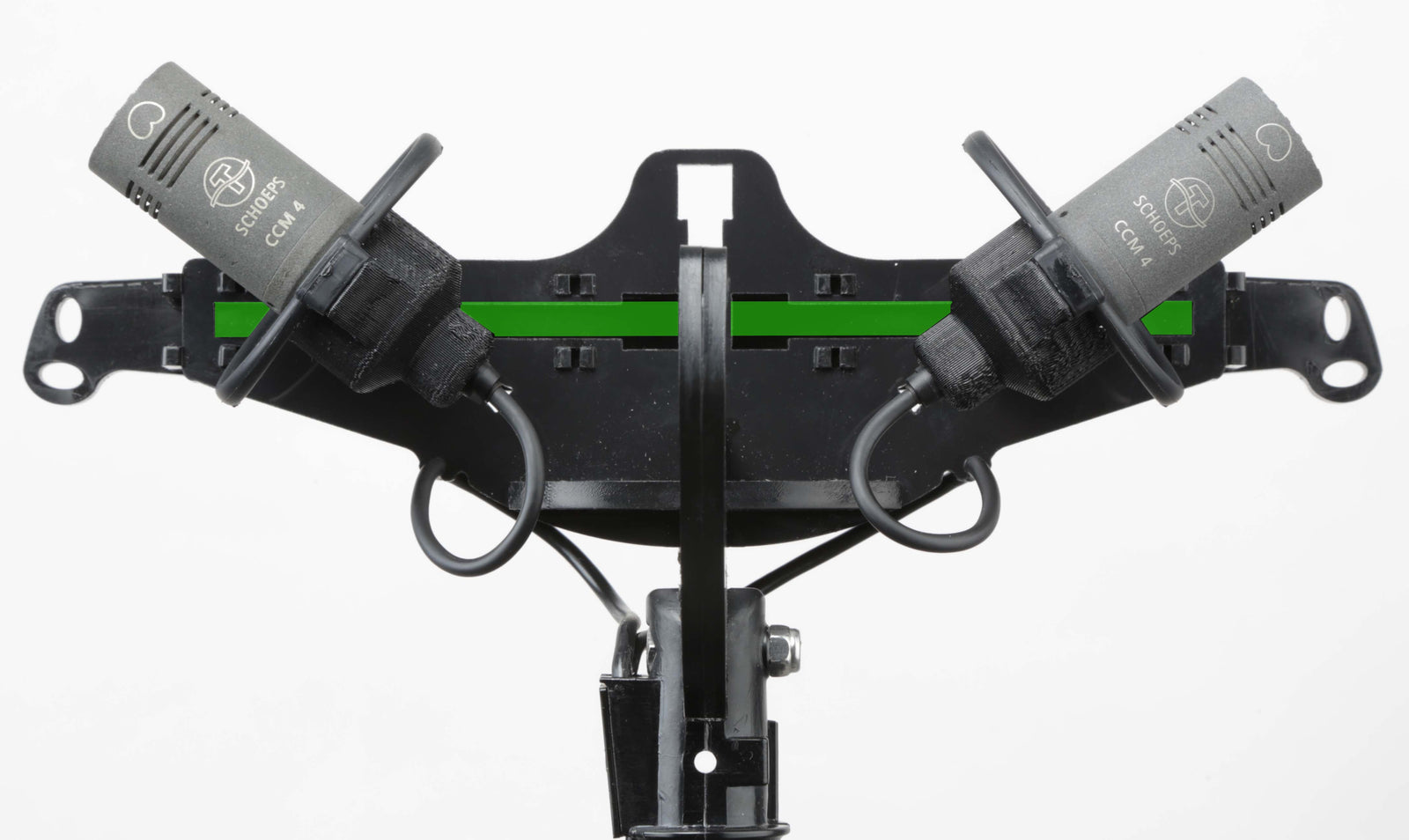

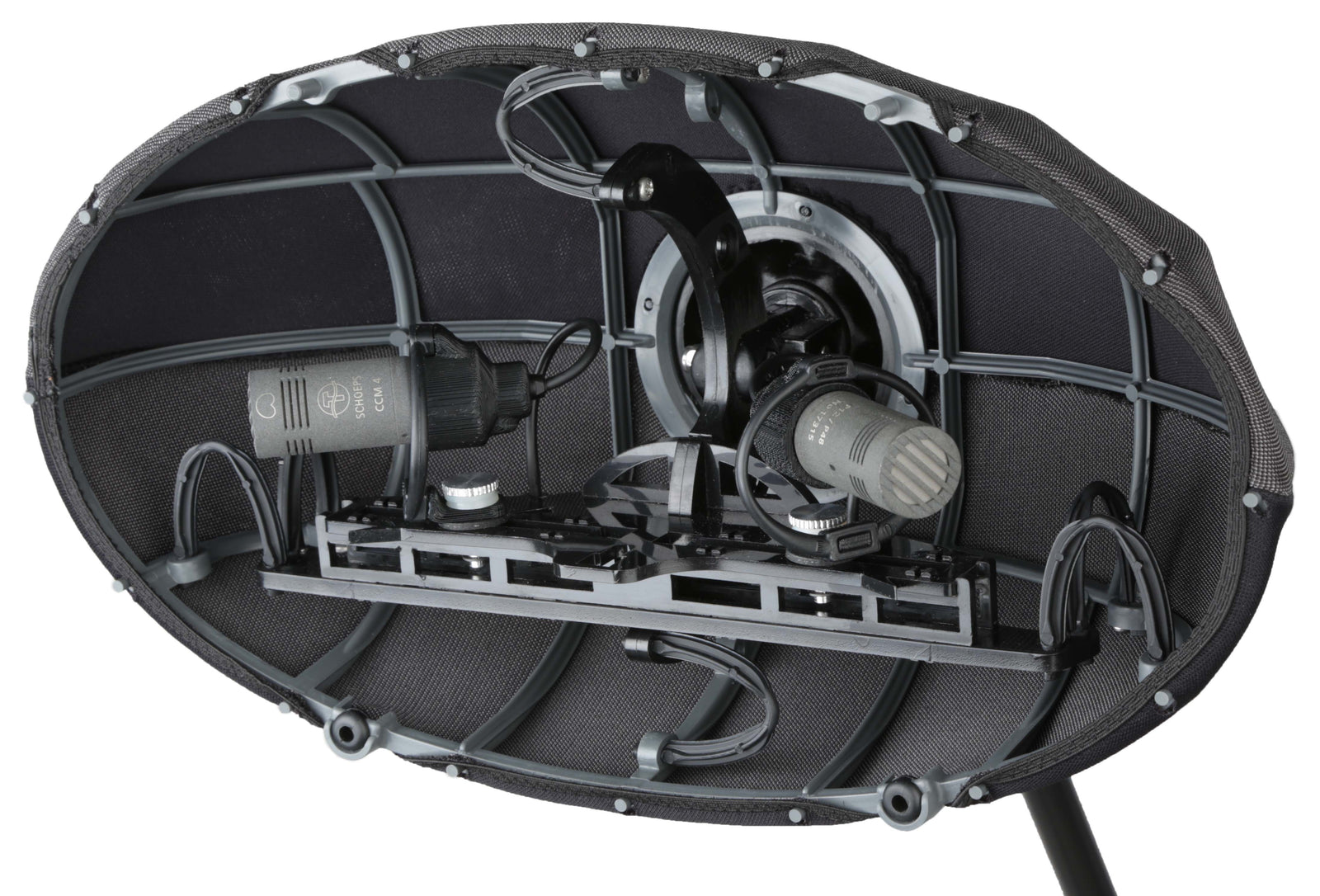

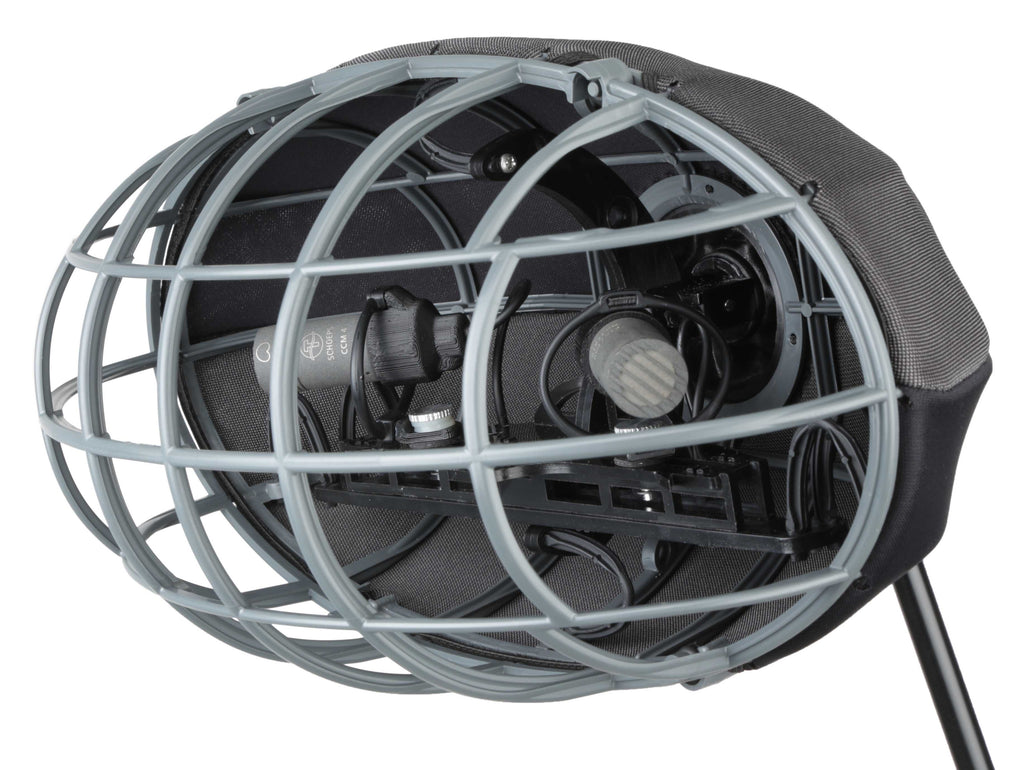

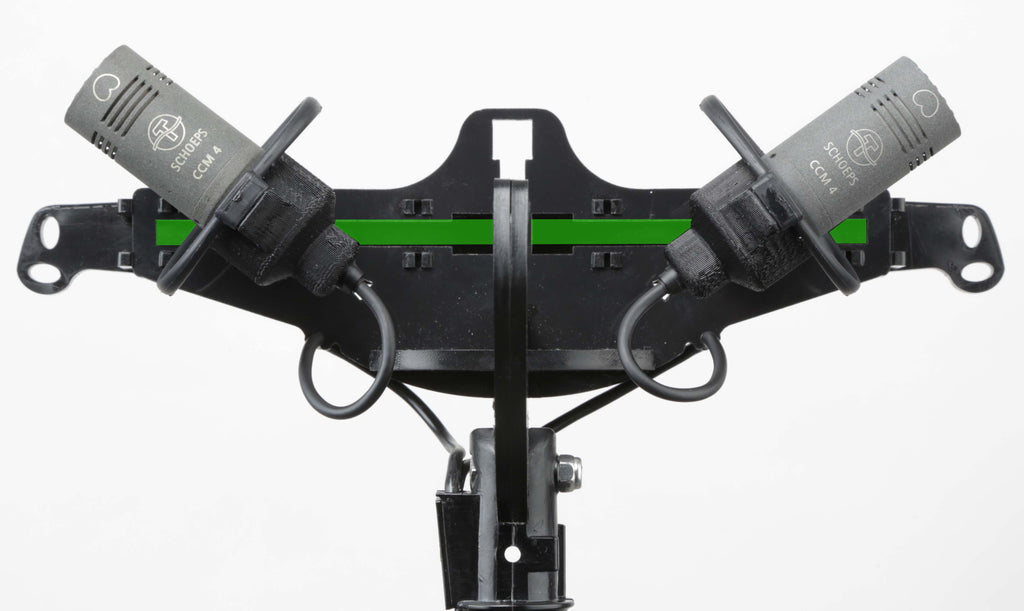

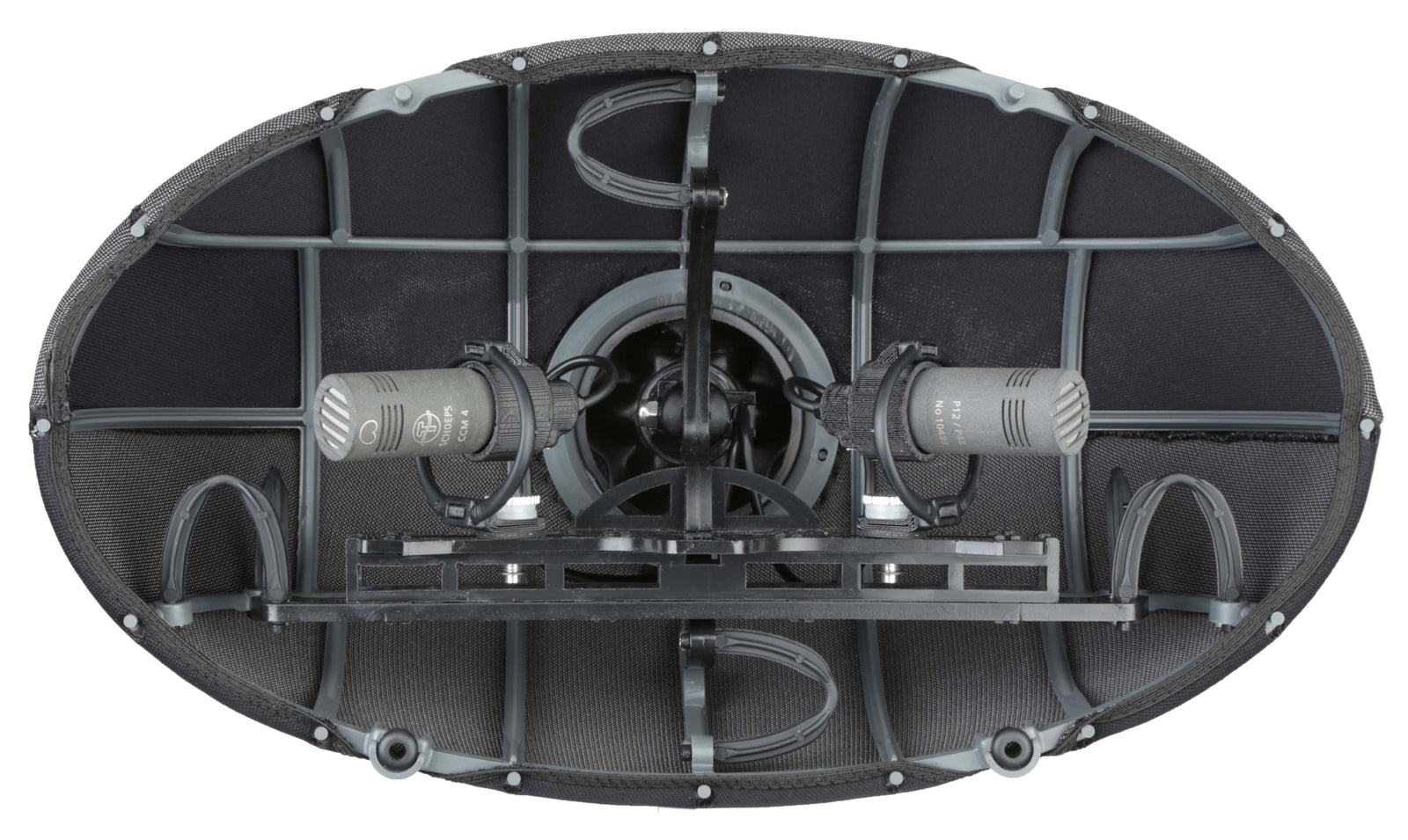

The SCHOEPS “ORTF Outdoor Set”consists of a stereophonic arrangement of two CCM 4 cardioid microphones. The ORTF is realized with a CINELA Albert, which ensures that the two microphone capsules are 17 cm apart and at an angle of 110° to each other.
The ORTF outdoor set consists of:
- 2 * No. 121015: CCM 4 L compact microphone (cardioid, matched
- No. CIN-AL-ORTF-CCM: CINELA Albert CCM
- No. 152208: KS 10 U, 2ch Multicore-Kabel
- No. 152202: AK SU/2U, breakout cable
CCM 4 Technical Specifications
| Frequency range |
see corresponding capsule |
| Sensitivity |
see corresponding capsule |
| Maximum sound pressure level (THD < 0.5 %) |
136 dB-SPL (P48) |
| Maximum output voltage |
2,6 V (8,3 dbV) with 2 kΩ load |
| Low cut filter |
20 Hz, 12 dB/Okt |
| Output impedance |
90 Ω @ 1 kHz |
| Maximum cable length |
> 400m |
| SCHOEPS RFI Shield |
No |
| Powering standard / Valid range |
P48 / >40 V |
| Current consumption |
4 mA (P48) |
| Common mode rejection ratio (at 1 kHz) |
> 55 dB |
| Minimum recommended load impedance |
2 kΩ |
| Output |
Lemo (CCM-L) or XLR-3M (CCM-K), |
| Length |
46 mm |
| Diameter |
20 mm |
| Weight |
45 g |
| Surface finish |
matt-grau |
