Schoeps MSTC 74 ORTF Stereo Microphone

SchoepsSKU: 132014

Model: MSTC 7
Price:
Sale price €1,895.00

The MSTC is one of SCHOEPS' bestsellers. Its compact elegance and excellent spatial quality make it a classic in the sound engineer’s standard portfolio.

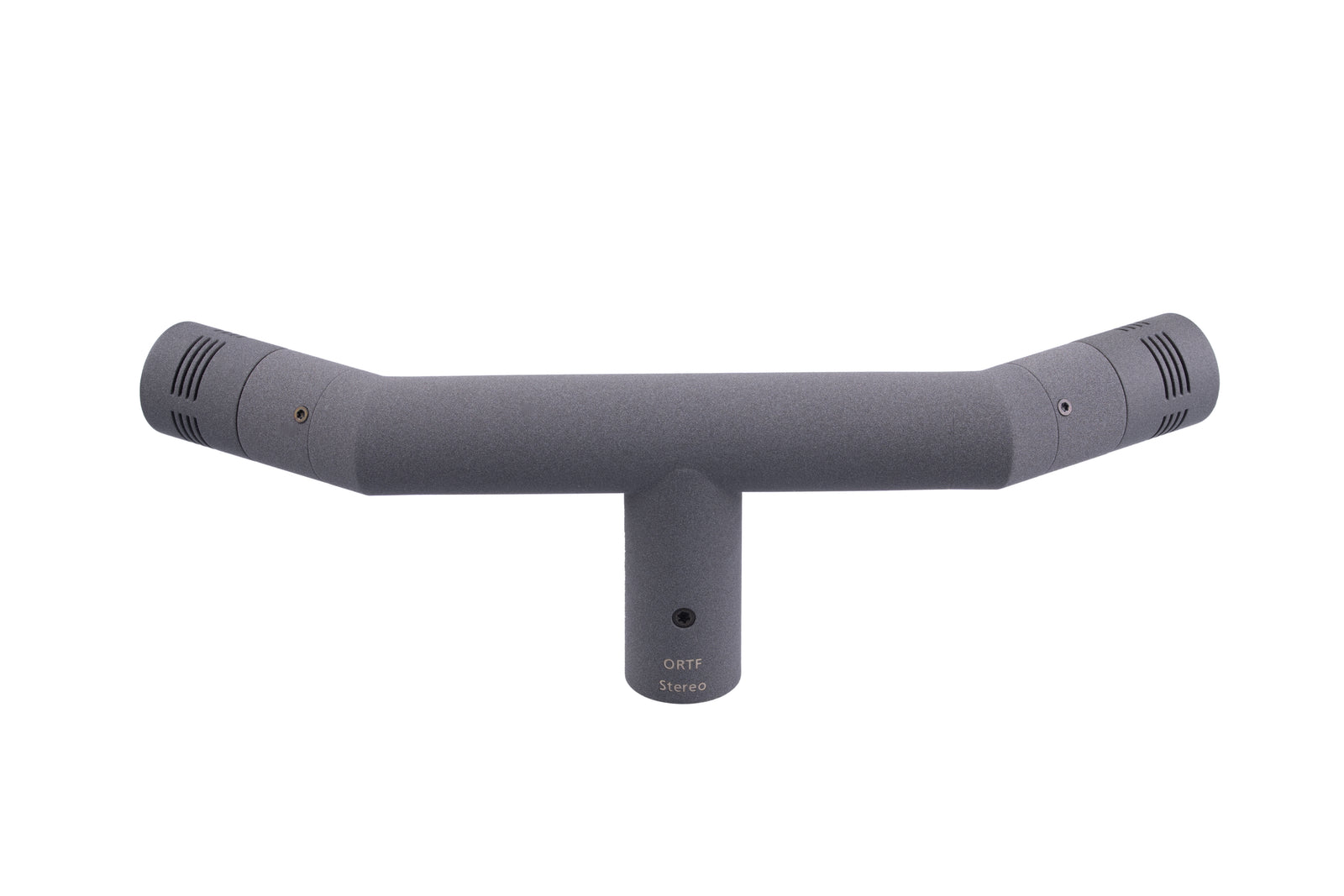

This microphone consists of a T-shaped two-channel microphone amplifier, which two paired MK 4 cardioid capsules are screwed onto. They are arranged at a distance of 170 mm at an angle of 110° to each other, as required for the ORTF method.

The MSTC is particularly impressive in that it usually also gives very good results without spot microphones. In addition, its placement is relatively unimportant, making it suitable for the rather inexperienced or hasty user. Set-up is quick and easy, because only a single stand and cable are required and the capsule distance and the offset angle of the capsules to each other don’t need be adjusted.

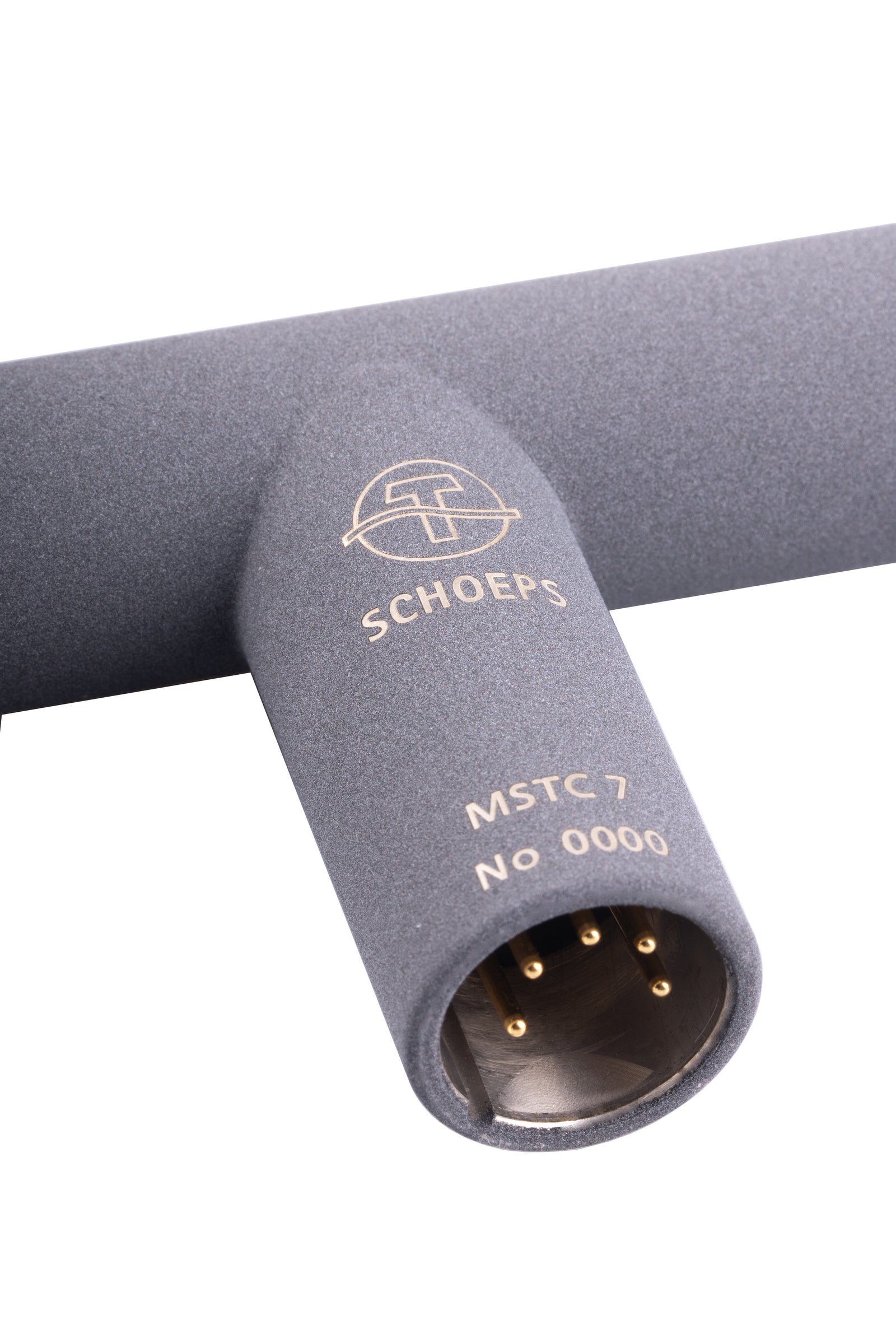

At the output of the MSTC 74 is an XLR-5M plug to which e.g. the stereophonic cable KS 5 U, or the breakout AK SU/2U is connected.

2 versions available:

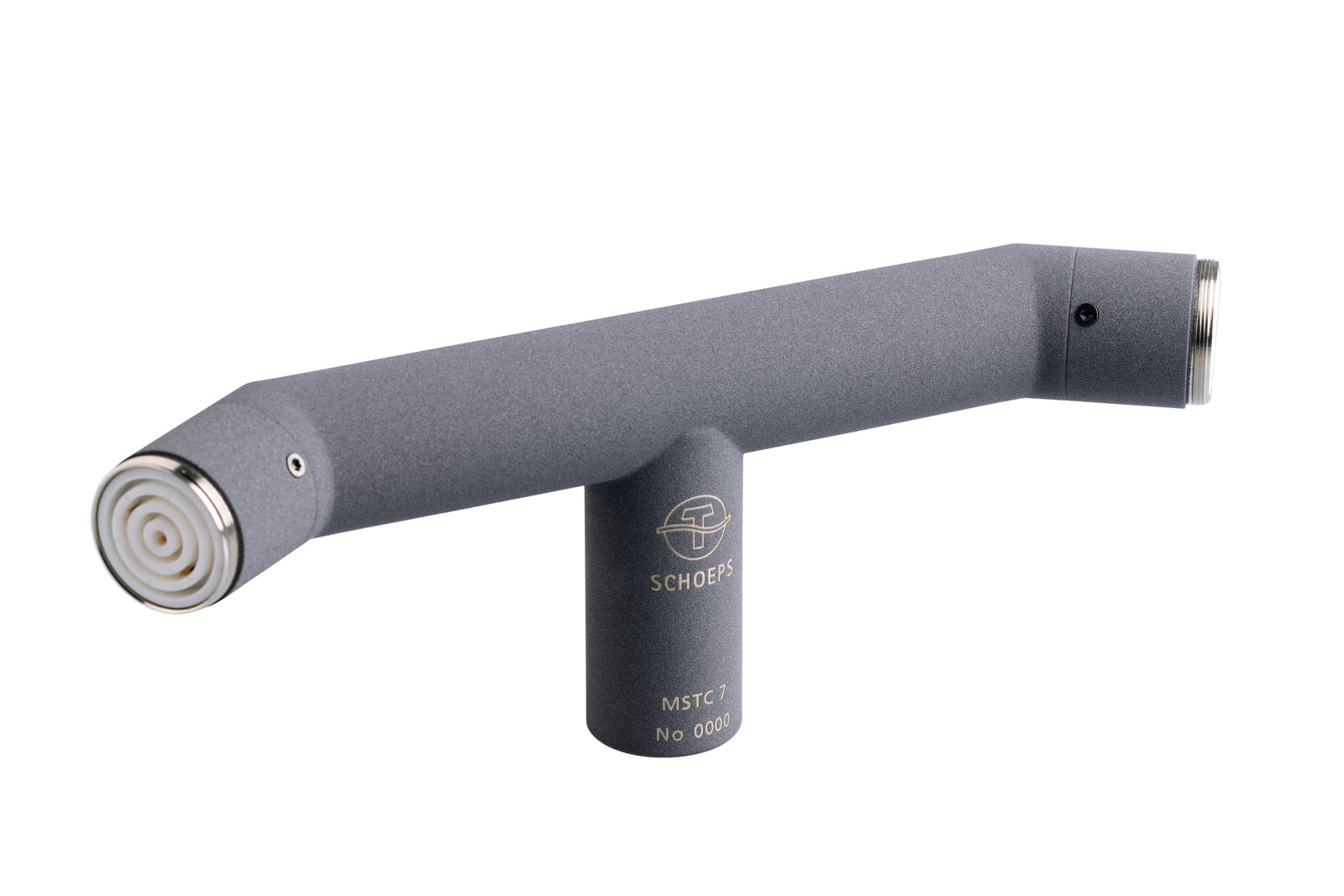

  • MSTC 7 (without capsules)

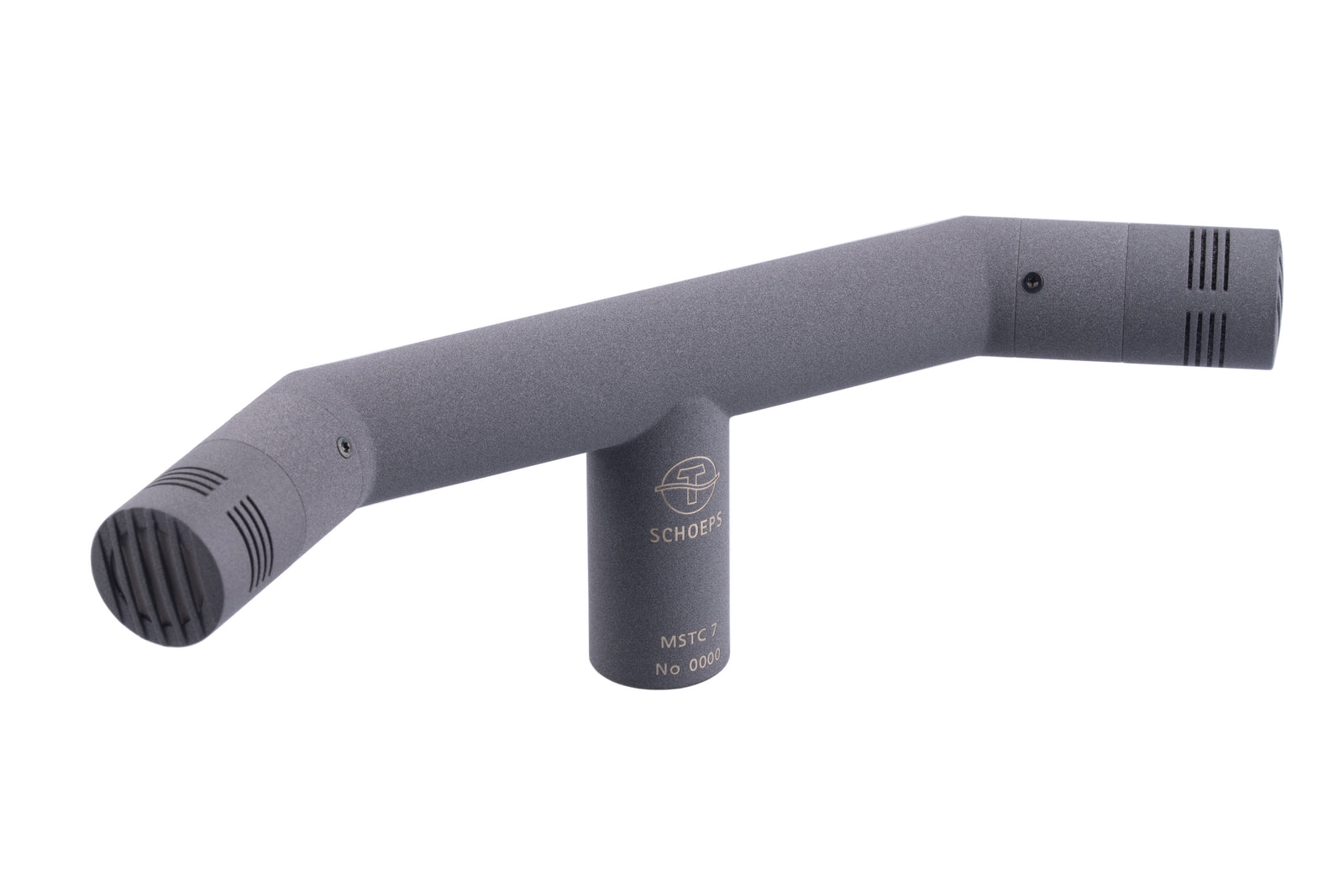

  • MSTC 74 (with capsules)

The MSTC 7 (No. 132014) comes with:

  • No. 232014, MSTC 7, stereo microphone
  • No. 161105, SG 20, stand clamp
  • No. 152202, AK SU/2U, breakout cable

The MSTC 74 (No. 139901) also includes:

  • 2 * No. 231015 MK 4, matched

Technical Specifications

Pickup pattern

Cardioid (2× MK 4)

Frequency range

40 Hz - 26 kHz

Sensitivity

-36,5 dB (V/Pa), 15 mV/Pa

Equivalent noise level (A-weighted)

14 dB

Equivalent noise level (CCIR)

24 dB

Signal-to-noise ratio (A-weighted)

80 dB

Maximum sound pressure level (THD < 0.5 %)

135 dB-SPL

Maximum output voltage

1,8 V (5 dBV) with 1 kΩ load

Low cut filter

20 Hz, 12 dB/oct.

Minimum recommended load impedance

1 kΩ

Output impedance

50 Ω

Maximum cable length

> 400 m

SCHOEPS RFI Shield

Yes

Powering standard / Valid range

P48 / 30-52 V
P12 / 11-13 V

Current consumption

2 mA per channel (P48)

Common mode rejection ratio (at 1 kHz)

> 55 dB

Output

XLR-5M, analog, 2 channels

Distance between the microphones

17 cm

Recording angle

95°

Weight

232 g (with capsules)

Surface finish

matte gray (g) or custom color

Stereophonic recording technique

ORTF
