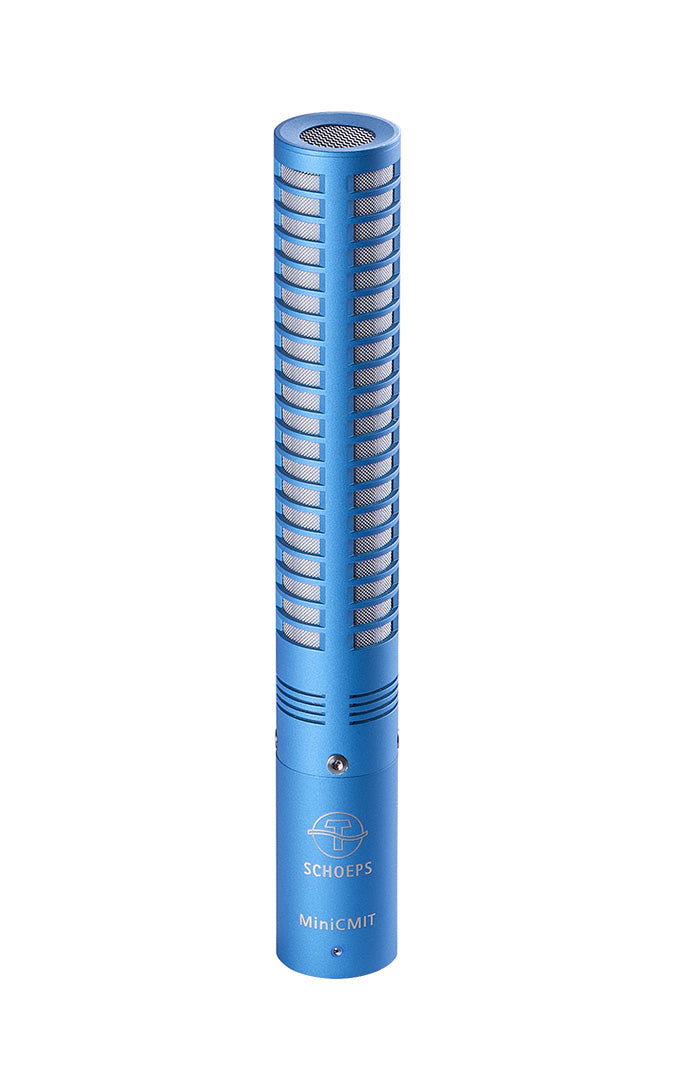

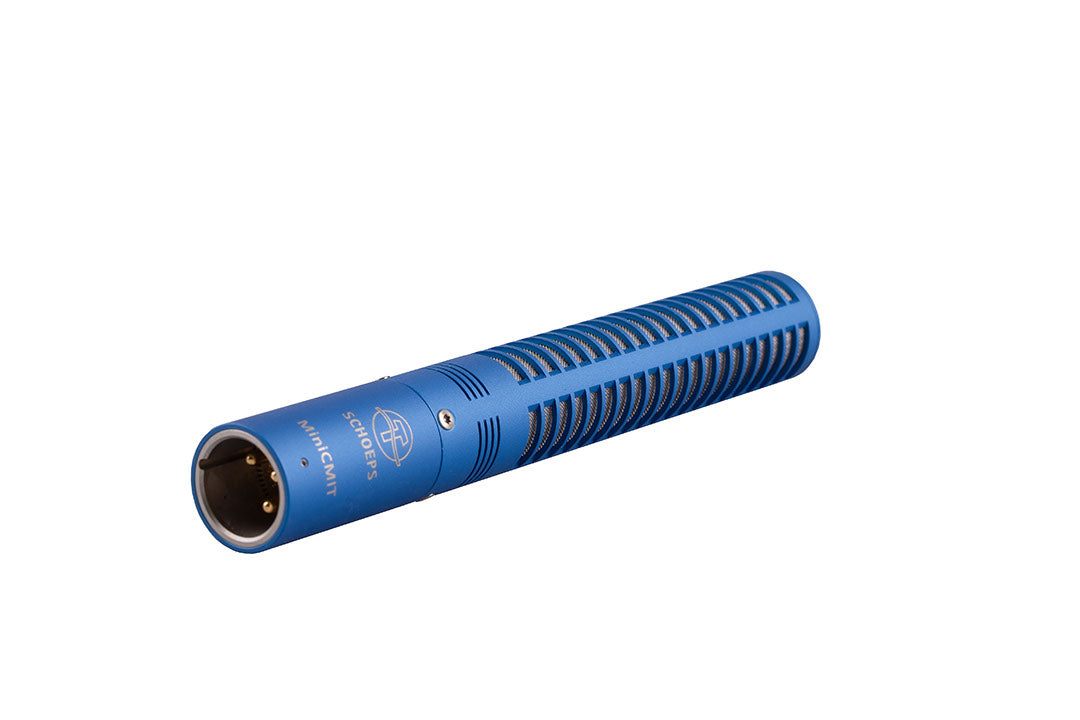

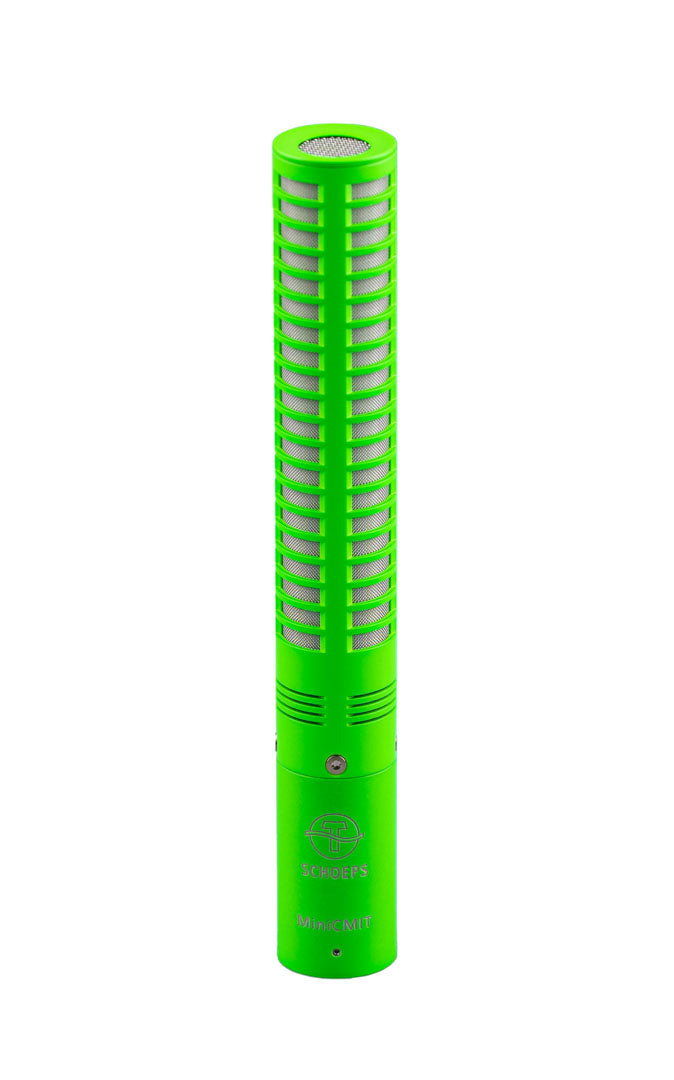

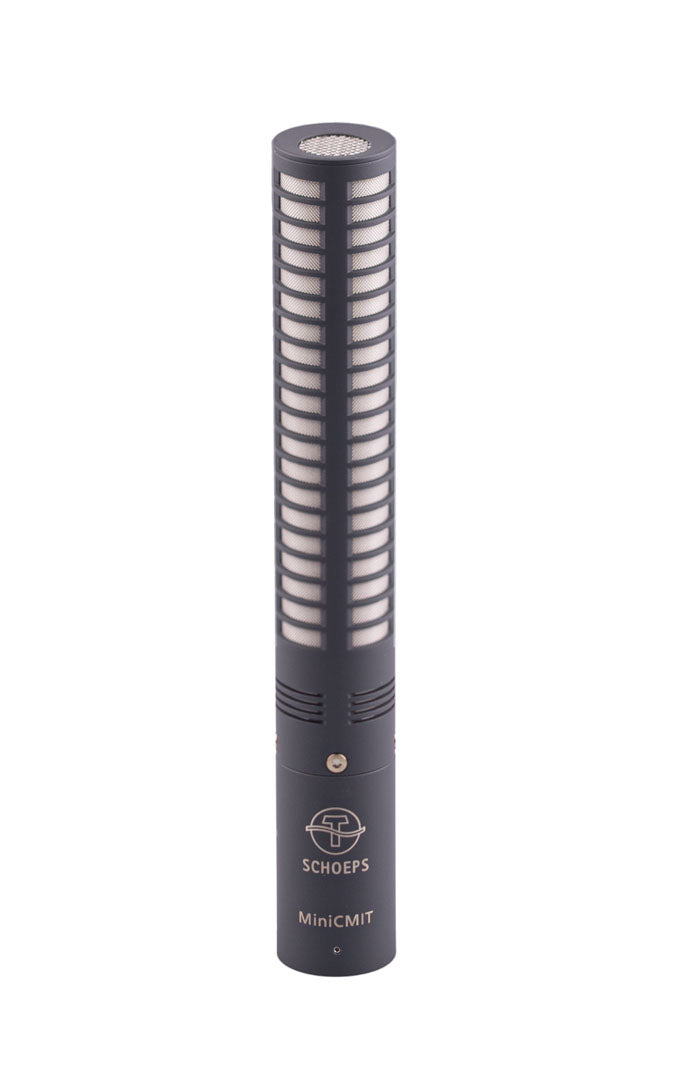

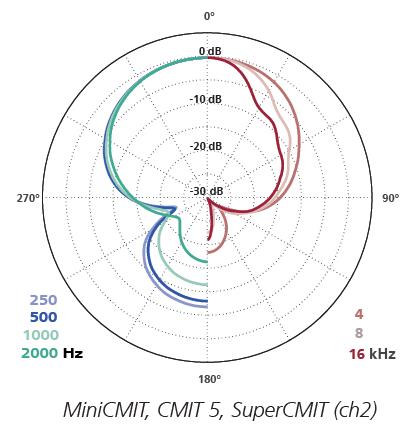

The shotgun microphone MiniCMIT offers the characteristics of a CMIT 5 in more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. Furthermore, the MiniCMIT and CMIT 5 have circuitry with similar characteristics, such that the microphones can be interchanged without altering the sound.
- Offers the characteristics of a CMIT in more compact form
- Phantom Powering with P12 and P48
- low current draw
- Fixed 4th order low-cut filter at 70 Hz
|
Specifications |
|
|
Sensitivity |
16.5 mV/Pa |
|
Equivalent noise level (A-weighted) |
14 dB-A (P48) |
|
Equivalent noise level (CCIR) |
24 dB (P48) |
|
Maximum sound pressure level at 0.5% THD |
130 dB (P48), 115 dB (P12) |
|
Powering voltage |
P48 / >24 V, P12 / >11 V |
|
Current consumption with 48 V |
2.3 mA |
|
Output impedance |
100 Ω |
|
Output socket |
XLR-3M, analog, 1 channel |
|
Filter(s) |
fixed low-cut, 70 Hz, 24 dB/oct. |
|
Length |
151 mm |
|
Diameter |
21 mm |
|
Weight |
78 g |
|
Additional comments |
SCHOEPS RFI Shield |
|
Length of the cable |
>100 m |
