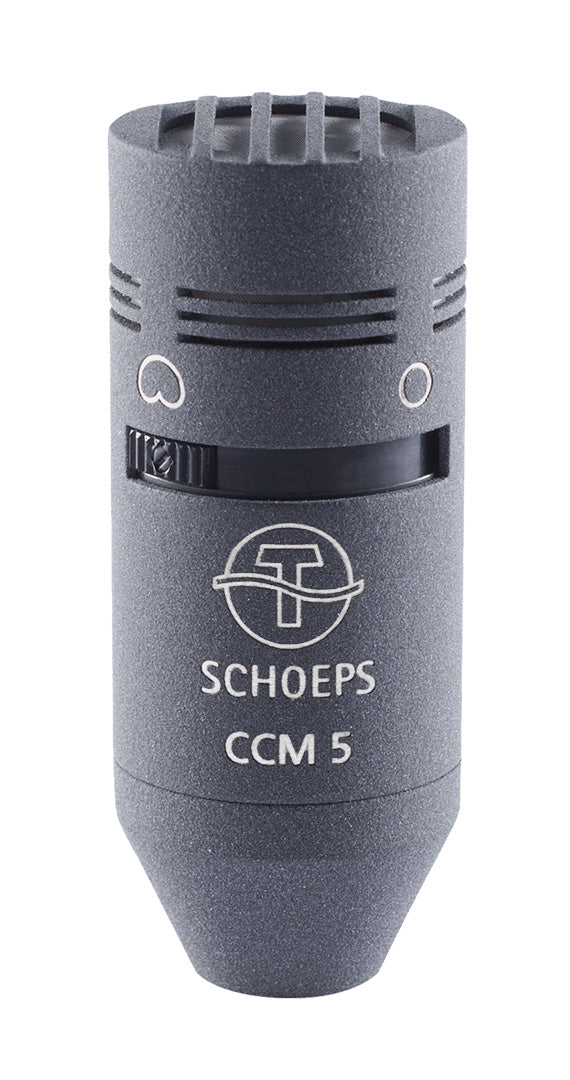

Schoeps CCM 5 Switchable Pattern Compact Microphone

The CCM 5 offers two selectable directional patterns, but uses only one membrane – a no-compromise approach. The fact that full response is maintained to the highest audible frequencies is unusual for a switchable-pattern microphone.

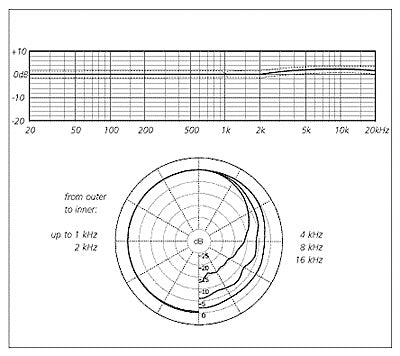

In its omnidirectional setting the CCM 5 is a true pressure transducer with smooth, extended low-frequency response, low sensitivity to most wind and breath noise, handling noise or mechanical vibration, and no proximity effect.

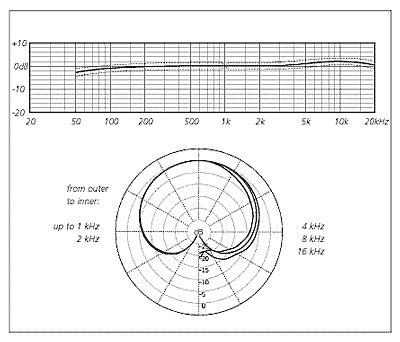

Unlike conventional, dual-diaphragm multi-pattern microphones, its cardioid setting retains its full directionality even at very low frequencies. The benefits of this design in purity and clarity of sound are immediately audible.

The CCM 5 has a slight high-frequency emphasis as compared with the corresponding single-pattern omni (CCM 2) and cardioid (CCM 4).

• omni and cardioid patterns, mechanically switchable
• slight emphasis of the high frequencies
• broad range of applications
• preferred uses similar to those of the MK 2 or MK 2S and the MK 4: In the cardioid setting: for use with singing or speaking voices or most instruments, as a spot microphone, and for stereo recording with coincident, ORTF or M/S microphone arrangements

Applications

The CCM 5 is nearly an all-purpose microphone. It is what we recommend for those starting out with the CCM series, unless particular circumstances (such as the need for greater directivity or a bidirectional pattern) would indicate a different choice.

CCM Series User Manual
