RØDE's VXLR range is a small but essential collection of adaptors for connecting VideoMic products - with their 3.5mm TRS connectors - to higher-end XLR input gear, like mixers, audio recorders and audio interfaces. VXLR Pro is the first VXLR to feature true balanced output, allowing for extended cable runs without risking audio interference.
MEET THE VXLR PRO.

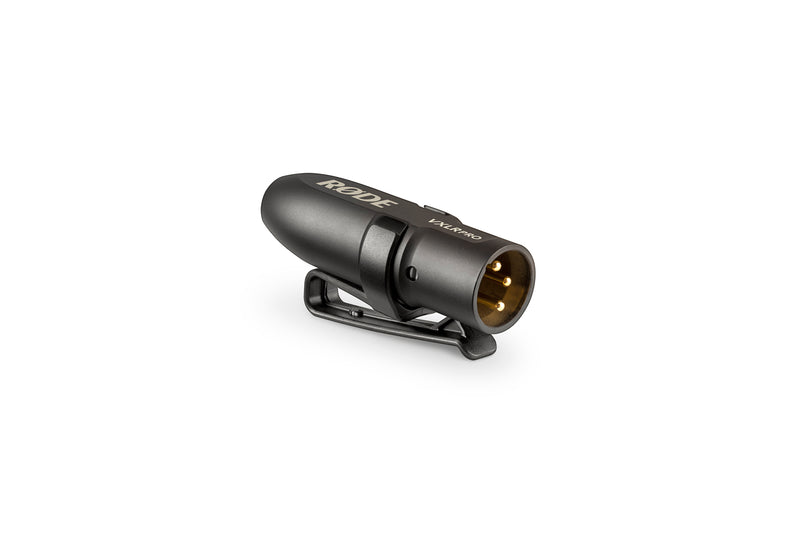

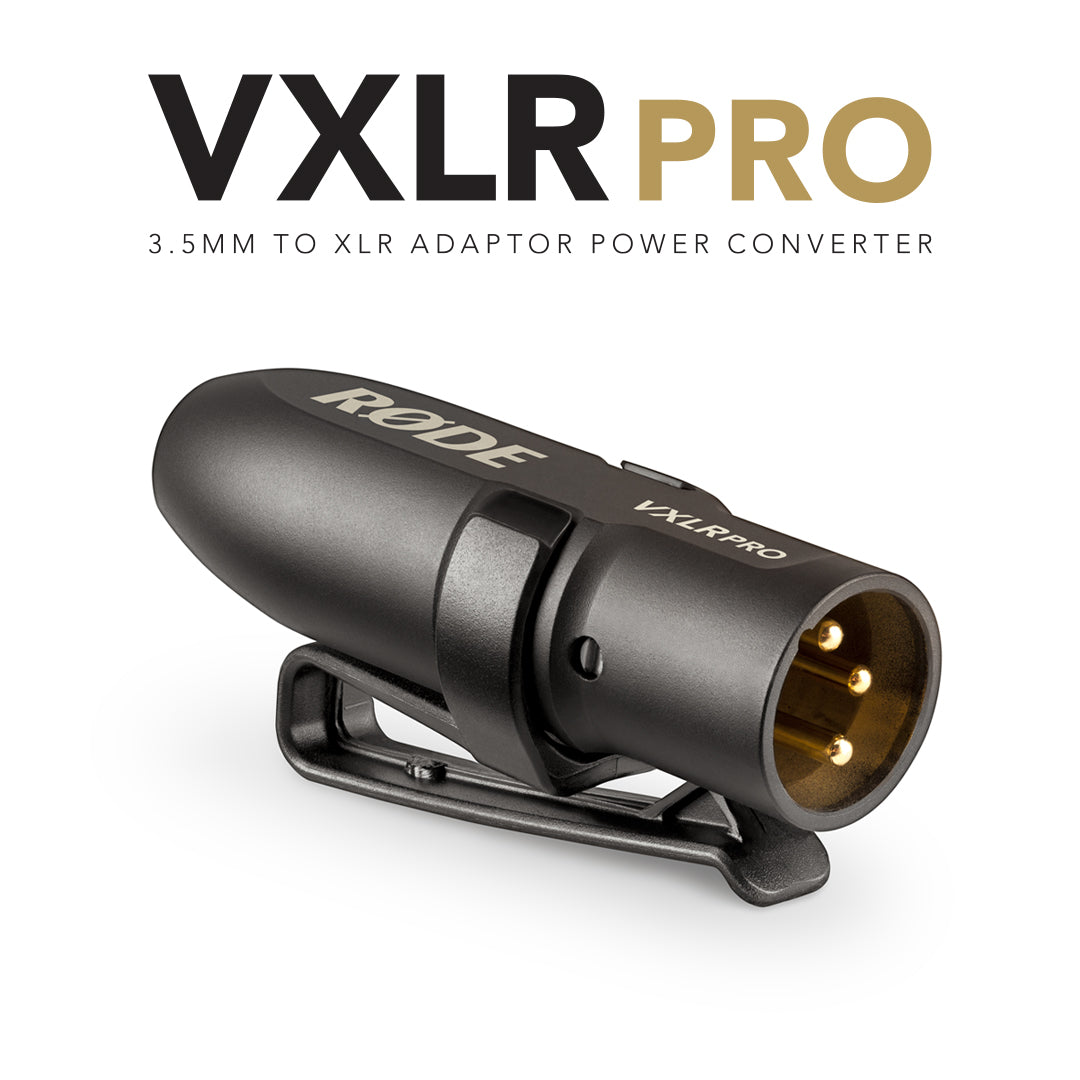

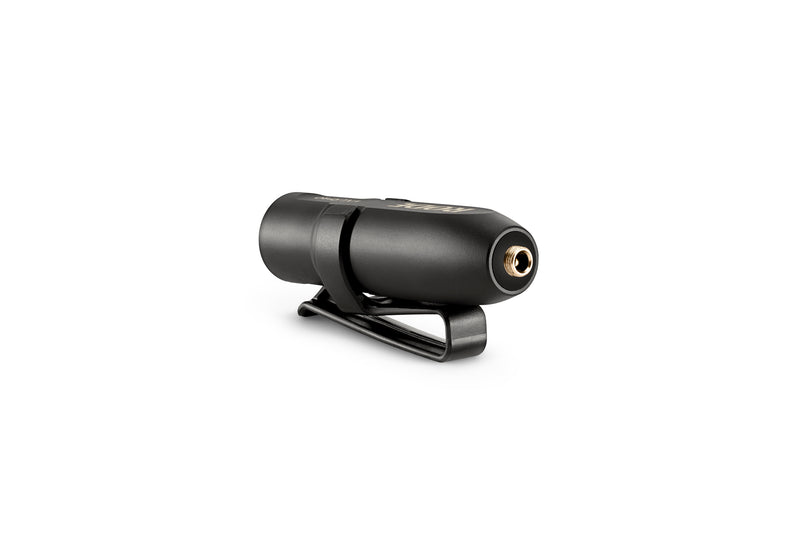

The VXLR Pro is a 3.5mm female TRS mini-jack to male XLR adaptor for connecting RØDE on-camera microphones such as the VideoMic NTG to devices with an XLR input. It features a transformer to balance the signal, making it ideal when using long cable runs. It also converts 12-48V phantom power to 4V plug-in power, allowing microphones like the VideoMicro and VideoMic GO to receive power from XLR devices, and features a locking connector for added security.
KEY FEATURES
- 3.5mm TRS mini-jack to XLR adaptor
- Transformer-balanced output
- Converts 12-48V phantom power to 4V plug-in power
- Locking connector
COMPATIBLE PRODUCTS
- VideoMic NTG
- Wireless GO
- VideoMic
- VideoMicro
- VideoMic Pro
- VideoMic Pro+
- VideoMic GO
- HS2
- RØDELink Filmmaker Kit
- SmartLav+ (when used with SC3 adaptor)
- PG2-R
VXLR Pro Specifications
Output Connection: 3-pin XLR
Inputs: 3.5mm TRS
Phantom Power:4V plug-in power when phantom power (P24 and P48) is supplied
Weight (grams): 84
Dimension (millimetres):
Length: 69.9
Width: 20
Depth: 21
