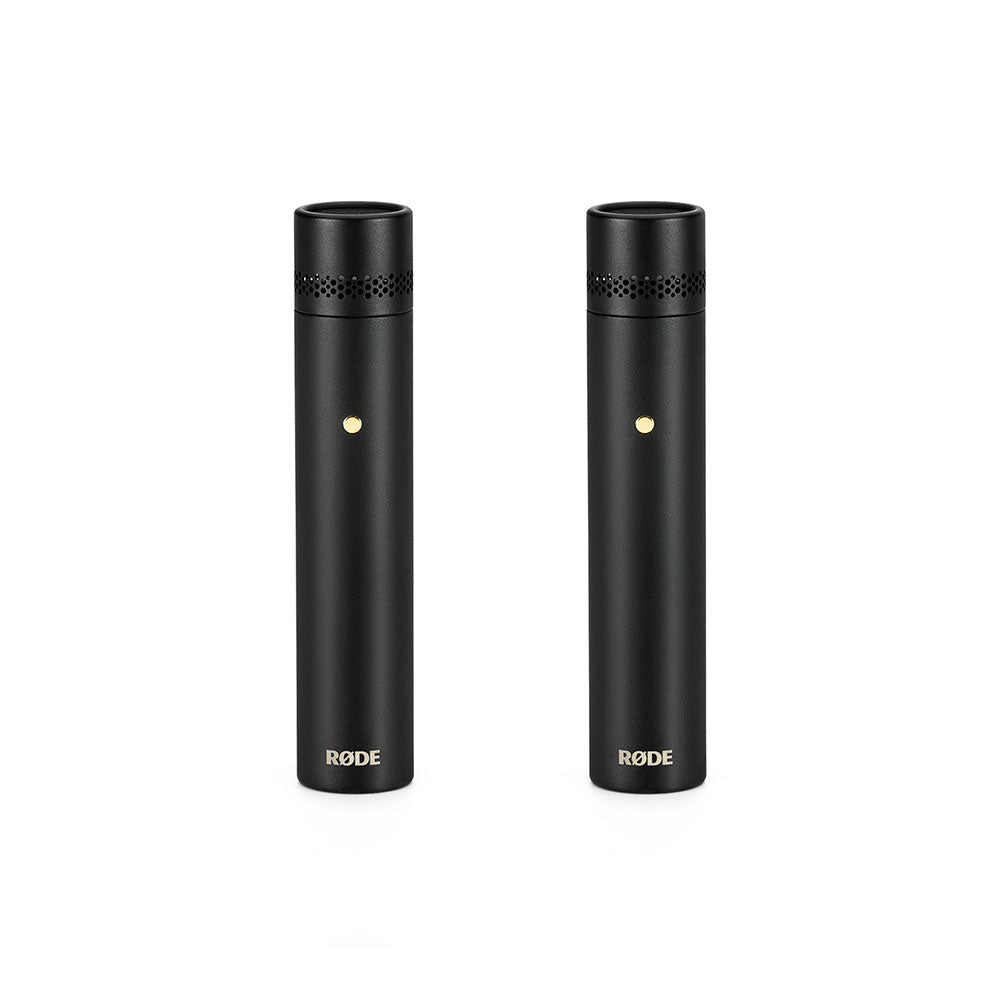

The TF-5 represent a new standard in small diaphragm condensers. The all-new capsule is engineered to sub-micron tolerances, giving unprecedented consistency of tone and response.
The TF-5 features the hallmark clarity and airiness of other RØDE small diaphragm mics, and adds to this a unique warmth of tone which is often lacking in smaller ‘pencil mics’ of this type, making the TF-5 uniquely versatile.
Features- Precision-paired small diaphragm cardioid condenser microphones
- Ultra-low noise
- Flat frequency response
- Tight cardioid directivity
- Warm, accurate sound
- Suitable for the most critical recording applications
- Designed in collaboration with Grammy® award winning classical producer and engineer, Tony Faulkner
ACOUSTIC & ELECTRICAL SPECIFICATION
| Acoustic Principle |
Externally biased condenser |
| Active Electronics |
JFET impedance converter with bipolar output buffer |
| Polar Pattern |
Cardioid |
| Frequency Range |
20Hz - 20kHz |
| Frequency Response |
30 Hz - 20 kHz ±3dB // 20 Hz - 20 kHz ±4dB |
| Output Impedance |
63Ω |
| Signal to noise Ratio |
80 dB |
| Equivalent Noise |
14 dB SPL |
| Input SPL @ 1% THD |
135 dB SPL (1kHz @ 1% THD, 600Ω load) |
| Sensitivity |
-29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz) |
| Dynamic Range |
112.6 dB (1kHz @ Max SPL) |
| Power Requirements |
7mA @ 48V phantom power |
MECHANICAL SPECIFICATION
| Weight (g) |
114g (single microphone) |
| Dimensions |
Length: 98.7mm Diameter: 20mm |
