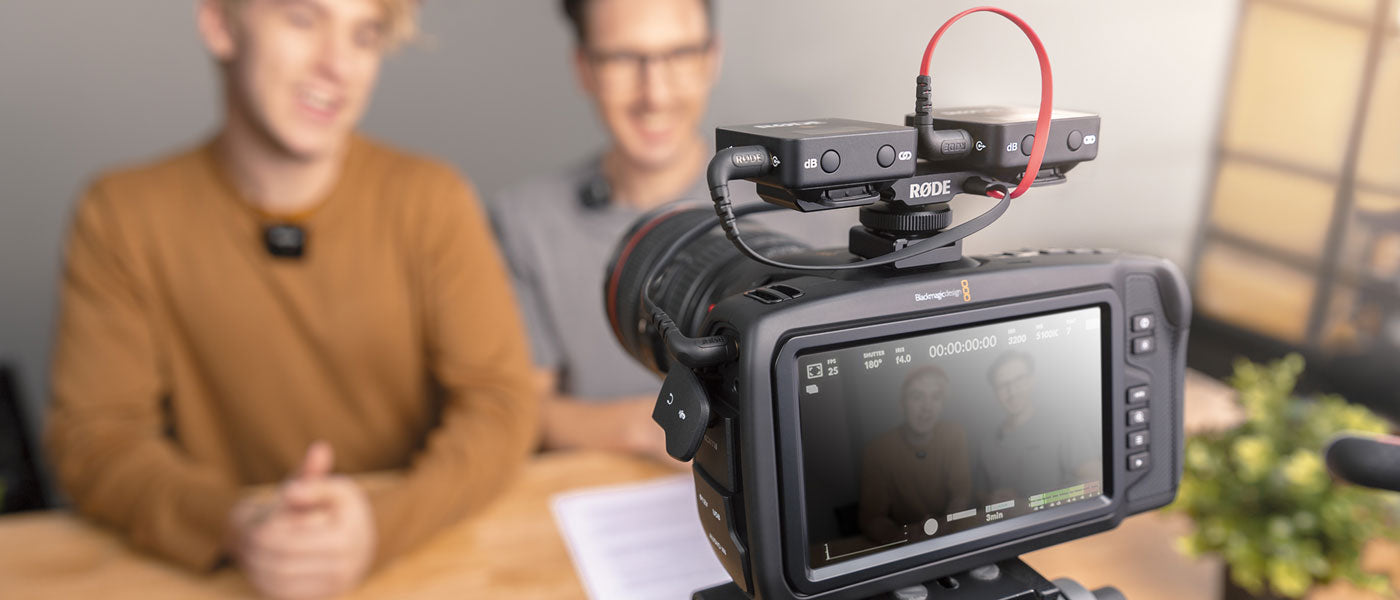

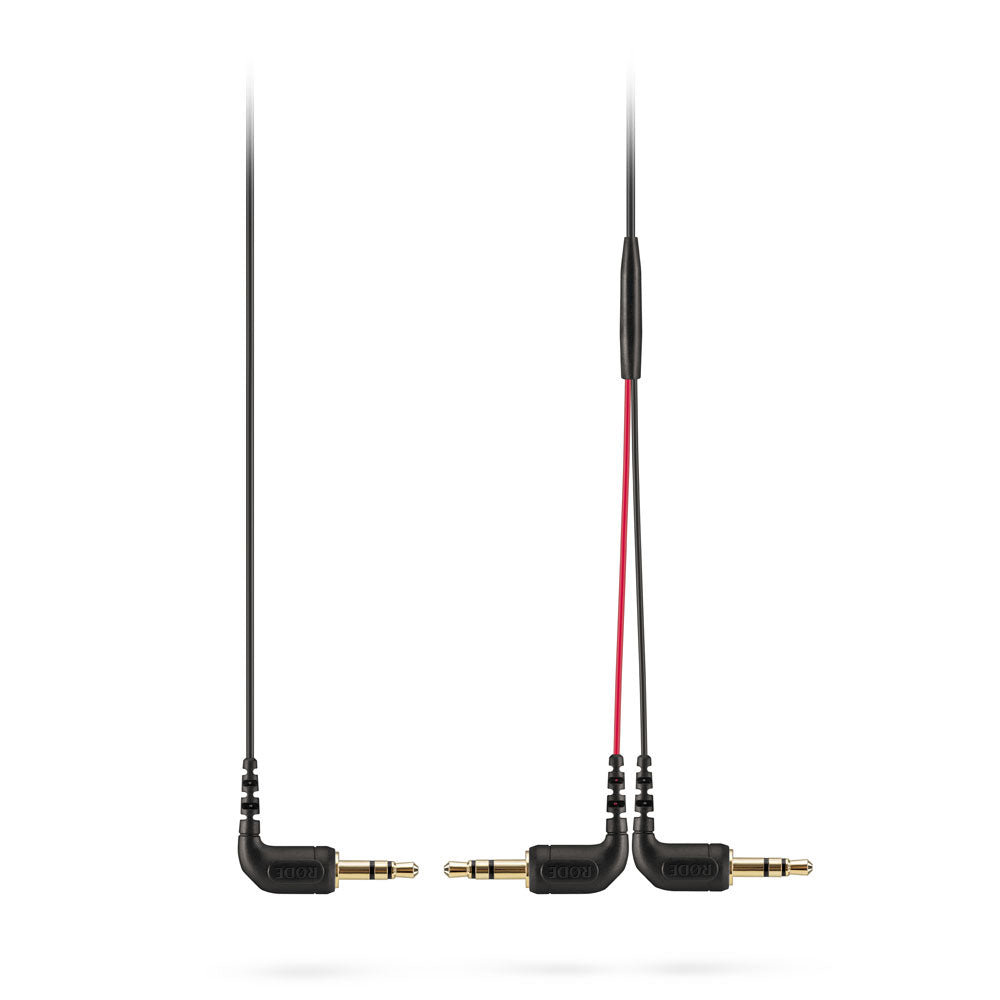

The SC11 is a TRS splitter cable for connecting two mono outputs to a single stereo input. It is particularly suitable for connecting two microphones to a single DSLR-style camera, for example dual Wireless GO receivers, or a wireless receiver and a VideoMic. The SC11 is 275mm in length and is compatible with the cable management slots in the RØDE SM7-R and DCS-1 mounts. The output segment has in-built memory wire for neat cable positioning around your camera and the input segment is split into two – the black end records to the left channel, the red end records to the right.
- High-quality shielded patch cable
- Dual TRS output
- 275mm (10.8”) long
SC11 SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS
| Output Connection |
Dual TRS 3.5mm |
| Inputs |
TRS 3.5mm |
MECHANICAL SPECIFICATIONS
| Weight (g) |
12g |
| Packed Weight (g) |
26g |
| Dimensions (L x W x H, mm) |
Overall: 275.5mm (L) Memory Cable: 152.5mm (L) x 3.75mm (W) Flex cable: 97.45mm (L) x 3.30mm (W) |
| Package Dimensions (L x W x H, mm) |
76mm x 26.5mm x 54.5mm |
| Compatible RØDE Products |
|
