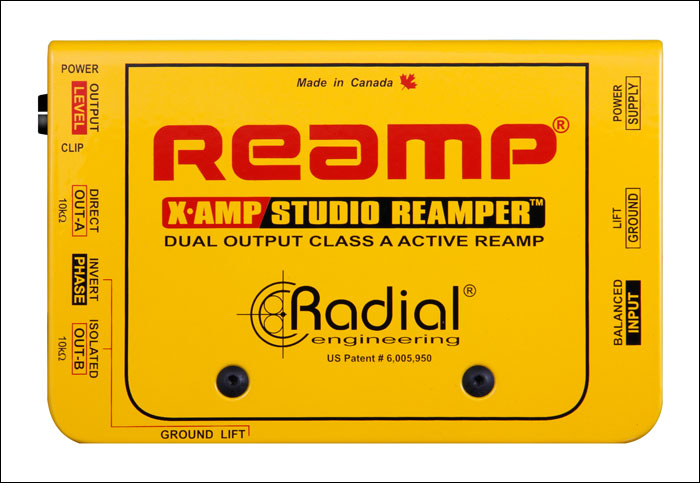

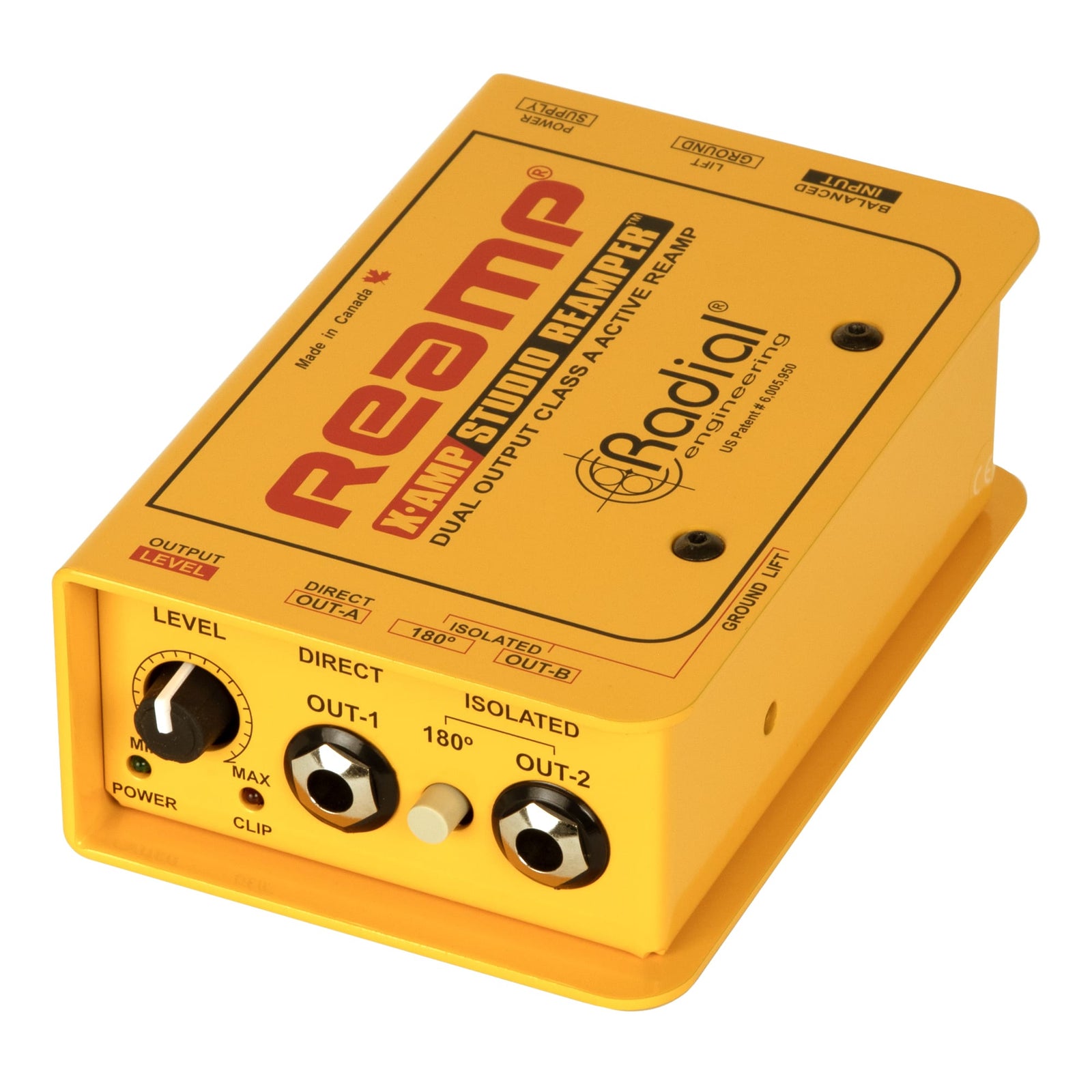

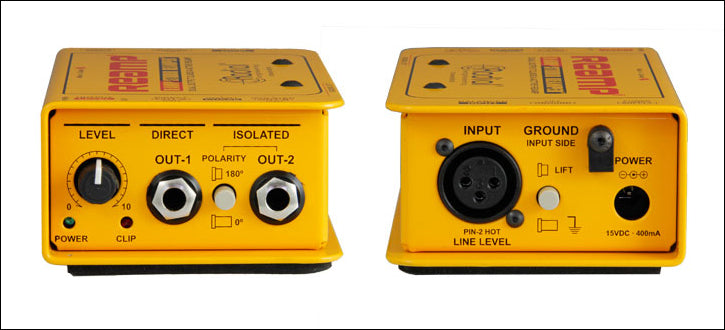

Radial Engineering X-Amp Active Re-Amplifier

Radial EngineeringSKU: R800 1028 00

Price:
Sale price €279.00

The Radial X-Amp is an active Reamper™ that allows the engineer to play a pre-recorded track back through guitar amplifiers and pedals. This opens the door to explore new musical sounds and spur on the creative process so that your recording stands out.

Reamp for professionals

Following the critically acclaimed Radial JD7™ Injector, the X-Amp employs a unique class-A circuit design that has been optimized for use with guitars. Features include balanced line level input with LED peak indicator and level control, class-A circuit topology for optimal reach and frequency response, a transformer isolated output to eliminate hum and buzz caused by ground loops, a 180° polarity reverse switch to bring both amps into phase, and a dual ground lift switch for noise-free operation.

X-Amp Applications

Reamping Step-1

To Reamp, start by recording a dry track using a Radial J48 and splitting the signal. Record the wet track using a mic so that the guitarist can hear it. Send him to the beach!

Reamping Step-2

Send the dry track back to the guitar amps and pedals using the X-Amp. Adjust the tone and move the mics around till it sounds right. You can always come back and Reamp later.

Reamping – Not just for guitars!

Try sending a vocal track into a Marshall® amp or a Tonebone Classic-V9™ to add tube warmth and grit. Take it a step further by sending your kick drum to a wah pedal. There are no limits!

The Radial X-Amp... the active Reamp® for professional recording engineers.

  • Active Reamp® with two outputs
  • 100% discrete class-A signal path
  • Transformer isolated to eliminate noise
  • LED peak indicator and level control

Specifications



Audio circuit type:

100% discrete class-A

Frequency response:

20Hz ~ 15kHz (± 1.0dB)

Signal to noise ratio:

88dB below instrument level (-20dBu)

Dynamic range:

119dB

Noise floor:

OUT-1 -110dB; OUT-2 -108dBu

Maximum input:

+22dBu

Total harmonic distortion:

0.02% @ -15dBu

Inter-modulation distortion:

0.02% @ -20dBu

Input impedance:

600Ω

Features



XLR input:

Balanced line-level, AES standard (pin-2 hot)

Ground lift (input):

Disconnects pin-1 at the XLR input

Output level:

Adjustable

Output type:

Out-1 direct, Out-2 isolated

Polarity:

180º polarity reverse on output-2

General



Power:

+15VDC/400mA adapter included

Construction:

14 gauge steel chassis & outer shell

Finish:

Durable powder coat

Size:

3.3" x 5.0" x 2" (84 x 127 x 48mm)

Weight:

1.55lb (720g)

Shipping size:

5" x 2.75" x 10.75" (127 x 70 x 273mm)

Shipping weight:

2.6lb (1.18kg)

Conditions:

For use in dry locations only between 5°C and 40°C

Warranty:

Radial 3-year, transferable

Specifications are subject to change without notice.
