The Studio-Q™ is a compact studio talkback controller that provides a simple yet full-function cue system that allows easy communication with artists in a separate room or vocal booth.
Better communication for better recordings

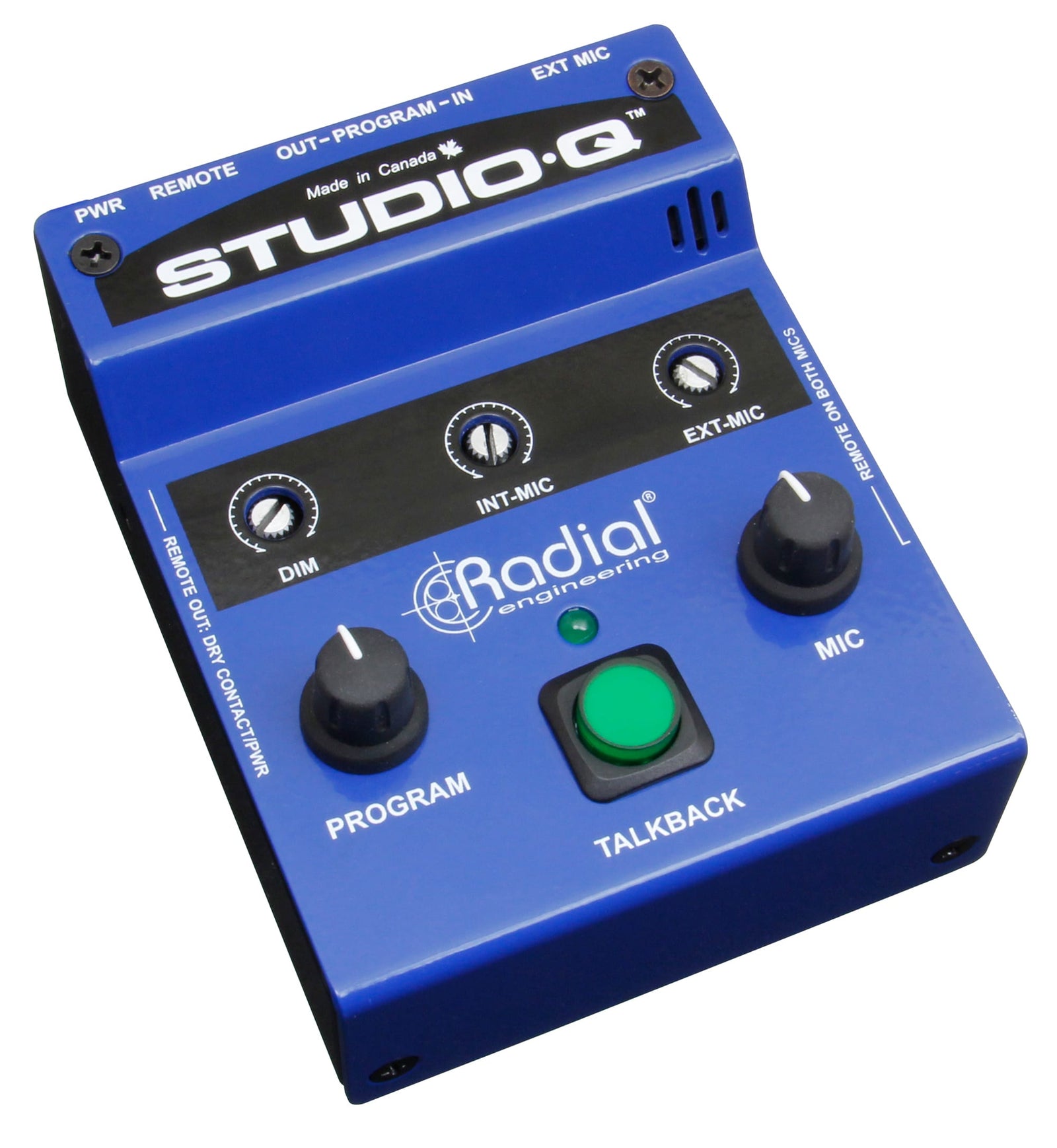

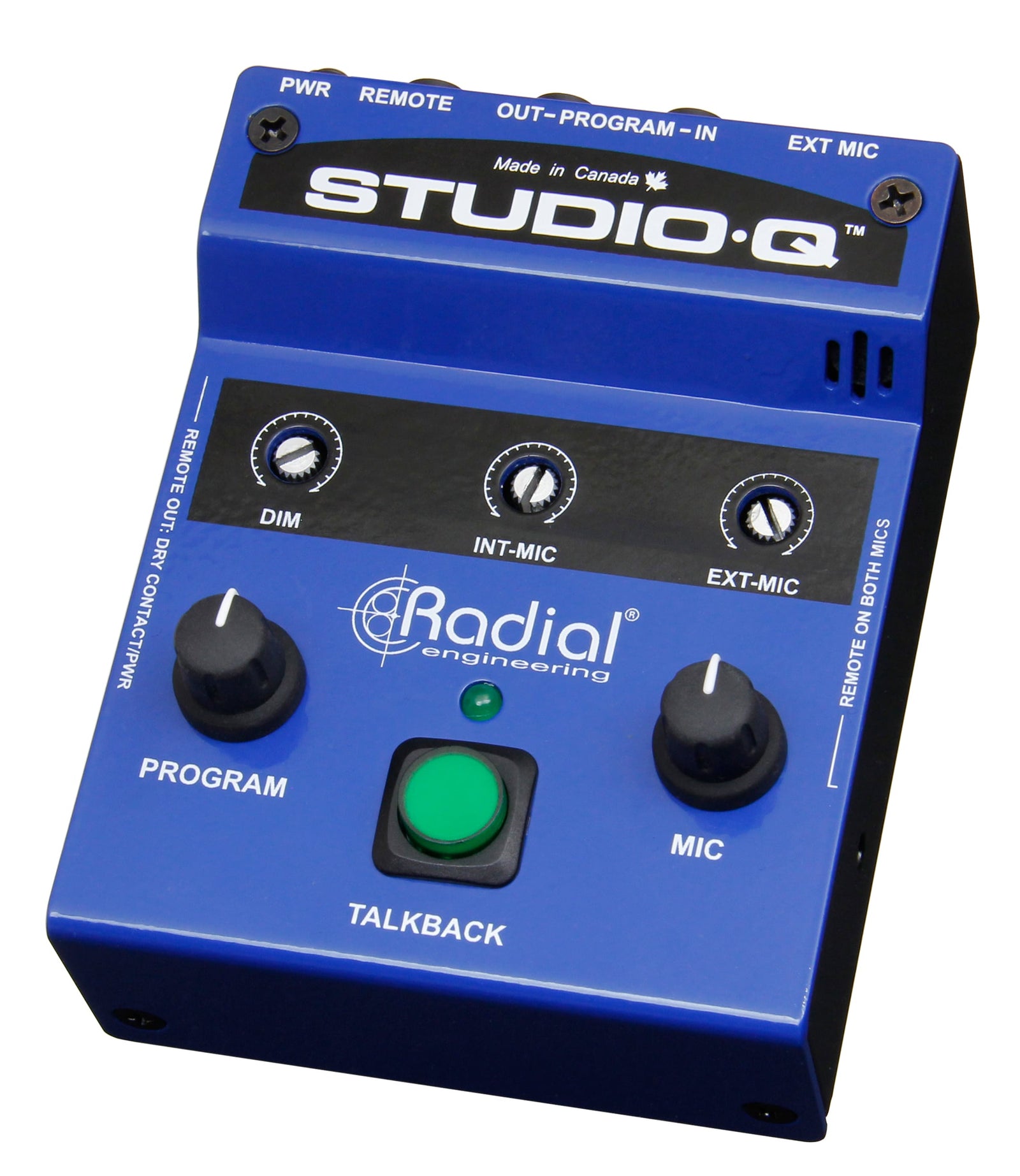

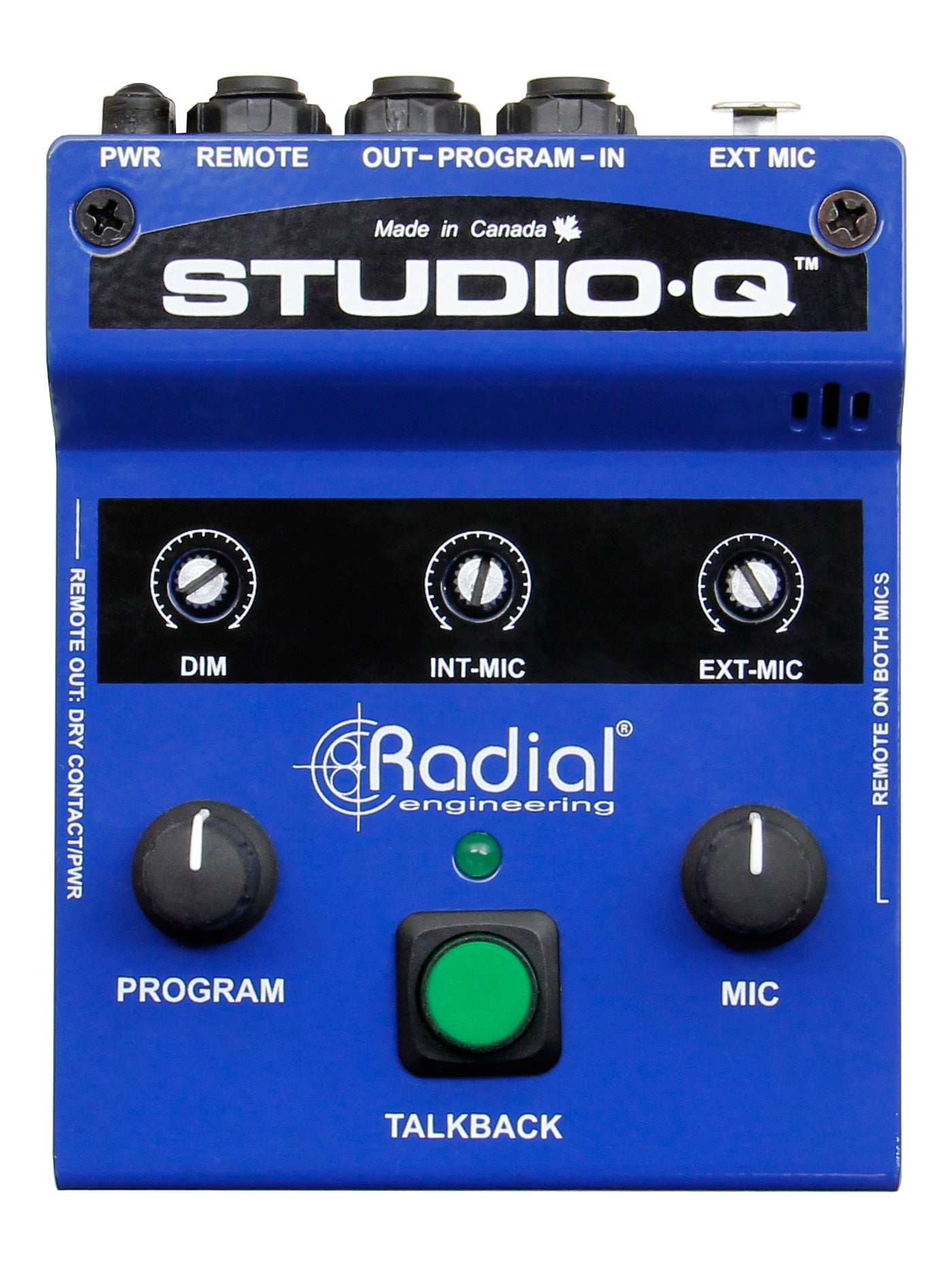

The Studio-Q allows you to professionally and easily communicate with artists that are in a separate live room or vocal booth, streamlining your studio workflow and improving the recording experience for the artist. Simply press the talkback button and a built-in omnidirectional microphone will activate, while at the same time lowering audio playback so you can be heard easily through the cue system. An external dynamic microphone can also be connected as an alternate talkback source, and a footswitch can be added for hands-free remote operation.
Studio-Q Applications
Home studio setup
Use the Studio-Q to add talkback functionality to your system. Now you can communicate seamlessly with an artist on headphones in a separate room.
Adding a beacon
The remote Beacon can be connected via ¼" cable, illuminating whenever the talkback button is pressed. This gives an additional visual indication that the engineer or producer is trying to communicate over the cue system.
Using an external microphone

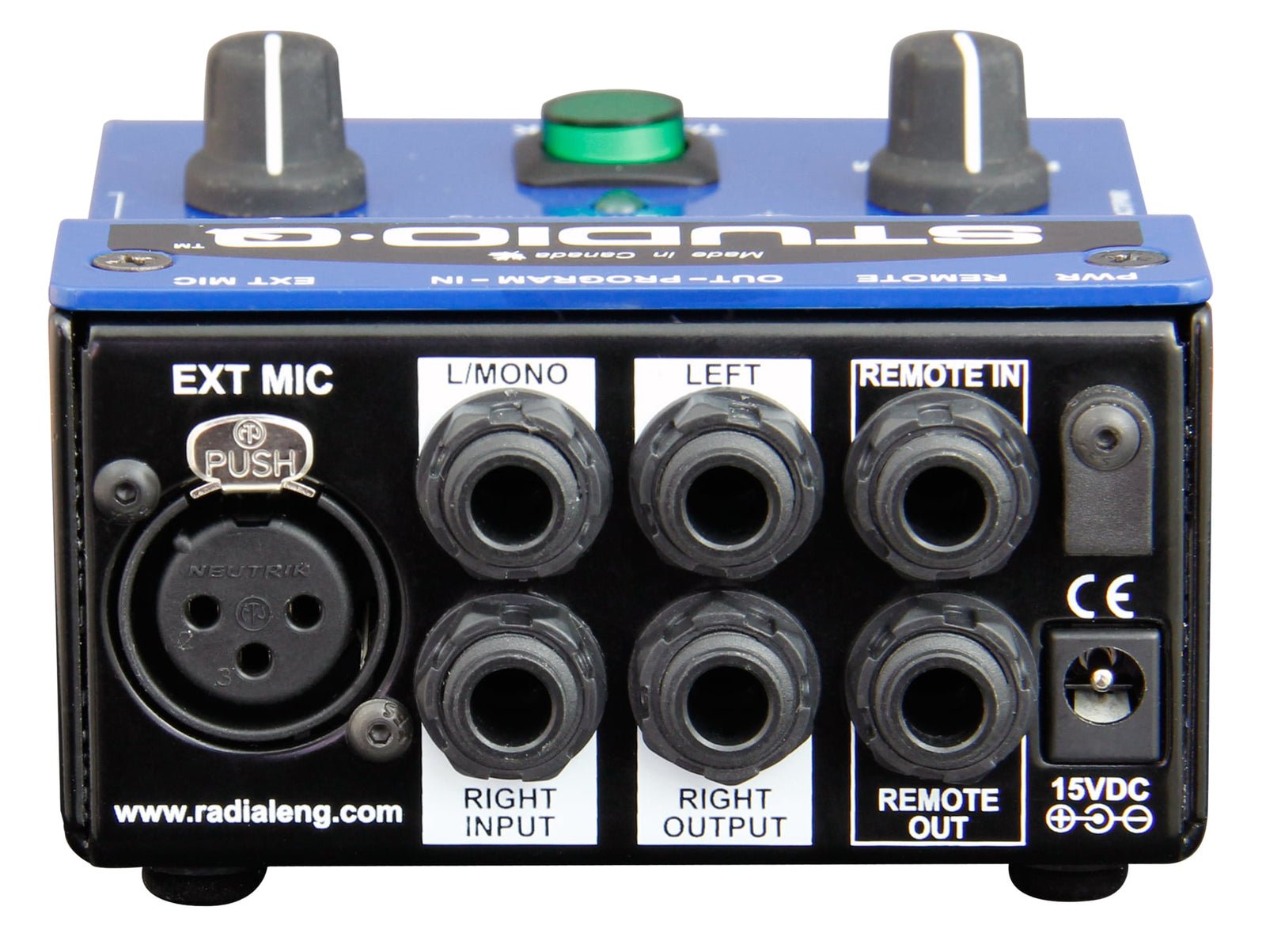

The XLR mic input on the Studio-Q allow a second microphone to be used so a producer or band member can also communicate with the artist in the booth. This can be controlled with a separate footswitch for easy hands-free operation.
Features:
- Compact desktop cue system for studio recording
- Allows engineer & producer to talk to artists
- Built-in microphone and external mic input
- Improves studio efficiency and communication
|
Specifications |
|
|
|
Audio circuit type: |
Active with FET dim circuits |
|
|
Number of channels: |
Mono or Stereo operation |
|
|
Frequency response: |
20Hz - 20kHz ±0.5dB |
|
|
Dynamic range: |
106dB |
|
|
Gain: |
+45dB (EXT mic input) |
|
|
Total harmonic distortion: |
<0.007% |
|
|
Intermodulation Distortion: |
<0.005% |
|
|
Input Impedance: |
20 kΩ (Program), 2 kΩ (EXT mic) |
|
|
Output Impedance: |
225 Ω (1/4" output) |
|
|
Noise Floor: |
-86dBu |
|
|
Maximum Input: |
+14dBu (Program) |
|
|
Features |
||
|
Extras: |
Dim Attenuation: -6dB to -80dB |
|
|
General |
||
|
Conditions: |
For use in dry locations only between 5°C and 40°C |
|
|
