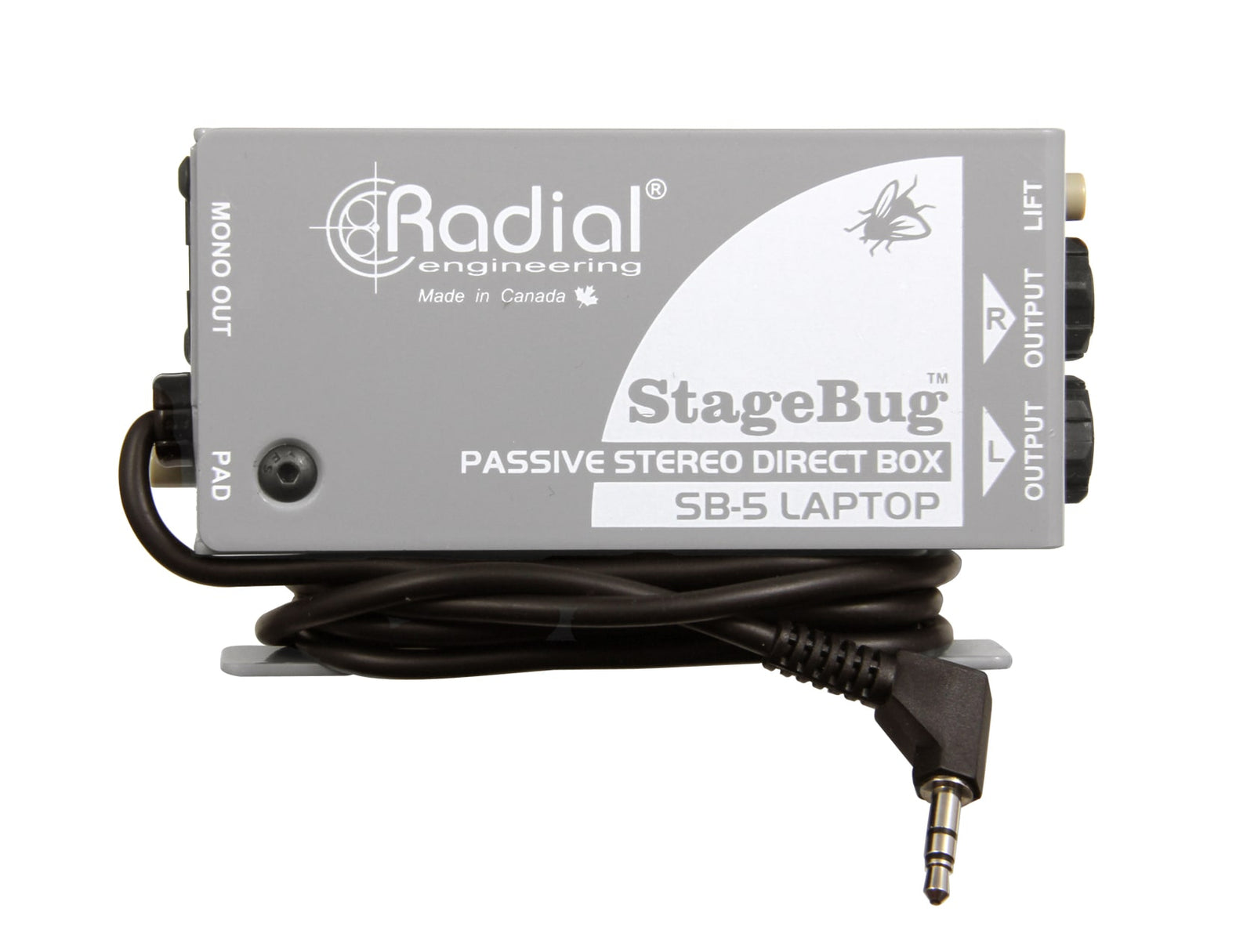

The Radial StageBug SB-5 is a compact & portable stereo direct box designed to accommodate laptop computers, tablets, and other consumer audio products when amplifying the signal through a PA system.
The easy way to connect to the PA

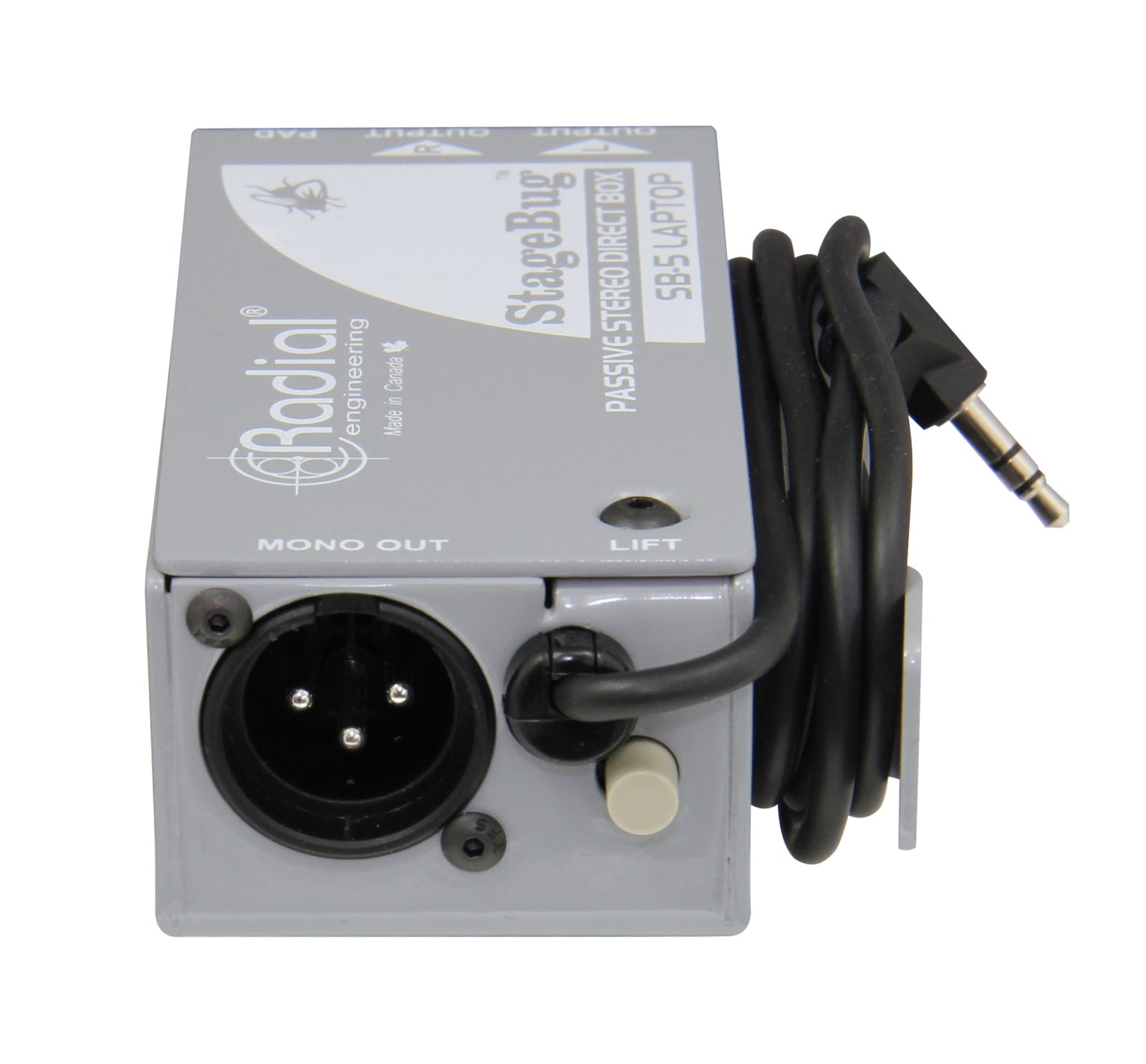

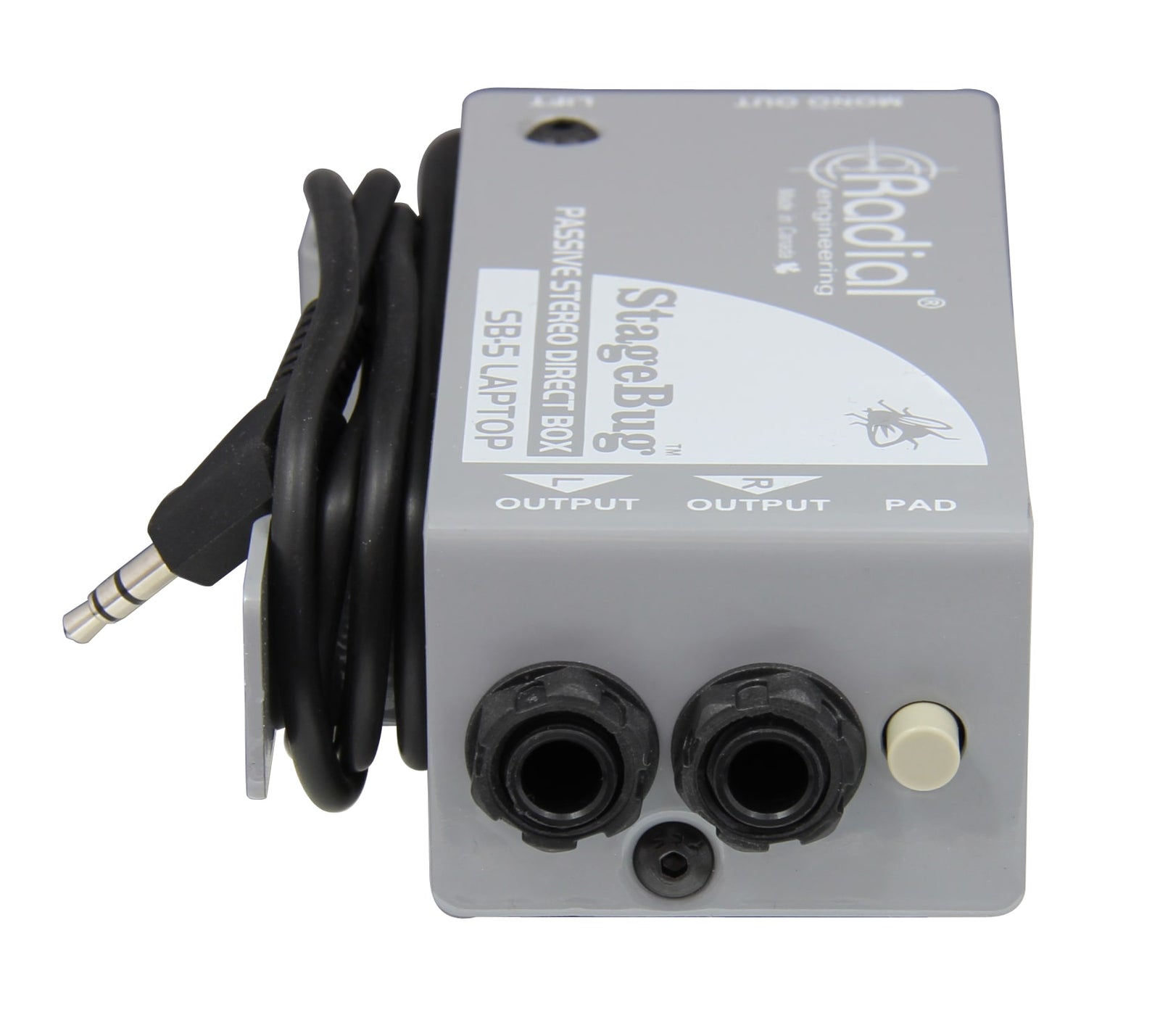

The StageBug SB-5 provides an easy to use professional interface for connecting any mobile playback device to a mixer or PA system, with a built-in cable and 3.5mm stereo plug to connect directly to your laptop, smartphone, or tablet. Inside, a pair of custom wound transformers isolate the signals to prevent hum and buzz, and balance the audio to feed long cable runs without noise. Left and right 1/4" TRS outputs are provided for stereo operation, or a mono XLR output can be used to save channels on the PA system. The SB-5 works without any power required, and features additional ground lift and pad switches to eliminate ground loop noise and prevent distortion from high output audio sources.
StageBug SB-5 Applications
Using the SB-5 with a computer

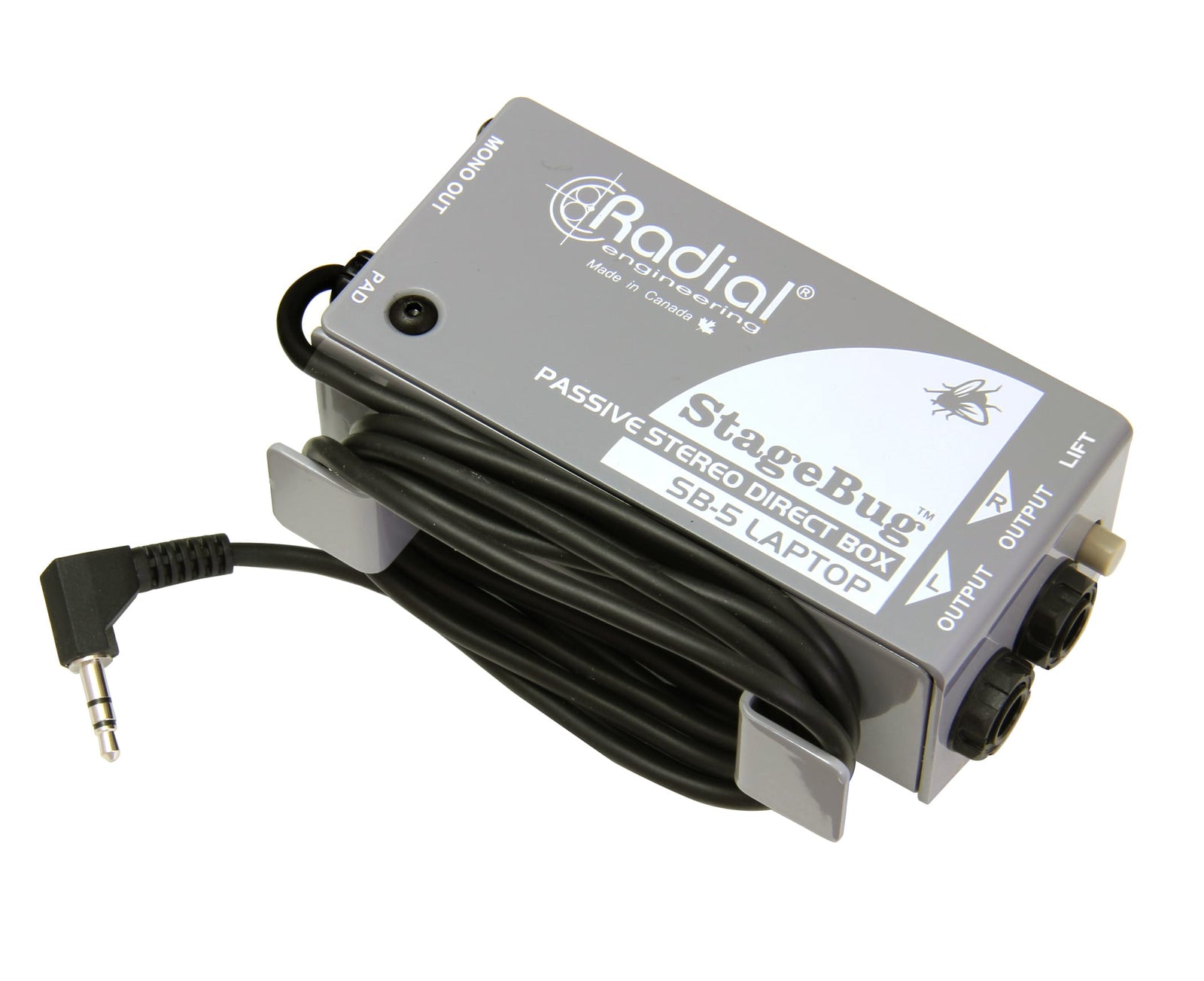

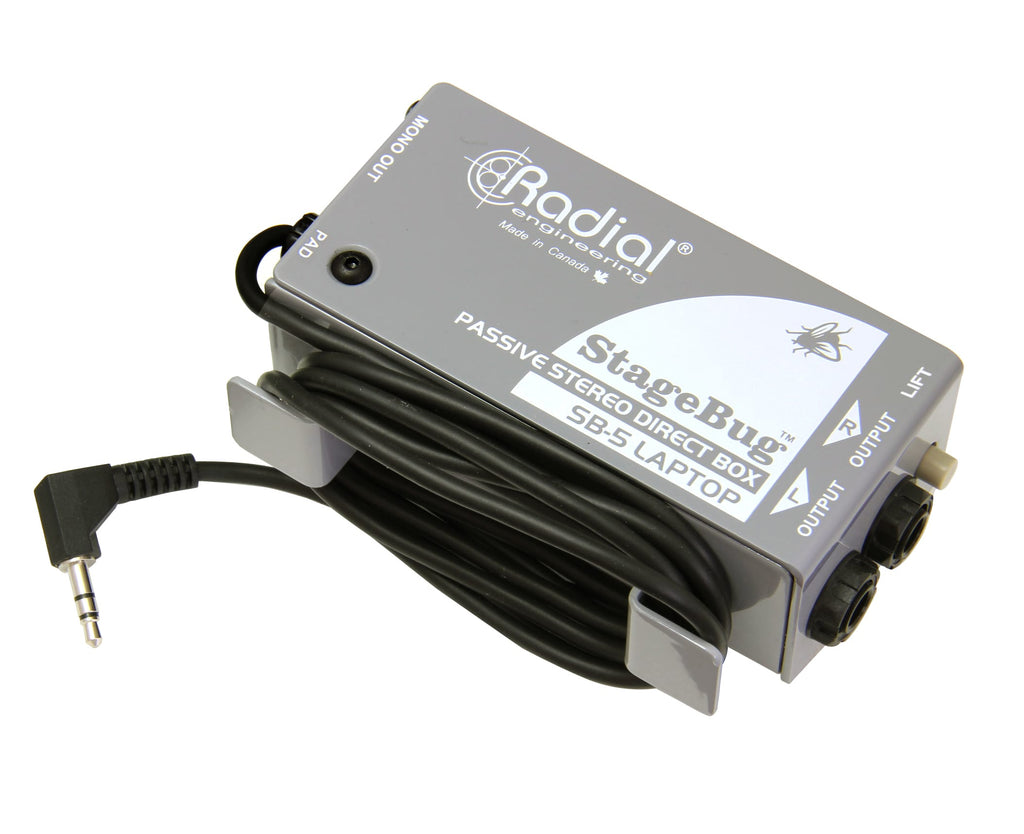

Connect the headphone output from your computer directly into the StageBug SB-5 for quiet performance each time. The sidewinder cable cleat makes storage easy and you never lose the cable!
Using the SB-5 with a tablet
The SB-5 is your perfect direct box when extra portability is needed. Connect your iPad or Galaxy tablet to the SB-5 via the integral 3.5mm cable connection and sum to mono via the XLR output.
Using the SB-5 with an iPhone
Need to play backing tracks in stereo? The Stage Bug SB-5 makes it easy to connect from your portable music player. Connect from the headphone out to the SB-5 and send a balanced stereo signal to the PA.
Features:
- Stereo direct box for laptops, smartphones, and tablets
- Cable with 3.5mm stereo plug to connect to mobile devices
- Transformer isolation eliminates hum and buzz
- Plug & play easy to use, no power required
- Compact design fits in your laptop bag
|
Specifications |
|
|
|
Audio circuit type: |
Passive, transformer based |
|
|
Number of channels: |
Two channels |
|
|
Frequency response: |
20Hz ~ 20KHz (± 1dB) |
|
|
Dynamic range: |
100dB |
|
|
Total harmonic distortion: |
0.01% @ 1kHz |
|
|
Phase Deviation: |
2° @ 100Hz; 5° @ 50Hz |
|
|
Input Impedance: |
40k Ohms, unbalanced |
|
|
Output Impedance: |
2.8k Ohms, balanced |
|
|
Maximum Input: |
+20dB |
|
|
Features |
||
|
Input pad, Mono Sum, Ground lift |
||
|
Input Connectors: |
3.5mm |
|
|
Output Connectors: |
1/4" TRS, XLR |
|
|
General |
||
|
Construction: |
14 gauge steel chassis & outer shell |
|
|
Size (L x W x D): |
4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm) |
|
|
Weight: |
0.55 lbs (250 grams) |
|
|
Shipping size (L x W x D): |
8" x 5" x 3" (203mm x 127mm x 76mm) |
|
|
Shipping weight: |
0.8 lbs (365 grams) |
|
|
Power: |
Passive, no power required |
|
|
Conditions: |
For use in dry locations only between 5°C and 40°C |
|
|
Warranty: |
||
