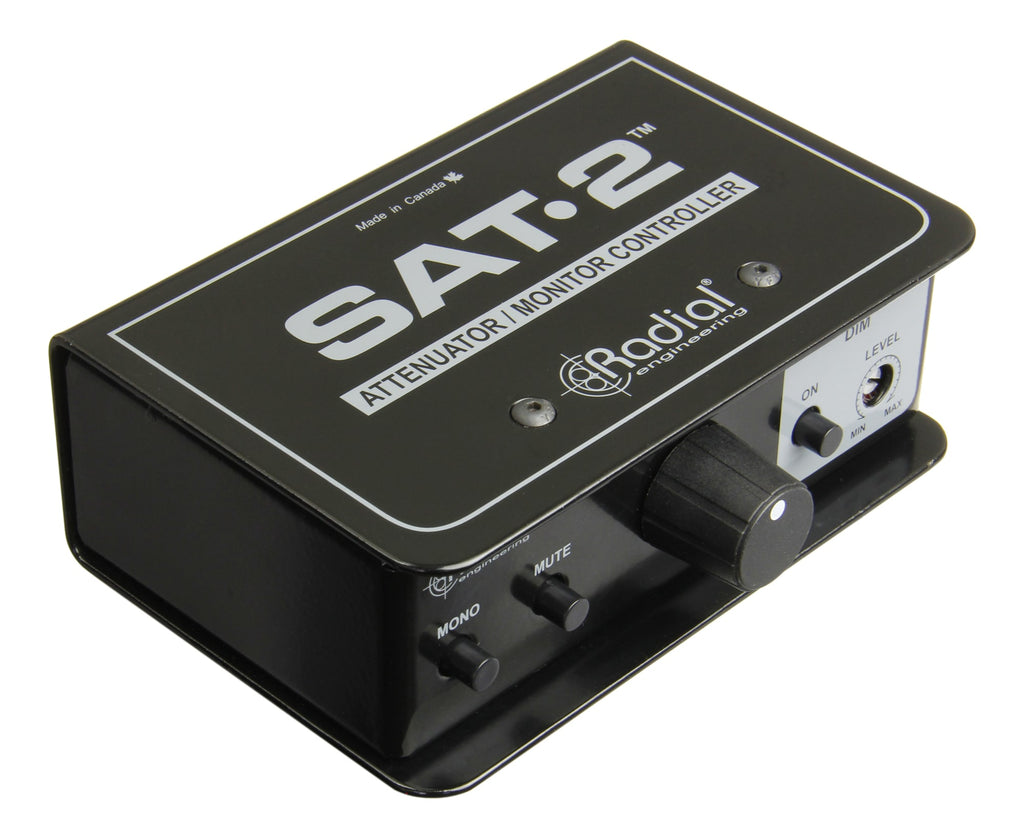

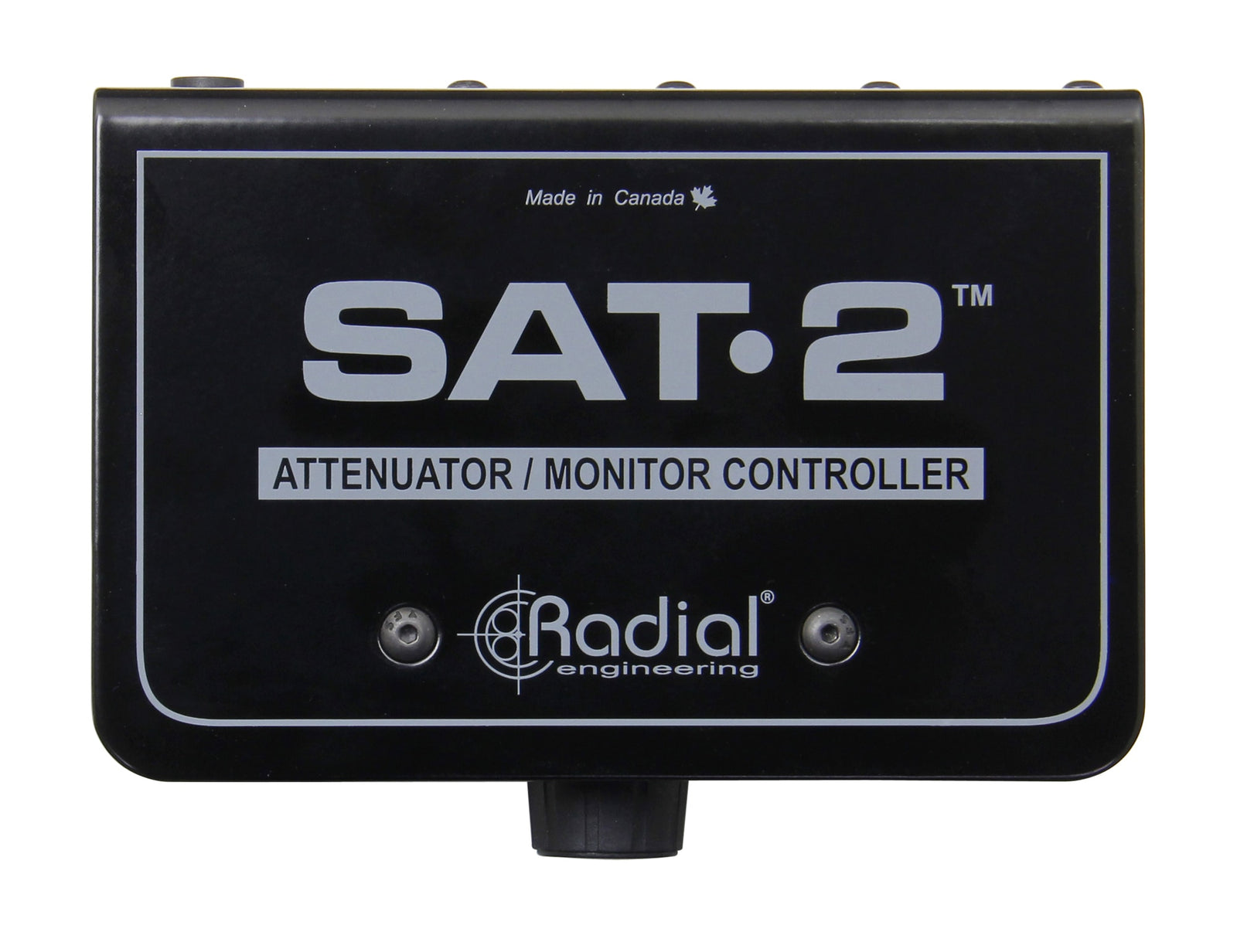

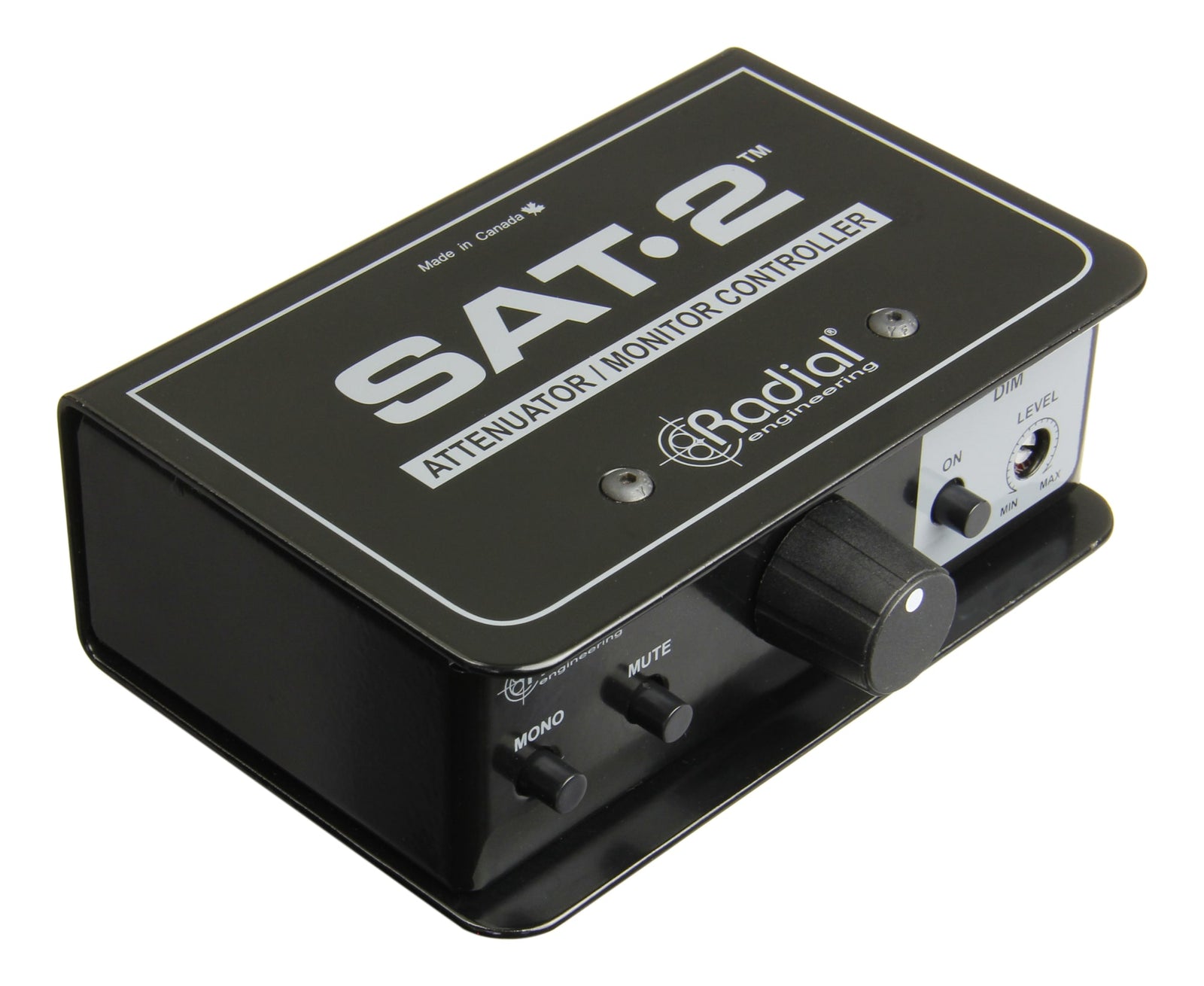

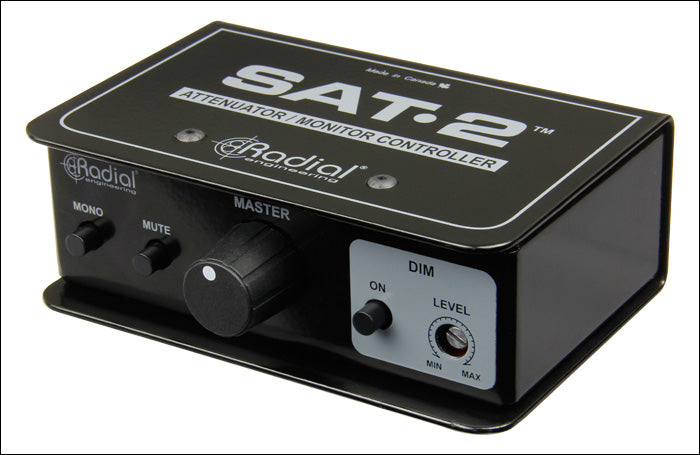

Radial Engineering SAT-2 Monitor Controller / Attenuator

Radial EngineeringSKU: R800103500

Price:
Sale price €209.00

The SAT-2 is a passive stereo audio device that provides you with attenuation and control over your signal level wherever you may need it, whether it be at the output of a pair of high-gain mic preamps, or before your studio speakers as a compact desktop monitor controller. Exceptional build quality and high-grade components ensure noiseless operation, without any degradation or coloration of the source material.

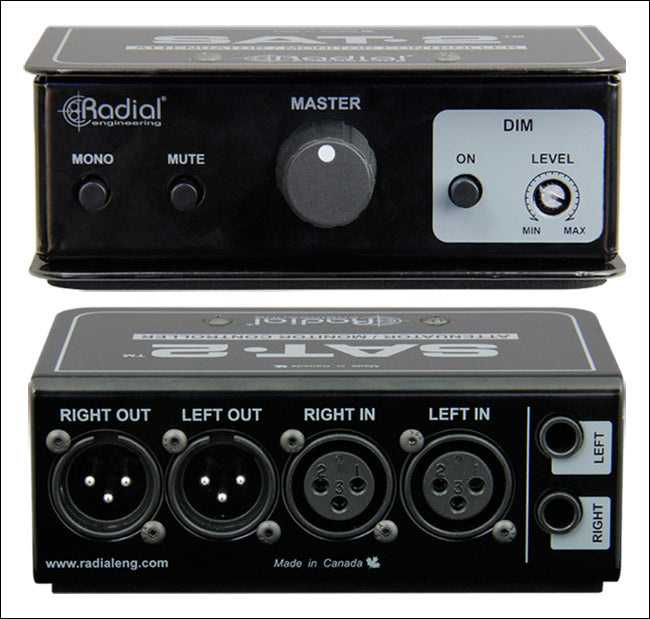

When using the SAT-2 as a monitor controller, simply connect it in between your playback device or recording interface and a pair of powered speakers. The SAT-2 is equally useful in a recording studio or with a simple PA rig to control the overall output levels. Both XLR and ¼" TRS options are provided for the inputs of the SAT-2, eliminating the need for adapter cables. XLR outputs connect to your speakers, while the trim knob provides an easy-access master volume control. Mute and mono switches allow you to silence the outputs or sum left and right together to check mixes for mono phase compatibility. A handy dim switch with adjustable level control allows you to temporarily lower the output volume without losing the setting on the main trim control.

The SAT-2 can also be used to attenuate signals before sending them to your audio interface, so you can drive your mic preamps hard for coloration without clipping the inputs of the digital audio converter. This allows you to have your preamps turned up to their sweet spot without having to engage the input pad or risk overloading when recording. A high quality 4-pole rotary knob ensures consistent L-R tracking over the entire range of the trim pot, fully maintaining the left-right balance of stereo sources.

Compact but extremely rugged, the SAT-2 is housed in a 14-gauge solid steel enclosure, with a book-end design that protects the connectors and switches from damage, and I-beam construction that prevents stress on the circuit board. The SAT-2 provides clean and transparent operation with a number of useful features and applications, making it a simple yet powerful device for your audio toolbox.

  • Level and dim control for a pair of powered speakers
  • First attenuates hot signal levels to prevent clipping
  • Passive, no power needed
  • Transparent operation without coloration

SAT-2™ - Applications

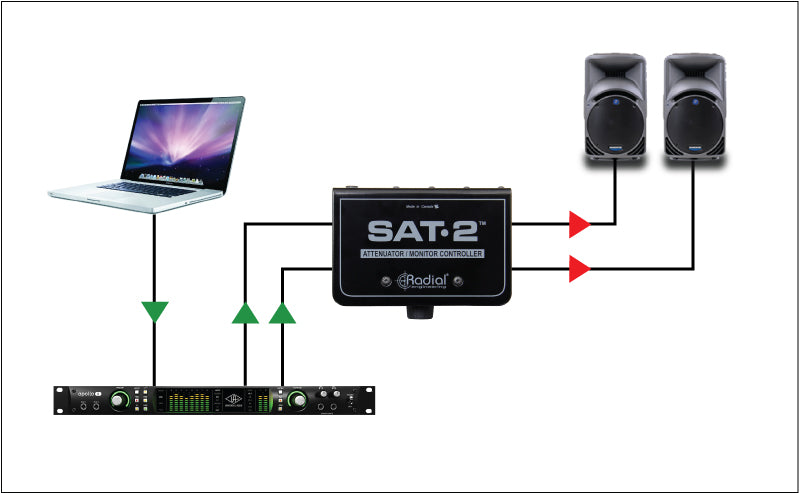

Use the SAT-2 as a monitor controller

Connect between your audio interface and powered speakers, utilizing the level control as well as the dim and mute switches.

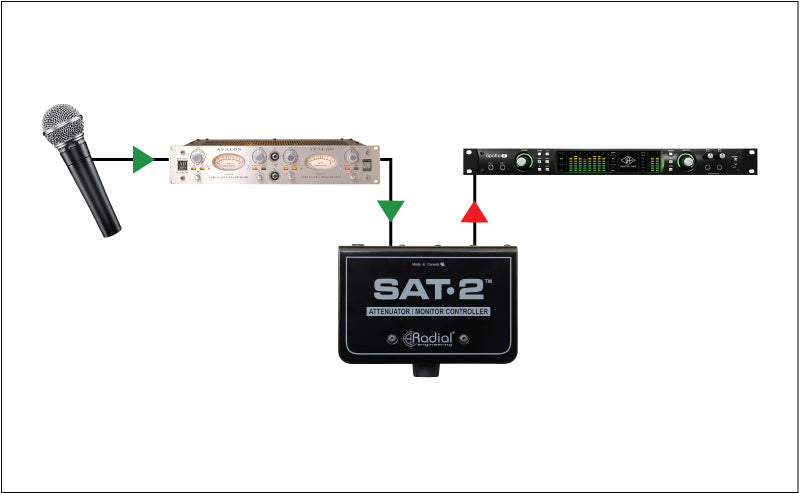

Attenuate the output of a hot mic preamp or compressor

Use the trim control on the SAT-2 to avoid overloading or clipping the inputs of your recording device, while retaining the character of your preamps cranked up to their sweet spot.

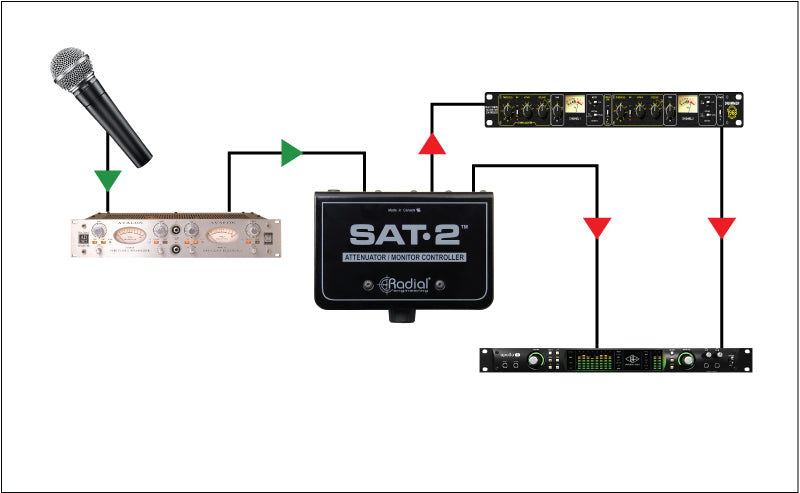

Use the SAT-2 for parallel effects processing

Take the output of a mic preamp into the SAT-2, engage the mono switch, and connect one of the SAT-2 outputs directly to your recording interface, and the other to an effects device and then to a second recording track. You can then adjust the blend between the two tracks in your DAW.

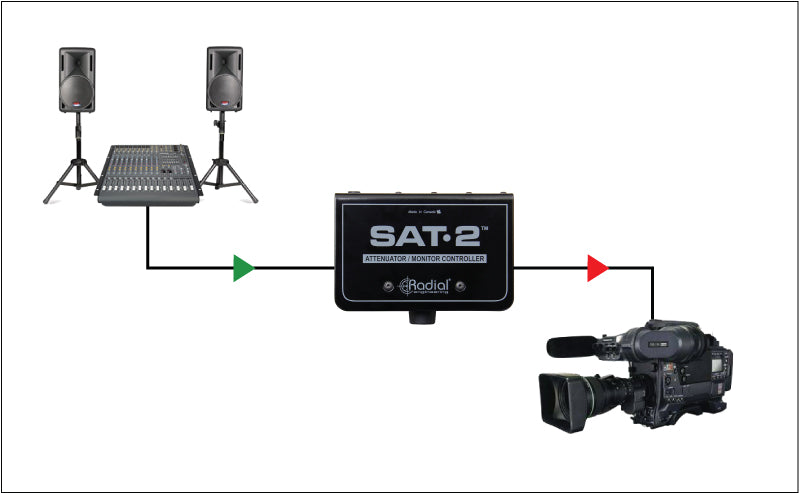

Attenuate stereo outputs for live or broadcast use

Use the SAT-2 to trim down the output of an aux on a mixing console and feed production audio to video cameras or field recorders.

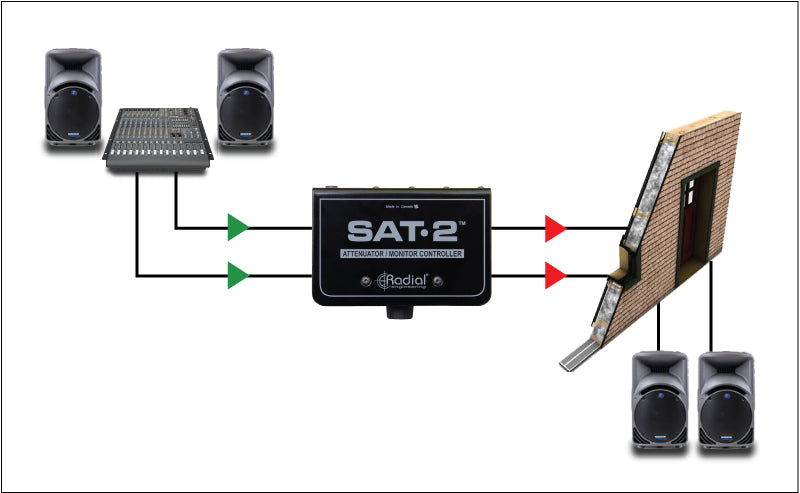

Add a level control to a multi-room PA system

Interface between the aux output of a PA mixer and powered speakers in another room in the venue, providing local volume control for each zone.

Specifications



Audio Circuit Type:

Passive audio signal path

Number of Channels:

2

Frequency Response:

20Hz to 20kHz

Noise Floor:

-115dBu

Dynamic Range:

>141dB

Maximum Input:

>+ 26dBu

Gain:

0dB

Intermodulation Distortion:

>0.001% @ 0dBu

Total Harmonic Distortion:

>0.0005% @ 0dBu

Common-Mode Rejection Ratio:

>80dB

Phase Deviation:

0° @ 20Hz, 0° @ 1kHz, +2° @10kHz

Input Impedance:

8 kΩ

Output Impedance:

1.8 kΩ

Insertion Loss:

-0.73dBu

Features



Input Connections:

¼" / XLR

Switches:

Mon, Mute, Dim w/ level control

Output Connector:

XLR

General



Power:

Passive, no power required

Construction:

14-gauge steel chassis and outer shell

Finish:

Durable powder coat

Size (L x W x H):

5" x 3.25" x 2" (12.7 x 8.3 x 5cm)

Weight:

1.5lb (0.68kg)

Shipping Size (L x W x H):

6.4" x 4.25" x 3" (16.3 x 10.8 x 7.6cm)

Shipping Weight:

1.8lb (0.8kg)

Conditions:

For use in dry conditions between 5°C and 40°C

Warranty:

Radial 3-year, transferable
