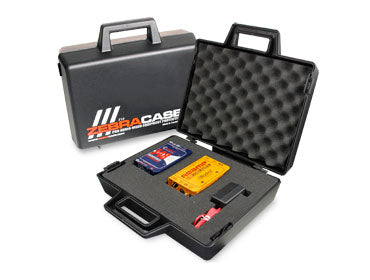

The Radial Reamp Kit includes everything you need to Reamp in a single case. Start by recording with the industry standard Radial J48 direct box. This active DI is ideal for Reamping as it will not load down the pickups and will deliver the true sound of the instrument without distortion or artifact.
Then Reamp to your hearts content using the Radial X-Amp Reamper. This active Reamper has two buffered outputs for twice the fun! Run two amps at the same time, add pedals… try Reamping bass, drums and keys. Once you get started you will wonder how you ever recorded without it.
J48
|
Specifications |
|
|
Audio circuit type: |
Proprietary analog circuit with low-noise op-amp |
|
Frequency response: |
20Hz ~ 20kHz |
|
Dynamic range: |
109dB |
|
Noise floor: |
-99dB below 0dBu |
|
Equivalent input noise: |
-103dBu |
|
Maximum input: |
+10dBu |
|
Phase deviation: |
+10º at 20Hz | 0º at 1kHz | -1º at 20kHz |
|
Total harmonic distortion: |
0.002% @ -5dBu |
|
Inter-modulation distortion: |
0.003% @ -3dBu |
|
Input impedance: |
220kΩ - ¼" input |
|
Output impedance: |
200Ω - XLR output |
|
Features |
|
|
Merge function: |
IN and THRU jacks are summed to mono |
|
Input pad: |
-15dB |
|
Polarity: |
180º signal polarity reverse switch |
|
Low-cut filter: |
-3 dB @ 80Hz |
|
Ground lift: |
Disconnects pin-1 at XLR output |
|
XLR configuration: |
AES standard (pin-2 hot) |
|
General |
|
|
Power: |
48V phantom - proprietary digital switching |
|
Construction: |
14 gauge steel chassis and outer shell |
|
Finish: |
Durable powder coat |
|
Size: |
3.3" x 5.0" x 2" (84 x 127 x 48mm) |
|
Weight: |
1.55 lb (720 g) |
|
FCC approval: |
Complies with section 15 of the FCC Rules |
|
Conditions: |
For use in dry locations only between 5°C and 40°C |
|
Warranty: |
|
|
Specifications are subject to change without notice. |
|
X-Amp
|
Specifications |
|
|
Audio circuit type: |
100% discrete class-A |
|
Frequency response: |
20Hz ~ 15kHz (± 1.0dB) |
|
Signal to noise ratio: |
88dB below instrument level (-20dBu) |
|
Dynamic range: |
119dB |
|
Noise floor: |
OUT-1 -110dB; OUT-2 -108dBu |
|
Maximum input: |
+22dBu |
|
Total harmonic distortion: |
0.02% @ -15dBu |
|
Inter-modulation distortion: |
0.02% @ -20dBu |
|
Input impedance: |
600Ω |
|
Features |
|
|
XLR input: |
Balanced line-level, AES standard (pin-2 hot) |
|
Ground lift (input): |
Disconnects pin-1 at the XLR input |
|
Output level: |
Adjustable |
|
Output type: |
Out-1 direct, Out-2 isolated |
|
Polarity: |
180º polarity reverse on output-2 |
|
General |
|
|
Power: |
+15VDC/400mA adapter included |
|
Construction: |
14 gauge steel chassis & outer shell |
|
Finish: |
Durable powder coat |
|
Size: |
3.3" x 5.0" x 2" (84 x 127 x 48mm) |
|
Weight: |
1.55lb (720g) |
|
Shipping size: |
5" x 2.75" x 10.75" (127 x 70 x 273mm) |
|
Shipping weight: |
2.6lb (1.18kg) |
|
Conditions: |
For use in dry locations only between 5°C and 40°C |
|
Warranty: |
|
|
Specifications are subject to change without notice. |
|
