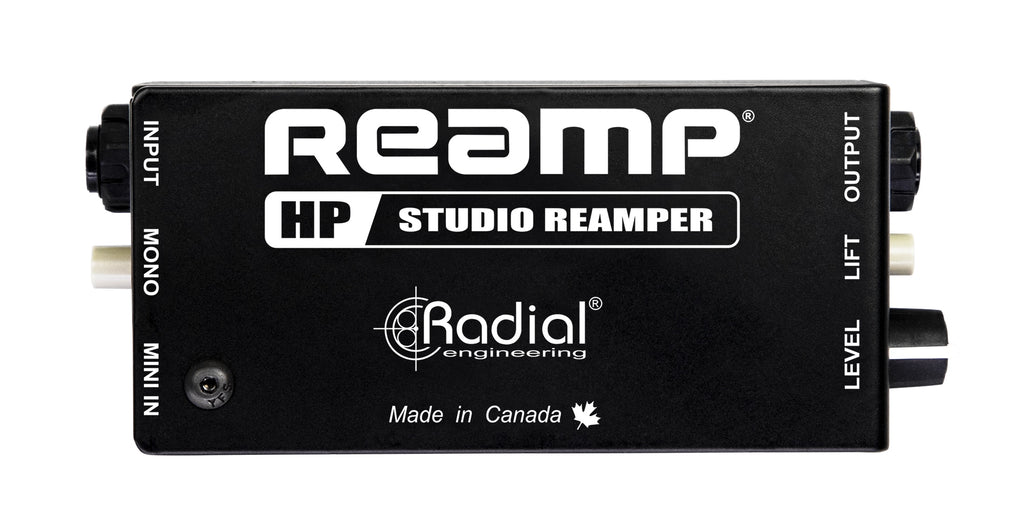

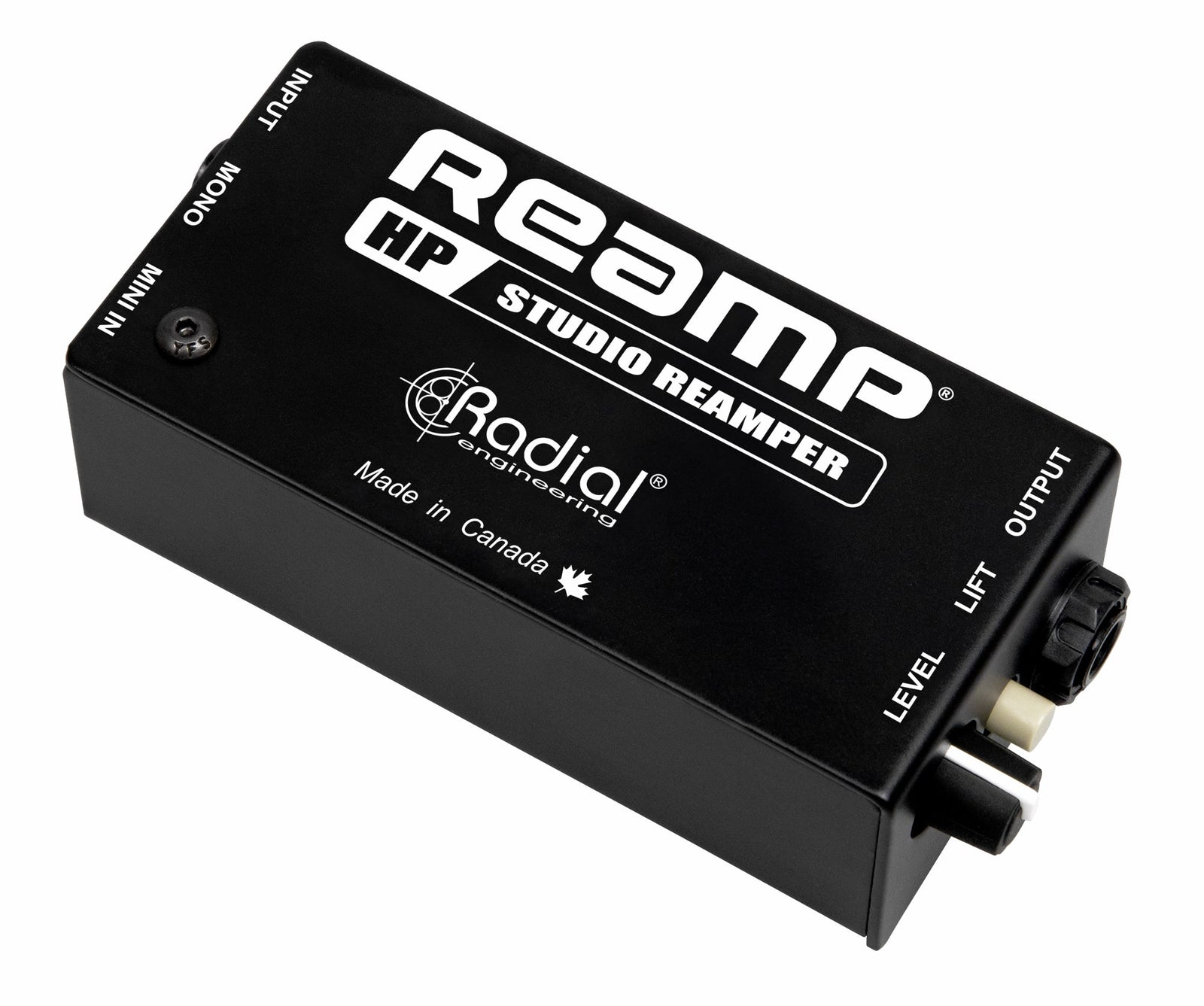

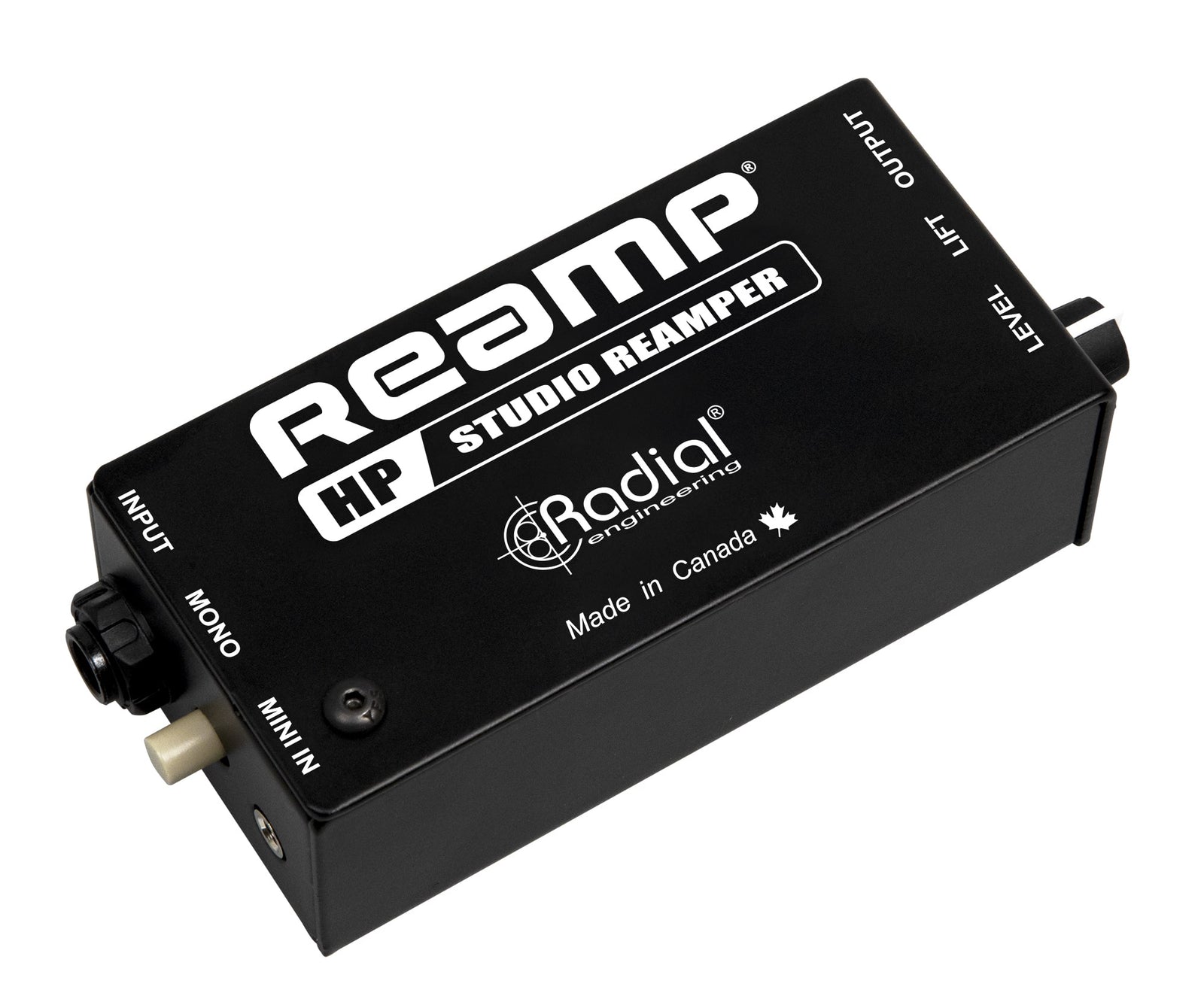

The Reamp® HP takes the signal from a headphone output jack on an audio interface or a mobile device and converts it to feed mono guitar amps and effects pedals for Reamping.
Reamping made easy
The Reamp® HP is designed to accept the signal from the headphone output jack on your interface, making it incredibly easy to connect on the fly without having to repatch cables or dig around behind your studio desk or equipment rack. Simply assign the track you want to Reamp® to the right channel of your headphone output and you're ready to feed guitar, bass, or even vocal tracks through your amplifier to record and experiment with new tones and settings. You can even assign stereo tracks to the Reamp® HP and sum them down using the dedicated mono switch on the device.
More flexibility = more creativity

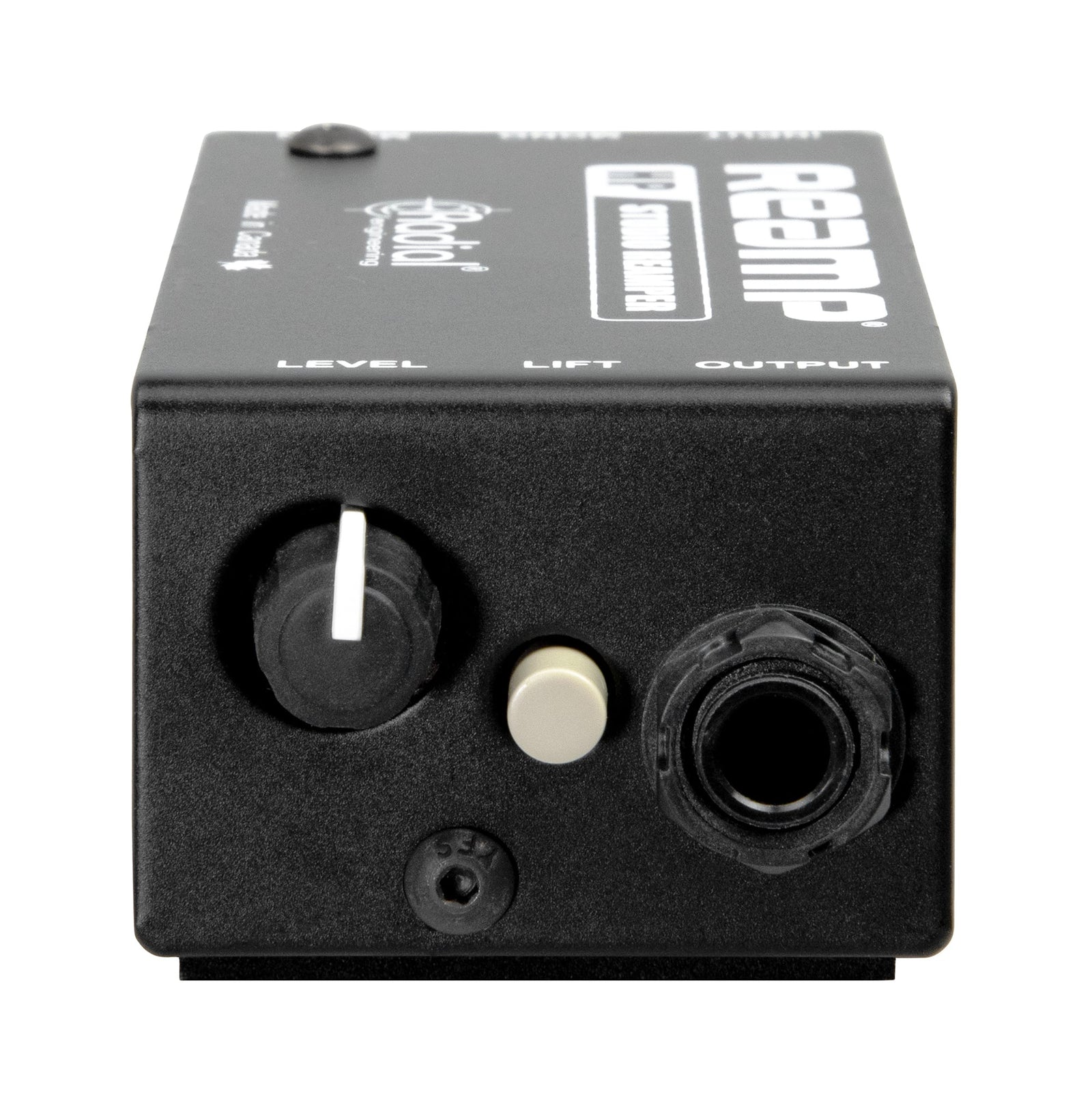

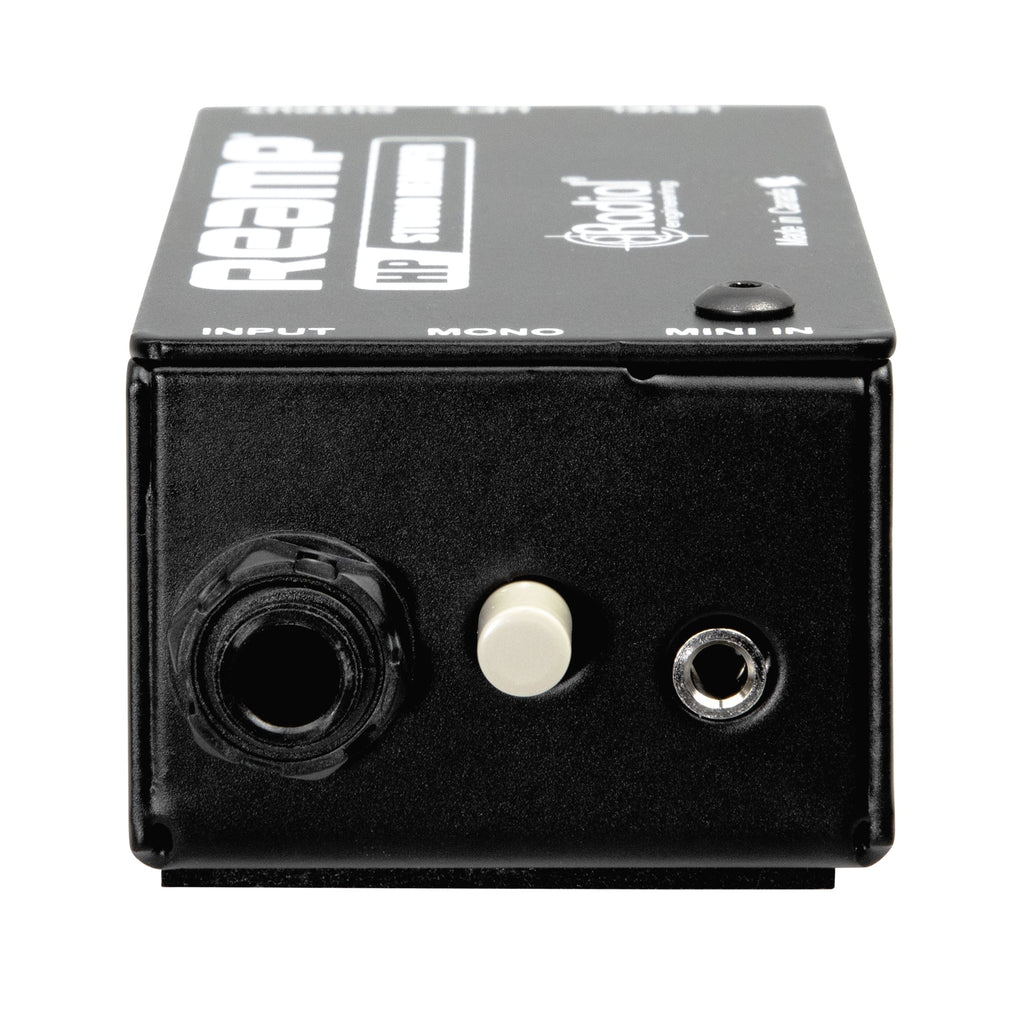

The Reamp® HP features both 1/4" and 3.5mm inputs, so you aren't limited to just Reamping tracks from your audio interface. Connect a smartphone or tablet to the Reamp® HP and create new sounds by combining a sound creation app with your favourite pedals and amps. The Reamp® HP is equipped with an isolation transformer and a ground lift switch to eliminate hum and buzz and help produce a clean recording, along with a level control for fine-tuning the output signal.
Reamp® HP Applications
Reamping from a headphone output
The Reamp® HP connects directly to the headphone jack on your audio interface, so you don’t have to re-plug or use up limited outputs. Connect the output of the Reamp® HP to your pedals and an amplifier and record the results back into your audio software.
Reamping with a mobile device
The Reamp® HP features a 3.5mm mini input jack that can accept signals from smartphones and tablets, so you can use your favourite sound creation app to feed your pedals and amplifiers. Create a unique performance on stage or put a mic on the amp and record the results in the studio.
Features:
- Play prerecorded tracks through amps and pedals
- Easily Reamp® from any interface or playback device
- 1/4″ and 3.5mm inputs connect to a headphone output jack
- Transformer isolated for low-noise recordings
- Explore new creative options and improve your mixes
|
Specifications |
|
|
|
Audio circuit type: |
Passive, transformer isolated |
|
|
Frequency response: |
20Hz ~ 20KHz (+/- 0.5dB) |
|
|
Dynamic range: |
>96dB |
|
|
Total harmonic distortion: |
0.0015% @1kHz |
|
|
Input Impedance: |
11.8kΩ |
|
|
Output Impedance: |
1.5kΩ |
|
|
Equivalent Input Noise: |
-105dBu |
|
|
Noise: |
-125dBu |
|
|
Maximum Input: |
>+20dBu |
|
|
Features |
||
|
Mono Sum, Ground lift, Level Control |
||
|
Input Connectors: |
¼" TRS unbalanced stereo, 3.5mm TRS unbalanced stereo |
|
|
Output Connectors: |
¼" TS |
|
|
General |
||
|
Construction: |
16 gauge steel chassis and outer shell |
|
|
Size (L x W x D): |
4.6" x 1.50" x 1.89" (117mm x 48mm x 38mm) |
|
|
Weight: |
0.58 lbs (256g) |
|
|
Power: |
Passive, no power required |
|
|
Conditions: |
For use in dry locations only between 5°C and 40°C |
|
|
Warranty: |
||
