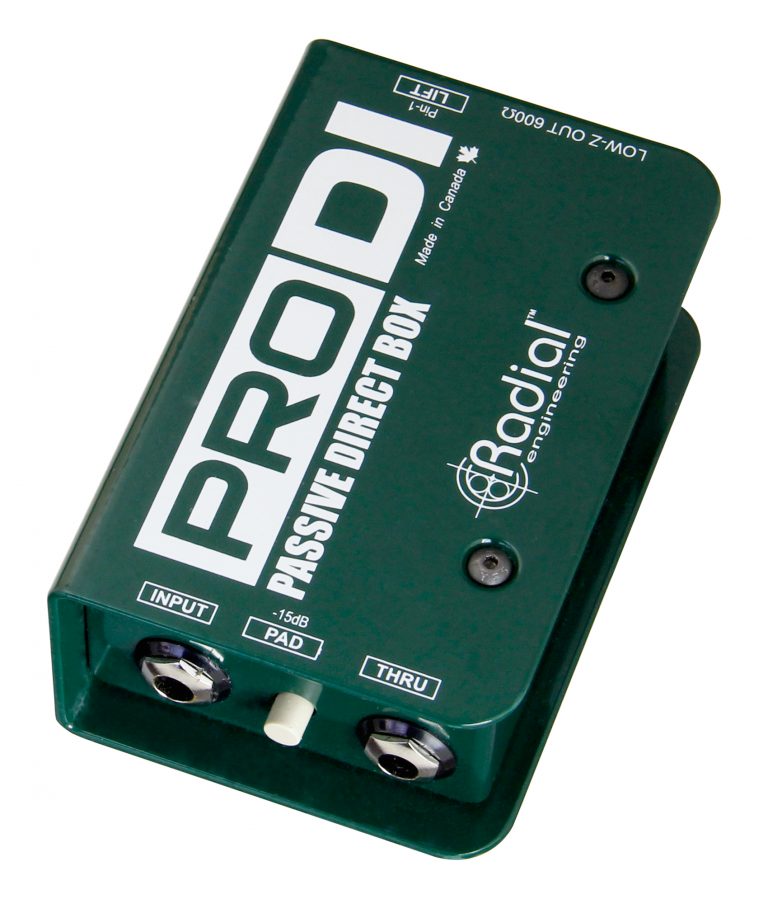

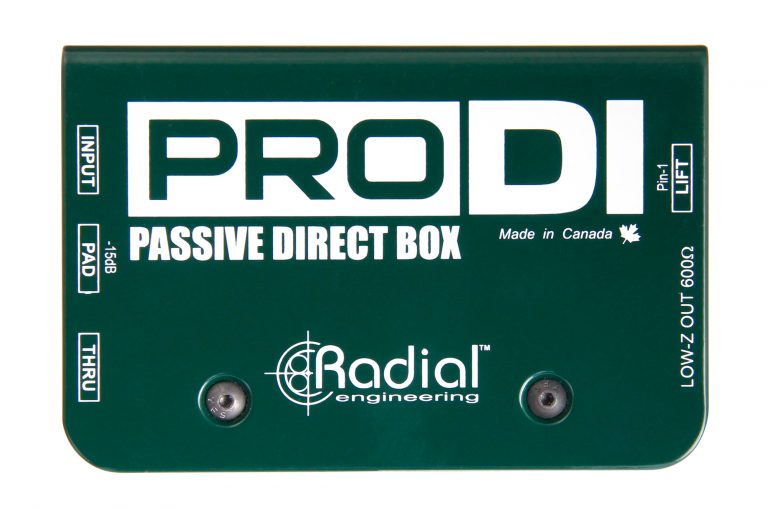

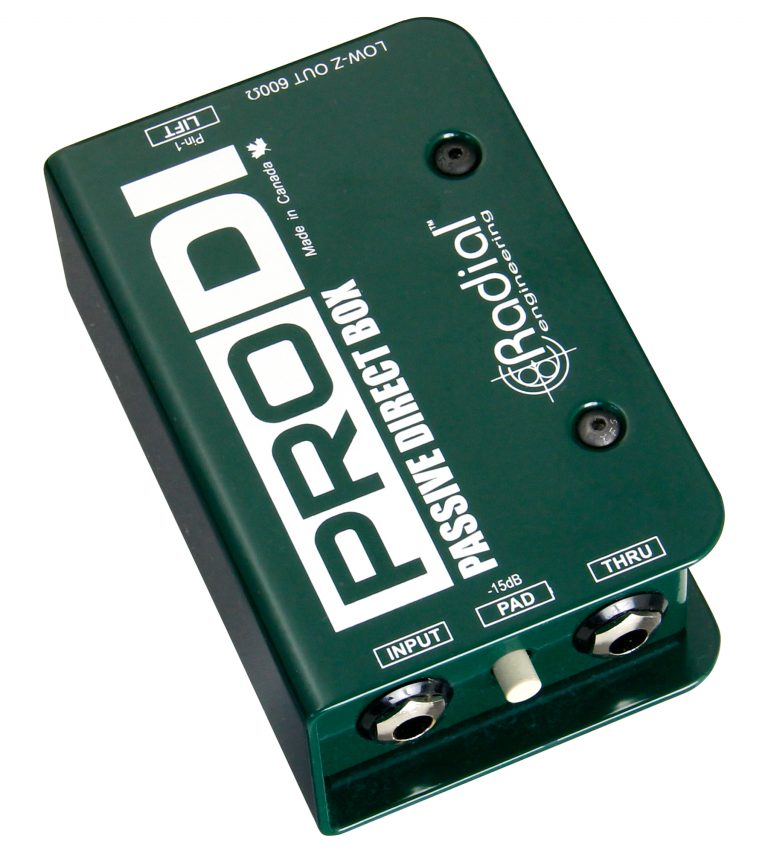

Radial Engineering ProDI Passive DI Box

Radial EngineeringSKU: R800 1100 00

Price:
Sale price €149.00

The ProDI is a passive direct box designed for use on stage or in home recording studios, with the ability to handle high output instruments without distortion, and a transformer-isolated output to eliminate noise from ground loops.

World class DI

The heart of the ProDI is a custom wound Radial transformer. It features an exceptionally high 140kΩ input impedance to reduce loading while enabling the ProDI to handle extreme signal levels at all frequencies without distortion. This is further improved upon with an internal MuMETAL® shield to protect against electromagnetic fields that can cause unshielded transformers to distort.

Features:

  • Compact passive direct box for stage and studio
  • Able to handle huge transients without distortion
  • Transformer isolation eliminates noisy ground loops
  • Plug and play easy to use feature set – on stage or in the studio

ProDI Applications

ProDI with electric bass

The ProDI works great for high output devices like active bass guitars. It's able to handle the huge signal levels from active pickups without distortion and the transformer isolation prevents ground loop hum. The ProDI sends the pure sound of the bass to the PA and to the player's amp.

ProDI with acoustic guitar

Acoustic guitars can sometimes have sharp sounding active preamps. The ProDI naturally smoothes out the transients for a warmer tone. And because the ProDI is able to handle loud signals from active pickups, it will not distort. This makes it a great direct box for acoustic guitars.

ProDI with a keyboard

Today's digital keyboards are not only very dynamic, they also have a tremendous range from low to high notes. The ProDI is able to withstand excessive signal levels at all frequencies without introducing distortion or phase shift, so all your patches sound great.

Specifications



Audio circuit type:

Passive, transformer based

Transformer:

Eclipse ET-DB2, 12:1 ratio

Number of channels:

Single channel (mono)

Frequency response:

20Hz ~ 18.5KHz (± 0.2dB)

Dynamic range:

128dB

Total harmonic distortion:

0.01% from 20Hz~20kHz @-10dB

Phase Deviation:

1° @ 100Hz; 8° @ 20Hz

Input Impedance:

140k Ohms, unbalanced

Output Impedance:

150 Ohms, balanced

Maximum Input:

+18dB @ 20Hz

Features

Input pad, Ground lift

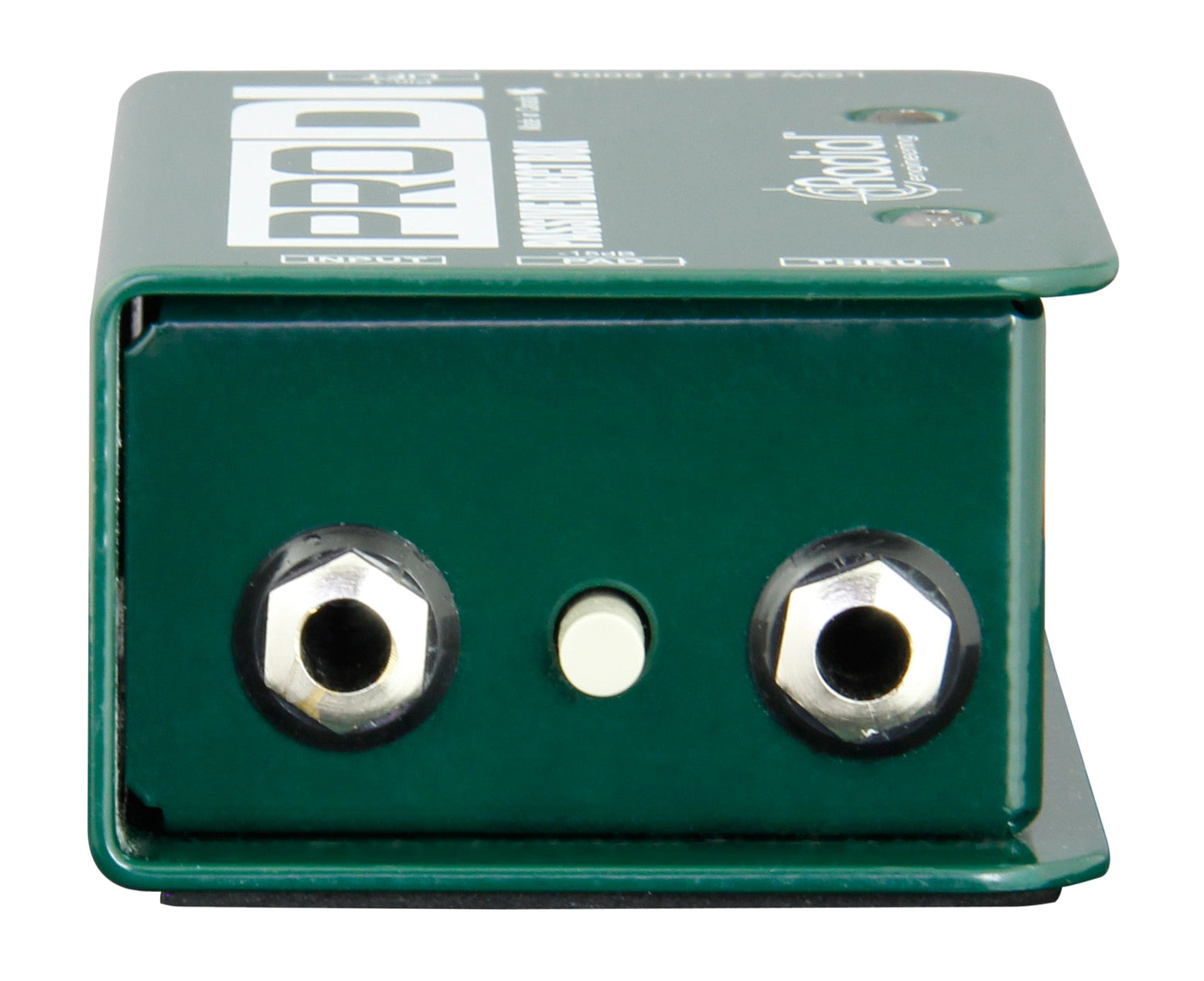

Input Connectors:

1/4" in & thru

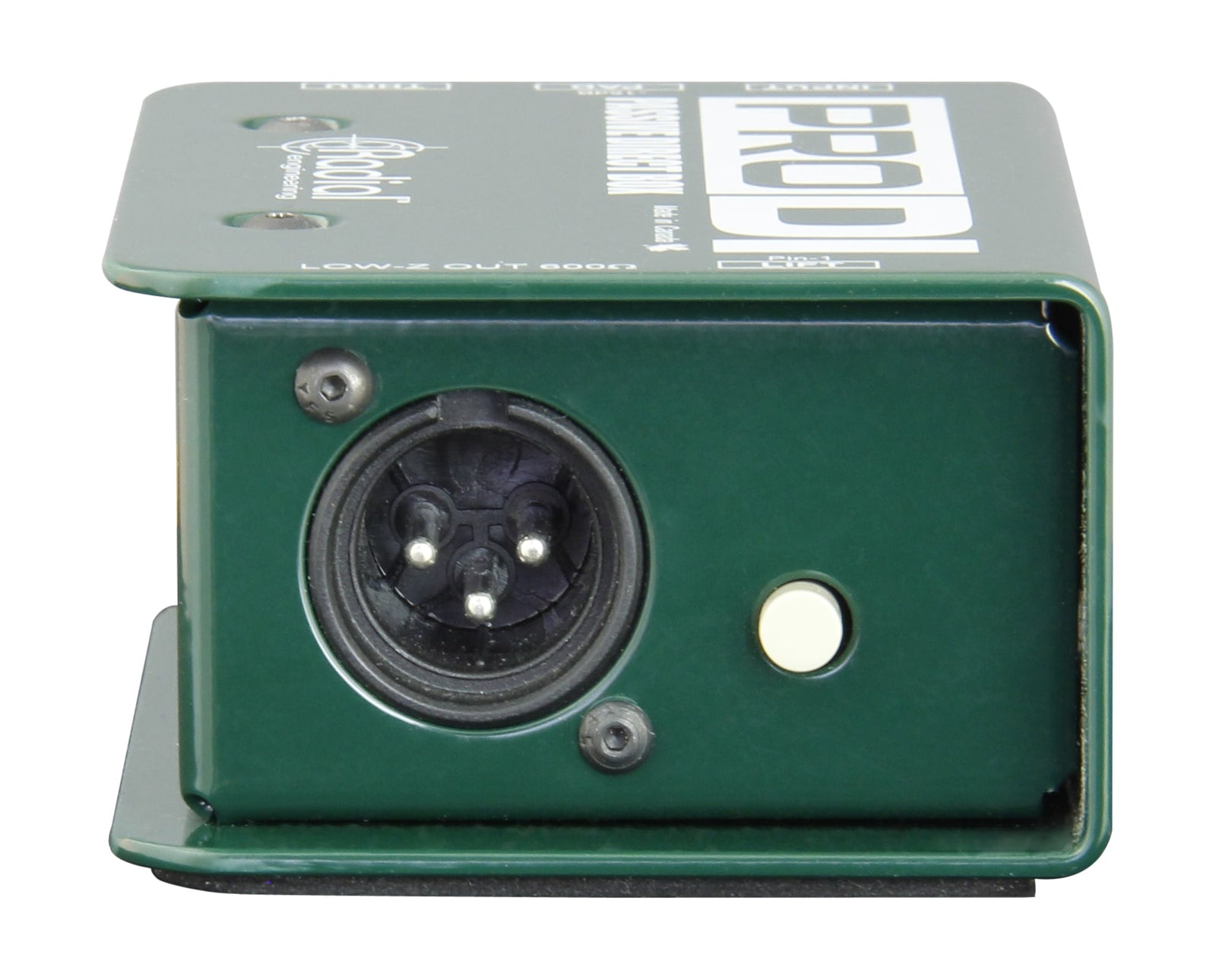

Output Connectors:

XLR-M out

General

Construction:

14 gauge steel chassis & outer shell

Size (L x W x D):

4.25” x 2.75” x 1.75" (108 x 70 x 44mm)

Weight:

1.2lb (0.54kg)

Shipping size (L x W x D):

6.5" x 4" x 3" (165 x 76 x 102mm)

Shipping weight:

1.35lb (0.61kg)

Power:

Passive, no power required

Conditions:

For use in dry locations only between 5°C and 40°C

Warranty:

Radial 3-year, transferable
