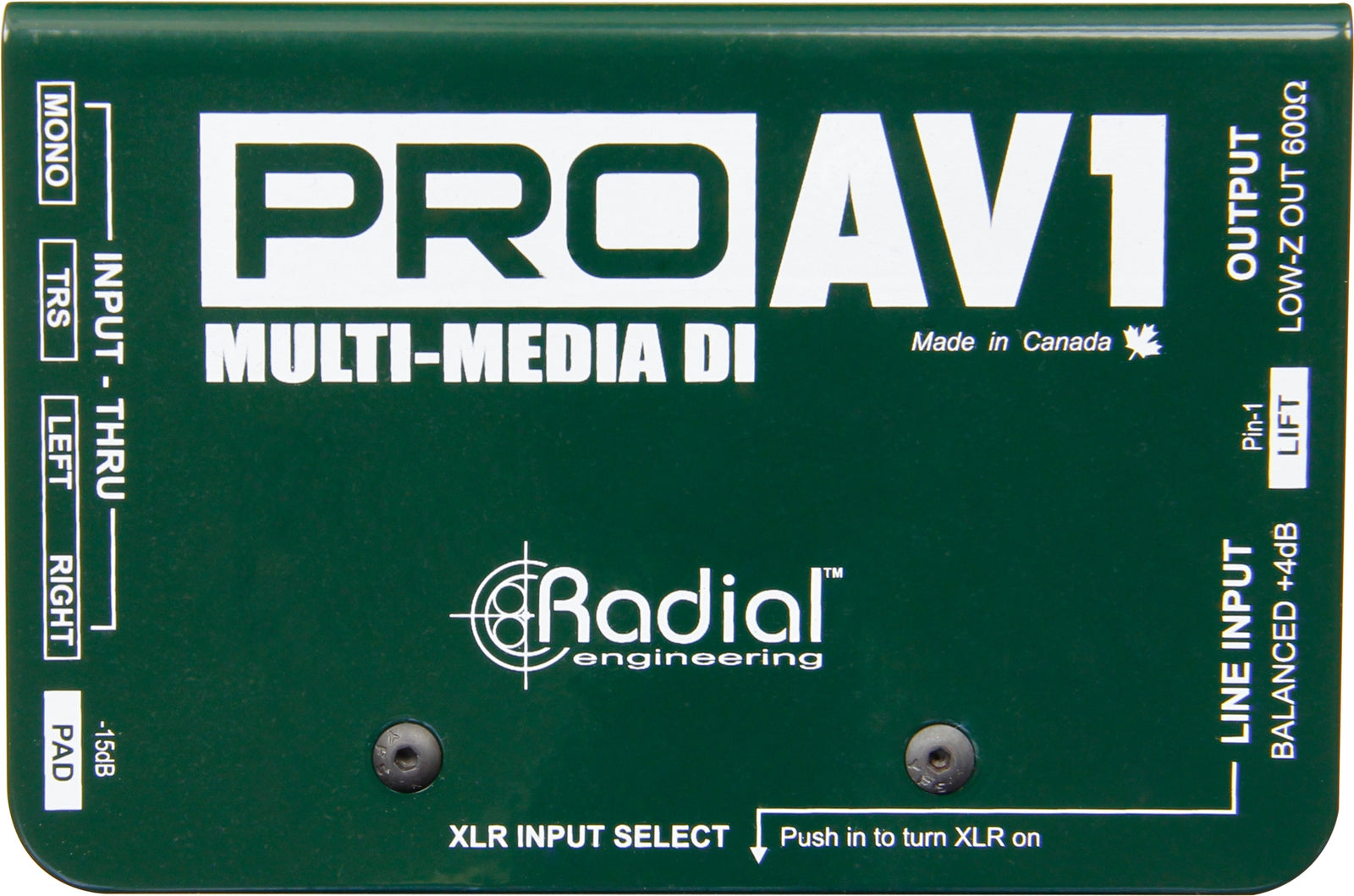

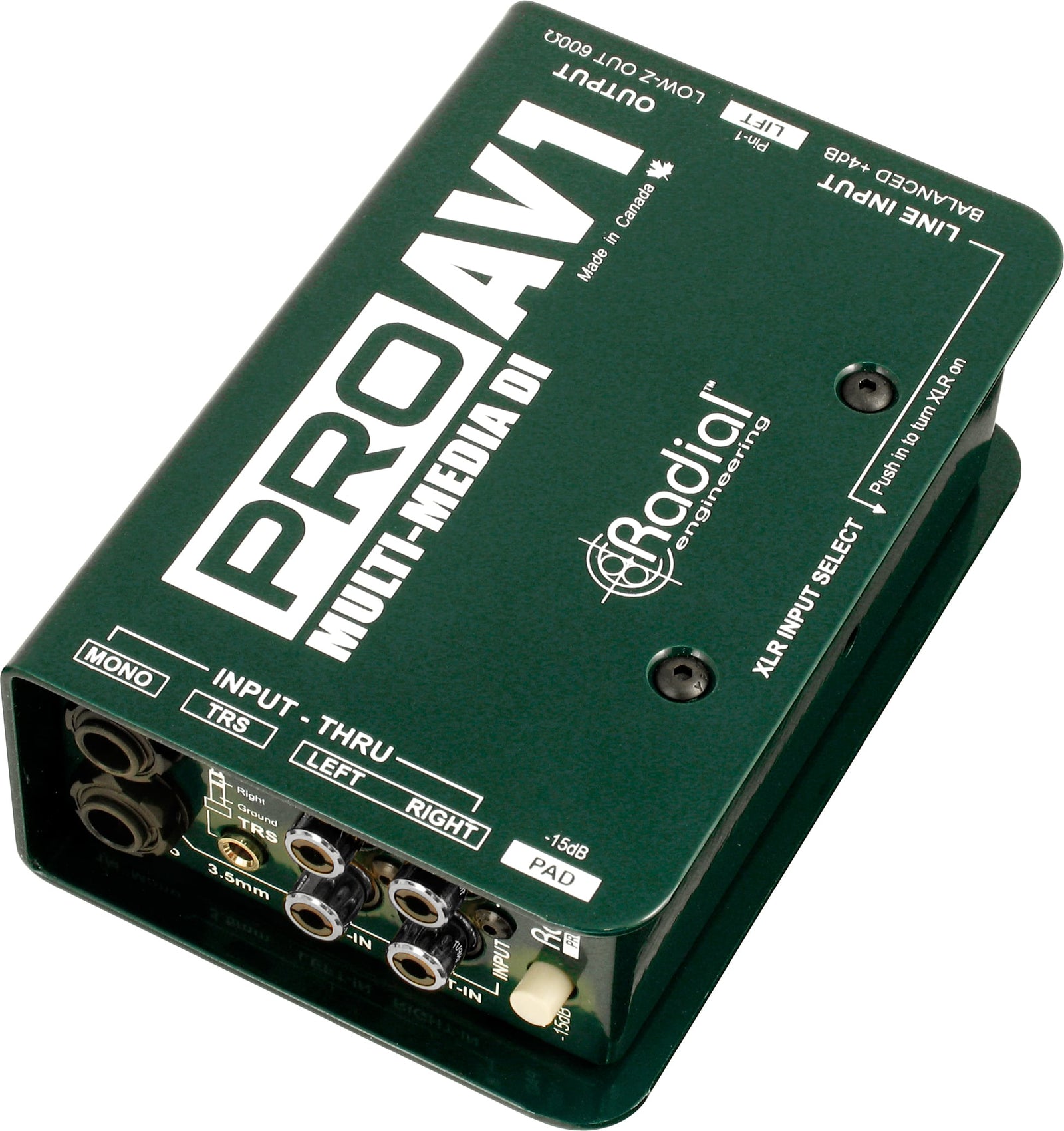

Radial Engineering ProAV1 Passive Multimedia Direct Box

Radial EngineeringSKU: R800 1112 00

Price:
Sale price €169.00

The ProAV1 is a passive direct box with multiple input connector types and a stereo-to-mono merge function designed specifically for AV integrators to reduce channel requirements.

A necessity for your audio toolkit

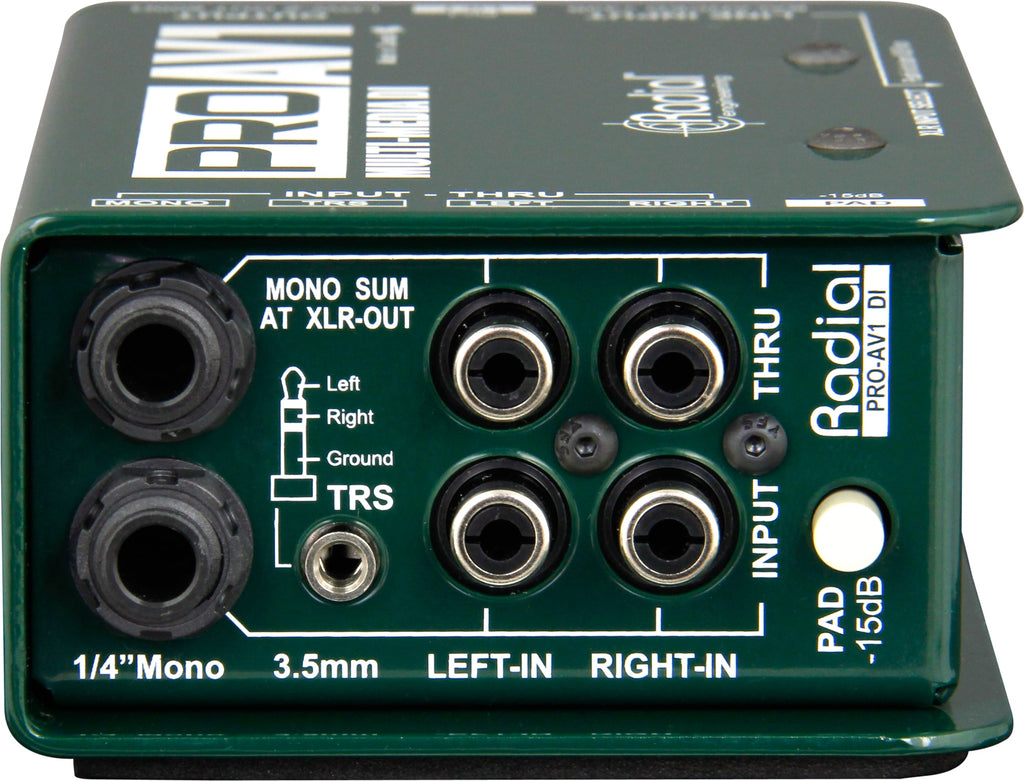

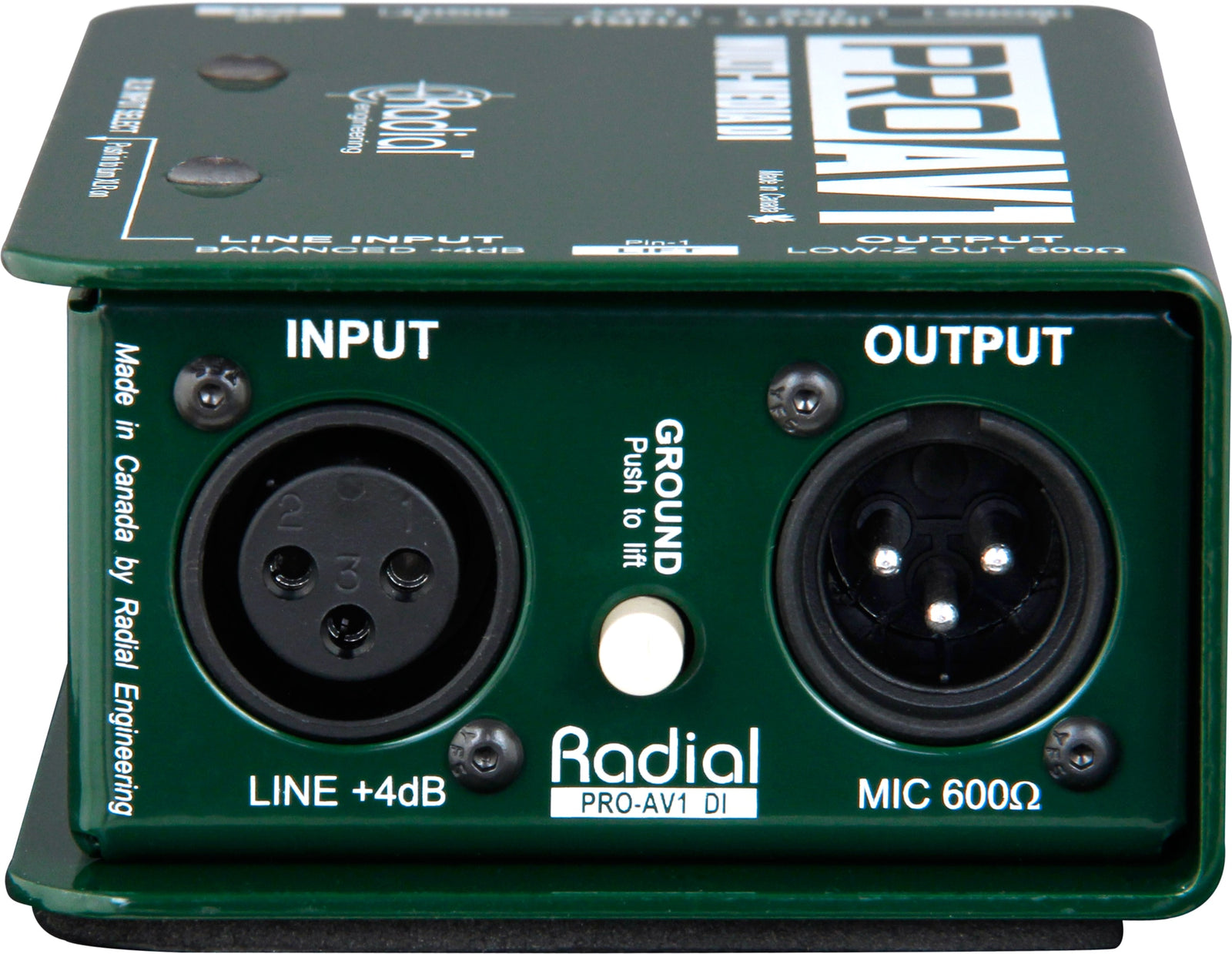

The ProAV1 provides you with the ability to connect almost any audio source to a PA system, while automatically summing stereo sources to mono to preserve channels and simplify the audio setup. Inputs are available via 1/4", RCA, 3.5mm stereo, and line-level XLR connections, giving you the ability to easily connect to smartphones, tablets, laptops, CD players, or even a +4dB line level output from a console or recording interface. Transformer isolation helps eliminate noise while maintaining a linear frequency response, and a mono balanced XLR output allows you to feed a recording interface or a PA system.

ProAV1 Applications

Consumer Audio to PA System

The ProAV1 is perfect for interfacing consumer audio electronics with pro PA and recording equipment. The dual phone, RCA and 3.5mm inputs on the ProAV1 sum the left and right stereo channels to a mono output.

Standard DI For Instruments

The ProAV1 works just like standard direct boxes for passive and active musical instruments like guitars, basses, and keyboards. You can thru-put the signal to an on-stage amp while transformer isolation keeps things quiet.

Features:

  • Versatile direct box for multimedia applications
  • Easy to use, ultra-quiet passive design
  • Transformer isolation eliminates hum and buzz
  • Handles huge transients without distortion

Specifications



Audio circuit type:

Passive, transformer based

Transformer:

Eclipse ET-DB2, 12:1 ratio

Number of channels:

Single channel (mono)

Frequency response:

20Hz ~ 18.5KHz (± 0.2dB)

Dynamic range:

128dB

Total harmonic distortion:

0.01% from 20Hz~20kHz @-10dB

Phase Deviation:

1° @ 100Hz; 8° @ 20Hz

Input Impedance:

140k Ohms, unbalanced

Output Impedance:

150 Ohms, balanced

Common Mode Rejection Ratio:

100dB @ 60Hz

Maximum Input:

+18dB @ 20Hz

Features

Input pad, Mono Sum, Ground lift

Input Connectors:

1/4", RCA, 3.5mm TRS, XLR

Output Connectors:

XLR

Extras:

1/4" thru, RCA thru

General

Construction:

14 gauge steel chassis & shell

Size (L x W x D):

3.25” x 5” x 1.875”

Weight:

0.73kg (1.6 lbs)

Shipping size (L x W x D):

102 x 76 x 165mm (4.00" x 3.00" x 6.50")

Shipping weight:

0.87 kg (1.92 lbs)

Power:

Passive, no power required

Conditions:

For use in dry locations only between 5°C and 40°C

Warranty:

Radial 3-year, transferable
