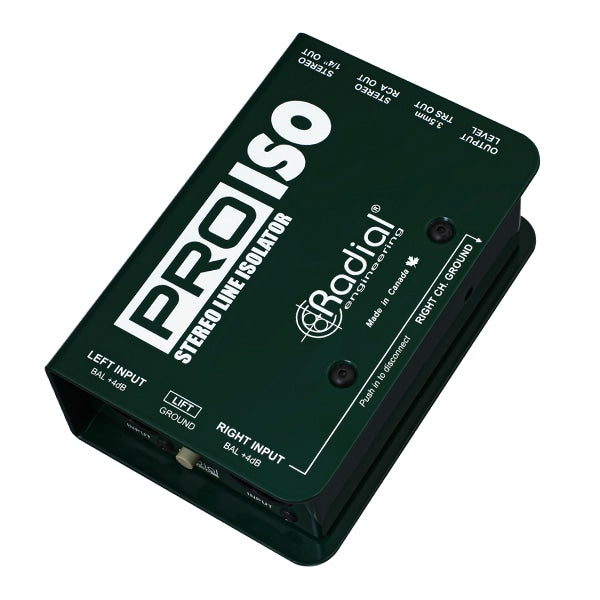

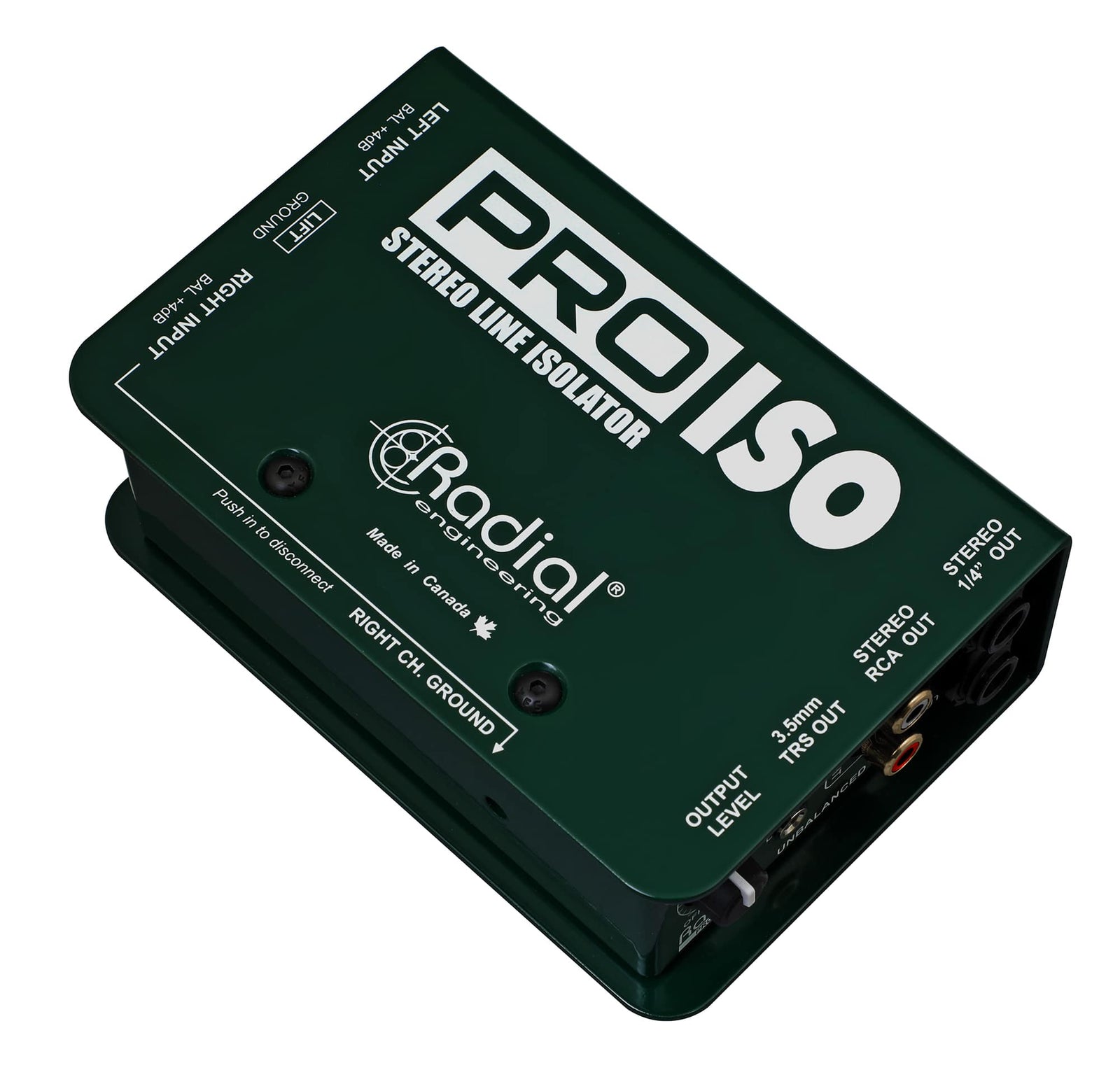

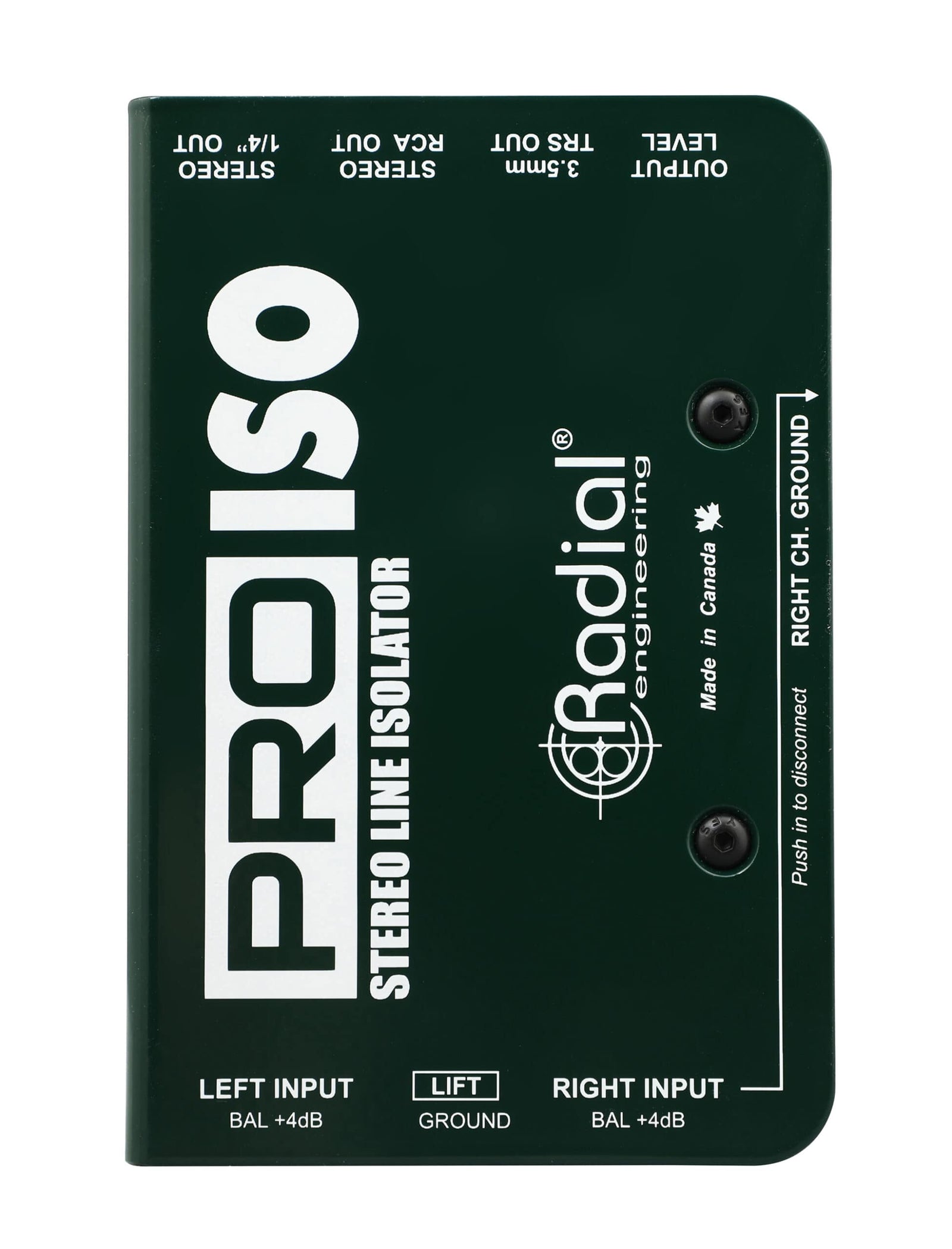

The Pro-Iso™ is a +4dB to -10dB converter that employs a cost effective transformer that focuses the energy in the voice range. This makes the Pro-Iso a great choice for sermons, news gathering and spoken voice.
Exceptional signal handling

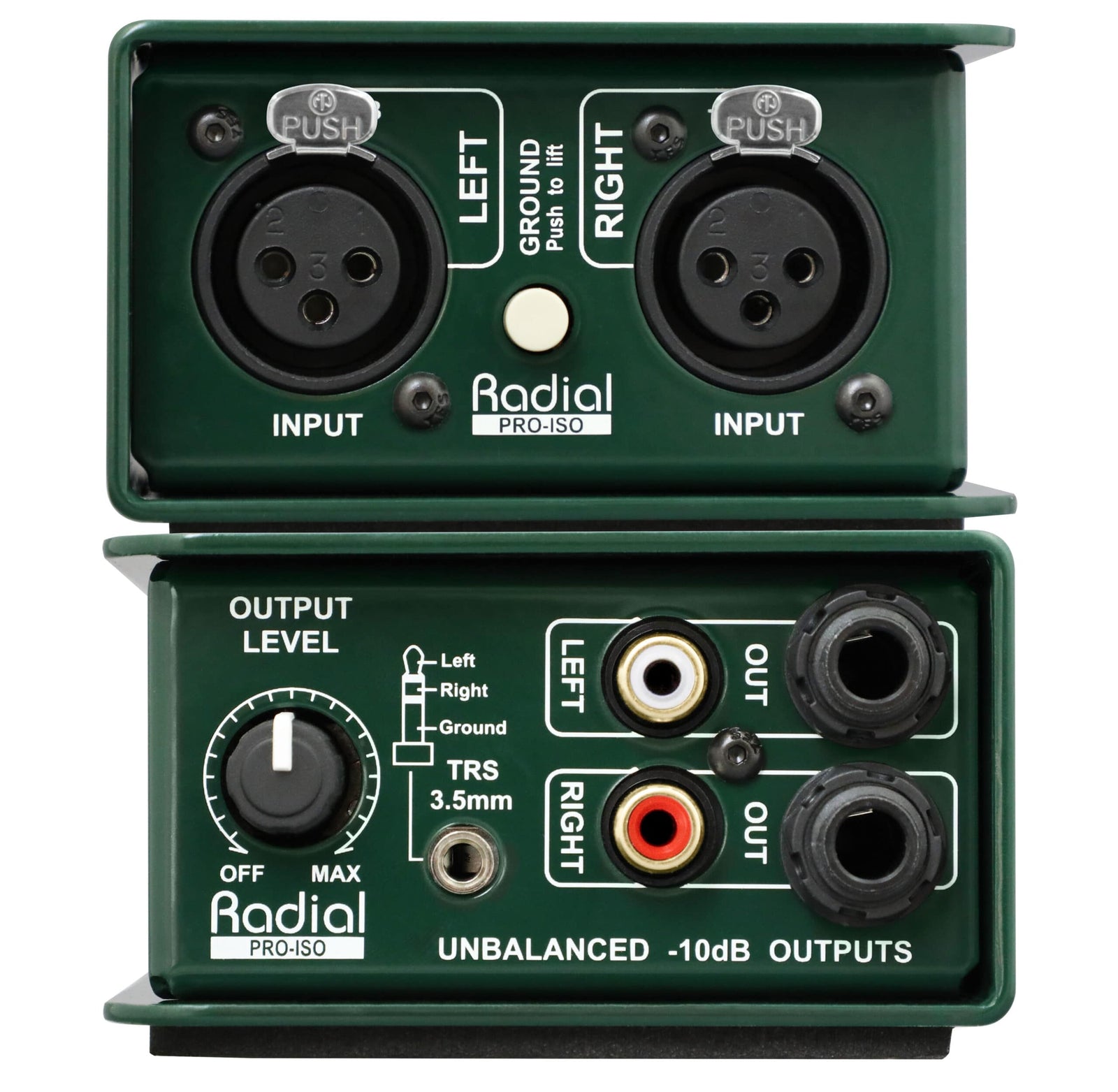

The passive design begins with 100% discrete components throughout. A set & forget level control lets you attenuate the input signal to prevent it from overloading the destination device. Output connections include a stereo pair of ¼" connectors, a set of RCAs and a mini 3.5mm (1/8") for interfacing to a mini recorder or laptop computer. Transformer isolation helps eliminate hum and buzz caused by ground loops while eliminating stray DC currents from flowing.
Pro-Iso Applications
Using the Pro-Iso to record a performance
Often, the available output on a professional console is balanced +4dB. This makes it difficult to feed a portable recorder. The Pro-Iso comes to the rescue with a simple interface and all of the connectivity you need.
Using the Pro-Iso to convert a balanced signal
The Pro-Iso makes it easy to convert the balanced line level output from a preamp to any any -10dB consumer audio device. Transformer isolation further benefits by eliminating hum and buzz caused by ground loops.
Using the Pro-Iso to feed a computer
Computers are noisy at the best of times! The Radial Pro-Iso's effective transformers help eliminate buzz and hum while delivering exceptional audio. Adjust the set & forget level control on the Pro-Iso to set signal level.
Features:
- Converts balanced line level signals to unbalanced
- Stereo signal path with set & forget level control
- Transformer isolated to eliminate hum & buzz
- Cost effective transformers targeting voice range
|
Specifications |
|
|
|
Audio circuit type: |
Passive, transformer based |
|
|
Transformer: |
Radial transformer |
|
|
Number of channels: |
Stereo (dual mono) |
|
|
Frequency response: |
20Hz ~ 18KHz (+0dB/ -3dB) |
|
|
Dynamic range: |
130dB |
|
|
Total harmonic distortion: |
0.005% @ 1kHz |
|
|
Phase Deviation: |
1.5° @ 100Hz; 3° @ 20Hz |
|
|
Input Impedance: |
1.3k Ohms |
|
|
Output Impedance: |
1.9k Ohms |
|
|
Common Mode Rejection Ratio: |
-76dB |
|
|
Maximum Input: |
+20dBu @ 1kHz/1% THD+N |
|
|
Features |
||
|
Ground lift, Level Control |
||
|

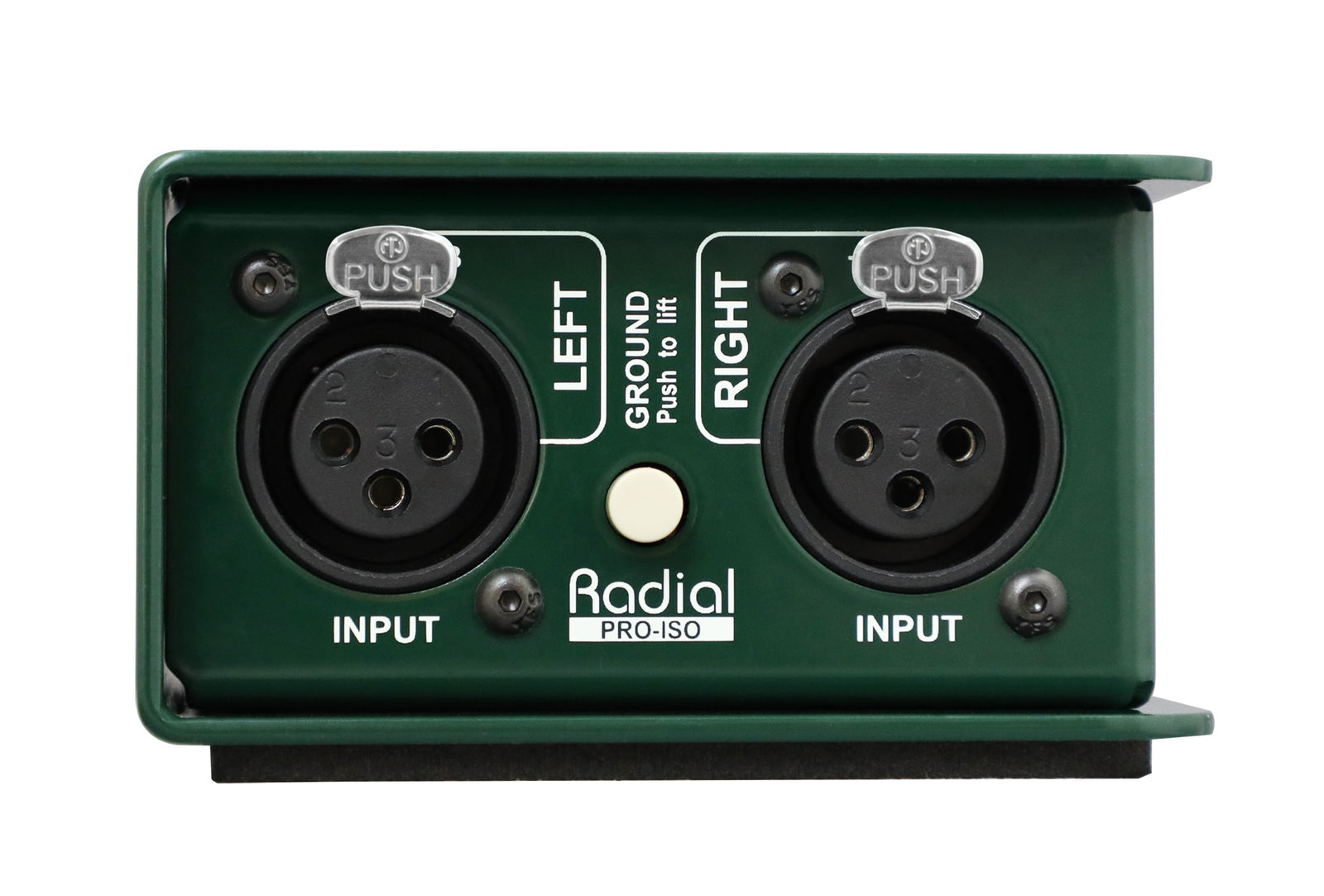

Input Connectors: |
Balanced XLR |
|
|

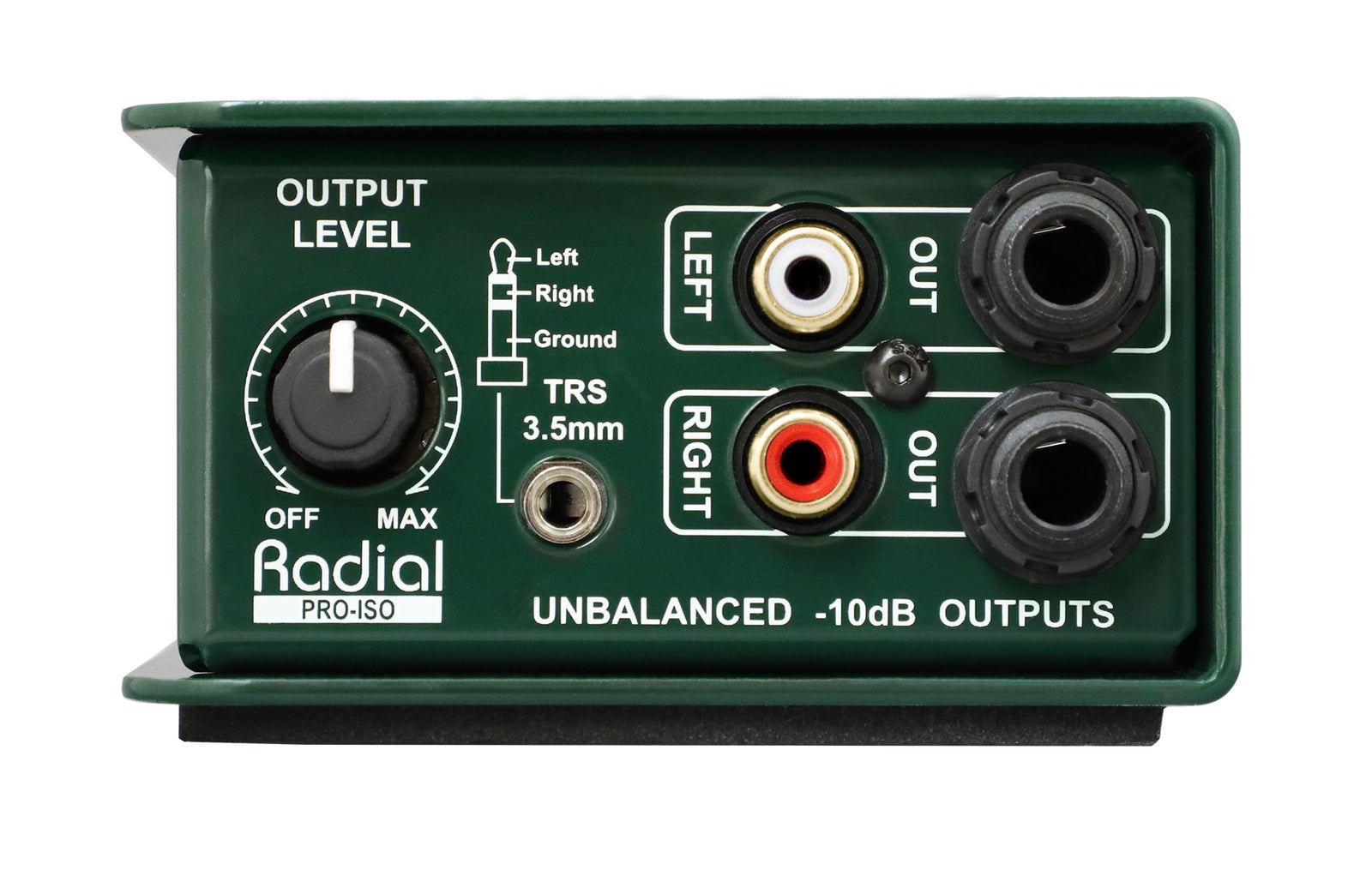

Output Connectors: |
1/4", RCA and 3.5mm TRS unbalanced output |
|
|
General |
||
|
Construction: |
14 gauge steel chassis |
|
|
Size (L x W x D): |
8.4cm x 12.7cm x 4.8cm (3.3" x 5" x 2") |
|
|
Weight: |
0.7 kg (1.55 lbs) |
|
|
Shipping size (L x W x D): |
10.2cm x 7.6cm x 16.5cm (4" x 3" x 6.5") |
|
|
Shipping weight: |
0.87 kg (1.92 lbs) |
|
|
Power: |
Passive, no power required |
|
|
Conditions: |
For use in dry locations only between 5°C and 40°C |
|
|
