Radial Engineering Presenter Audio Presentation Mixer

Radial EngineeringSKU: R800801100

Price:
Sale price €425.00

The Presenter combines a microphone preamp and a USB program input to create the ultimate interface for any presentation, from school lectures to corporate audio. It replaces bulky and complicated mixers that can be difficult to use, offer unnecessary features, and often require special adaptor cables to connect to. Instead, the Presenter provides a simple and streamlined feature set that is as intuitive as it is powerful.

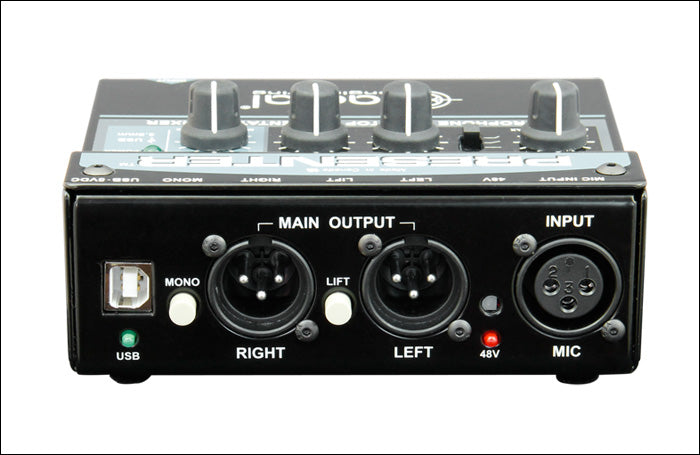

The Presenter’s compact chassis houses a microphone input, a USB connection for playback from a laptop, and XLR outputs to feed your powered speakers. Simply connect your laptop via USB to send high quality audio through the Presenter and provide power to the device, plug in any microphone, and then connect to your speakers. Separate level controls for the microphone and the laptop audio allow you adjust the balance between the two, and a low cut filter and EQ controls help adjust the tone of the microphone to suit the room acoustics and the voice of the person who will be speaking. Additionally, should you need to playback audio from a smartphone, tablet or any other portable device, the Presenter has a 3.5mm stereo input jack that also feeds the program level control. This connection overrides the USB output, making it ideal for accommodating ‘aux cord DJs’ at a wedding reception or dance.

With the Presenter, not only will you improve the audio for your next event, you’ll also reduce setup time and virtually eliminate troubleshooting.

  • Mic preamp with phantom power & EQ controls
  • USB connection for high quality audio playback from a laptop
  • Easily connect a smartphone or tablet with a 3.5mm TRS input
  • Balanced outputs to feed a pair of powered speakers or a PA System

Presenter™ - Applications

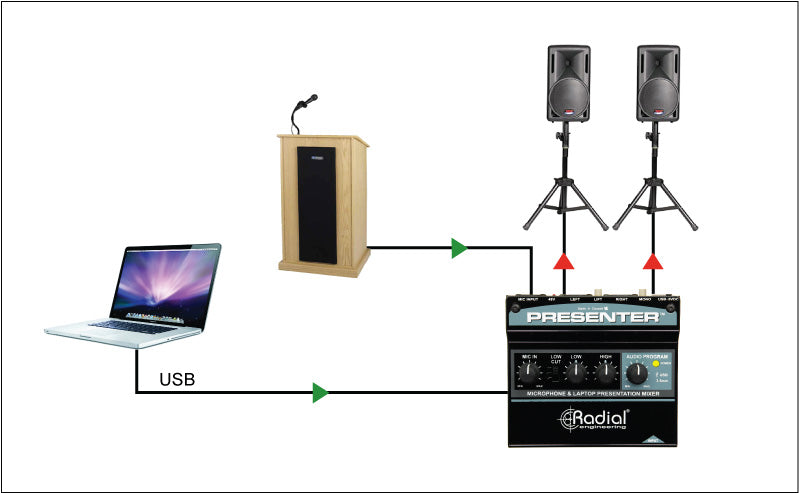

Using the Presenter for a lecture or speech

Connect your podium microphone to the XLR input of the Presenter and engage phantom power if needed. The Presenter is powered from the USB port on your laptop and allows you to play high quality digital audio files through a pair of powered speakers. Use the EQ controls to tailor the frequency response of the microphone to the room.

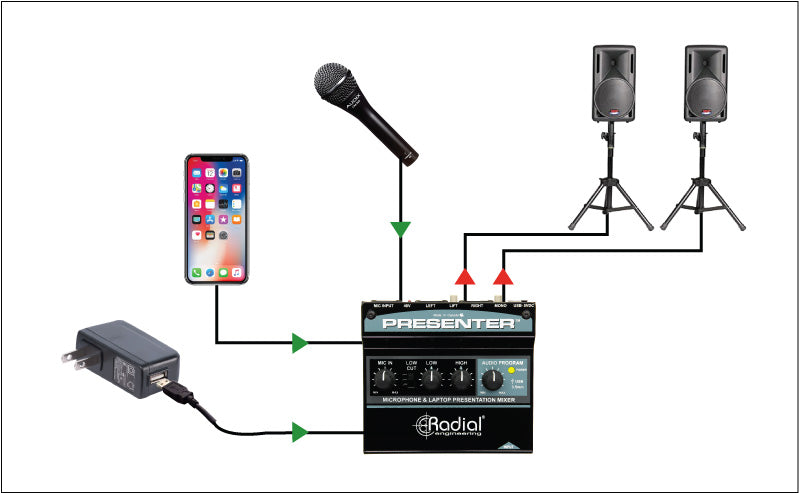

Using the Presenter for wedding receptions and dances

Send your music playlist to the PA using the 3.5mm input to play back from your smartphone or tablet. When it comes time for speeches, simply turn up the microphone level and you’re ready to go.

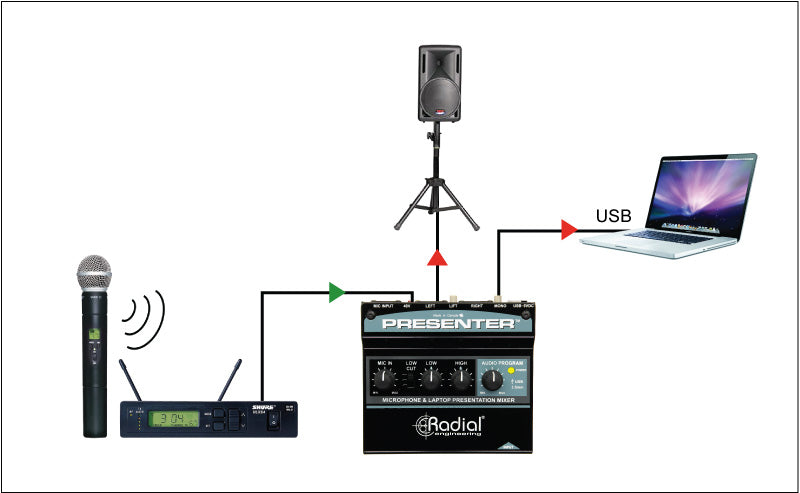

Using the Presenter with wireless microphones

The Presenter can be just as powerful even if it’s located off to the side of the stage. Connect the output of the wireless microphone receiver to the XLR input and set your levels. If using a single powered speaker, press in the MONO switch on the back of the Presenter.

Specifications



Audio Circuit Type:

Active Preamplifier Circuit with digital to analog input conversion

Number of Channels:

2

Frequency Response:

20Hz to 20kHz (-0.4dB/0dB)

Noise Floor:

-84dBu

Dynamic Range:

+91dBu

Maximum Input:

+7dBu

Gain:

+52dBu

Indermodulation Distortion:

0.003% @0dBu, 0.01% @ -10dBu, 0.03% @-20dBu

Total Harmonic Distortion:

0.004% @20Hz, 0.004% @1kHz, 0.004% @10kHz

Phase Deviation:

-28° @ 20Hz, -1° @ 1kHz, +2° @ 10kHz

Input Impedance:

10kΩ

Output Impedance - XLR Output:

2.74kΩ

Insertion Loss:

0dB

Features



Input Connections:

XLR, 3.5mm stereo, USB 2.0 type B

Ground Lift:

Main Output

LED Indicators

Power, 48V, USB

General



Power:

5V USB

Construction:

14-gauge steel chassis

Finish:

Durable powder coat

Size: (W x H x D)

4.75" x 5" x 2" (121 x 127 x 51mm)

Shipping Size: (W x H x D)

5" x 11" x 2.75" (127 x 280 x 70mm)

Weight:

1.5lb (0.7kg)

Shipping Weight:

2.15lb (0.97kg)

FCC Approval:

Complies with section 15 of the FCC Rules

Conditions:

For use in dry locations only between 5°C and 40°C

Power Supply Part Number:

R800 9407 00 - CANADA, USA, TAIWAN R800 9407 01

Warranty:

Radial 3-year, transferable

Specifications are subject to change without notice.

Click Here for Graph Guide
