The Phazer™ is an analog phase alignment tool that lets you bring two sounds sources together so that the fundamentals play in sync
Align your tracks for improved sound
The Phazer is a unique tool that sums two line-level signals together using class-A analog circuitry, providing the ability to quickly and accurately phase-align any tracks for improved clarity and tone. Once in phase, the results are impressive: On electric guitar; you can combine the direct feed of an amp with a room mic to create fat rich tones. On a kick drum, combine the attack from a batter head mic with the body captured by the outer shell mic, or the top and bottom mic's on a snare drum. With acoustic instruments, combine a close 'spot' mic with a room mic to capture textures like never before.
Phazer Applications
Using the Phazer on kick drum mics
Engineers love to combine the attack of the batter head with the boom of a second mic. The Phazer elevates the effect by letting you combine the two in perfect sync. Simply insert the Phazer on the batter head channel, rotate the phase control and in seconds you are there.
Using the Phazer with a guitar amp
Sometimes, getting a great guitar sound seems to take forever. This is due to irregularities such as stage resonance, room acoustics and a slight shift in mic position. Combine a Radial JDX direct box with the usual SM57 on the speaker. Phase adjust the JDX and in seconds, you will get huge guitar sounds.
Using the Phazer to solve bass problems
In smaller venues, the bass level coming off the stage can often compete with the PA system making it hard to mix. Combine the direct feed from the bass amp using a JDX direct box and phase align it to the PA using the Phazer. You will be amazed at how this simple process will clean up your mix.
Features:
- Phase-align two signals for exceptional clarity
- 100% analog, Class-A audio circuit
- Variable phase shift for precise alignment
- Low-pass filter lets you focus the effect
|
Specifications |
|
|
|
Audio circuit type: |
Active analog phase adjustment |
|
|
Number of channels: |
Mono |
|
|
Frequency response: |
20Hz ~ 20KHz (± 0.5dB) |
|
|
Dynamic range: |
94dB |
|
|
Input Impedance: |
10k Ohms, balanced |
|
|
Output Impedance: |
2k Ohms, balanced |
|
|
Maximum Input: |
+11.5dBu @ 1kHz, 1% THD+N |
|
|
Features |
||
|
Ground lift, LPF |
||
|

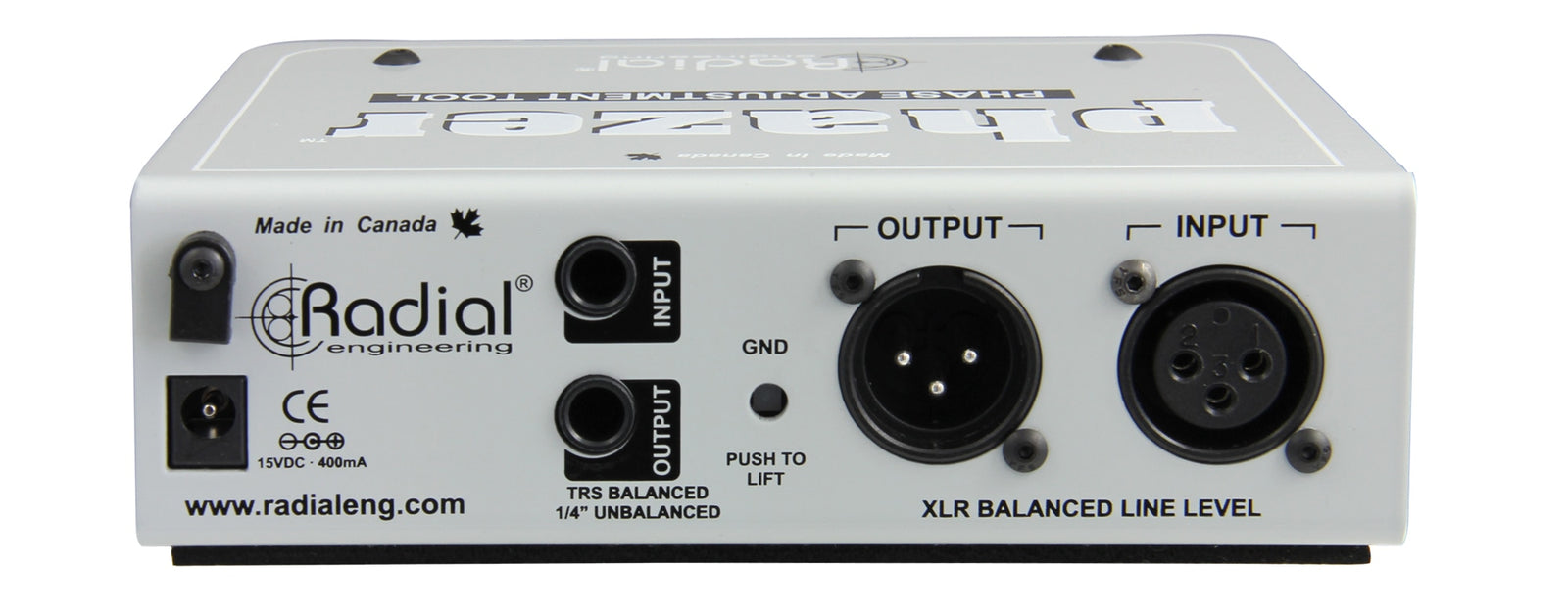

Input Connectors: |
XLR input, ¼" TRS input |
|
|
Output Connectors: |
XLR output, ¼" TRS output |
|
|
Extras: |
Phase Reverse |
|
|
General |
||
|
Construction: |
14-gauge steel |
|
|
Size (L x W x D): |
4.5" x 2" x 6" (114 x 57 x 147mm) |
|
|
Weight: |
2.8 lb (1.3kg) |
|
|
Shipping size (L x W x D): |
4.75" x 2.5" x 10.75" (121 x 64 x 273mm) |
|
|
Shipping weight: |
3.05 lb ( 1.4kg) |
|
|
Power: |
+15V DC/400mA power supply included |
|
|
Conditions: |
For use in dry locations only between 5°C and 40°C |
|
|
Warranty: |
||
