The Nuance Select is a completely transparent studio monitoring system, giving you control over two sets of monitors and a subwoofer with zero sonic colouration.
Control without Colouration
The Nuance Select is a studio monitor controller designed so you can hear every single detail through your speakers, with a distortion profile so low that it cannot be measured by most audio testing equipment. Complete audio transparency is achieved through our innovative Clarity Circuit that allows you to hear the true mix through your speakers without any sacrifice in audio quality, all while still providing you with total control over your monitor setup.
Looking the Part

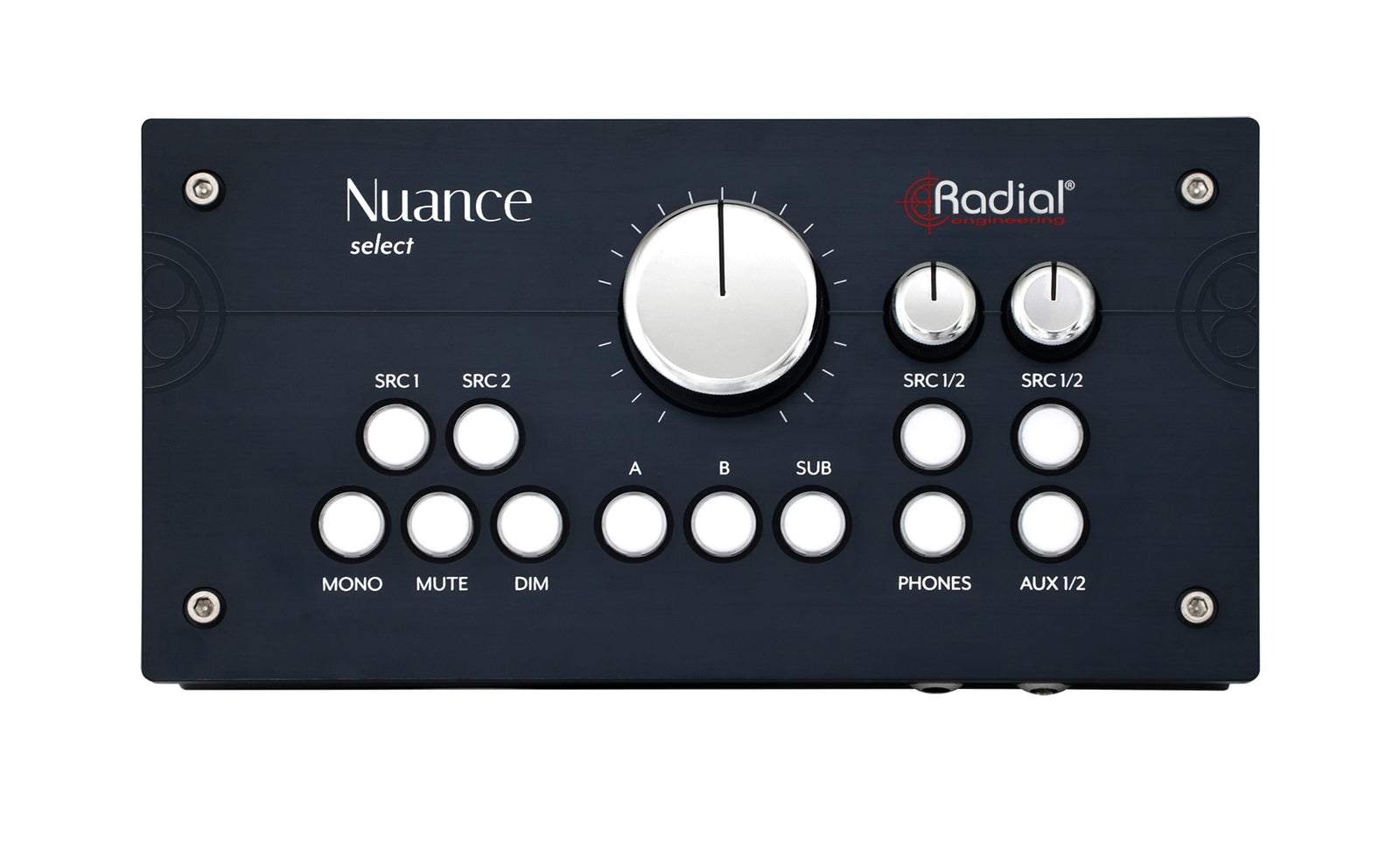

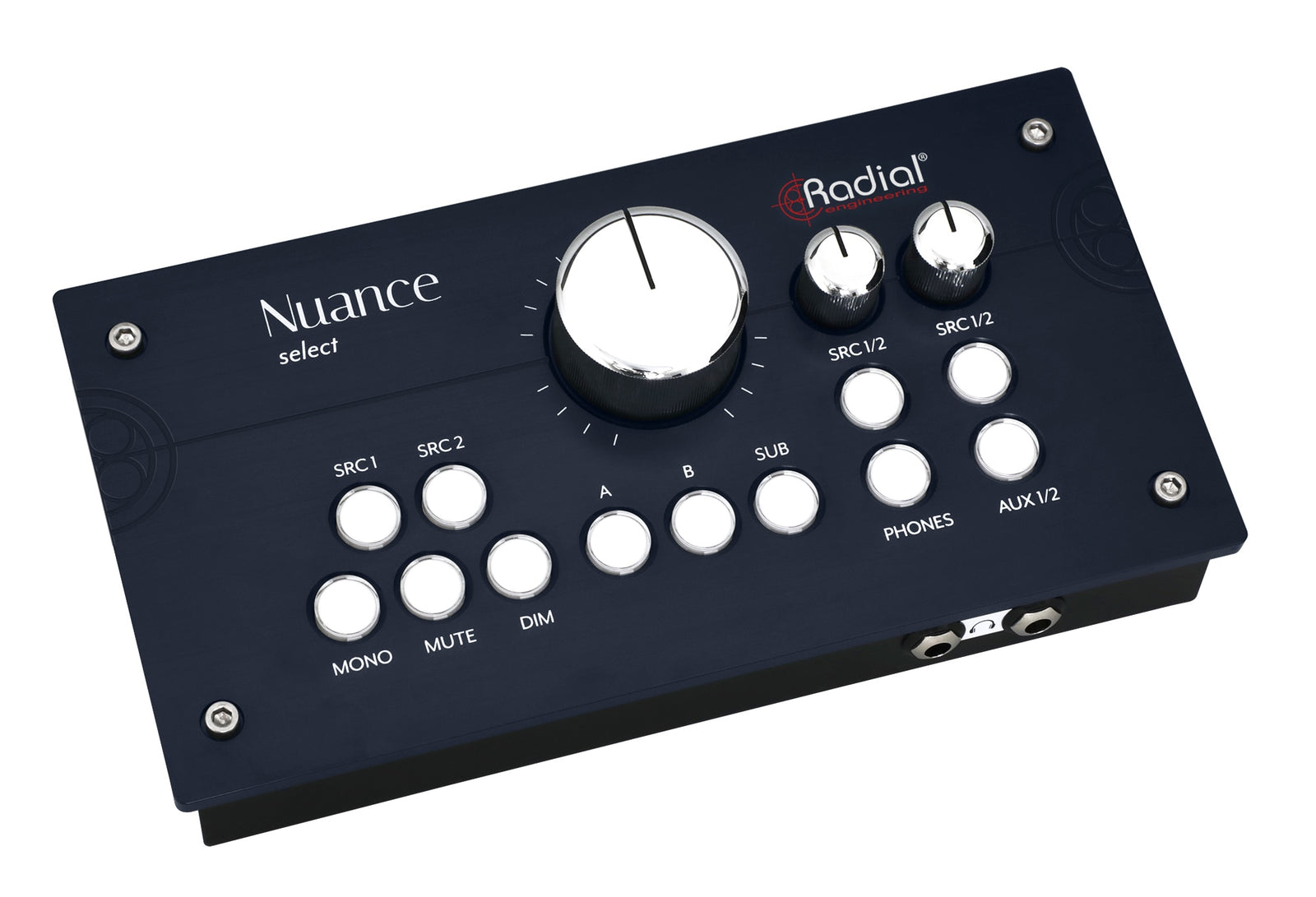

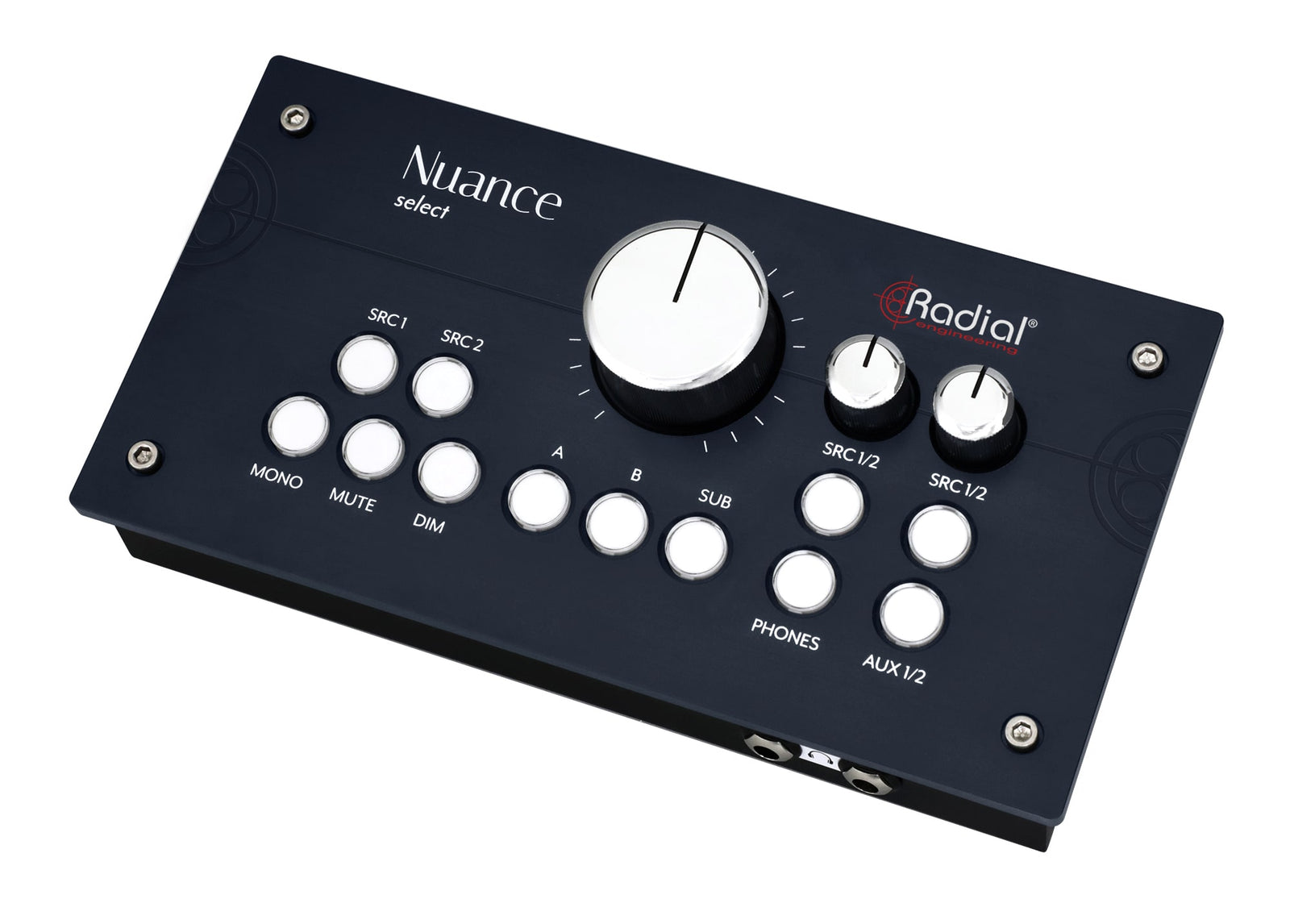

Housed in a robust steel enclosure with a milled aluminium faceplate, the Nuance Select will fit the aesthetic of any studio space and easily incorporate into your workflow, with a streamlined approach to the feature set. Backlit monitor selection and control switches are complemented by oversized chrome knobs on the headphone and master level controls.
Inputs, Outputs, and Useful Add-ons

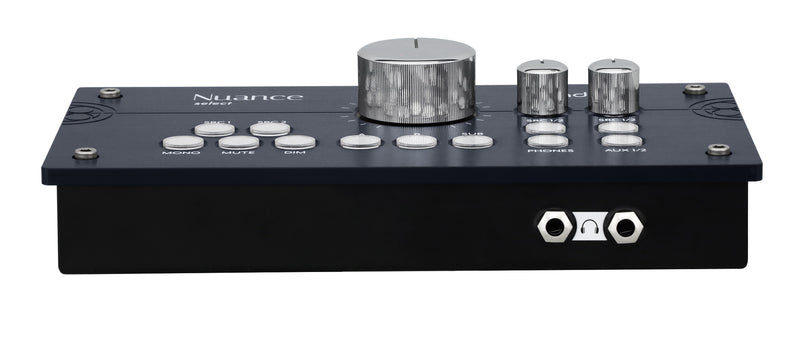

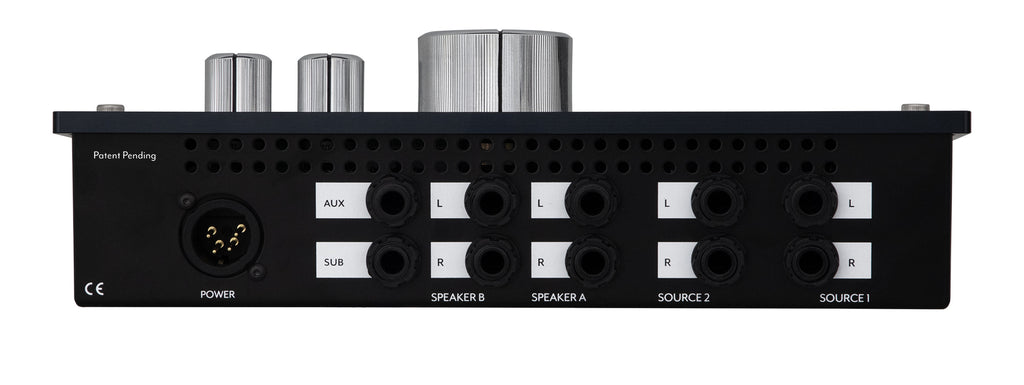

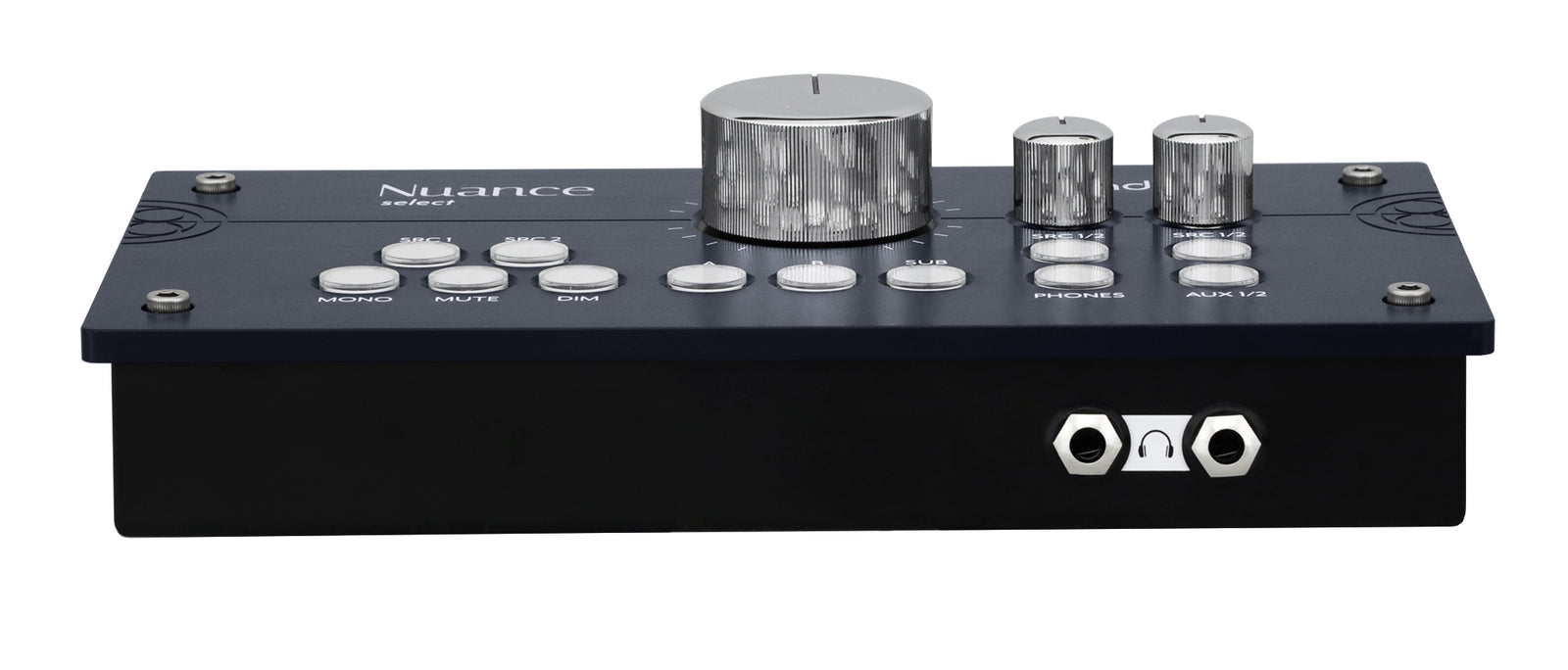

The Nuance Select features two sets of stereo source inputs, along with two sets of balanced TRS outputs for powered speakers. A full-range subwoofer output is also included that can be activated with either set of speakers as desired. Two independent headphone amplifiers are available for monitoring or control room tracking – each headphone output can be assigned to its own stereo source so you can feed a cue mix to an artist while monitoring the main mix yourself. The headphone outputs are provided on easily accessible front panel jacks, and a stereo Aux output is available on the rear panel that can be used to feed an additional headphone amplifier for live room tracking.
Nuance Select Applications
Controlling your studio monitors
The Nuance allows you to switch between two sets of speakers while also having independent control over a full-range subwoofer output, so you can turn it on or off with either set of monitors. Switch between two stereo sources as well to compare reference tracks or monitor a cue mix.
Dual assignable headphone outputs
Two reference-grade headphone amplifiers are also built into the Nuance Select, each with an assignable input. This allows you to check the main mix on headphones, while also feeding a separate cue mix to an artist in the control room.
Adding the Aux output
The Aux output on the Nuance Select makes it easy to feed an additional headphone amplifier for live room tracking as well. The Aux out can be turned on or off using a local control, and it can be assigned to either input source just like the headphone outputs.
Using the Sub Out for a mono speaker
The Subwoofer output can also be used to connect a mono speaker as an additional reference point alongside your stereo monitors. This output is fed a full-range signal, and you can easily turn off the A and B speaker pairs to solo this output.
Features:
- Silently switch between two sets of monitors & a subwoofer
- Dual stereo input sources with an assignable Aux output
- Two independent headphone amplifiers with source selection
- Extremely low distortion for complete transparency
The Nuance Select is able to deliver remarkably low distortion and transparency through its patent pending Clarity Circuit. Every aspect of the Clarity Circuit was designed with an overarching goal of keeping distortion to an absolute minimum, so you can hear every detail of the mix without compromise. The Nuance Select uses 100% Class A circuitry (including the headphone amplifiers) to eliminate zero-cross distortions that are inherent to Class A/B op amps, and an ultra low noise internal power supply is also employed to further reduce the overall noise characteristics of the circuit. A true stepped attenuator is employed for the main level control, which is formed around a 21-position gold contact switch and paired with a string of carefully selected precision resistors. Last but not least, the Nuance Select has zero capacitors in the audio signal path, as these can act as high pass filters and cause additional distortion: in their place DC Servo’s are used throughout the signal path. The overall result is a level of Total Harmonic Distortion (THD) that is so low it is difficult to measure – 0.00001%.
Specifications
|
Frequency response: |
2Hz - 200kHz ±0.25dB @ +4dBu |
|
|
Total harmonic distortion: |
<0.00001%, -140dB, balanced outputs 1kHz @ +18dBu |
|
|
Intermodulation Distortion: |
0.00007%, -123dB |
|
|
Input Impedance: |
20kΩ |
|
|
Output Impedance: |
112Ω |
|
|
Signal to Noise: |
125dB, 127dB A Weighted |
|
|
Maximum Input: |
+27dBu |
|
|
Cross Talk: |
-125dB @ 1kHz, -110dB @ 10kHz |
|
|
Total Harmonic Distortion + Noise: |
0.00012%, -118dB |
|
|
Maximum Input: |
+27dBu |
|
|
Maximum Output: |
+26dBu |
|
|
Total Harmonic Distortion (Headphone Amplifier): |
0.00012%, -118dB |
|
|
Total Harmonic Distortion + Noise (Headphone Amplifier): |
0.0003%, -110dB |
|
|
Signal to Noise Ratio (Headphone Amplifier): |
112dB |
|
|
Output Impedance (Headphone Amplifier): |
2.5Ω |
|
|
Output Power (Headphone Amplifier): |
33mW x 2 @ 22Ω, THD+N<1% / 100mW x 2 @ 68Ω, THD+N<1% |
|
|
Features |
||
|
Mono Sum, Level Control, Headphone, Dim Switch |
||
|
Input Connectors: |
TRS |
|
|
Output Connectors: |
TRS |
|
|
General |
||
|
Construction: |
¼″ Milled Aluminium (faceplate), 18-gauge steel (chassis) |
|
|
Size (L x W x D): |
10" x 5.25" x 3" (254 x 133 x 76mm) |
|
|
Power: |
+-15V, +5VDC, 29W max (included) |
|
|
Conditions: |
For use in dry locations only between 5°C and 40°C |
|
|
