Radial Engineering Mix-Blender Instrument Combiner

Radial EngineeringSKU: R800 7207 00

Price:
Sale price €349.00

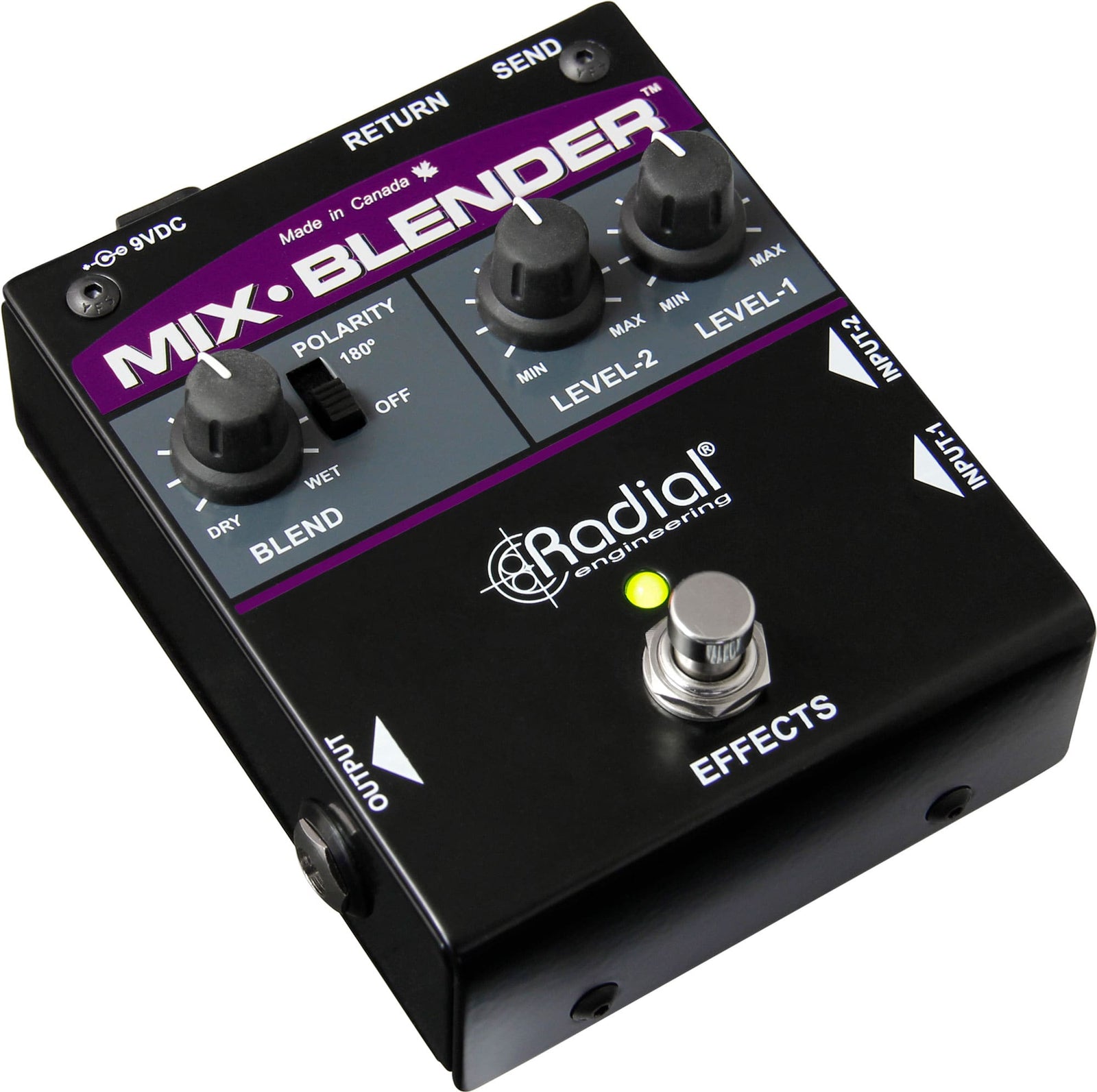

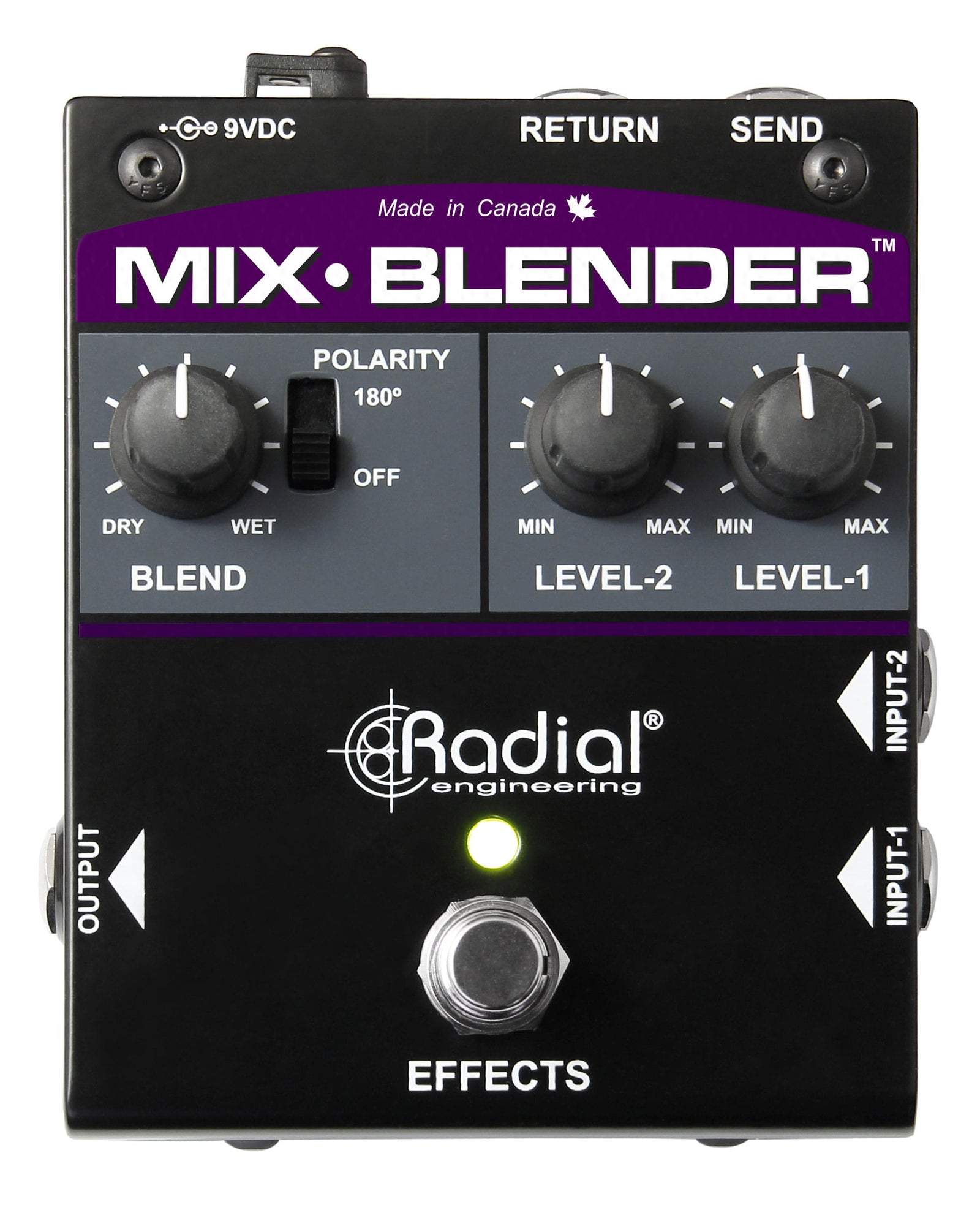

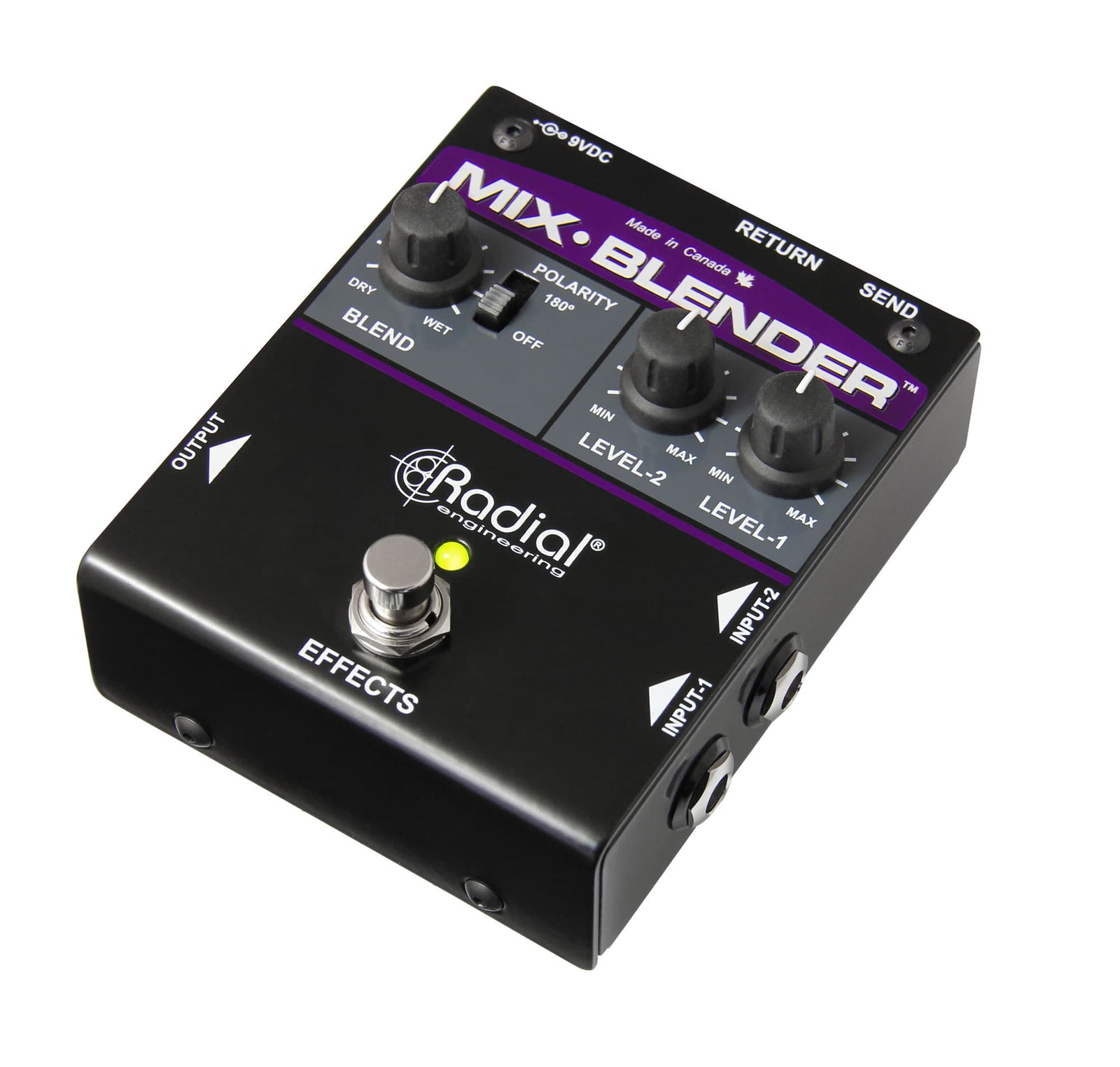

The Mix-Blender™ is a multi-function pedal that lets you mix two instruments or pedals together and then send the signal through a footswitch-controlled effects loop for processing.

Mix your instruments, Blend your effects

Designed to work with guitar, bass and keyboards, the Mix-Blender sums together two instrument inputs, with individual level controls to balance their relative levels. This allows you to combine two pickups on an acoustic guitar, two effects pedals, or two different instruments on stage so each can be played through the same amp. This combined signal can then be routed to your effects pedals, with a footswitch to activate them in an instant. The effects loop of the Mix-Blender features a unique wet/dry Blend control, which lets you retain the original sound of the instrument and add in as much of the pedals as you like, for effects ranging from subtle to extreme.

Mix-Blender Applications

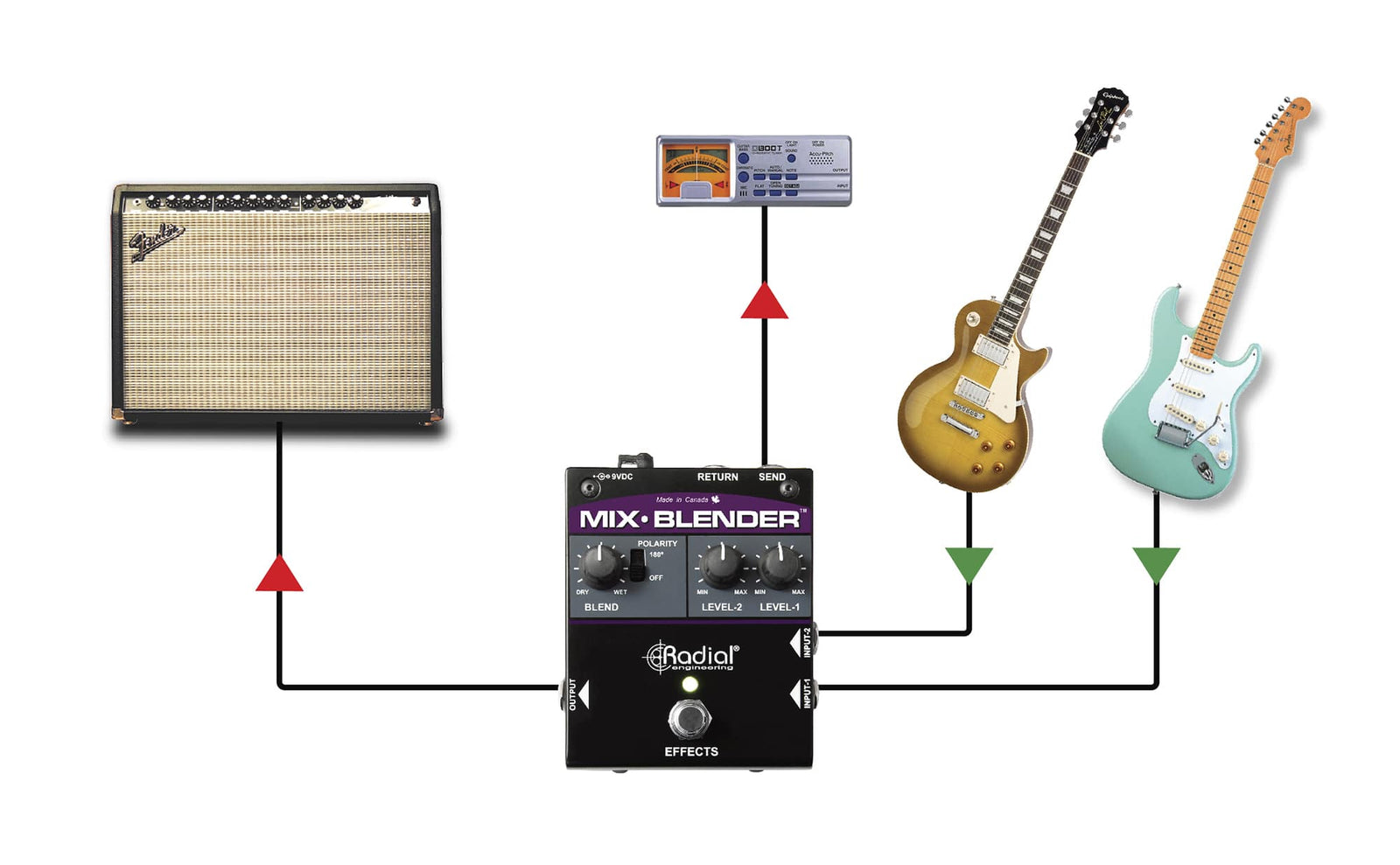

Two instruments in one amp

With two inputs you can connect two instruments and have them play at the same volume through your amp for quick changes on stage. Connect your tuner from the send jack to monitor your tuning on the fly.

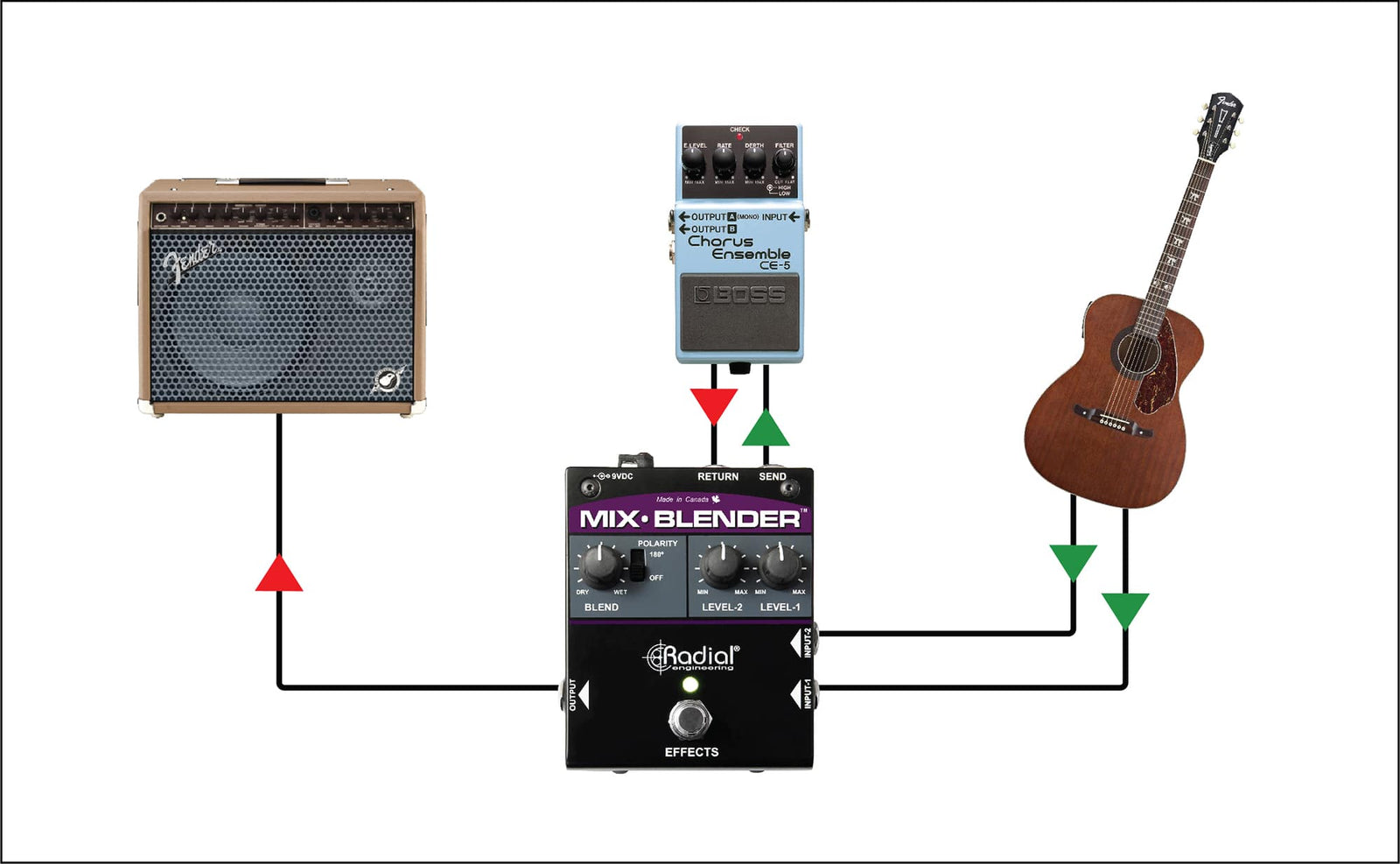

Blend both pickups together

Combining two pickups can often lead to the most natural sounding acoustic. Use the Mix-Blender to precisely mix the two signals together. Add a chorus pedal to the effects loop and control it with the footswitch.

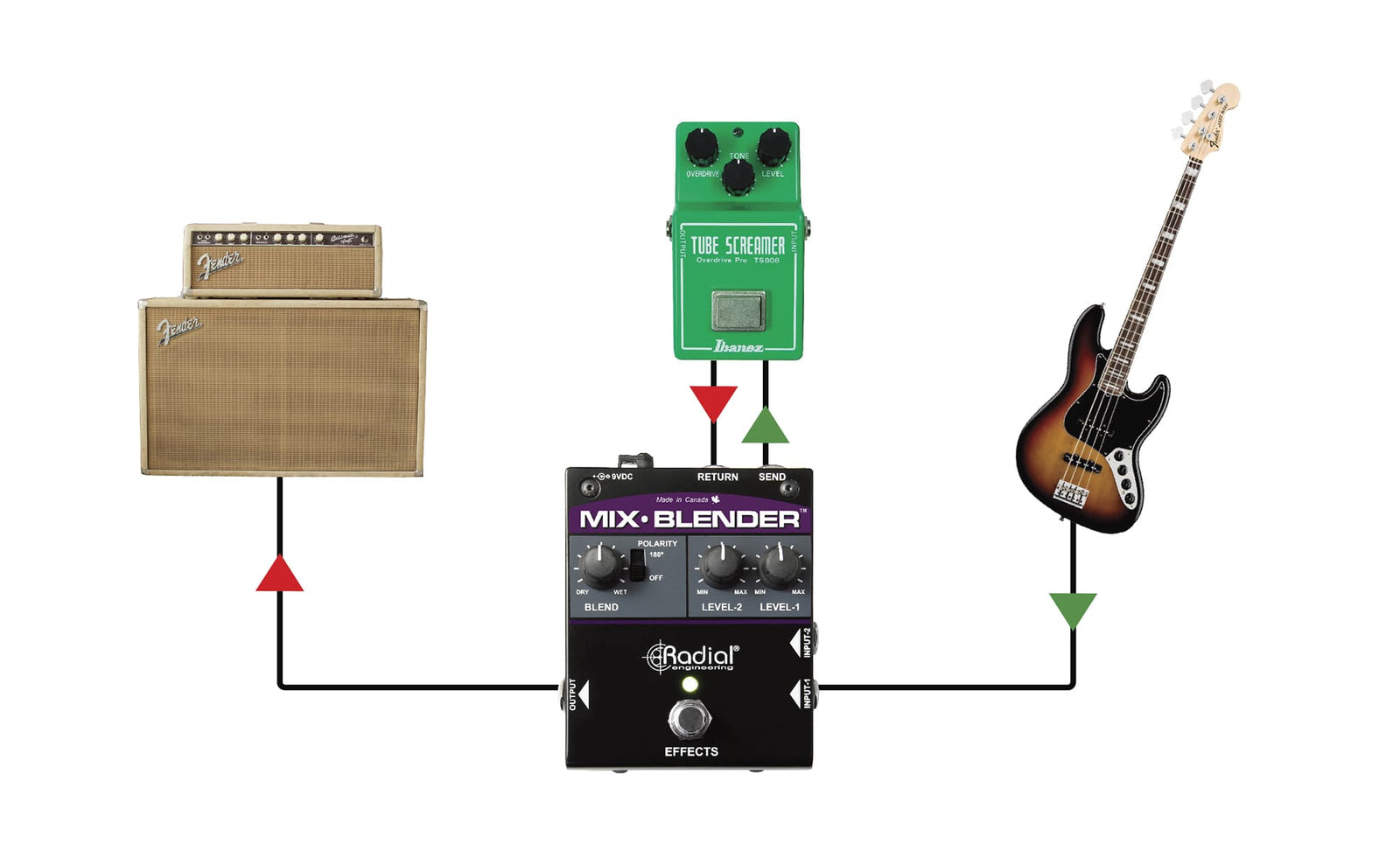

Bass guitar with overdrive

Add overdrive or distortion to your bass without losing the powerful bottom end. The Mix-Blender's wet-dry control lets you mix in the perfect amount of distortion to your signal path.

Features:

  • Mix two instruments or effects together at the same time
  • Blend in effects while retaining the tone of your instrument

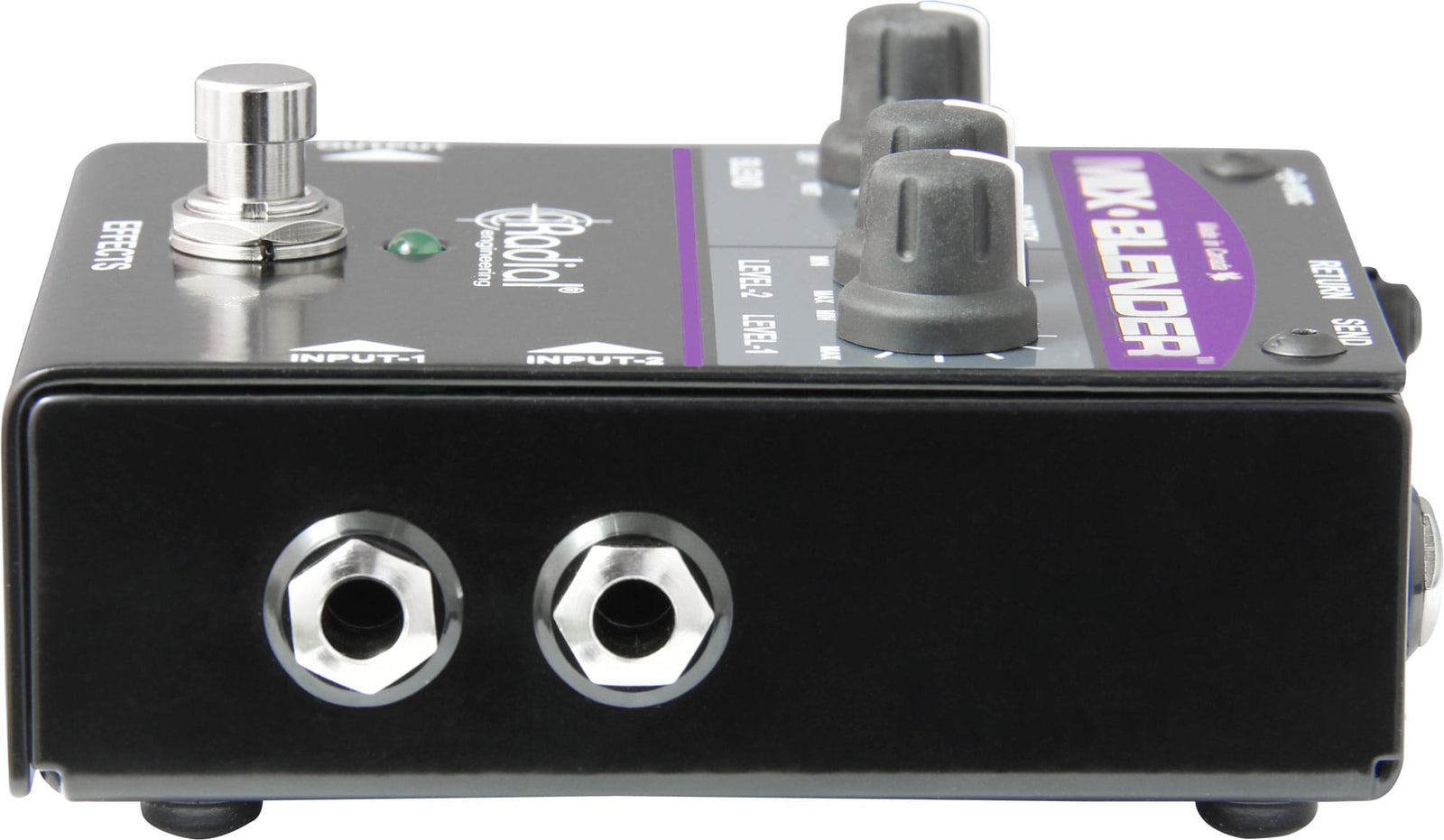

  • Class-A buffered inputs with individual level controls
  • Opens the door to creating subtle or unique effects

Specifications



Audio circuit type:

Discrete Class-A main audio path Audio Grade IC send-return loop

Frequency response:

20Hz - 20KHz +0/-2dB

Dynamic range:

104dB

Gain:

-30dB maximum gain (FX Off), +2dB maximum gain (FX On)

Total harmonic distortion:

0.01%

Intermodulation Distortion:

0.02%

Phase Deviation:

<10º at 100Hz

Input Impedance:

-220k

Equivalent Input Noise:

-97dBu

Maximum Input:

+10dBu

Features

General

Construction:

14-gauge steel chassis and outer shell

Size (L x W x D):

4.62" x 3.5" x 2" (117.3 x 88.9 x 50.8mm)

Weight:

1.35 lbs (0.61kg)

Shipping size (L x W x D):

6.5" x 4.1" x 3" (165.1 x 104.65 x 76.2mm)

Shipping weight:

1.6lb lbs (0.72kg)

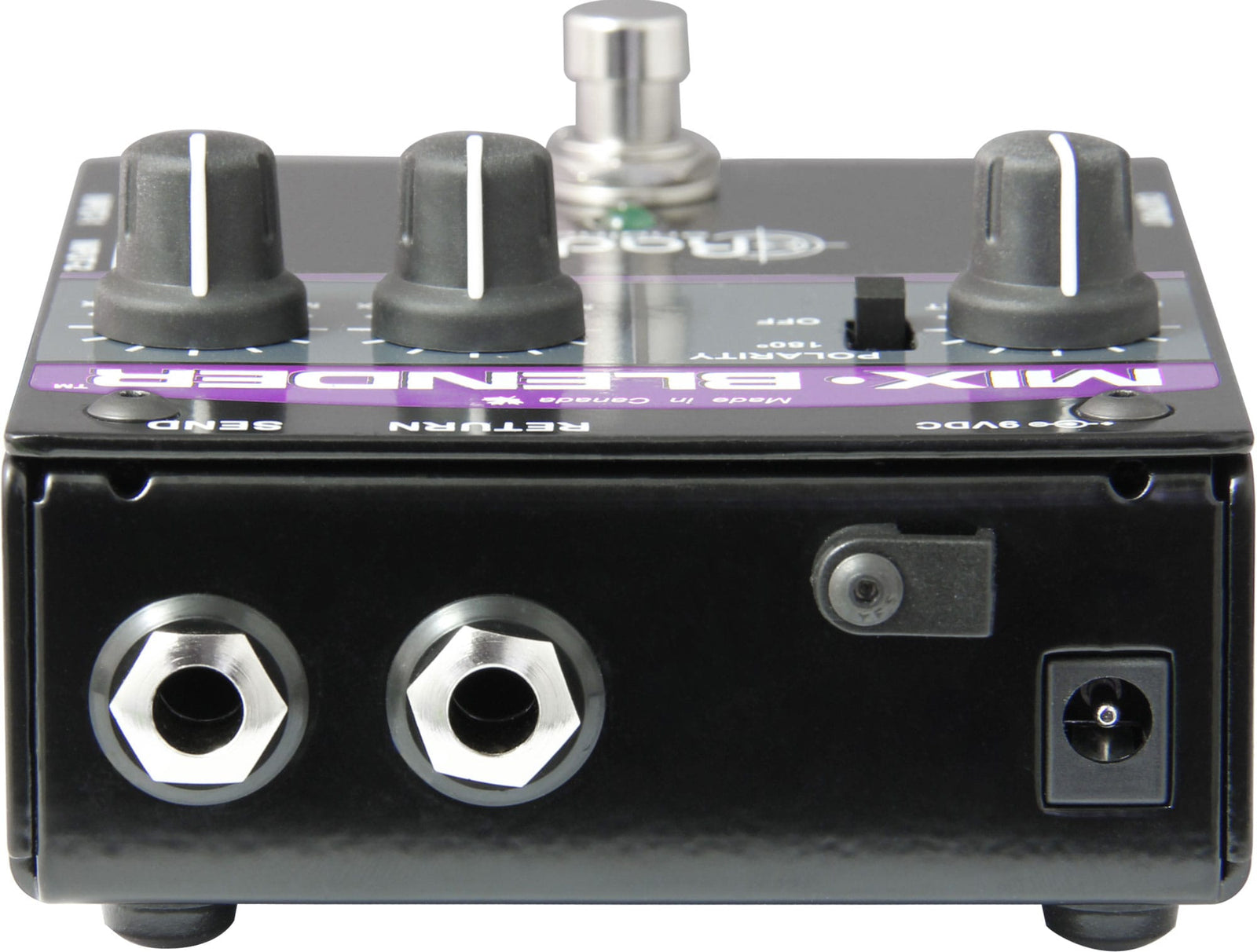

Power:

9V / 100mA (or more) Adapter

Conditions:

For use in dry locations only between 5°C and 40°C

Warranty:

Radial 3-year, transferable
