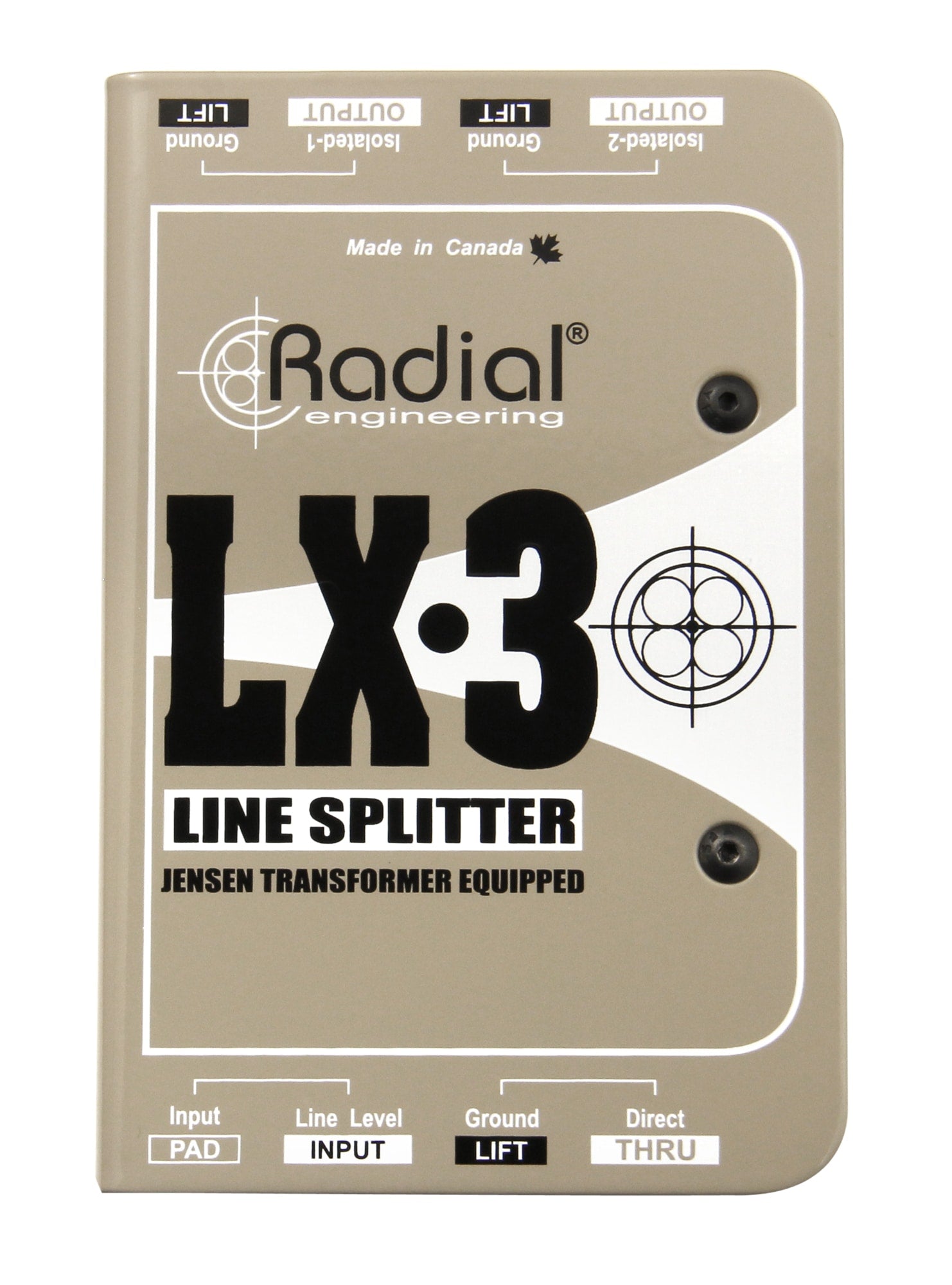

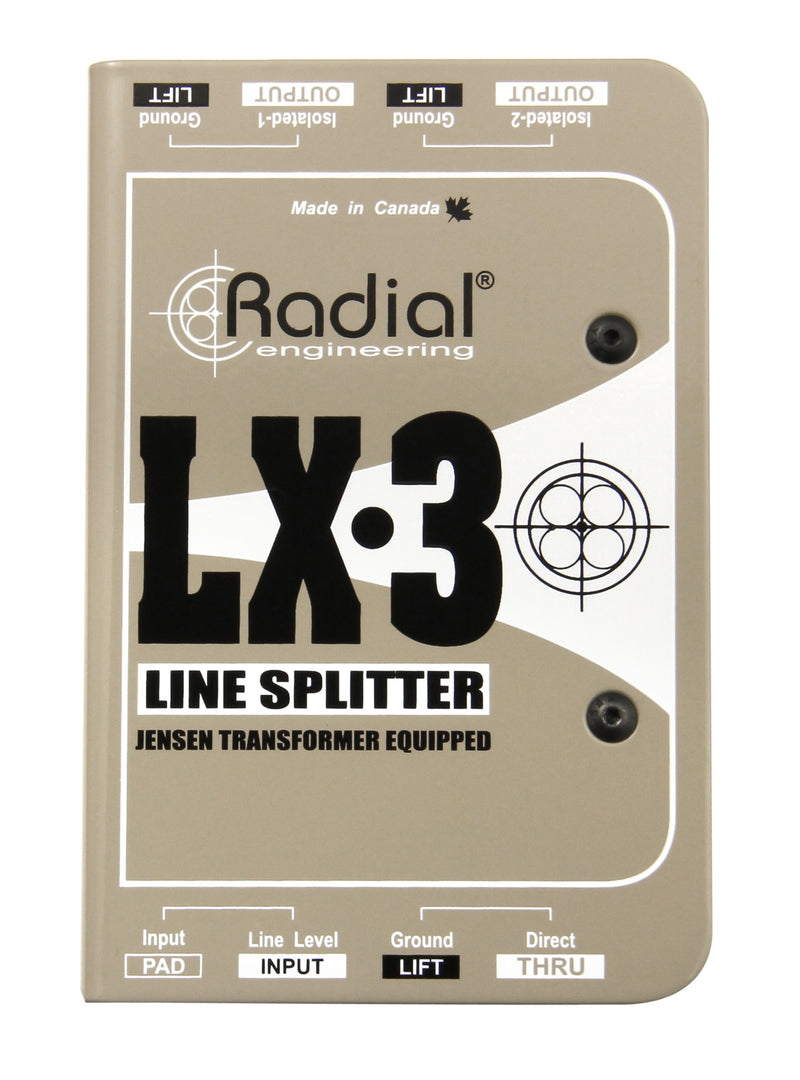

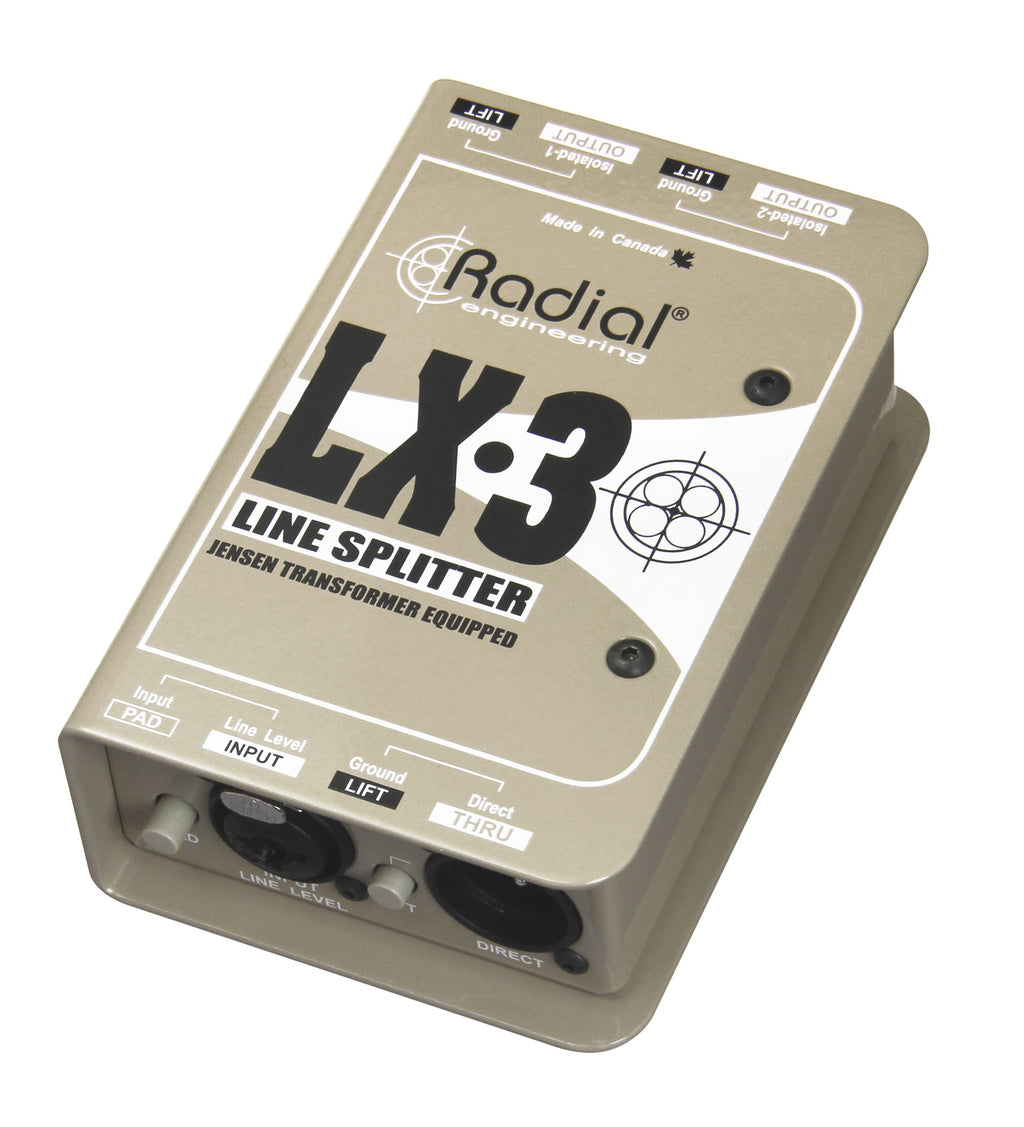

The Radial LX-3™ is a high-performance balanced line-level splitter designed to send one audio signal to as many as three destinations at once.
Pristine audio splitting

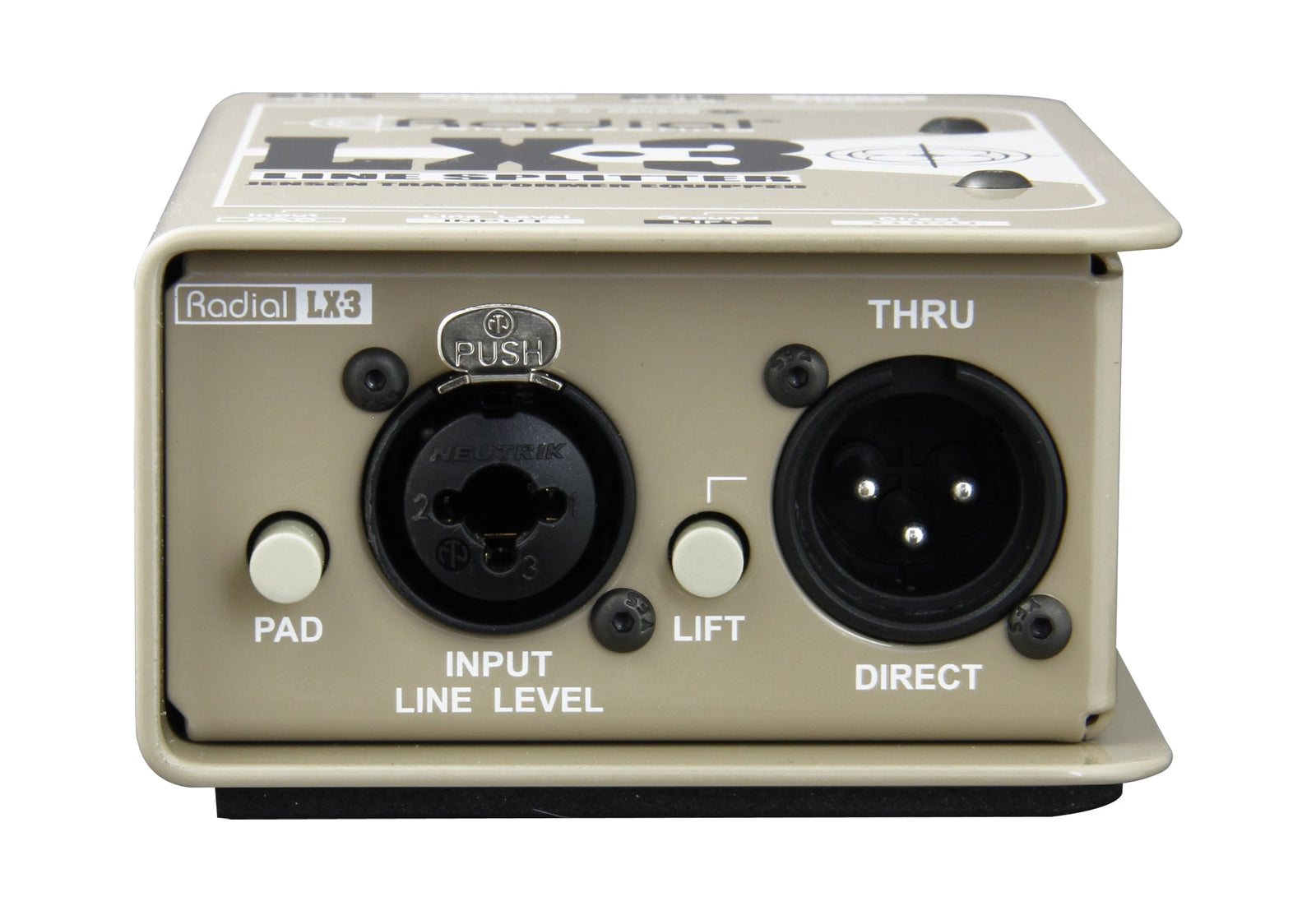

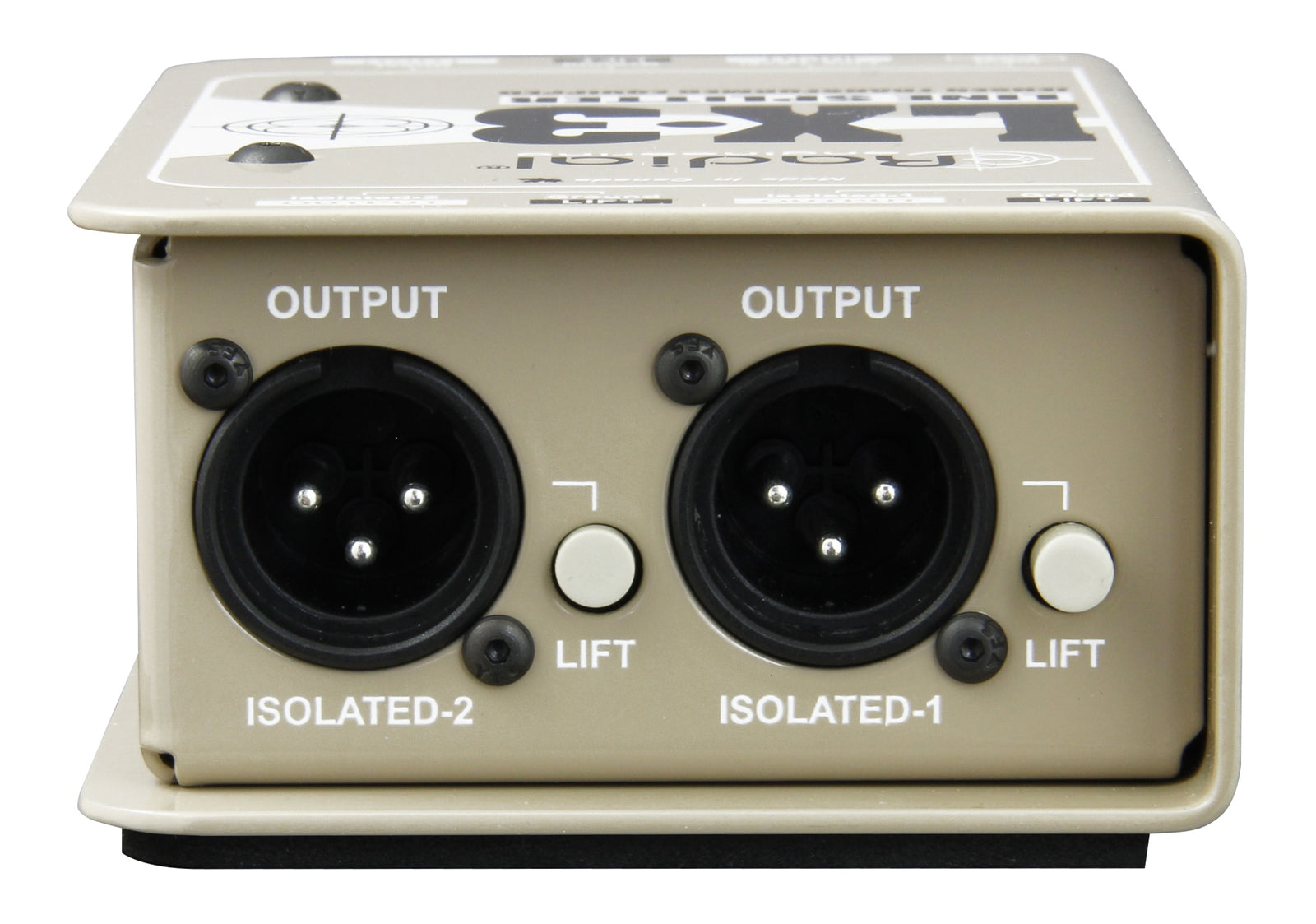

The LX-3 makes use of a premium Jensen transformer to leverage the industry's best combination of frequency response, signal level handling, and low distortion, providing the highest possible signal quality. It features two isolated outputs to eliminate hum and buzz from ground loops, along with a third direct output. All three XLR outputs have ground lift switches for additional noise suppression, and a switchable -12dB input pad allows you to connect even the hottest line outputs without fear of overloading or distortion. The input of the LX-3 is accessed with an XLR/TRS combo jack, which allows you to connect via balanced or unbalanced cables; the LX-3 will automatically balance the signal at the isolated outputs, preventing interference and signal degradation over long cable runs.
LX-3 Applications
Send one mono signal to multiple headphone mixes
Split a click track output to three personal monitor mixers on stage
Split the output of a mic preamp in the studio
Send the output of a single preamp to three different compressors or effects units, opening the door to numerous creative possibilities.
Split a mono console feed to multiple devices
Send production audio or a live board feed to up to three different portable recording devices at once.
Features:
- Send one audio signal to three destinations simultaneously
- Jensen transformer-equipped for exceptional audio quality
- Eliminates hum and buzz caused by ground loops
- Combo jack input for 1/4″ TRS or XLR sources
|
Specifications |
|
|
|
Audio circuit type: |
Passive, transformer based |
|
|
Transformer: |
Jensen JT-123-FLPCH |
|
|
Number of channels: |
1 In, 3 Out |
|
|
Frequency response: |
20Hz - 20kHz +/-0.5dB |
|
|
Dynamic range: |
140dB |
|
|
Gain: |
-1.5dBu |
|
|
Phase Deviation: |
+0.6° @ 20Hz |
|
|
Input Impedance: |
712Ω |
|
|
Output Impedance: |
112Ω |
|
|
Common Mode Rejection Ratio: |
105dB @ 60Hz, 70dB @3kHz |
|
|
Noise Floor: |
-120dBu |
|
|
Maximum Input: |
+20dBu |
|
|
Features |
||
|
Input pad, Ground lift |
||
|
Input Connectors: |
Combo XLR / 1/4" |
|
|
Output Connectors: |
XLR iso and direct |
|
|
General |
||
|
Construction: |
14-gauge steel |
|
|
Size (L x W x D): |
84mm x 127mm x 48mm (3.3" x 5" x 2") |
|
|
Weight: |
0.7kg (1.5lbs) |
|
|
Shipping size (L x W x D): |
102 x 76 x 165mm (4" x 3" x 6.5") |
|
|
Shipping weight: |
0.87 kg (1.92 lbs) |
|
|
Power: |
Passive, no power required |
|
|
Conditions: |
For use in dry locations only between 5°C and 40°C |
|
|
