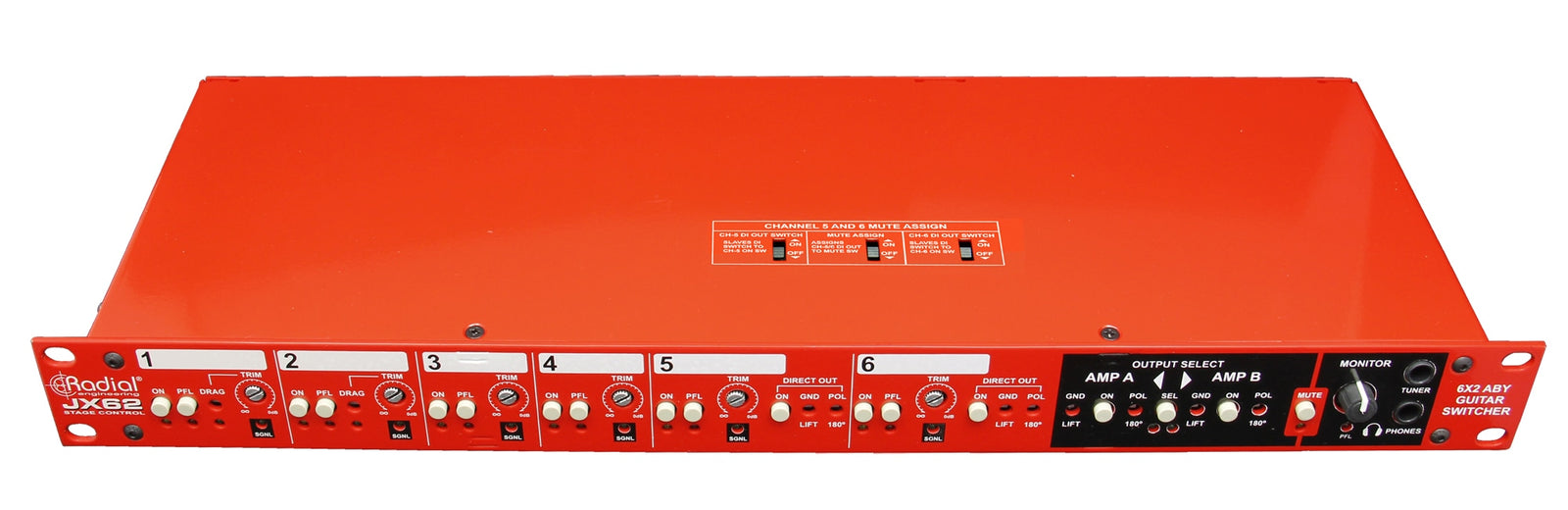

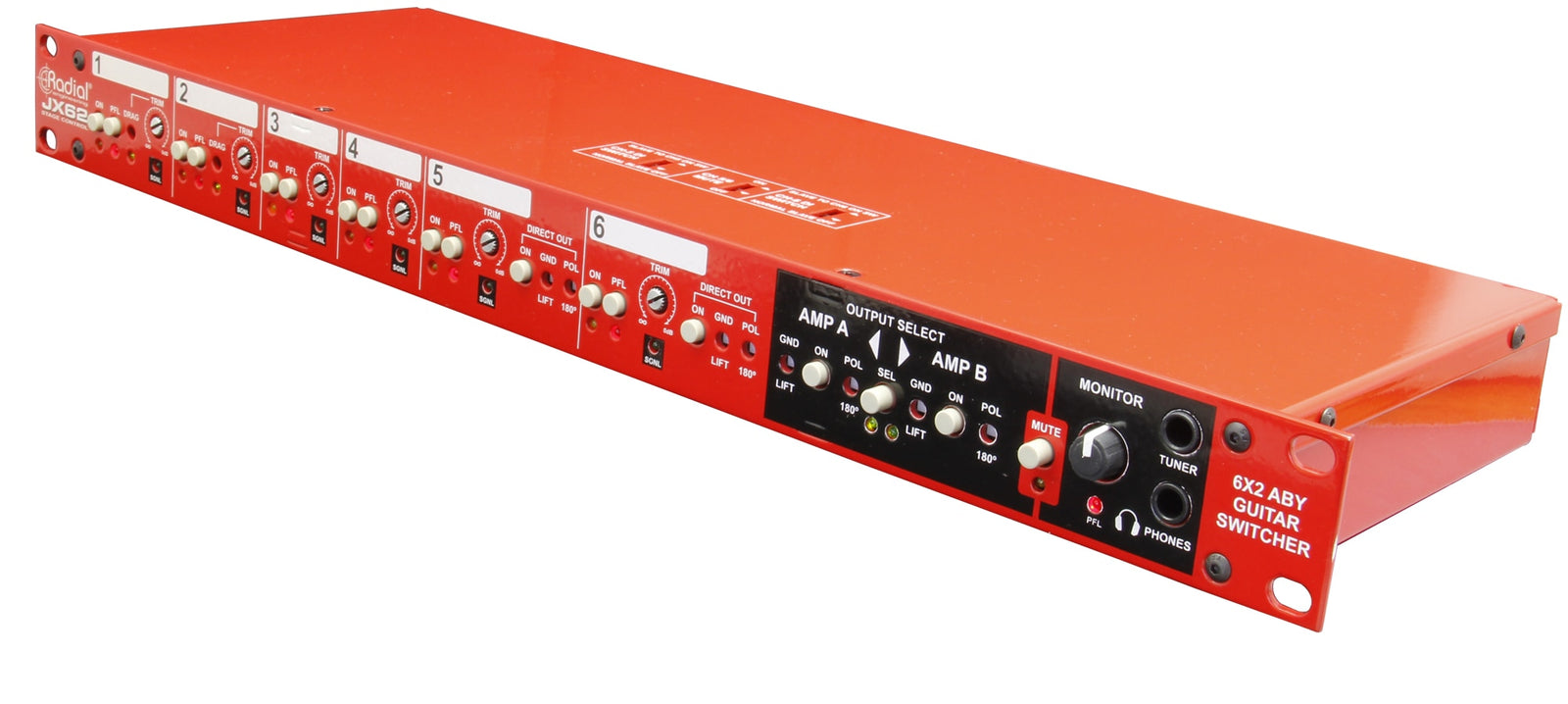

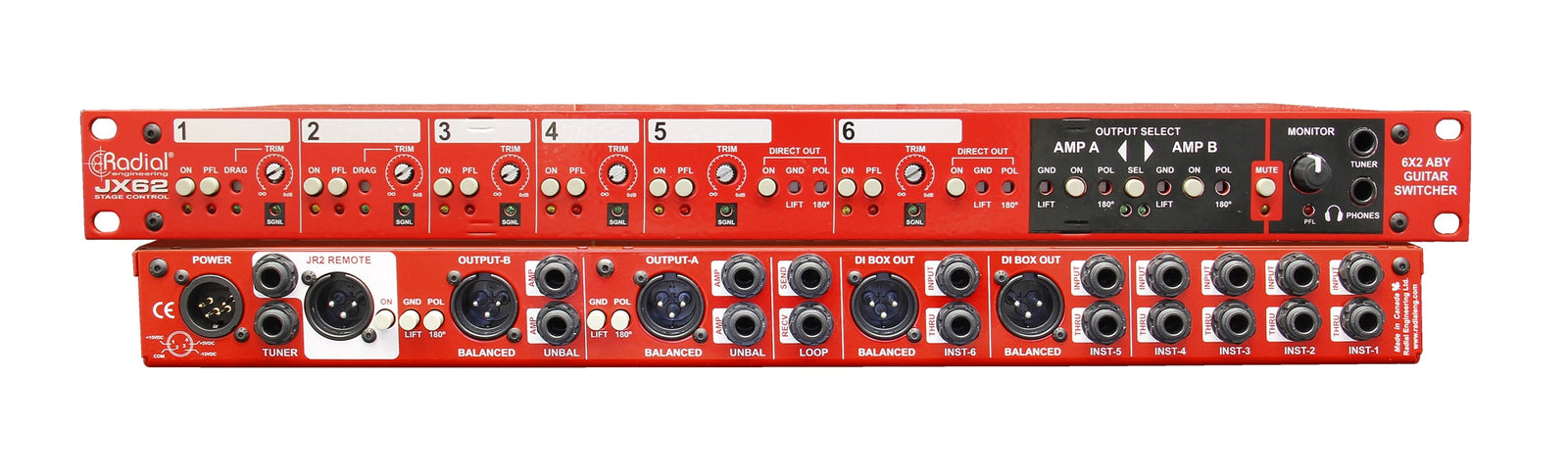

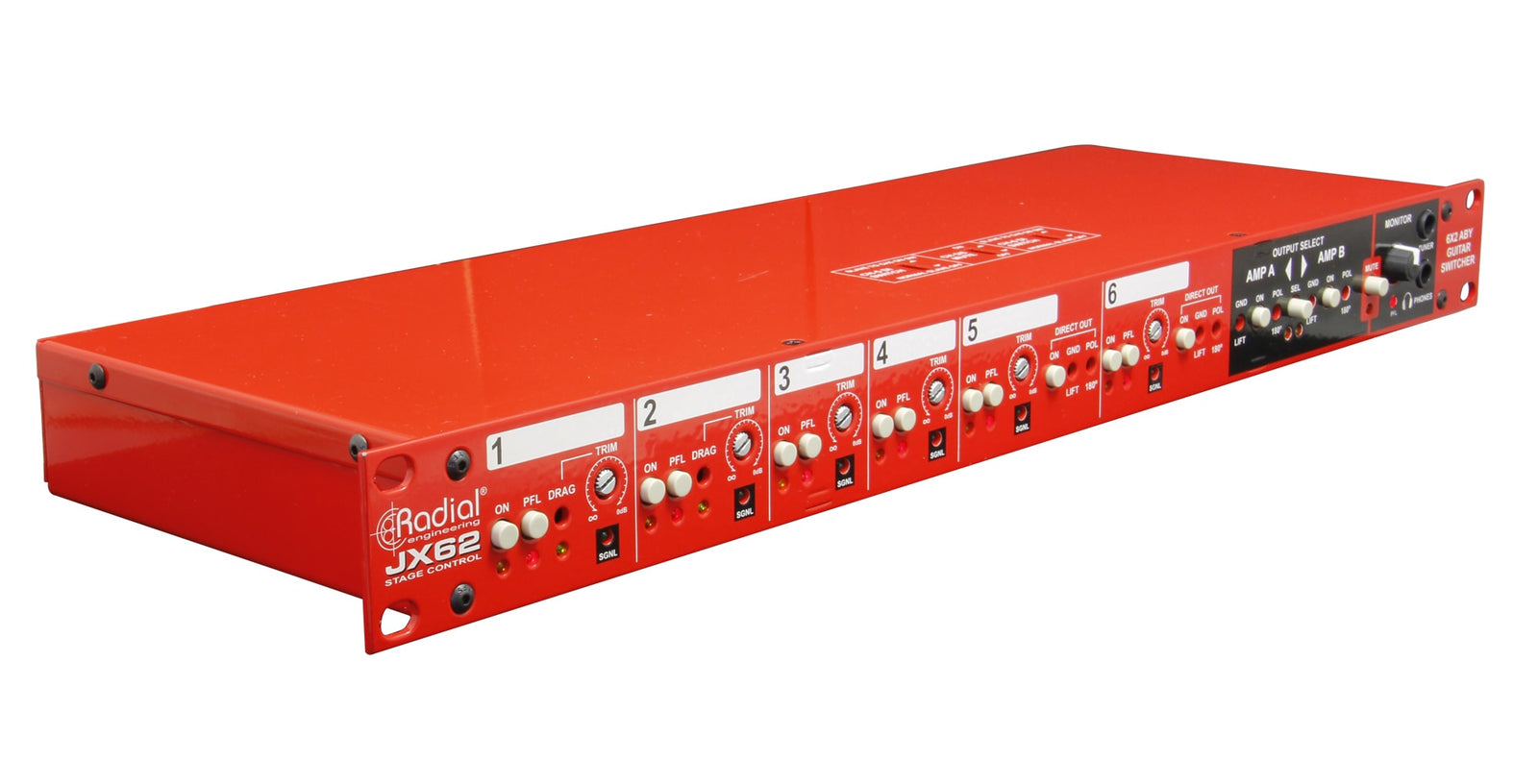

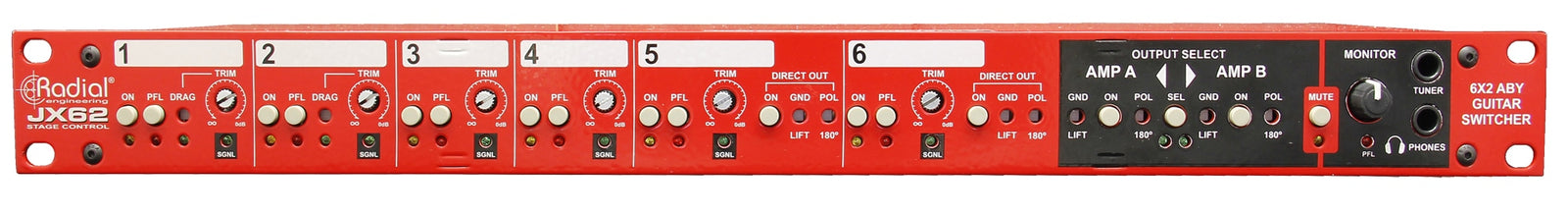

The JX62™ is a guitar and amp switcher designed for both wired and wireless guitars in a live concert touring environment, with the ability to switch between up to six instruments and two amplifiers with ease.
A guitar technician's best friend
The JX62 can help tame even the most complex guitar rigs, routing multiple inputs and outputs while also providing a stage tech with a headphone output and PFL switches to silently tune instruments and monitor any input without disrupting the performance. All six instrument inputs have adjustable trim controls to balance their relative levels, while channels 5 and 6 also feature direct outputs to feed the PA system, eliminating the need for external direct boxes. Dual amplifier outputs can be selected locally or with a remote JR-2 footswitch, with transformer isolation and ground lift switches to ensure noise free operation.
JX62 Applications
Using the JX62 with a guitar rig
The JX62 is the ultimate instrument and amp selector for a busy rock star! Connect four wireless guitars and then switch between two amps using the optional JR2 footswitch. Add a couple of acoustics with direct outs to the PA system.
Using the JX62 with a bass setup
Use the JX62 to switch between your favourite electrics and an upright. Channels 5 and 6 have direct outs to feed the PA system, eliminating the need for external direct boxes. Use the optional JR2 to mute the basses when tuning or switching instruments.
Using the JX62 with a multi-instrumentalist
With six inputs, the JX62 makes it easy to switch between six instruments on stage. Individual trim controls let you match the signals for the perfect balance. Use the direct outs with some Radial DI boxes if you have channels to spare!
Features:
- Select between 6 guitars and 2 amps
- PFL switches and headphone output for system checks
- Two Radial DI outputs for acoustic guitars
- Transformer isolated to eliminate ground loops
The Radial JX62 is an unbalanced guitar selector with a built in ABY amp switcher. Special attention on maintaining the signal integrity by way of class-A buffers and carefully chosen transformers has been applied throughout the design. Minimising noise, hum and buzz is also a top priority, as is presenting the user with a logical and straight forward user interface.
Specifications
|
Audio circuit type: |
Class-A buffers with optical switching |
|
|
Transformer: |
Eclipse ET-DB2 & Jensen JT-11-YMPC |
|
|
Number of channels: |
6 guitars 2 amps |
|
|
Frequency response: |
20Hz ~ 20kHz (± 1dB) |
|
|
Dynamic range: |
120dB |
|
|
Clip Level: |
Channel Output :+22dBu Headphone: 5V RMS |
|
|
Total harmonic distortion: |
0.007% |
|
|
Intermodulation Distortion: |
0.027% |
|
|
Phase Deviation: |
<10° @ 50Hz |
|
|
Input Impedance: |
Variable from 22K Ohm to 1M Ohm |
|
|
Output Impedance: |
XLR outputs - 680 Ohms |
|
|
Equivalent Input Noise: |
-94.7dBu |
|
|
Noise Floor: |
-89.7dBu |
|
|
Maximum Input: |
+18dBu |
|
|
Features |
||
|
180° polarity reverse, Ground lift, Drag Control, Level Control, Effects Loop, Remote Footswitch |
||
|
Input Connectors: |
6 x 1/4" inputs |
|
|

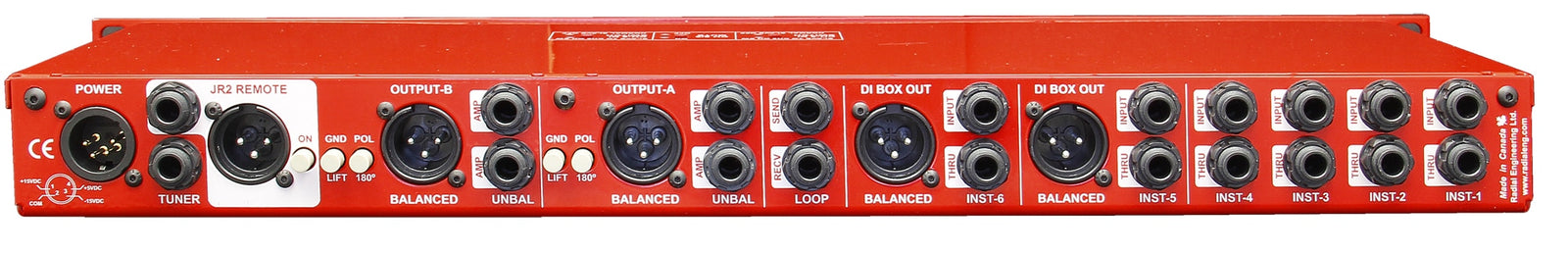

Output Connectors: |
6 x 1/4" thru, 4 x 1/4" amplifier outputs, 4 x XLR balanced |
|
|
Extras: |
2 x tuner outputs, Effects Loop, Optional JR-2 remote |
|
|
General |
||
|
Construction: |
14 gauge steel chassis & outer shell |
|
|
Size (L x W x D): |
17.5" x 6" x 1.75" (44.5cm x 15.25cm x 1.75cm) |
|
|
Weight: |
6.95lb (3.2kg) |
|
|
Shipping size (L x W x D): |
22" x 10.375" x 4.5" (55.9cm x 26.4cm x 11.4cm) |
|
|
Shipping weight: |
9.2lb (4.2kg) |
|
|
Power: |
External supply 500mA with XLR-4 connector |
|
|
Conditions: |
For use in dry locations only between 5°C and 40°C |
|
|
Warranty: |
||
