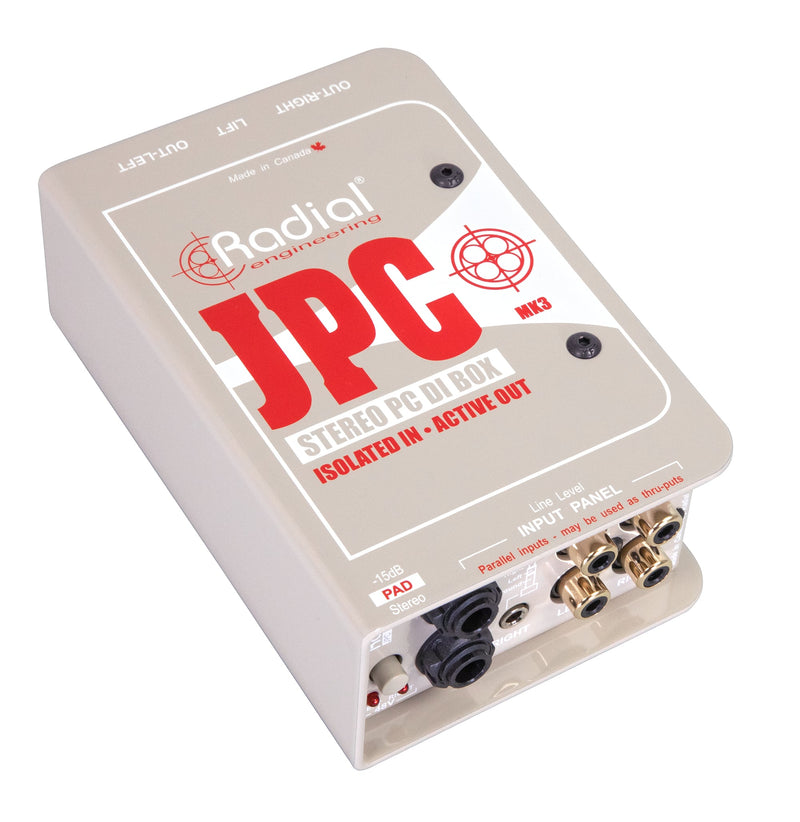

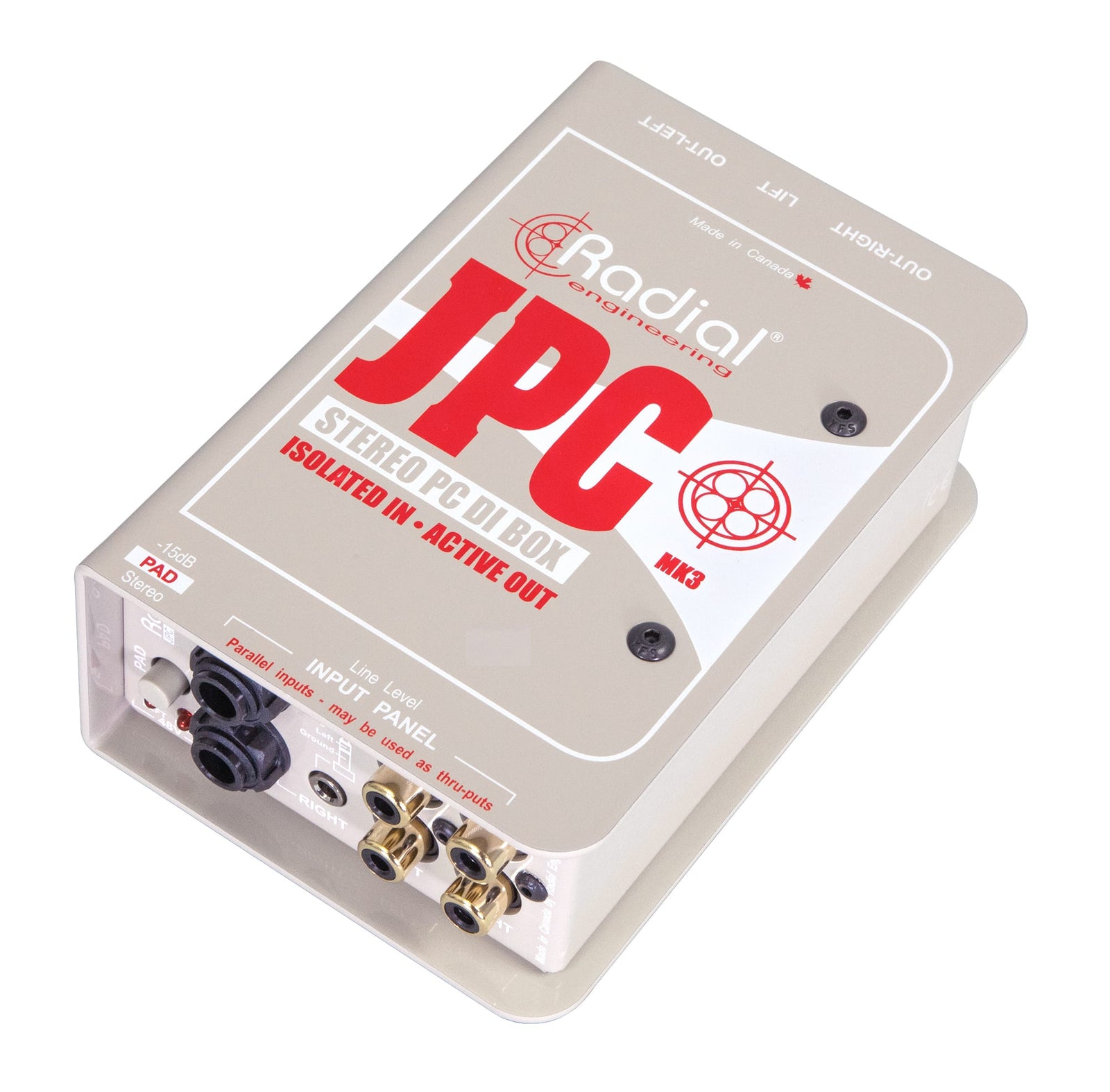

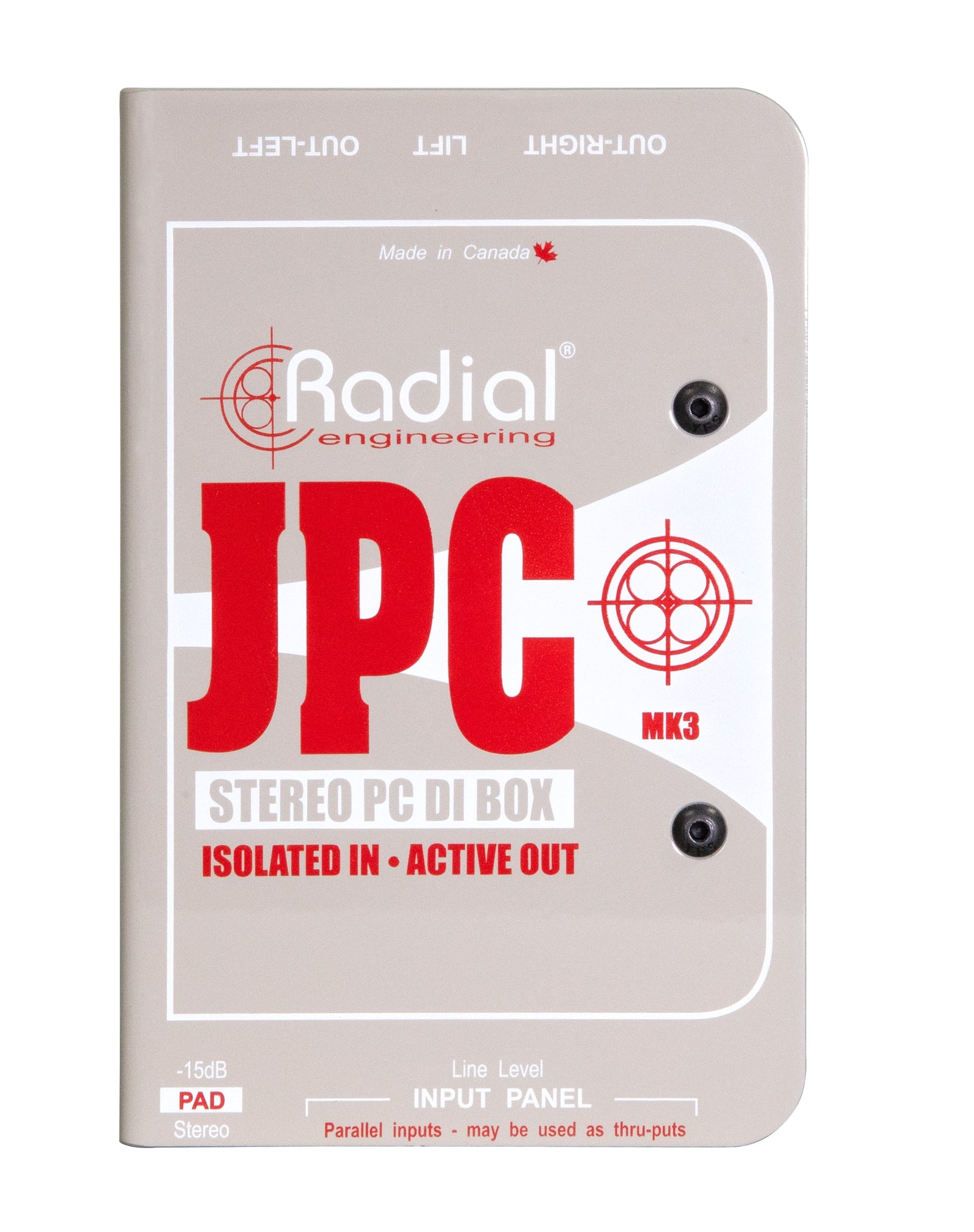

Radial Engineering JPC Active Direct Box for Laptop Computers

The JPC is an analog stereo interface designed to help solve the hum and buzz problems commonly associated with connecting a computer or consumer playback device to an audio system.

Hybrid circuit for low noise

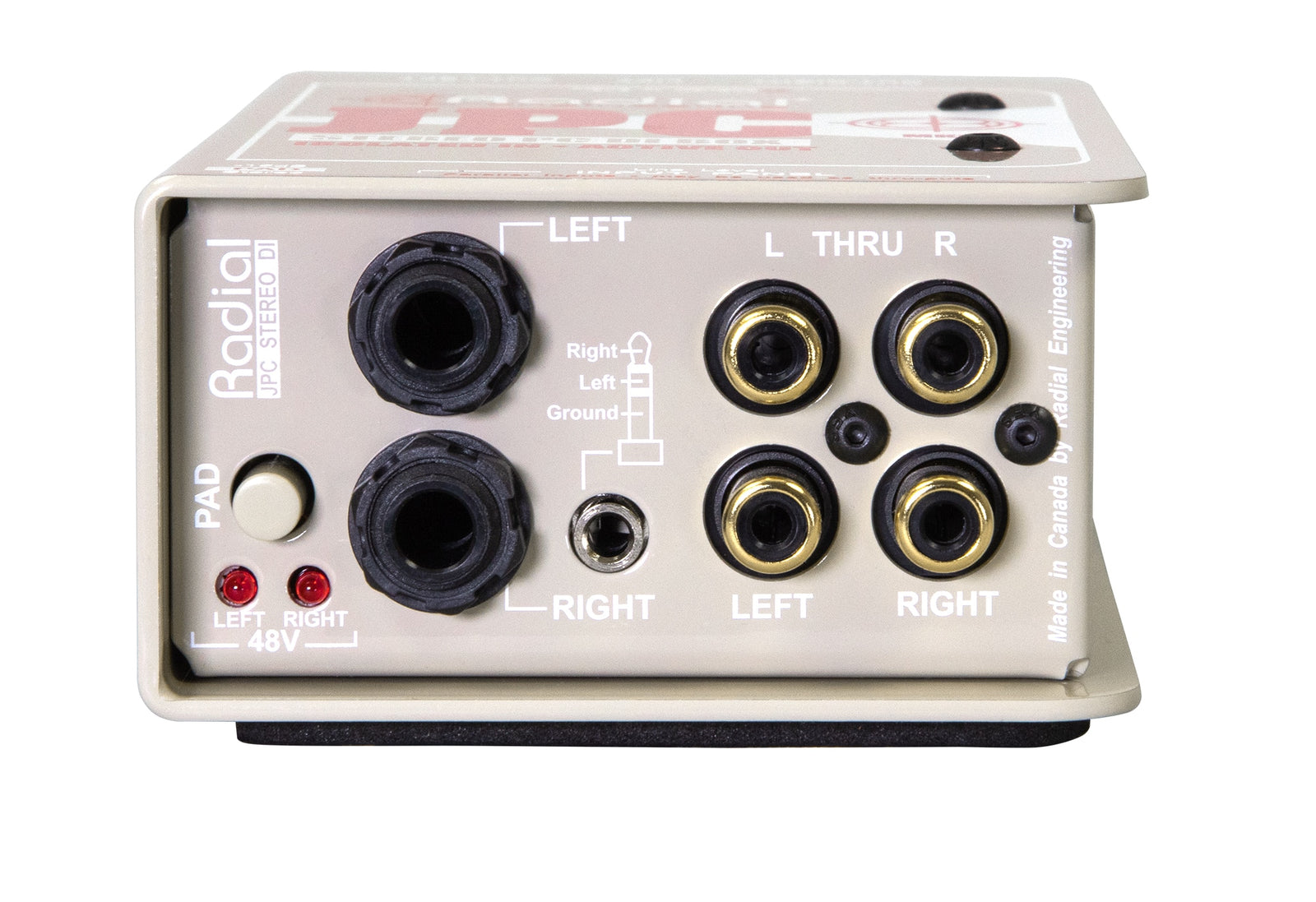

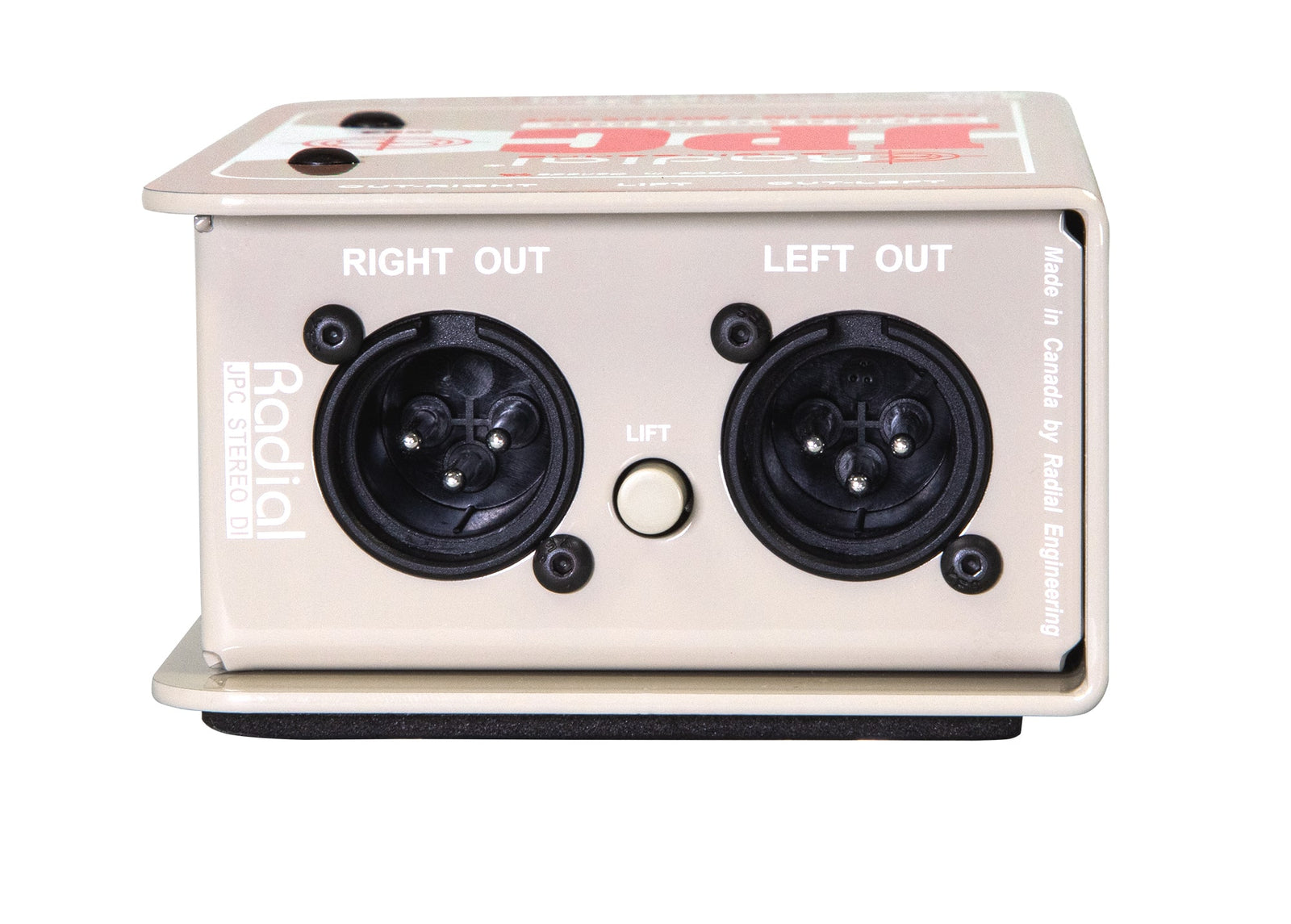

The JPC is a stereo direct box that is easy to use with practically any consumer electronic device. It utilizes active buffers and transformer isolation to create a hybrid circuit that blocks ground loops and reduces system noise, along with AC blocking capacitors to prevent any audio system noise from bleeding back into the computer. The choice of ¼", RCA and 3.5mm input connectors make it easy to interface with all types of unbalanced audio sources such as computers, smartphones, and tablets, and the outputs are XLR balanced mic level to feed snake systems and PAs. Powering the JPC is accomplished via 48V phantom from a mixing console, allowing the JPC to be used in concert environments without requiring an external power supply.

JPC Applications

Using the JPC with a computer

Computers are often the cause of noise in the PA system. The JPC's combination of transformer isolation with an active drive circuit helps reduce noise by eliminating stray currents.

Using the JPC with a DJ setup

The JPC is well suited to handle the type of audio generated by CDs and digital audio files. By isolating the the source with the PA system you also eliminate noisy ground loops.

Using the JPC with a Phone

The JPC's 3.5mm (1/8") TRS jack makes it easy to interface portable playback devices. This makes it easy to bring unbalanced audio tracks into the PA system via the balanced mic input of a console.

Features:

• Easy to use stereo interface for laptop computers
• Active signal path with transformer isolation
• Eliminates hum and buzz common to PCs
• Multiple connector types for any audio source
