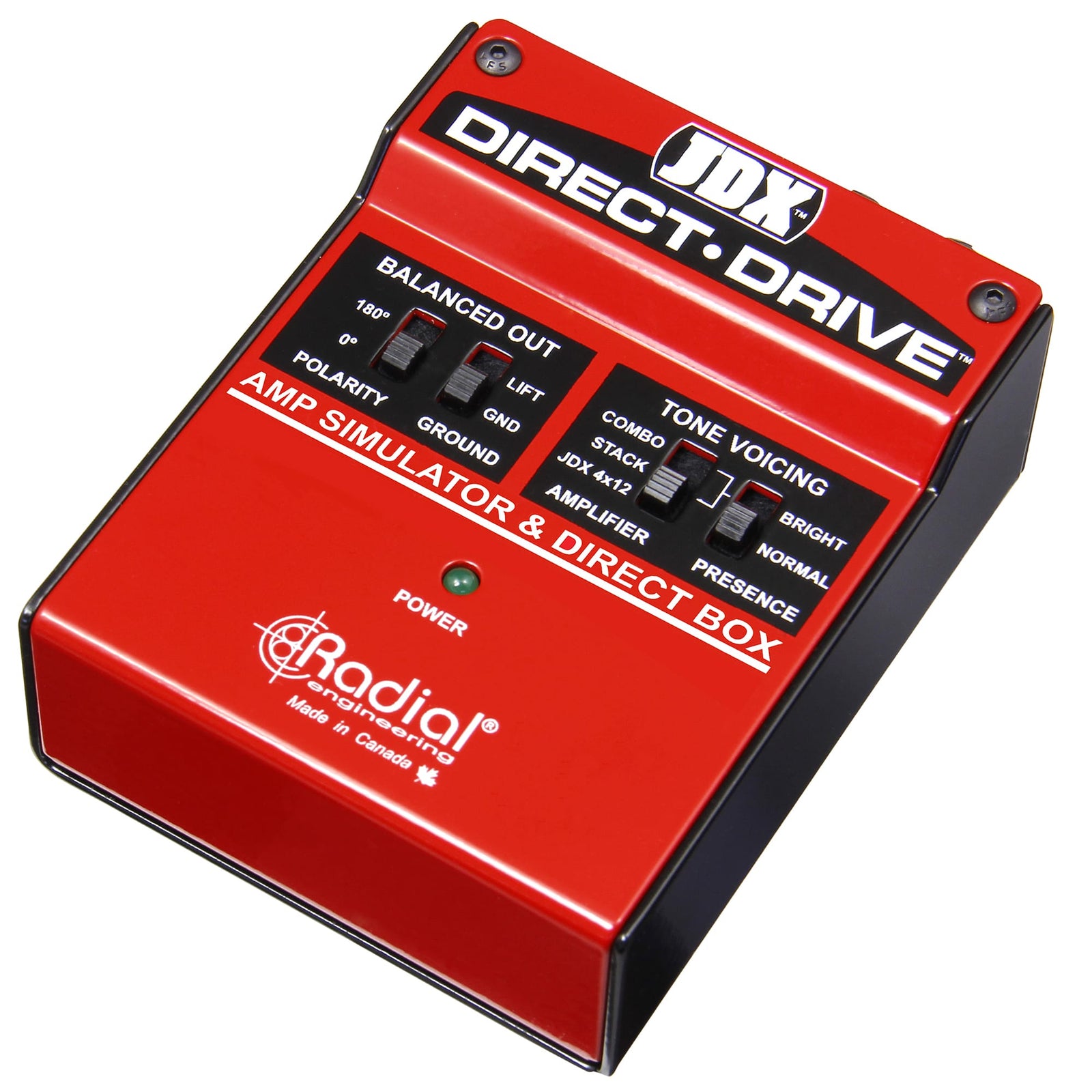

The JDX Direct-Drive is a unique and powerful device that emulates the sound of a guitar amplifier while doubling as a direct box, providing a realistic amp sound that allows you to play a gig without needing an amp on stage.
Classic amp tones in a compact pedal

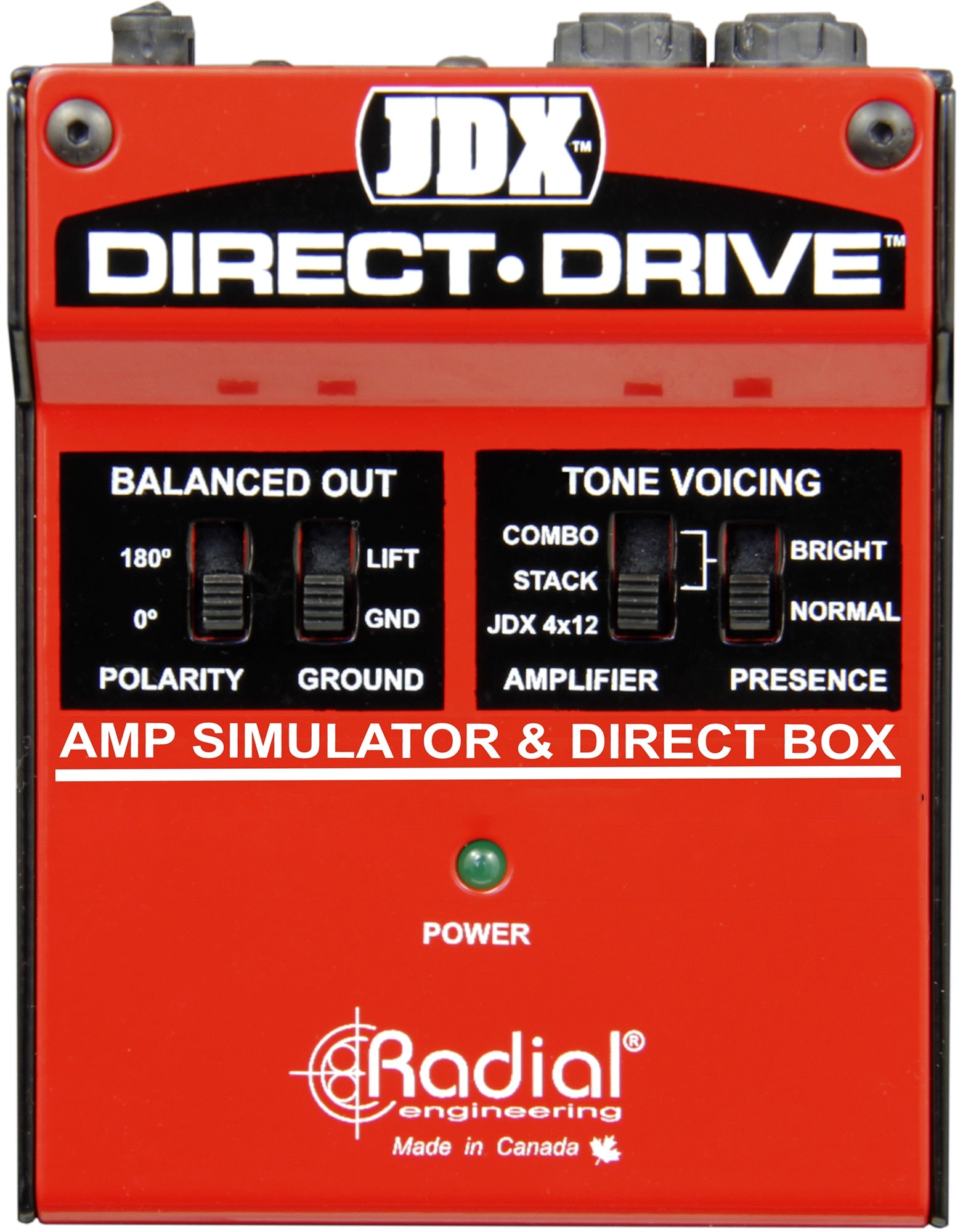

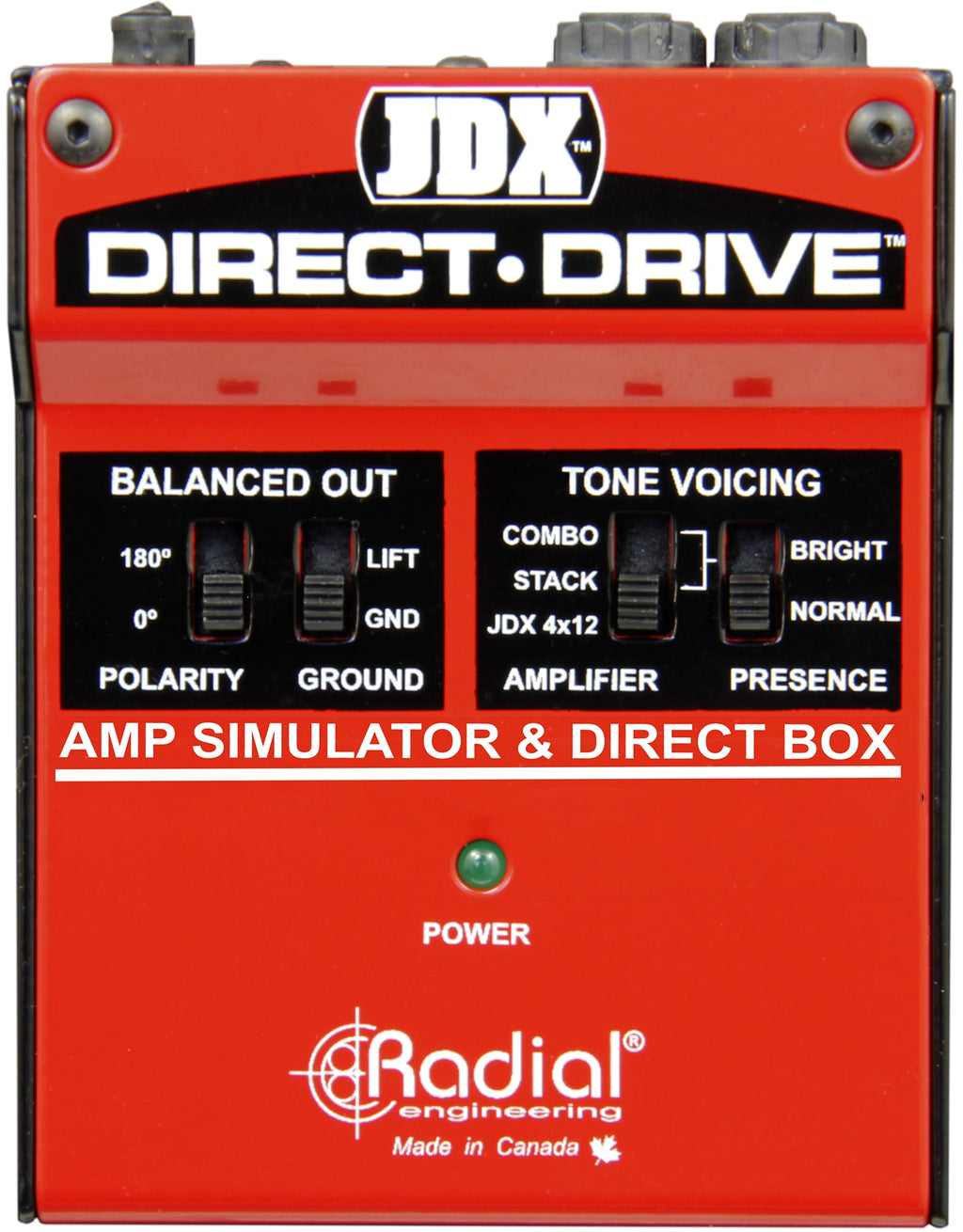

The Direct-Drive is an amp simulator designed for your pedalboard, providing a realistic amp tone that can be connected directly to the PA system. Three amplifier voicing options are provided: the first is the popular JDX tone which simulates the sound of an dynamic microphone on a 4x12 cabinet. The second setting is similar in character to a British tube head amplifier, while the remaining tone is modeled after a clean twin combo amp. With three classic voicings available, the Direct-Drive provides a natural amp tone through the PA system and consistency from night to night.
JDX Direct-Drive Applications
Using the Direct-Drive without an amp
Connect your pedals to the Direct-Drive and enjoy the natural tone of a guitar amp using the PA system or monitors instead of an amp. Select between three voice settings to find the one that works best.
Using the Direct-Drive with your amp
Use the Direct-Drive at the output of your pedalboard to feed your amp and the PA at the same time. This allows the engineer to mix the two signals to get the best tone out of the PA system.
Using the Direct-Drive for silent recording
With the Direct-Drive as your amp, quietly record your guitar directly from your pedalboard. Use the ¼" output to feed an effects processor and mix to create amazing tonal textures.
Features:
- Guitar amp simulator for pedalboards
- Eliminates need to bring an amp to the gig
- 4 x 12 half-stack & open back combo tones
- Employs Radial’s popular JDX tone shaping
|
Specifications |
|
|
|
Audio circuit type: |
Class-A BiFET input buffer with electronic frequency shaping circuitry |
|
|
Frequency response: |
Shaped for guitar use |
|
|
Dynamic range: |
83dB to 100dB |
|
|
Clip Level: |
> +5dBu |
|
|
Intermodulation Distortion: |
>0.1 @ -15dBu Out |
|
|
Output Impedance: |
600 Ohms (XLR) 100 Ohms (1/4") |
|
|
Noise: |
-78dBU |
|
|
Maximum Input: |
> +5dBu |
|
|
Features |
||
|
180° polarity reverse, Ground lift, Speaker filter |
||
|

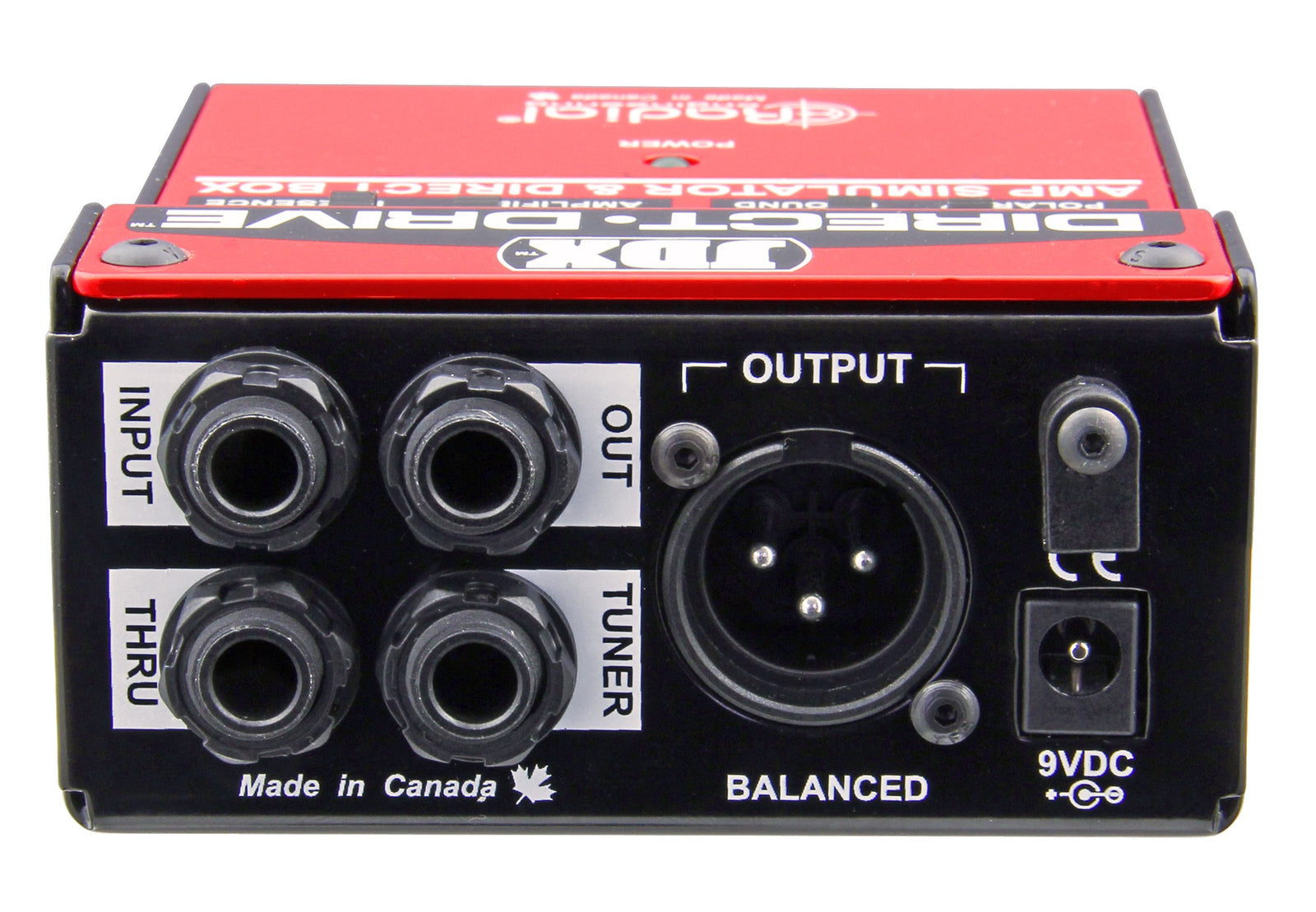

Input Connectors: |
1/4" |
|
|
Output Connectors: |
1/4" thru and amp tone output, XLR |
|
|
Extras: |
Always on Tuner Output |
|
|
General |
||
|
Construction: |
14-gauge steel chassis and outer shell |
|
|
Size (L x W x D): |
4.75" x 3.625" x 2" (121 x 92 x 51mm) |
|
|
Shipping weight: |
1.6 lbs. (.7 kg) |
|
|
Power: |
40mA, 9VDC (center pin negative) |
|
|
Conditions: |
For use in dry locations only between 5°C and 40°C |
|
|
