Radial Engineering JD7 Injector Guitar Distro & Splitter

Radial EngineeringSKU: R800 7000 00

Price:
Sale price €1,699.00

The JD7™ is a guitar signal splitter that is able to drive as many as seven amplifiers at the same time without introducing noise, signal loss, or hum and buzz from ground loops.

Natural tone, quiet operation

The JD7 allows you to feed up to seven amplifiers simultaneously, with premium Jensen transformers on the outputs that ensure distortion-free signal transfer while blocking hum and buzz from ground loops. To help retain the natural tone of your instrument, Drag control load correction is also featured on the input so you won't lose the tone and feel of connecting your guitar directly to an amplifier.

Record direct and Reamp® through multiple amps

The JD7 has a built-in Radial DI box, so you can take a clean guitar track directly to your recording interface while simultaneously playing through multiple amplifiers. A Reamp® input allows you to send your recorded guitar track from your recording device back through any or all of your amps, so you can focus on the performance and have the freedom to tweak your amps and microphones later on.

JD7 Applications

Using the JD7 as a splitter

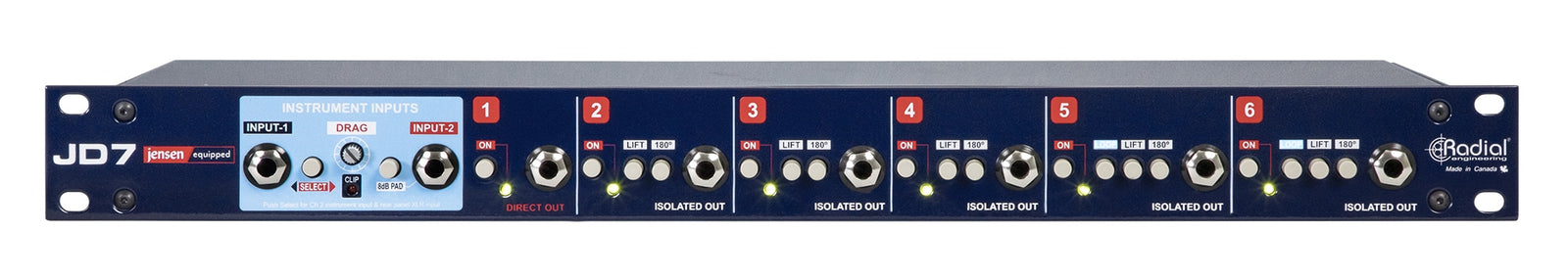

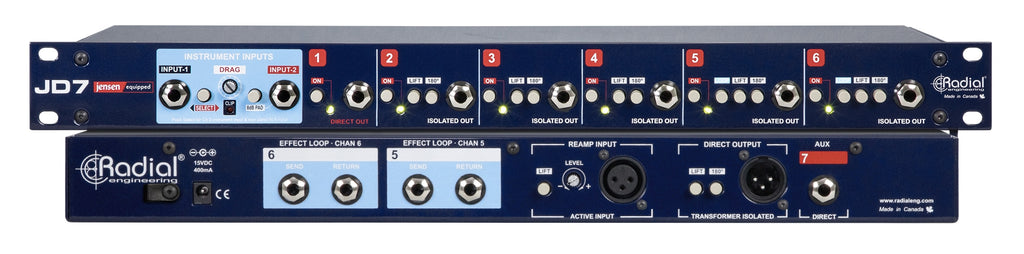

The JD7 is equipped with A or B inputs and 6 guitar outs on the front panel plus a tuner out on the rear. Use ch-1 with a properly grounded amp, then add as many as you like. All outputs are isolated to eliminate hum and buzz.

Using the JD7 for Reamping

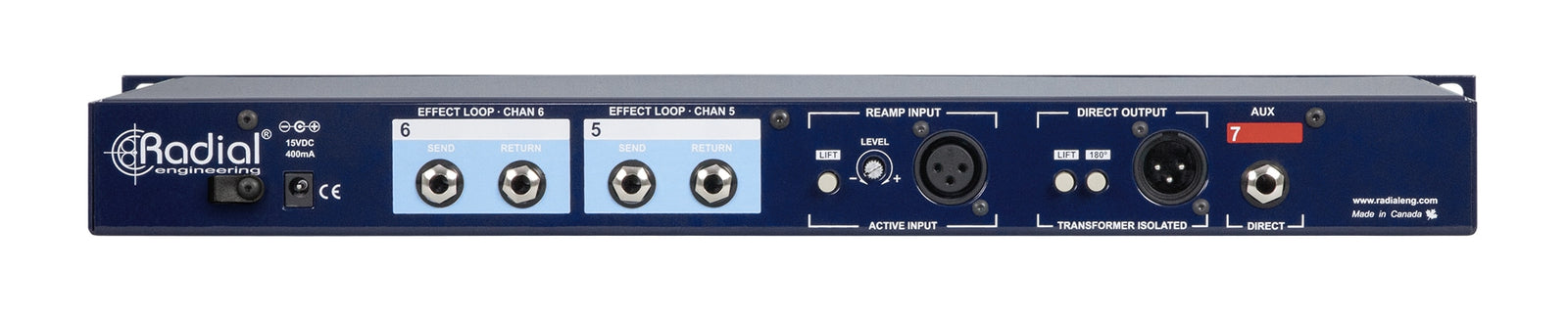

Start by recording a dry track using the JD7's DI output. Then send the clean track back to the Radial JD7's rear panel XLR input. Adjust the level and you are now set to drive as many amps as you need. Move the mics, change the tone settings.

Using the JD7 with effects

A great way to quiet down noisy guitars is to run all your signals through the JD7. The high performance class-A buffers and Jensen transformer isolated outputs are truly amazing! Channels 5 and 6 are also equipped with effects loops.

Features:

  • Drive up to 7 amplifiers and 2 effects loops at the same time
  • Jensen transformer isolation eliminates hum and buzz
  • Built-in Radial Direct box and Reamp® capabilities
  • Drag control load correction for natural tone

Specifications



Audio circuit type:

100% discrete class-A with transformer isolation

Frequency Response:

20Hz ~ 20kHz (± 1dB)

Signal to Noise Ratio:

-115dB (0dBu input)

Dynamic Range:

125dB (unbalanced input to unbalanced output)

Noise Floor:

-115dBu (direct output-1)



-115dBu (isolated outputs)

Maximum Input:

+13dBu (unbalanced ¼" instrument inputs-A & B)



+23dBu (balanced line-level reamping input)

Total Harmonic Distortion:

0.05% @ 1k (direct output-1)



0.05% @ 1k (isolated outputs)



0.1% @ 1k (balanced DI mic-level output)

Intermodulation Distortion:

0.2% @ -20dBu

Input Impedance:

Variable from 10k Ohms ~ 1megaOhm

Output Impedance:

¼" unbalanced: 10k Ohms; XLR balanced: 150 Ohms

Features



Input Select:

A or B selectable inputs

Input Pad:

-8dB (input B)

Phase Reverse:

180° polarity reverse (isolated outputs)

XLR Output:

Transformer isolated DI out with phase rev. & gnd lift

XLR Input:

Balanced line-level Reamp input with gnd lift

Ground Lift:

Isolated channels 2 thru 6; Bal XLR I/O

XLR Configuration:

AES standard (pin-2 hot)

General



Power:

+15VDC/400mA adapter included

Construction:

14 gauge steel chassis & outer shell

Finish:

Durable powder coat

Size (L x W x H):

17.5" x 6" x 1.75" (44.5cm x 15.25cm x 4.45cm)

Weight:

7.5lb (3.4 kg)

Shipping Size (L x W x H):

22" x 10.375" x 4.5" (55.9cm x 26.4cm x 11.4cm)

Shipping Weight

8lb (3.63kg)

Conditions:

For use in dry locations only between 5°C and 40°C



Specifications are subject to change without notice.
