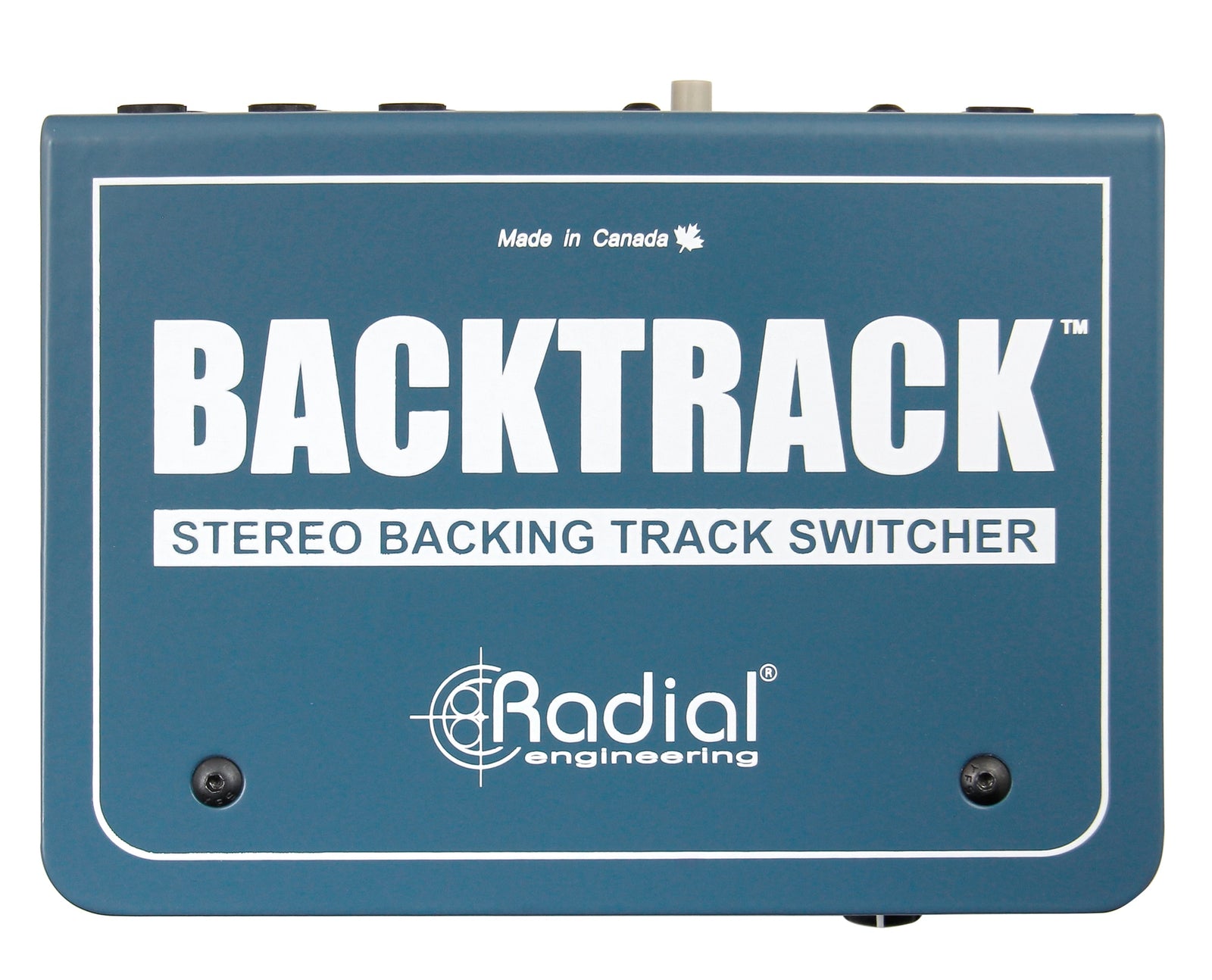

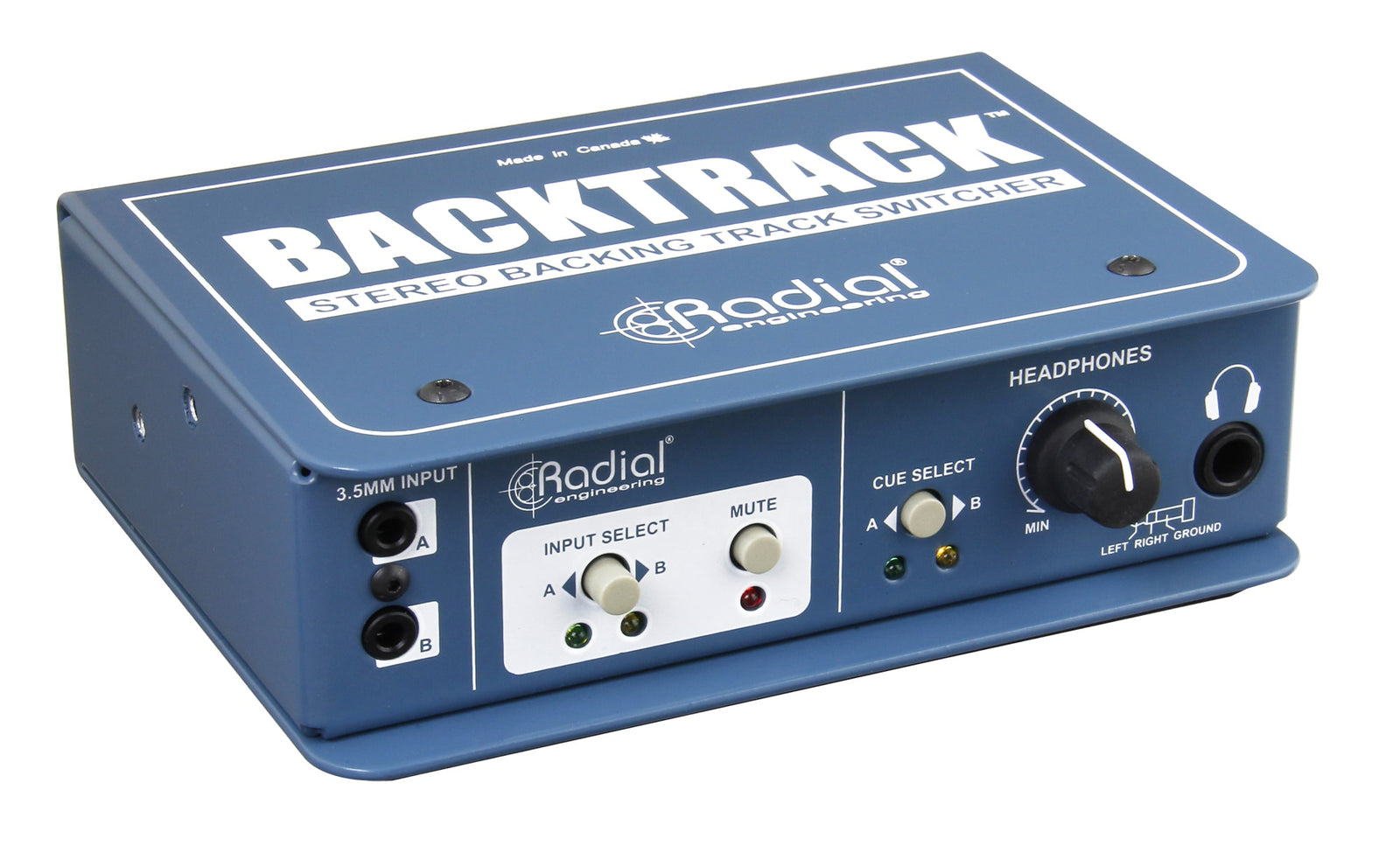

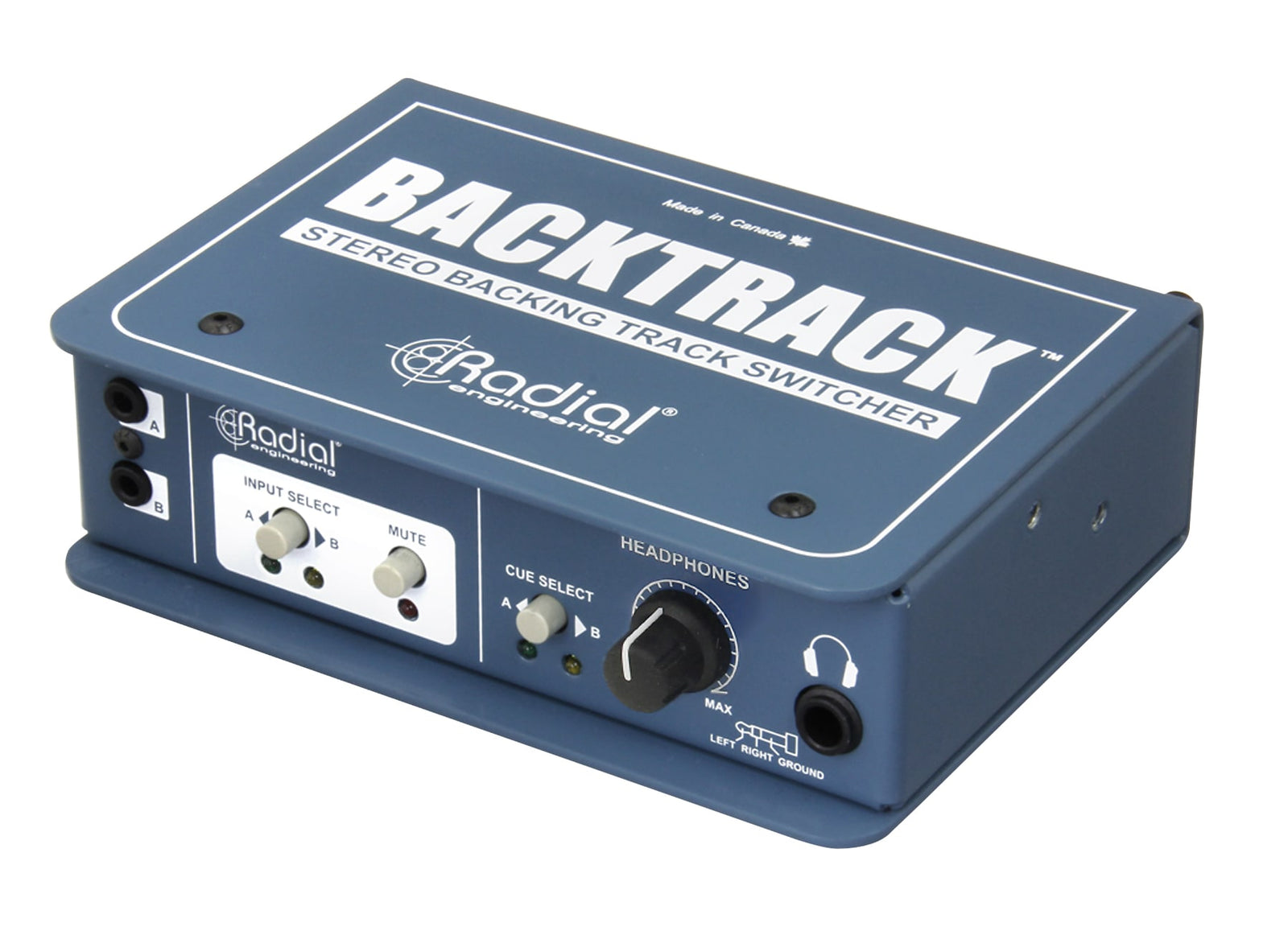

The Backtrack is a compact stereo audio switcher, perfect for bands running redundant backing tracks on stage or switching between any stereo audio sources.
Protect against playback failure
For any performance that incorporates backing tracks or other pre-recorded elements, reliability is crucial to ensuring a smooth performance. Unfortunately, smartphone batteries die, laptops freeze up, and Murphy's Law will always apply. The Backtrack creates a redundant system to ensure that you can instantly switch over to a backup device should any problems arise with your primary playback source. This can be accomplished easily with the push of a button on the Backtrack or via a remote JR-2 footswitch, giving you peace of mind and freeing you up to focus on your performance without worry.
Backtrack Applications
Switch backing track sources remotely
Use the JR-2 footswitch to mute or switch between playback sources. Monitor on stage with a powered speaker while simultaneously sending signal to the house PA system.

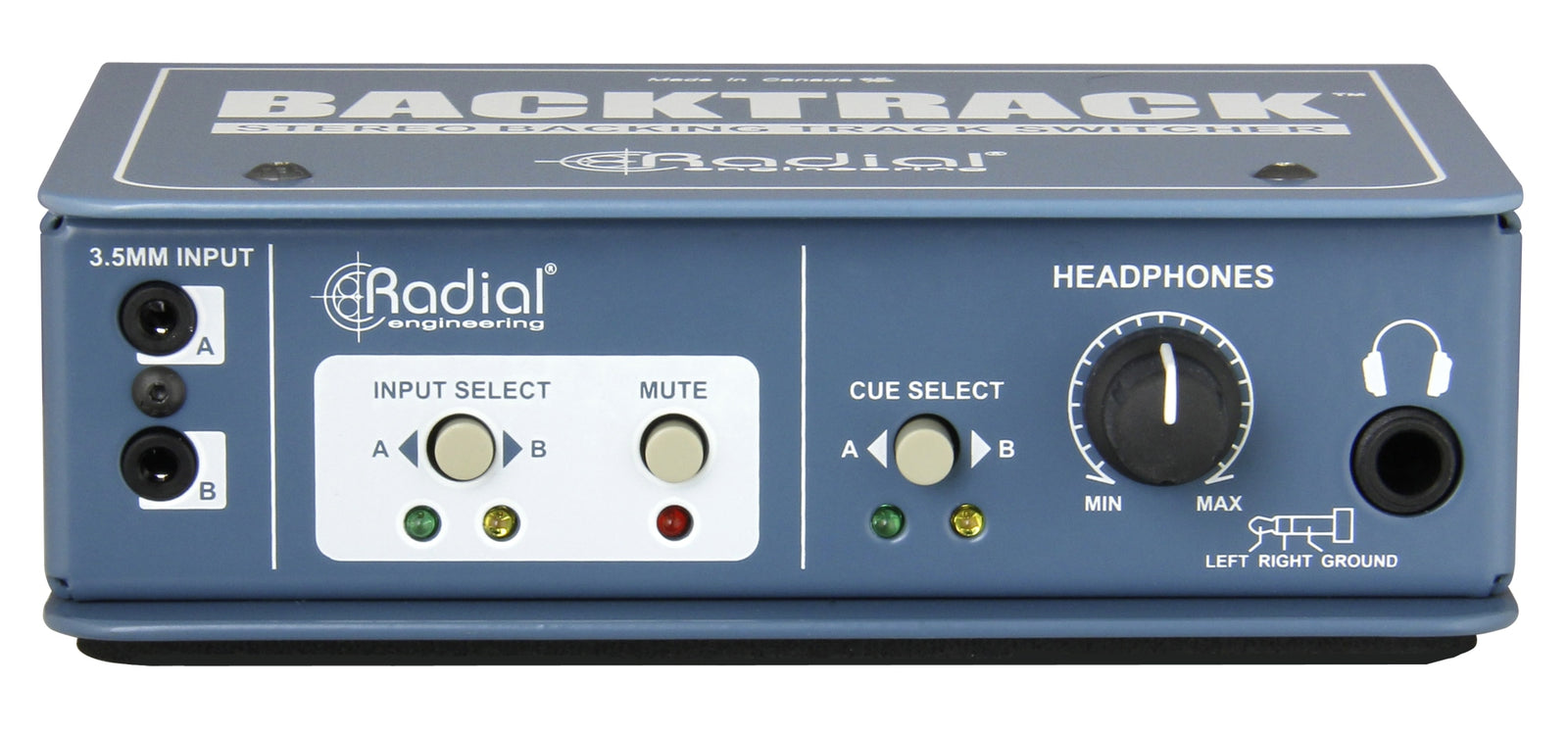

Use the headphone output to cue up tracks
The headphone output can listen to either input without switching the feed to the PA, allowing you to cue the next track and monitor silently on headphones.
Switch between redundant amp modelling systems
Take the balanced or unbalanced line-level outputs of two stereo amp modelling devices into the Backtrack; it will automatically balance the signal at the XLR outputs to the PA. Should one amp simulator go down, use the JR-2 to easily switch to the backup unit.
Features:
- Switch between two stereo backing track sources on stage
- Easily connect playback devices with ¼” and 3.5mm TRS jacks
- Headphone output for silently cueing up tracks
- Transformer isolated main outputs eliminate hum and buzz
|
Specifications |
|
|
|
Audio circuit type: |
Passive Audio Circuit with Active Headphone Amplifier |
|
|
Number of channels: |
2 |
|
|
Frequency response: |
20Hz - 20kHz (-0.5dB/+0.5dB) |
|
|
Dynamic range: |
>+130dBu |
|
|
Total harmonic distortion: |
0.007% @ 0dBu, 1kHz |
|
|
Intermodulation Distortion: |
0.02% @ 0dBu, 1kHz |
|
|
Common Mode Rejection Ratio: |
34dBu @ 60Hz, 42dBu @ 3kHz |
|
|
Noise Floor: |
-105dBu |
|
|
Maximum Input: |
>+25dBu |
|
|
Features |
||
|
Ground lift, Headphone |
||
|

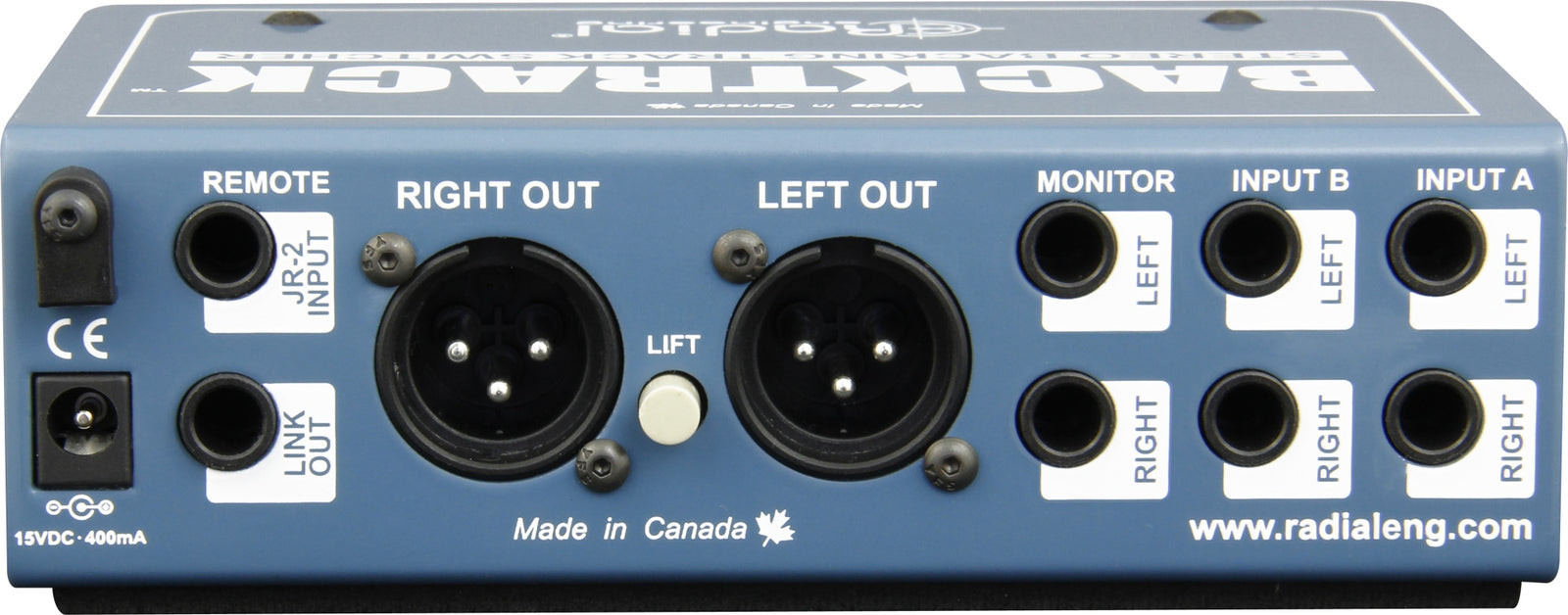

Input Connectors: |
1/4" TRS, 3.5mm, RCA |
|
|
Output Connectors: |
XLR, 1/4" TRS |
|
|
Extras: |
Headphone output |
|
|
General |
||
|
Construction: |
14-gauge steel chassis |
|
|
Size (L x W x D): |
4.6" x 5.9" x 1.9" (11.7 x 15 x 4.8cm) |
|
|
Weight: |
2.2 lb (1kg) |
|
|
Shipping size (L x W x D): |
11.7" x 4.75" x 2.5" (29.7 x 12 x 6.4cm) |
|
|
Shipping weight: |
3.25 lb (1.5kg) |
|
|
Power: |
15VDC 100mA |
|
|
Conditions: |
For use in dry locations only between 5°C and 40°C |
|
|
